>ALOS Data Take Simulation(Apr. 01, 2010)

Observation Area

PRISM

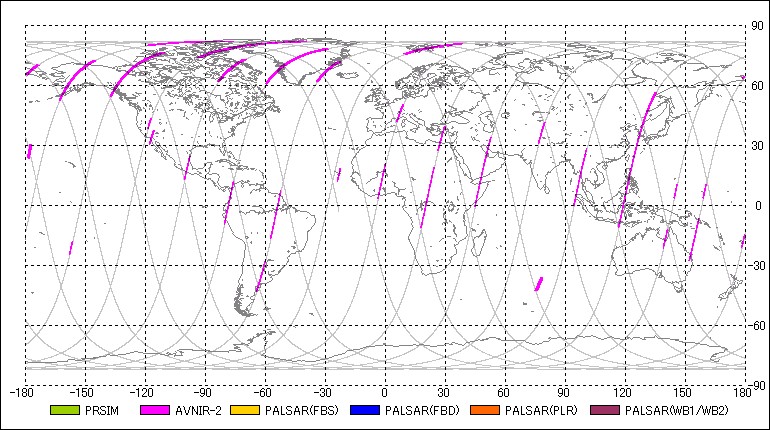

AVNIR-2

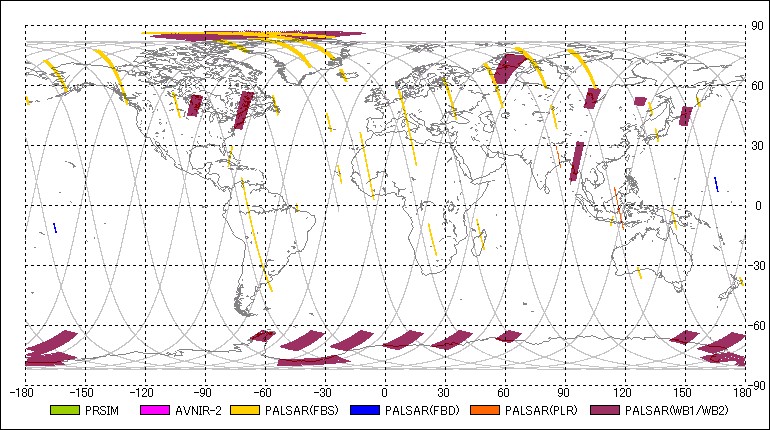

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-04-01 00:03:15	2010-04-01 00:06:21	00:03:06	45	8.81	45	20.12	34.30	7
2	PSR	FBS	2010-04-01 00:10:26	2010-04-01 00:13:32	00:03:06	45	35.01	45	46.31	34.30	7
3	PSR	FBS	2010-04-01 00:19:21	2010-04-01 00:25:43	00:06:22	45	67.59	45	90.80	34.30	7
4	PSR	WB1	2010-04-01 00:36:16	2010-04-01 00:39:28	00:03:12	45	129.22	45	140.89	27.10	80
5	AV2	OBS	2010-04-01 00:47:19	2010-04-01 00:49:11	00:01:52	45	169.51	45	176.32	0.00	-
6	AV2	OBS	2010-04-01 00:53:34	2010-04-01 00:56:06	00:02:32	45	192.30	45	201.54	0.00	-
7	PSM	OB2	2010-04-01 00:56:34	2010-04-01 01:01:22	00:04:48	45	203.24	45	220.75	0.00	-
8	PSR	FBS	2010-04-01 01:38:01	2010-04-01 01:39:53	00:01:52	45	354.46	91	1.28	34.30	7
9	PSR	FBS	2010-04-01 01:51:23	2010-04-01 01:54:47	00:03:24	91	43.21	91	55.61	34.30	7
10	PSR	FBS	2010-04-01 02:00:15	2010-04-01 02:03:21	00:03:06	91	75.49	91	86.79	34.30	7
11	AV2	OBS	2010-04-01 02:13:13	2010-04-01 02:32:01	00:18:48	91	122.77	91	191.33	0.00	-
12	PSM	OB2	2010-04-01 02:13:13	2010-04-01 02:32:57	00:19:44	91	122.77	91	194.74	0.00	-
13	PSR	WB1	2010-04-01 02:13:43	2010-04-01 02:15:23	00:01:40	91	124.60	91	130.67	27.10	80
14	PSR	FBS	2010-04-01 02:30:07	2010-04-01 02:31:59	00:01:52	91	184.40	91	191.21	34.30	7
15	PSR	FBS	2010-04-01 03:05:36	2010-04-01 03:22:08	00:16:32	91	313.80	137	14.10	34.30	7
16	PSR	WB1	2010-04-01 03:51:09	2010-04-01 03:54:31	00:03:22	137	119.92	137	132.19	27.10	80
17	PSM	OB2	2010-04-01 03:53:18	2010-04-01 04:07:50	00:14:32	137	127.76	137	180.76	0.00	-
18	PSR	WB1	2010-04-01 03:58:35	2010-04-01 04:04:27	00:05:52	137	147.02	137	168.42	27.10	80
19	AV2	OBS	2010-04-01 03:59:43	2010-04-01 04:07:35	00:07:52	137	151.16	137	179.85	0.00	-
20	AV2	OBS	2010-04-01 04:17:58	2010-04-01 04:19:50	00:01:52	137	217.71	137	224.52	-41.50	-
21	PSR	WB1	2010-04-01 04:25:08	2010-04-01 04:27:14	00:02:06	137	243.91	137	251.56	27.10	80
22	PSR	FBS	2010-04-01 05:08:27	2010-04-01 05:12:35	00:04:08	183	41.82	183	56.89	34.30	7
23	AV2	OBS	2010-04-01 05:34:50	2010-04-01 05:37:50	00:03:00	183	138.03	183	148.97	0.00	-
24	PSR	WB1	2010-04-01 06:03:51	2010-04-01 06:07:07	00:03:16	183	243.91	183	255.82	27.10	80
25	PSR	FBS	2010-04-01 06:48:58	2010-04-01 06:57:20	00:08:22	229	48.38	229	78.89	34.30	7
26	PSR	WB1	2010-04-01 07:03:52	2010-04-01 07:08:28	00:04:36	229	102.72	229	119.49	27.10	80
27	PSM	OB1	2010-04-01 07:08:56	2010-04-01 07:25:40	00:16:44	229	121.19	229	182.22	1.20	-
28	AV2	OBS	2010-04-01 07:15:43	2010-04-01 07:25:17	00:09:34	229	145.93	229	180.82	0.00	-
29	PSR	WB1	2010-04-01 07:42:35	2010-04-01 07:45:51	00:03:16	229	243.91	229	255.82	27.10	80
30	PSR	WB1	2010-04-01 07:47:28	2010-04-01 07:50:04	00:02:36	229	261.71	229	271.20	27.10	80
31	PSR	FBS	2010-04-01 08:29:36	2010-04-01 08:34:42	00:05:06	275	55.37	275	73.97	21.50	3
32	PSM	OB1	2010-04-01 08:45:50	2010-04-01 08:55:28	00:09:38	275	114.57	275	149.70	1.20	-
33	AV2	OBS	2010-04-01 08:52:51	2010-04-01 08:56:15	00:03:24	275	140.16	275	152.56	0.00	-
34	PSM	OB1	2010-04-01 08:57:51	2010-04-01 09:07:39	00:09:48	275	158.39	275	194.13	1.20	-
35	AV2	OBS	2010-04-01 08:58:36	2010-04-01 09:06:52	00:08:16	275	161.13	275	191.27	0.00	-
36	PSR	WB1	2010-04-01 09:21:18	2010-04-01 09:24:44	00:03:26	275	243.91	275	256.43	27.10	80
37	PSR	FBD	2010-04-01 09:48:49	2010-04-01 09:50:41	00:01:52	275	344.25	275	351.06	34.30	43
38	PSR	FBS	2010-04-01 10:06:24	2010-04-01 10:08:16	00:01:52	321	48.38	321	55.19	34.30	7
39	PSM	OB1	2010-04-01 10:28:20	2010-04-01 10:30:56	00:02:36	321	128.37	321	137.85	1.20	-
40	AV2	OBS	2010-04-01 10:28:34	2010-04-01 10:30:55	00:02:21	321	129.22	321	137.79	0.00	-
41	PSM	OB1	2010-04-01 10:36:33	2010-04-01 10:42:17	00:05:44	321	158.33	321	179.24	1.20	-
42	AV2	OBS	2010-04-01 10:36:41	2010-04-01 10:41:32	00:04:51	321	158.75	321	176.44	0.00	-
43	PSR	WB1	2010-04-01 11:00:01	2010-04-01 11:03:27	00:03:26	321	243.91	321	256.43	27.10	80
44	PSR	FBS	2010-04-01 11:20:01	2010-04-01 11:21:53	00:01:52	321	316.84	321	323.65	34.30	7
45	PSR	FBD	2010-04-01 11:33:11	2010-04-01 11:35:43	00:02:32	367	4.86	367	14.10	34.30	43
46	PSR	FBS	2010-04-01 11:44:51	2010-04-01 11:46:51	00:02:00	367	47.41	367	54.70	34.30	7
47	AV2	OBS	2010-04-01 11:57:45	2010-04-01 11:59:51	00:02:06	367	94.45	367	102.11	0.00	-
48	AV2	OBS	2010-04-01 12:15:59	2010-04-01 12:17:51	00:01:52	367	160.94	367	167.75	21.50	-
49	PSR	WB1	2010-04-01 12:38:44	2010-04-01 12:40:44	00:02:00	367	243.91	367	251.20	27.10	80
50	PSR	FBS	2010-04-01 13:06:40	2010-04-01 13:10:22	00:03:42	367	345.77	367	359.26	34.30	7
51	PSR	FBS	2010-04-01 13:18:47	2010-04-01 13:21:17	00:02:30	413	29.96	413	39.08	34.30	7
52	PSR	FBS	2010-04-01 13:22:31	2010-04-01 13:24:53	00:02:22	413	43.58	413	52.21	34.30	7
53	AV2	OBS	2010-04-01 13:39:44	2010-04-01 13:42:44	00:03:00	413	106.36	413	117.30	0.00	-
54	PSM	OB1	2010-04-01 13:57:14	2010-04-01 14:05:10	00:07:56	413	170.18	413	199.11	1.20	-
55	AV2	OBS	2010-04-01 13:57:56	2010-04-01 14:04:26	00:06:30	413	172.73	413	196.44	0.00	-
56	AV2	OBS	2010-04-01 14:07:38	2010-04-01 14:11:51	00:04:13	413	208.11	413	223.48	0.00	-
57	PSM	OB1	2010-04-01 14:08:42	2010-04-01 14:16:36	00:07:54	413	211.94	413	240.75	1.20	-
58	PSR	FBS	2010-04-01 14:38:29	2010-04-01 14:40:41	00:02:12	413	320.61	413	328.63	34.30	7
59	PSR	PLR	2010-04-01 14:45:27	2010-04-01 14:51:51	00:06:24	413	346.01	459	9.36	21.50	127
60	PSR	FBS	2010-04-01 15:04:51	2010-04-01 15:10:55	00:06:04	459	56.77	459	78.89	34.30	7
61	AV2	OBS	2010-04-01 15:16:18	2010-04-01 15:21:46	00:05:28	459	98.52	459	118.46	0.00	-
62	PSR	WB1	2010-04-01 15:22:41	2010-04-01 15:28:22	00:05:41	459	121.80	459	142.53	27.10	80
63	PSR	FBS	2010-04-01 15:30:16	2010-04-01 15:33:42	00:03:26	459	149.39	459	161.92	34.30	7
64	PSM	OB1	2010-04-01 15:34:31	2010-04-01 15:42:01	00:07:30	459	164.95	459	192.30	1.20	-
65	AV2	OBS	2010-04-01 15:35:17	2010-04-01 15:41:19	00:06:02	459	167.75	459	189.75	0.00	-
66	PSR	WB1	2010-04-01 16:02:11	2010-04-01 16:04:03	00:01:52	459	265.79	459	272.59	27.10	80
67	PSR	PLR	2010-04-01 16:32:44	2010-04-01 16:36:26	00:03:42	505	17.20	505	30.69	21.50	127
68	PSR	FBS	2010-04-01 16:38:03	2010-04-01 16:41:55	00:03:52	505	36.59	505	50.69	34.30	7
69	PSR	FBS	2010-04-01 16:43:34	2010-04-01 16:49:56	00:06:22	505	56.71	505	79.92	34.30	7
70	PSM	OB1	2010-04-01 16:53:09	2010-04-01 16:58:43	00:05:34	505	91.65	505	111.95	0.00	-
71	AV2	OBS	2010-04-01 16:56:48	2010-04-01 17:00:12	00:03:24	505	105.03	505	117.42	0.00	-
72	PSR	WB1	2010-04-01 17:01:53	2010-04-01 17:05:19	00:03:26	505	123.56	505	136.08	27.10	80
73	AV2	OBS	2010-04-01 17:10:40	2010-04-01 17:13:52	00:03:12	505	155.53	505	167.20	0.00	-
74	PSR	WB1	2010-04-01 17:38:54	2010-04-01 17:41:26	00:02:32	505	258.49	505	267.73	27.10	80
75	PSR	FBS	2010-04-01 18:19:33	2010-04-01 18:26:27	00:06:54	551	46.80	551	71.96	34.30	7
76	AV2	OBS	2010-04-01 18:31:43	2010-04-01 18:35:19	00:03:36	551	91.11	551	104.24	0.00	-
77	PSM	OB1	2010-04-01 18:38:09	2010-04-01 18:47:55	00:09:46	551	114.57	551	150.18	1.20	-
78	AV2	OBS	2010-04-01 18:44:04	2010-04-01 18:47:28	00:03:24	551	136.14	551	148.54	0.00	-
79	PSR	WB1	2010-04-01 19:13:36	2010-04-01 19:19:34	00:05:58	551	243.91	551	265.66	27.10	80
80	PSR	FBS	2010-04-01 19:38:44	2010-04-01 19:43:34	00:04:50	551	335.56	551	353.19	34.30	7
81	PSR	FBS	2010-04-01 19:56:37	2010-04-01 20:03:05	00:06:28	597	40.78	597	64.36	34.30	7
82	PSR	WB1	2010-04-01 20:08:53	2010-04-01 20:11:41	00:02:48	597	85.46	597	95.67	27.10	80
83	AV2	OBS	2010-04-01 20:13:08	2010-04-01 20:19:46	00:06:38	597	101.01	597	125.20	0.00	-
84	PSM	OB1	2010-04-01 20:16:52	2010-04-01 20:19:58	00:03:06	597	114.57	597	125.87	1.20	-
85	AV2	OBS	2010-04-01 20:39:43	2010-04-01 20:41:35	00:01:52	597	197.90	597	204.70	0.00	-
86	PSR	WB1	2010-04-01 20:52:19	2010-04-01 20:56:11	00:03:52	597	243.91	597	258.01	27.10	80
87	PSR	FBS	2010-04-01 21:16:41	2010-04-01 21:21:45	00:05:04	597	332.70	597	351.18	34.30	7
88	PSR	FBS	2010-04-01 21:29:07	2010-04-01 21:40:03	00:10:56	643	18.05	643	57.92	34.30	7
89	PSR	FBS	2010-04-01 21:47:01	2010-04-01 21:49:25	00:02:24	643	83.39	643	92.14	34.30	7
90	AV2	OBS	2010-04-01 21:48:40	2010-04-01 21:50:32	00:01:52	643	89.35	643	96.15	0.00	-
91	AV2	OBS	2010-04-01 21:53:10	2010-04-01 21:59:00	00:05:50	643	105.76	643	127.03	0.00	-
92	AV2	OBS	2010-04-01 22:05:23	2010-04-01 22:07:15	00:01:52	643	150.31	643	157.11	-41.50	-
93	AV2	OBS	2010-04-01 22:17:30	2010-04-01 22:19:22	00:01:52	643	194.49	643	201.30	0.00	-
94	PSM	OB2	2010-04-01 22:17:33	2010-04-01 22:19:53	00:02:20	643	194.74	643	203.24	0.00	-
95	PSR	WB1	2010-04-01 22:31:02	2010-04-01 22:33:24	00:02:22	643	243.91	643	252.54	27.10	80
96	PSR	FBS	2010-04-01 23:03:02	2010-04-01 23:12:58	00:09:56	18	0.55	18	36.77	34.30	7
97	PSR	FBS	2010-04-01 23:19:23	2010-04-01 23:21:43	00:02:20	18	60.17	18	68.68	34.30	7
98	PSR	FBS	2010-04-01 23:22:29	2010-04-01 23:28:01	00:05:32	18	71.48	18	91.65	34.30	7
99	AV2	OBS	2010-04-01 23:32:33	2010-04-01 23:34:33	00:02:00	18	108.19	18	115.48	0.00	-
100	AV2	OBS	2010-04-01 23:49:22	2010-04-01 23:51:14	00:01:52	18	169.51	18	176.32	0.00	-
101	AV2	OBS	2010-04-01 23:54:04	2010-04-01 23:59:54	00:05:50	18	186.65	18	207.92	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
670	0.77951	2010-03-31 22:22:05	168.43972	2010-03-31 23:11:27
45	-23.90007	2010-04-01 00:00:48	143.76014	2010-04-01 00:50:10
91	-48.57965	2010-04-01 01:39:31	119.08056	2010-04-01 02:28:53
137	-73.25924	2010-04-01 03:18:15	94.40097	2010-04-01 04:07:36
183	-97.93882	2010-04-01 04:56:58	69.72139	2010-04-01 05:46:19
229	-122.61840	2010-04-01 06:35:41	45.04181	2010-04-01 07:25:02
275	-147.29798	2010-04-01 08:14:24	20.36223	2010-04-01 09:03:45
321	-171.97757	2010-04-01 09:53:07	-4.31736	2010-04-01 10:42:28
367	163.34285	2010-04-01 11:31:50	-28.99694	2010-04-01 12:21:12
413	138.66327	2010-04-01 13:10:33	-53.67652	2010-04-01 13:59:55
459	113.98369	2010-04-01 14:49:16	-78.35611	2010-04-01 15:38:38
505	89.30410	2010-04-01 16:27:59	-103.03569	2010-04-01 17:17:21
551	64.62452	2010-04-01 18:06:42	-127.71527	2010-04-01 18:56:04
597	39.94494	2010-04-01 19:45:26	-152.39485	2010-04-01 20:34:47
643	15.26535	2010-04-01 21:24:09	-177.07444	2010-04-01 22:13:30
18	-9.41423	2010-04-01 23:02:52	158.24598	2010-04-01 23:52:13
