>ALOS Data Take Simulation(Mar. 23, 2010)

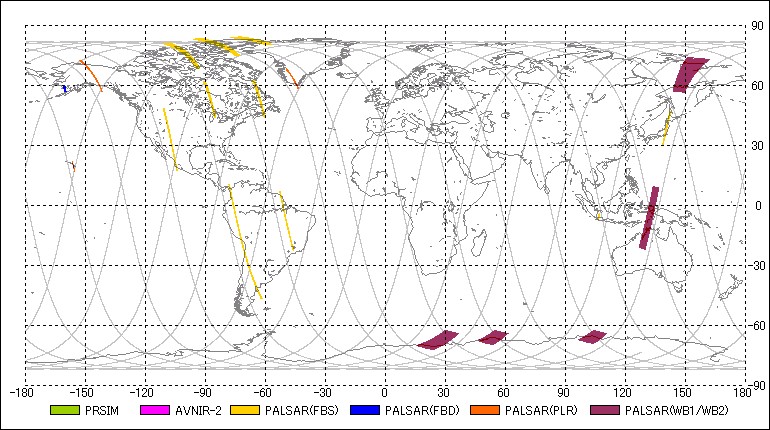

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2010-03-23 00:44:212010-03-23 00:47:47 00:03:26 58 57.01 58 69.53 21.50 127
2PSRFBS2010-03-23 00:50:292010-03-23 00:52:21 00:01:52 58 79.32 58 86.12 34.30 7
3PSRWB12010-03-23 00:57:222010-03-23 01:02:40 00:05:18 58 104.48 58 123.81 27.10 80
4PSRFBS2010-03-23 01:04:512010-03-23 01:10:13 00:05:22 58 131.71 58 151.28 34.30 7
5AV2OBS2010-03-23 01:04:582010-03-23 01:06:50 00:01:52 58 132.19 58 139.00 0.00 -
6PSMOB22010-03-23 01:04:582010-03-23 01:06:50 00:01:52 58 132.13 58 138.94 0.00 -
7AV2OBS2010-03-23 01:10:472010-03-23 01:12:39 00:01:52 58 153.41 58 160.21 -5.50 -
8PSRWB12010-03-23 01:15:132010-03-23 01:24:23 00:09:10 58 169.51 58 202.94 27.10 80
9PSMOB22010-03-23 01:17:502010-03-23 01:21:40 00:03:50 58 179.12 58 193.09 0.00 -
10PSRWB12010-03-23 01:35:372010-03-23 01:37:53 00:02:16 58 243.91 58 252.17 27.10 80
11PSRFBS2010-03-23 02:00:362010-03-23 02:09:24 00:08:48 58 335.01 104 7.11 34.30 7
12PSRFBS2010-03-23 02:18:542010-03-23 02:24:44 00:05:50 104 41.82 104 63.09 34.30 7
13PSRFBS2010-03-23 02:27:372010-03-23 02:30:45 00:03:08 104 73.54 104 84.97 34.30 7
14AV2OBS2010-03-23 02:41:492010-03-23 02:52:23 00:10:34 104 125.33 104 163.86 0.00 -
15PSMOB22010-03-23 02:41:532010-03-23 02:51:39 00:09:46 104 125.57 104 161.19 0.00 -
16AV2OBS2010-03-23 02:54:232010-03-23 02:59:50 00:05:27 104 171.15 104 191.03 0.00 -
17PSMOB22010-03-23 02:54:532010-03-23 03:00:31 00:05:38 104 172.98 104 193.52 0.00 -
18PSRFBS2010-03-23 02:57:362010-03-23 02:59:08 00:01:32 104 182.88 104 188.48 34.30 7
19PSRFBS2010-03-23 03:32:312010-03-23 03:49:09 00:16:38 104 310.22 150 10.88 34.30 7
20PSRFBS2010-03-23 03:57:372010-03-23 04:03:19 00:05:42 150 41.82 150 62.60 34.30 7
21PSRFBS2010-03-23 04:04:312010-03-23 04:08:45 00:04:14 150 66.98 150 82.42 34.30 7
22PSMOB22010-03-23 04:21:132010-03-23 04:31:35 00:10:22 150 127.82 150 165.62 0.00 -
23AV2OBS2010-03-23 04:23:582010-03-23 04:32:28 00:08:30 150 137.91 150 168.90 0.00 -
24PSRWB12010-03-23 04:53:022010-03-23 04:55:28 00:02:26 150 243.91 150 252.78 27.10 80
25PSRFBS2010-03-23 05:29:082010-03-23 05:38:18 00:09:10 196 15.50 196 48.93 34.30 7
26PSMOB12010-03-23 05:59:102010-03-23 06:08:58 00:09:48 196 125.02 196 160.76 1.20 -
27AV2OBS2010-03-23 06:02:432010-03-23 06:08:11 00:05:28 196 137.97 196 157.90 0.00 -
28PSRWB12010-03-23 06:31:452010-03-23 06:35:01 00:03:16 196 243.91 196 255.82 27.10 80
29PSRPLR2010-03-23 07:18:472010-03-23 07:23:57 00:05:10 242 55.37 242 74.21 21.50 127
30PSMOB12010-03-23 07:35:022010-03-23 07:56:54 00:21:52 242 114.63 242 194.37 1.20 -
31AV2OBS2010-03-23 07:48:072010-03-23 07:56:03 00:07:56 242 162.34 242 191.27 0.00 -
32PSRPLR2010-03-23 08:46:302010-03-23 08:48:36 00:02:06 288 15.26 288 22.91 21.50 127
33PSRFBD2010-03-23 08:57:202010-03-23 08:58:52 00:01:32 288 54.76 288 60.35 41.50 46
34AV2OBS2010-03-23 10:57:332010-03-23 10:59:25 00:01:52 334 133.17 334 139.97 34.30 -
35AV2OBS2010-03-23 11:03:082010-03-23 11:07:31 00:04:23 334 153.53 334 169.51 0.00 -
36PSMOB12010-03-23 22:32:182010-03-23 22:34:54 00:02:36 656 146.72 656 156.20 1.20 -
37AV2OBS2010-03-23 22:33:042010-03-23 22:34:56 00:01:52 656 149.52 656 156.32 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
12 -6.195152010-03-22 22:49:59161.465062010-03-22 23:39:21
58-30.874732010-03-23 00:28:42136.785472010-03-23 01:18:04
104-55.554322010-03-23 02:07:25112.105892010-03-23 02:56:47
150-80.233902010-03-23 03:46:08 87.426312010-03-23 04:35:30
196-104.913482010-03-23 05:24:52 62.746732010-03-23 06:14:13
242-129.593072010-03-23 07:03:35 38.067142010-03-23 07:52:56
288-154.272652010-03-23 08:42:18 13.387562010-03-23 09:31:39
334-178.952232010-03-23 10:21:01-11.292022010-03-23 11:10:22
380156.368192010-03-23 11:59:44-35.971612010-03-23 12:49:06
426131.688602010-03-23 13:38:27-60.651192010-03-23 14:27:49
472107.009022010-03-23 15:17:10-85.330772010-03-23 16:06:32
518 82.329442010-03-23 16:55:53-110.010352010-03-23 17:45:15
564 57.649862010-03-23 18:34:36-134.689942010-03-23 19:23:58
610 32.970272010-03-23 20:13:19-159.369522010-03-23 21:02:41
656 8.290692010-03-23 21:52:03175.950902010-03-23 22:41:24
31-16.388892010-03-23 23:30:46151.271322010-03-24 00:20:07
