>ALOS Data Take Simulation(Mar. 20, 2010)

Observation Area

PRISM

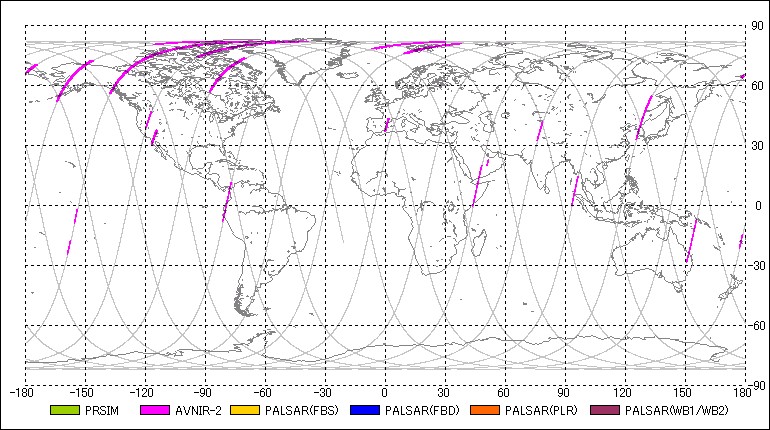

AVNIR-2

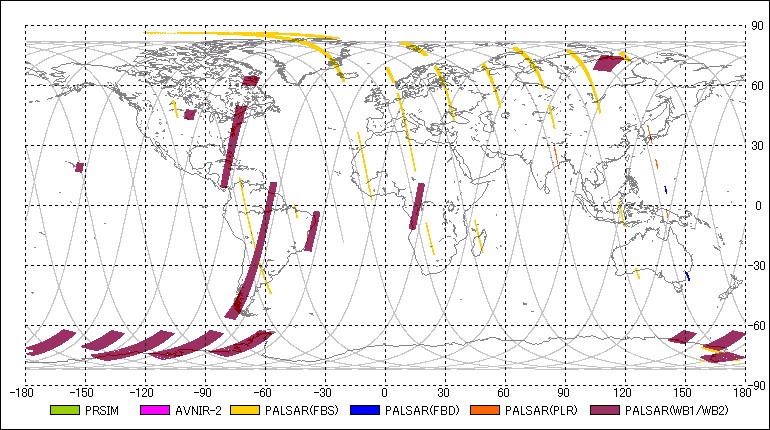

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-03-20 01:41:29	2010-03-20 01:43:55	00:02:26	47	351.42	93	0.30	34.30	7
2	AV2	OBS	2010-03-20 02:18:00	2010-03-20 02:24:10	00:06:10	93	124.60	93	147.09	0.00	-
3	PSM	OB2	2010-03-20 02:22:16	2010-03-20 02:24:08	00:01:52	93	140.16	93	146.96	0.00	-
4	PSR	FBS	2010-03-20 03:09:41	2010-03-20 03:26:23	00:16:42	93	313.07	139	13.98	34.30	7
5	PSR	WB1	2010-03-20 03:50:53	2010-03-20 03:53:31	00:02:38	139	103.32	139	112.93	27.10	80
6	AV2	OBS	2010-03-20 04:07:57	2010-03-20 04:11:49	00:03:52	139	165.56	139	179.66	0.00	-
7	PSR	FBS	2010-03-20 05:12:44	2010-03-20 05:15:46	00:03:02	185	41.82	185	52.88	34.30	7
8	AV2	OBS	2010-03-20 05:39:06	2010-03-20 05:41:44	00:02:38	185	137.97	185	147.57	0.00	-
9	AV2	OBS	2010-03-20 07:22:55	2010-03-20 07:29:29	00:06:34	231	156.51	231	180.45	21.50	-
10	PSR	WB1	2010-03-20 09:04:44	2010-03-20 09:11:40	00:06:56	277	167.81	277	193.09	27.10	80
11	PSM	OB1	2010-03-20 10:33:27	2010-03-20 10:36:03	00:02:36	323	131.34	323	140.82	1.20	-
12	AV2	OBS	2010-03-20 10:34:52	2010-03-20 10:36:44	00:01:52	323	136.57	323	143.38	-21.50	-
13	PSM	OB1	2010-03-20 10:40:51	2010-03-20 10:46:39	00:05:48	323	158.33	323	179.48	1.20	-
14	AV2	OBS	2010-03-20 12:02:02	2010-03-20 12:04:02	00:02:00	369	94.39	369	101.68	0.00	-
15	PSR	WB1	2010-03-20 12:26:03	2010-03-20 12:32:05	00:06:02	369	182.03	369	204.04	27.10	80
16	PSR	WB1	2010-03-20 12:43:01	2010-03-20 12:47:33	00:04:32	369	243.91	369	260.44	27.10	80
17	PSR	FBD	2010-03-20 13:03:50	2010-03-20 13:05:38	00:01:48	369	319.76	369	326.32	34.30	43
18	PSR	PLR	2010-03-20 13:12:37	2010-03-20 13:14:37	00:02:00	369	351.79	369	359.08	21.50	127
19	PSR	FBD	2010-03-20 13:15:51	2010-03-20 13:17:33	00:01:42	415	3.59	415	9.79	34.30	43
20	PSR	PLR	2010-03-20 13:19:28	2010-03-20 13:21:20	00:01:52	415	16.77	415	23.58	21.50	127
21	PSR	PLR	2010-03-20 13:22:55	2010-03-20 13:26:01	00:03:06	415	29.36	415	40.66	21.50	127
22	PSR	FBS	2010-03-20 13:34:09	2010-03-20 13:36:03	00:01:54	415	70.32	415	77.25	34.30	7
23	AV2	OBS	2010-03-20 13:39:59	2010-03-20 13:41:55	00:01:56	415	91.59	415	98.64	0.00	-
24	PSR	WB1	2010-03-20 14:00:43	2010-03-20 14:20:20	00:19:37	415	167.26	415	238.80	27.10	80
25	PSM	OB1	2010-03-20 14:17:22	2010-03-20 14:20:54	00:03:32	415	227.92	415	240.81	1.20	-
26	PSR	WB1	2010-03-20 14:21:45	2010-03-20 14:26:51	00:05:06	415	243.91	415	262.50	27.10	80
27	PSR	FBS	2010-03-20 14:31:12	2010-03-20 14:33:04	00:01:52	415	278.37	415	285.18	34.30	7
28	PSR	FBS	2010-03-20 14:42:47	2010-03-20 14:44:49	00:02:02	415	320.61	415	328.02	34.30	7
29	PSR	FBS	2010-03-20 14:50:01	2010-03-20 14:54:05	00:04:04	415	346.99	461	1.82	34.30	7
30	PSR	FBS	2010-03-20 15:05:43	2010-03-20 15:15:11	00:09:28	461	44.25	461	78.77	34.30	7
31	PSR	WB1	2010-03-20 15:24:47	2010-03-20 15:26:39	00:01:52	461	113.78	461	120.59	27.10	80
32	PSR	WB1	2010-03-20 15:28:55	2010-03-20 15:40:45	00:11:50	461	128.85	461	172.00	27.10	80
33	PSM	OB1	2010-03-20 15:38:58	2010-03-20 15:45:54	00:06:56	461	165.50	461	190.79	1.20	-
34	AV2	OBS	2010-03-20 15:39:44	2010-03-20 15:45:08	00:05:24	461	168.30	461	187.99	0.00	-
35	PSR	WB1	2010-03-20 16:00:28	2010-03-20 16:05:54	00:05:26	461	243.91	461	263.72	27.10	80
36	PSR	FBS	2010-03-20 16:07:36	2010-03-20 16:09:28	00:01:52	461	269.92	461	276.73	34.30	7
37	PSR	PLR	2010-03-20 16:36:52	2010-03-20 16:40:40	00:03:48	507	16.65	507	30.51	21.50	127
38	PSR	FBS	2010-03-20 16:42:20	2010-03-20 16:46:12	00:03:52	507	36.59	507	50.69	34.30	7
39	PSR	FBS	2010-03-20 16:47:51	2010-03-20 16:54:13	00:06:22	507	56.71	507	79.92	34.30	7
40	PSM	OB1	2010-03-20 16:57:24	2010-03-20 17:03:00	00:05:36	507	91.53	507	111.95	0.00	-
41	AV2	OBS	2010-03-20 17:00:55	2010-03-20 17:05:57	00:05:02	507	104.36	507	122.71	0.00	-
42	PSR	WB1	2010-03-20 17:08:11	2010-03-20 17:10:03	00:01:52	507	130.86	507	137.66	27.10	80
43	PSM	OB1	2010-03-20 17:14:31	2010-03-20 17:19:35	00:05:04	507	153.95	507	172.43	0.00	-
44	PSR	WB1	2010-03-20 17:39:11	2010-03-20 17:42:37	00:03:26	507	243.91	507	256.43	27.10	80
45	PSR	FBS	2010-03-20 17:44:50	2010-03-20 17:46:42	00:01:52	507	264.51	507	271.32	34.30	7
46	PSR	FBS	2010-03-20 18:23:51	2010-03-20 18:30:39	00:06:48	553	46.80	553	71.60	34.30	7
47	AV2	OBS	2010-03-20 18:35:56	2010-03-20 18:39:30	00:03:34	553	90.86	553	103.87	0.00	-
48	PSM	OB1	2010-03-20 18:42:25	2010-03-20 18:51:53	00:09:28	553	114.51	553	149.03	1.20	-
49	AV2	OBS	2010-03-20 18:47:25	2010-03-20 18:51:39	00:04:14	553	132.68	553	148.12	0.00	-
50	PSR	WB1	2010-03-20 19:17:53	2010-03-20 19:23:47	00:05:54	553	243.85	553	265.36	27.10	80
51	PSR	FBS	2010-03-20 19:42:32	2010-03-20 19:47:38	00:05:06	553	333.74	553	352.34	34.30	7
52	PSR	FBS	2010-03-20 20:00:47	2010-03-20 20:08:59	00:08:12	599	40.30	599	70.20	34.30	7
53	PSR	FBS	2010-03-20 20:09:58	2010-03-20 20:12:28	00:02:30	599	73.72	599	82.84	34.30	7
54	AV2	OBS	2010-03-20 20:14:11	2010-03-20 20:23:37	00:09:26	599	89.16	599	123.56	0.00	-
55	PSM	OB1	2010-03-20 20:21:10	2010-03-20 20:23:46	00:02:36	599	114.57	599	124.05	1.20	-
56	PSR	WB1	2010-03-20 20:32:54	2010-03-20 20:34:46	00:01:52	599	157.42	599	164.22	27.10	80
57	AV2	OBS	2010-03-20 20:39:41	2010-03-20 20:41:33	00:01:52	599	182.09	599	188.90	0.00	-
58	AV2	OBS	2010-03-20 20:43:57	2010-03-20 20:45:49	00:01:52	599	197.71	599	204.52	0.00	-
59	PSM	OB2	2010-03-20 20:44:01	2010-03-20 20:46:29	00:02:28	599	197.90	599	206.89	0.00	-
60	PSR	WB1	2010-03-20 20:56:37	2010-03-20 21:00:01	00:03:24	599	243.91	599	256.30	27.10	80
61	PSR	FBS	2010-03-20 21:21:00	2010-03-20 21:26:04	00:05:04	599	332.83	599	351.30	34.30	7
62	PSR	FBS	2010-03-20 21:32:27	2010-03-20 21:43:59	00:11:32	645	14.59	645	56.65	34.30	7
63	PSR	FBS	2010-03-20 21:44:51	2010-03-20 21:47:31	00:02:40	645	59.81	645	69.53	34.30	7
64	PSR	FBS	2010-03-20 21:51:09	2010-03-20 21:53:41	00:02:32	645	82.78	645	92.02	34.30	7
65	AV2	OBS	2010-03-20 21:52:42	2010-03-20 21:54:34	00:01:52	645	88.43	645	95.24	0.00	-
66	AV2	OBS	2010-03-20 21:57:28	2010-03-20 22:03:30	00:06:02	645	105.76	645	127.76	0.00	-
67	AV2	OBS	2010-03-20 22:21:51	2010-03-20 22:23:43	00:01:52	645	194.74	645	201.54	0.00	-
68	PSM	OB2	2010-03-20 22:26:54	2010-03-20 22:28:30	00:01:36	645	213.09	645	218.93	0.00	-
69	PSR	WB1	2010-03-20 22:35:20	2010-03-20 22:37:40	00:02:20	645	243.91	645	252.42	27.10	80
70	PSR	FBS	2010-03-20 23:07:21	2010-03-20 23:17:15	00:09:54	20	0.61	20	36.71	34.30	7
71	PSR	FBS	2010-03-20 23:23:45	2010-03-20 23:32:17	00:08:32	20	60.41	20	91.53	34.30	7
72	AV2	OBS	2010-03-20 23:36:48	2010-03-20 23:38:48	00:02:00	20	108.00	20	115.30	0.00	-
73	AV2	OBS	2010-03-20 23:58:27	2010-03-21 00:04:23	00:05:56	20	186.96	20	208.59	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
1	-0.29351	2010-03-19 22:26:23	167.36670	2010-03-19 23:15:44
47	-24.97310	2010-03-20 00:05:06	142.68711	2010-03-20 00:54:27
93	-49.65268	2010-03-20 01:43:49	118.00753	2010-03-20 02:33:11
139	-74.33226	2010-03-20 03:22:32	93.32795	2010-03-20 04:11:54
185	-99.01184	2010-03-20 05:01:15	68.64837	2010-03-20 05:50:37
231	-123.69143	2010-03-20 06:39:58	43.96878	2010-03-20 07:29:20
277	-148.37101	2010-03-20 08:18:41	19.28920	2010-03-20 09:08:03
323	-173.05059	2010-03-20 09:57:24	-5.39038	2010-03-20 10:46:46
369	162.26983	2010-03-20 11:36:08	-30.06997	2010-03-20 12:25:29
415	137.59024	2010-03-20 13:14:51	-54.74955	2010-03-20 14:04:12
461	112.91066	2010-03-20 14:53:34	-79.42913	2010-03-20 15:42:55
507	88.23108	2010-03-20 16:32:17	-104.10871	2010-03-20 17:21:38
553	63.55149	2010-03-20 18:11:00	-128.78830	2010-03-20 19:00:22
599	38.87191	2010-03-20 19:49:43	-153.46788	2010-03-20 20:39:05
645	14.19233	2010-03-20 21:28:26	-178.14746	2010-03-20 22:17:48
20	-10.48725	2010-03-20 23:07:09	157.17296	2010-03-20 23:56:31
