>ALOS Data Take Simulation(Mar. 18, 2010)

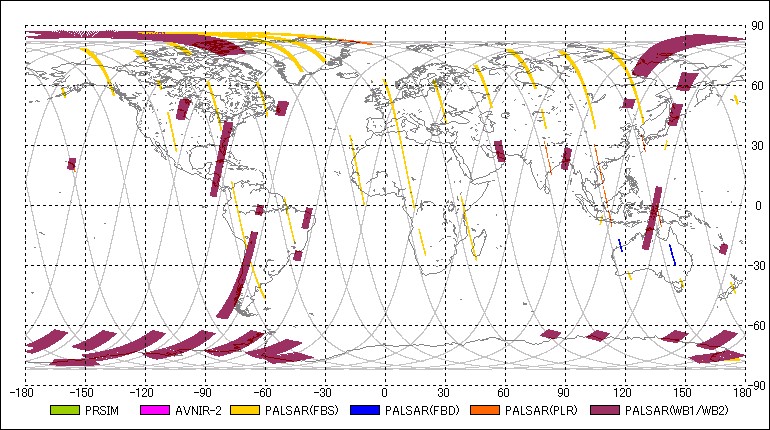

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-03-18 00:40:11	2010-03-18 00:47:05	00:06:54	55	65.28	55	90.44	34.30	7
2	PSR	WB1	2010-03-18 00:52:59	2010-03-18 00:56:03	00:03:04	55	111.95	55	123.14	27.10	80
3	PSR	WB1	2010-03-18 00:57:18	2010-03-18 01:00:56	00:03:38	55	127.70	55	140.95	27.10	80
4	PSR	FBS	2010-03-18 01:02:27	2010-03-18 01:04:19	00:01:52	55	146.48	55	153.28	34.30	7
5	AV2	OBS	2010-03-18 01:04:20	2010-03-18 01:06:12	00:01:52	55	153.35	55	160.15	-18.00	-
6	AV2	OBS	2010-03-18 01:08:16	2010-03-18 01:18:14	00:09:58	55	167.69	55	204.04	0.00	-
7	PSM	OB2	2010-03-18 01:08:16	2010-03-18 01:18:22	00:10:06	55	167.69	55	204.52	0.00	-
8	PSR	WB1	2010-03-18 01:08:49	2010-03-18 01:17:59	00:09:10	55	169.69	55	203.12	27.10	80
9	PSR	WB1	2010-03-18 01:29:10	2010-03-18 01:31:02	00:01:52	55	243.91	55	250.71	27.10	80
10	PSR	FBS	2010-03-18 01:55:19	2010-03-18 02:02:09	00:06:50	55	339.27	101	4.19	34.30	7
11	PSR	FBS	2010-03-18 02:12:41	2010-03-18 02:18:01	00:05:20	101	42.61	101	62.06	34.30	7
12	PSR	WB1	2010-03-18 02:21:27	2010-03-18 02:32:43	00:11:16	101	74.58	101	115.66	27.10	80
13	AV2	OBS	2010-03-18 02:35:12	2010-03-18 02:44:10	00:08:58	101	124.72	101	157.42	0.00	-
14	PSM	OB2	2010-03-18 02:35:16	2010-03-18 02:44:52	00:09:36	101	124.96	101	159.97	0.00	-
15	PSR	WB1	2010-03-18 02:35:24	2010-03-18 02:37:14	00:01:50	101	125.39	101	132.07	27.10	80
16	PSM	OB2	2010-03-18 02:47:46	2010-03-18 02:50:58	00:03:12	101	170.55	101	182.22	0.00	-
17	PSR	FBS	2010-03-18 02:51:25	2010-03-18 02:53:17	00:01:52	101	183.86	101	190.66	34.30	7
18	AV2	OBS	2010-03-18 02:51:36	2010-03-18 02:53:42	00:02:06	101	184.53	101	192.18	0.00	-
19	PSR	WB1	2010-03-18 03:07:52	2010-03-18 03:09:26	00:01:34	101	243.85	101	249.56	27.10	80
20	PSR	FBS	2010-03-18 03:26:05	2010-03-18 03:43:01	00:16:56	101	310.28	147	12.03	34.30	7
21	PSR	FBS	2010-03-18 03:49:30	2010-03-18 03:56:54	00:07:24	147	35.68	147	62.66	34.30	7
22	PSR	FBS	2010-03-18 03:59:59	2010-03-18 04:02:23	00:02:24	147	73.91	147	82.66	34.30	7
23	AV2	OBS	2010-03-18 04:17:34	2010-03-18 04:24:48	00:07:14	147	137.97	147	164.35	0.00	-
24	PSR	WB1	2010-03-18 04:20:56	2010-03-18 04:24:24	00:03:28	147	150.31	147	162.95	27.10	80
25	PSM	OB2	2010-03-18 04:24:47	2010-03-18 04:26:39	00:01:52	147	164.35	147	171.15	0.00	-
26	AV2	OBS	2010-03-18 04:49:19	2010-03-18 04:51:11	00:01:52	147	253.75	147	260.56	-41.50	-
27	PSR	FBS	2010-03-18 05:25:18	2010-03-18 05:31:18	00:06:00	193	24.98	193	46.86	34.30	7
28	PSR	FBS	2010-03-18 05:33:54	2010-03-18 05:35:46	00:01:52	193	56.34	193	63.15	34.30	7
29	PSR	FBS	2010-03-18 05:37:54	2010-03-18 05:39:56	00:02:02	193	70.93	193	78.34	34.30	7
30	PSM	OB1	2010-03-18 05:52:45	2010-03-18 06:02:53	00:10:08	193	125.08	193	162.04	1.20	-
31	AV2	OBS	2010-03-18 05:56:16	2010-03-18 06:02:04	00:05:48	193	137.91	193	159.06	0.00	-
32	PSR	FBS	2010-03-18 07:11:44	2010-03-18 07:18:58	00:07:14	239	53.18	239	79.56	34.30	7
33	PSM	OB1	2010-03-18 07:28:38	2010-03-18 07:50:28	00:21:50	239	114.75	239	194.37	1.20	-
34	AV2	OBS	2010-03-18 07:39:55	2010-03-18 07:49:51	00:09:56	239	155.96	239	192.18	41.50	-
35	PSM	OB1	2010-03-18 07:53:07	2010-03-18 07:56:51	00:03:44	239	204.04	239	217.65	0.00	-
36	AV2	OBS	2010-03-18 07:53:46	2010-03-18 07:56:06	00:02:20	239	206.41	239	214.91	0.00	-
37	PSR	PLR	2010-03-18 08:40:07	2010-03-18 08:42:17	00:02:10	285	15.44	285	23.34	9.70	120
38	PSR	FBS	2010-03-18 08:50:11	2010-03-18 08:52:03	00:01:52	285	52.21	285	59.02	34.30	7
39	PSM	OB1	2010-03-18 09:07:18	2010-03-18 09:11:04	00:03:46	285	114.57	285	128.30	1.20	-
40	PSM	OB1	2010-03-18 09:19:18	2010-03-18 09:29:06	00:09:48	285	158.33	285	194.07	1.20	-
41	AV2	OBS	2010-03-18 09:20:04	2010-03-18 09:28:20	00:08:16	285	161.13	285	191.27	0.00	-
42	PSR	WB1	2010-03-18 09:46:46	2010-03-18 09:48:52	00:02:06	285	258.49	285	266.15	27.10	80
43	PSR	FBS	2010-03-18 10:27:59	2010-03-18 10:29:51	00:01:52	331	48.81	331	55.61	34.30	7
44	AV2	OBS	2010-03-18 10:45:22	2010-03-18 10:53:15	00:07:53	331	112.26	331	141.01	0.00	-
45	PSM	OB1	2010-03-18 10:49:15	2010-03-18 10:51:51	00:02:36	331	126.36	331	135.84	1.20	-
46	AV2	OBS	2010-03-18 10:57:09	2010-03-18 11:03:08	00:05:59	331	155.17	331	176.99	0.00	-
47	PSM	OB1	2010-03-18 10:58:01	2010-03-18 11:03:55	00:05:54	331	158.33	331	179.85	1.20	-
48	PSR	WB1	2010-03-18 11:22:57	2010-03-18 11:26:17	00:03:20	331	249.25	331	261.41	27.10	80
49	PSR	FBS	2010-03-18 11:40:29	2010-03-18 11:42:41	00:02:12	331	313.19	331	321.22	34.30	7
50	AV2	OBS	2010-03-18 11:50:56	2010-03-18 11:54:20	00:03:24	331	351.30	377	3.71	0.00	-
51	AV2	OBS	2010-03-18 12:19:02	2010-03-18 12:21:00	00:01:58	377	93.84	377	101.01	0.00	-
52	PSR	WB1	2010-03-18 12:42:44	2010-03-18 12:46:10	00:03:26	377	180.21	377	192.73	27.10	80
53	PSM	OB1	2010-03-18 12:42:49	2010-03-18 12:46:59	00:04:10	377	180.51	377	195.71	1.20	-
54	PSR	WB1	2010-03-18 12:48:44	2010-03-18 12:50:36	00:01:52	377	202.09	377	208.90	27.10	80
55	PSR	WB1	2010-03-18 13:00:18	2010-03-18 13:04:36	00:04:18	377	244.27	377	259.95	27.10	80
56	PSR	FBS	2010-03-18 13:19:58	2010-03-18 13:21:50	00:01:52	377	315.99	377	322.80	34.30	7
57	PSR	FBD	2010-03-18 13:23:15	2010-03-18 13:26:37	00:03:22	377	327.96	377	340.24	34.30	43
58	PSR	PLR	2010-03-18 13:28:34	2010-03-18 13:32:26	00:03:52	377	347.35	423	1.46	21.50	127
59	PSR	PLR	2010-03-18 13:38:53	2010-03-18 13:41:59	00:03:06	423	24.98	423	36.29	21.50	127
60	PSR	FBS	2010-03-18 13:42:47	2010-03-18 13:53:47	00:11:00	423	39.20	423	79.32	34.30	7
61	AV2	OBS	2010-03-18 14:00:37	2010-03-18 14:05:07	00:04:30	423	104.24	423	120.65	0.00	-
62	PSR	WB1	2010-03-18 14:06:42	2010-03-18 14:09:12	00:02:30	423	126.48	423	135.60	27.10	80
63	PSM	OB1	2010-03-18 14:18:15	2010-03-18 14:37:29	00:19:14	423	168.54	423	238.68	1.20	-
64	PSR	WB1	2010-03-18 14:21:01	2010-03-18 14:23:01	00:02:00	423	178.63	423	185.92	27.10	80
65	PSR	WB1	2010-03-18 14:24:44	2010-03-18 14:37:30	00:12:46	423	192.24	423	238.80	27.10	80
66	PSR	WB1	2010-03-18 14:38:55	2010-03-18 14:43:55	00:05:00	423	243.91	423	262.14	27.10	80
67	PSR	WB1	2010-03-18 14:45:00	2010-03-18 14:46:52	00:01:52	423	266.15	423	272.96	27.10	80
68	PSR	FBS	2010-03-18 14:59:47	2010-03-18 15:01:39	00:01:52	423	320.00	423	326.81	34.30	7
69	PSR	FBD	2010-03-18 15:03:47	2010-03-18 15:06:03	00:02:16	423	334.59	423	342.85	34.30	43
70	PSR	PLR	2010-03-18 15:07:04	2010-03-18 15:19:16	00:12:12	423	346.56	469	31.06	21.50	127
71	PSR	FBS	2010-03-18 15:20:47	2010-03-18 15:32:11	00:11:24	469	36.59	469	78.16	34.30	7
72	AV2	OBS	2010-03-18 15:37:52	2010-03-18 15:43:54	00:06:02	469	98.89	469	120.89	0.00	-
73	PSR	WB1	2010-03-18 15:48:16	2010-03-18 15:59:10	00:10:54	469	136.81	469	176.56	27.10	80
74	PSM	OB2	2010-03-18 15:48:22	2010-03-18 15:50:14	00:01:52	469	137.18	469	143.99	0.00	-
75	PSR	WB1	2010-03-18 16:17:38	2010-03-18 16:23:04	00:05:26	469	243.91	469	263.72	27.10	80
76	PSR	FBS	2010-03-18 16:24:30	2010-03-18 16:26:26	00:01:56	469	268.95	469	276.00	34.30	7
77	PSR	PLR	2010-03-18 16:53:12	2010-03-18 16:58:26	00:05:14	515	13.61	515	32.70	21.50	127
78	PSR	FBS	2010-03-18 16:59:31	2010-03-18 17:02:47	00:03:16	515	36.59	515	48.50	34.30	7
79	PSR	FBS	2010-03-18 17:05:02	2010-03-18 17:11:10	00:06:08	515	56.77	515	79.13	34.30	7
80	AV2	OBS	2010-03-18 17:17:54	2010-03-18 17:22:32	00:04:38	515	103.63	515	120.52	0.00	-
81	PSR	WB1	2010-03-18 17:23:53	2010-03-18 17:27:13	00:03:20	515	125.51	515	137.66	27.10	80
82	PSR	WB1	2010-03-18 17:56:21	2010-03-18 17:59:47	00:03:26	515	243.91	515	256.43	27.10	80
83	PSR	FBS	2010-03-18 18:01:44	2010-03-18 18:03:36	00:01:52	515	263.54	515	270.34	34.30	7
84	PSR	WB1	2010-03-18 18:33:38	2010-03-18 18:37:08	00:03:30	561	19.87	561	32.64	27.10	80
85	PSR	FBS	2010-03-18 18:41:01	2010-03-18 18:47:39	00:06:38	561	46.80	561	70.99	34.30	7
86	AV2	OBS	2010-03-18 18:53:26	2010-03-18 19:01:16	00:07:50	561	92.08	561	120.65	0.00	-
87	PSM	OB1	2010-03-18 18:59:35	2010-03-18 19:08:01	00:08:26	561	114.51	561	145.26	1.20	-
88	PSR	WB1	2010-03-18 19:35:04	2010-03-18 19:41:06	00:06:02	561	243.85	561	265.85	27.10	80
89	PSR	FBS	2010-03-18 19:58:39	2010-03-18 20:08:09	00:09:30	561	329.91	607	4.56	34.30	7
90	PSR	FBS	2010-03-18 20:17:31	2010-03-18 20:24:15	00:06:44	607	38.72	607	63.27	34.30	7
91	PSR	PLR	2010-03-18 20:28:59	2010-03-18 20:31:15	00:02:16	607	80.53	607	88.80	21.50	127
92	AV2	OBS	2010-03-18 20:31:12	2010-03-18 20:41:14	00:10:02	607	88.55	607	125.14	0.00	-
93	PSR	WB1	2010-03-18 20:49:28	2010-03-18 20:51:38	00:02:10	607	155.23	607	163.13	27.10	80
94	AV2	OBS	2010-03-18 20:55:05	2010-03-18 20:56:57	00:01:52	607	175.71	607	182.52	0.00	-
95	PSM	OB2	2010-03-18 20:55:05	2010-03-18 20:57:09	00:02:04	607	175.71	607	183.25	0.00	-
96	PSR	WB1	2010-03-18 21:13:47	2010-03-18 21:17:03	00:03:16	607	243.91	607	255.82	27.10	80
97	PSR	FBS	2010-03-18 21:38:08	2010-03-18 21:42:18	00:04:10	607	332.70	607	347.90	34.30	7
98	PSR	FBS	2010-03-18 21:44:25	2010-03-18 22:03:07	00:18:42	607	355.62	653	63.82	34.30	7
99	PSR	FBS	2010-03-18 22:08:07	2010-03-18 22:10:55	00:02:48	653	82.05	653	92.26	34.30	7
100	AV2	OBS	2010-03-18 22:09:52	2010-03-18 22:11:44	00:01:52	653	88.43	653	95.24	0.00	-
101	AV2	OBS	2010-03-18 22:14:38	2010-03-18 22:21:24	00:06:46	653	105.76	653	130.43	0.00	-
102	AV2	OBS	2010-03-18 22:34:54	2010-03-18 22:37:24	00:02:30	653	179.72	653	188.84	0.00	-
103	PSR	WB1	2010-03-18 22:40:05	2010-03-18 22:41:57	00:01:52	653	198.63	653	205.43	27.10	80
104	PSR	WB1	2010-03-18 22:52:30	2010-03-18 22:54:40	00:02:10	653	243.91	653	251.81	27.10	80
105	PSR	FBS	2010-03-18 23:23:48	2010-03-18 23:34:02	00:10:14	653	357.99	28	35.31	34.30	7
106	PSR	FBS	2010-03-18 23:43:35	2010-03-18 23:49:25	00:05:50	28	70.20	28	91.47	34.30	7
107	AV2	OBS	2010-03-18 23:53:41	2010-03-18 23:55:33	00:01:52	28	107.03	28	113.84	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
9	-4.58561	2010-03-17 22:43:33	163.07459	2010-03-17 23:32:54
55	-29.26520	2010-03-18 00:22:16	138.39501	2010-03-18 01:11:38
101	-53.94478	2010-03-18 02:00:59	113.71543	2010-03-18 02:50:21
147	-78.62436	2010-03-18 03:39:42	89.03585	2010-03-18 04:29:04
193	-103.30394	2010-03-18 05:18:25	64.35626	2010-03-18 06:07:47
239	-127.98353	2010-03-18 06:57:08	39.67668	2010-03-18 07:46:30
285	-152.66311	2010-03-18 08:35:51	14.99710	2010-03-18 09:25:13
331	-177.34269	2010-03-18 10:14:35	-9.68248	2010-03-18 11:03:56
377	157.97772	2010-03-18 11:53:18	-34.36207	2010-03-18 12:42:39
423	133.29814	2010-03-18 13:32:01	-59.04165	2010-03-18 14:21:22
469	108.61856	2010-03-18 15:10:44	-83.72123	2010-03-18 16:00:05
515	83.93898	2010-03-18 16:49:27	-108.40082	2010-03-18 17:38:49
561	59.25939	2010-03-18 18:28:10	-133.08040	2010-03-18 19:17:32
607	34.57981	2010-03-18 20:06:53	-157.75998	2010-03-18 20:56:15
653	9.90023	2010-03-18 21:45:36	177.56044	2010-03-18 22:34:58
28	-14.77935	2010-03-18 23:24:19	152.88085	2010-03-19 00:13:41
