>ALOS Data Take Simulation(Mar. 16, 2010)

Observation Area

PRISM

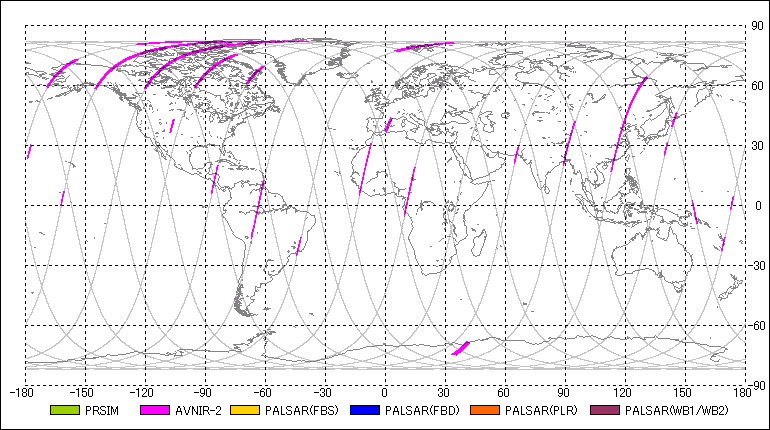

AVNIR-2

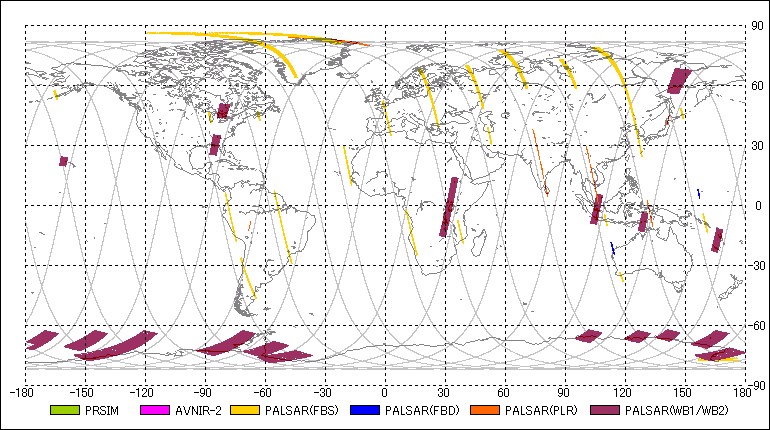

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-03-16 00:07:372010-03-16 00:09:43 00:02:06 17 243.91 17 251.56 27.10 80
2PSRFBS2010-03-16 00:56:312010-03-16 01:04:07 00:07:36 63 62.24 63 89.95 34.30 7
3PSRWB12010-03-16 01:09:392010-03-16 01:13:37 00:03:58 63 110.13 63 124.60 27.10 80
4PSMOB22010-03-16 01:16:002010-03-16 01:18:10 00:02:10 63 133.29 63 141.19 0.00 -
5AV2OBS2010-03-16 01:16:012010-03-16 01:17:55 00:01:54 63 133.35 63 140.28 0.00 -
6PSRPLR2010-03-16 01:16:032010-03-16 01:17:55 00:01:52 63 133.47 63 140.28 21.50 127
7AV2OBS2010-03-16 01:20:052010-03-16 01:21:57 00:01:52 63 148.18 63 154.99 0.00 -
8PSMOB22010-03-16 01:28:192010-03-16 01:39:53 00:11:34 63 178.20 63 220.38 0.00 -
9PSRWB12010-03-16 01:29:362010-03-16 01:32:42 00:03:06 63 182.82 63 194.13 27.10 80
10PSRWB12010-03-16 01:46:192010-03-16 01:48:25 00:02:06 63 243.85 63 251.50 27.10 80
11PSRFBS2010-03-16 02:09:282010-03-16 02:20:16 00:10:48 63 328.27 109 7.66 34.30 7
12PSRFBS2010-03-16 02:29:182010-03-16 02:31:10 00:01:52 109 40.60 109 47.41 34.30 7
13AV2OBS2010-03-16 02:49:382010-03-16 03:02:53 00:13:15 109 114.75 109 163.07 0.00 -
14PSMOB22010-03-16 02:52:532010-03-16 03:02:51 00:09:58 109 126.60 109 162.95 0.00 -
15PSRWB12010-03-16 03:05:432010-03-16 03:10:23 00:04:40 109 173.40 109 190.42 27.10 80
16PSMOB22010-03-16 03:06:162010-03-16 03:11:00 00:04:44 109 175.41 109 192.67 0.00 -
17PSRFBS2010-03-16 03:43:152010-03-16 03:49:39 00:06:24 109 310.22 109 333.56 34.30 7
18PSRFBS2010-03-16 03:51:142010-03-16 03:58:40 00:07:26 109 339.39 155 6.50 34.30 7
19PSRFBS2010-03-16 04:07:432010-03-16 04:09:47 00:02:04 155 39.45 155 46.98 34.30 7
20AV2OBS2010-03-16 04:34:432010-03-16 04:40:43 00:06:00 155 137.91 155 159.79 0.00 -
21PSMOB12010-03-16 06:09:532010-03-16 06:19:09 00:09:16 201 124.96 201 158.75 1.20 -
22AV2OBS2010-03-16 06:16:532010-03-16 06:19:17 00:02:24 201 150.55 201 159.30 0.00 -
23AV2OBS2010-03-16 06:43:502010-03-16 06:45:42 00:01:52 201 248.77 201 255.58 21.50 -
24PSRWB12010-03-16 07:59:312010-03-16 08:08:15 00:08:44 247 164.83 247 196.68 27.10 80
25PSRFBS2010-03-16 09:07:032010-03-16 09:08:55 00:01:52 293 51.05 293 57.86 34.30 7
26PSMOB12010-03-16 09:24:282010-03-16 09:27:42 00:03:14 293 114.57 293 126.36 1.20 -
27PSMOB12010-03-16 09:36:282010-03-16 09:44:40 00:08:12 293 158.33 293 188.23 1.20 -
28AV2OBS2010-03-16 09:37:142010-03-16 09:43:54 00:06:40 293 161.13 293 185.44 0.00 -
29PSRWB12010-03-16 10:03:322010-03-16 10:05:52 00:02:20 293 257.03 293 265.54 27.10 80
30AV2OBS2010-03-16 11:08:462010-03-16 11:10:38 00:01:52 339 134.93 339 141.74 34.30 -
31AV2OBS2010-03-16 11:12:322010-03-16 11:19:48 00:07:16 339 148.67 339 175.17 0.00 -
32PSMOB12010-03-16 11:15:112010-03-16 11:20:13 00:05:02 339 158.33 339 176.68 1.20 -
33PSRWB12010-03-16 11:40:312010-03-16 11:43:07 00:02:36 339 250.71 339 260.19 27.10 80
34PSRFBS2010-03-16 12:06:052010-03-16 12:09:21 00:03:16 339 343.95 339 355.86 34.30 7
35AV2OBS2010-03-16 12:08:002010-03-16 12:11:08 00:03:08 339 350.94 385 2.37 0.00 -
36PSRFBD2010-03-16 12:10:522010-03-16 12:12:44 00:01:52 385 1.40 385 8.21 34.30 43
37PSRFBS2010-03-16 12:21:532010-03-16 12:23:53 00:02:00 385 41.57 385 48.87 34.30 7
38PSMOB12010-03-16 12:35:232010-03-16 12:38:43 00:03:20 385 90.80 385 102.96 1.20 -
39AV2OBS2010-03-16 12:36:062010-03-16 12:37:58 00:01:52 385 93.42 385 100.22 0.00 -
40PSMOB12010-03-16 12:49:102010-03-16 12:51:58 00:02:48 385 141.07 385 151.28 0.00 -
41PSMOB12010-03-16 12:59:262010-03-16 13:07:32 00:08:06 385 178.51 385 208.05 1.20 -
42AV2OBS2010-03-16 13:04:122010-03-16 13:06:46 00:02:34 385 195.89 385 205.25 0.00 -
43PSRWB12010-03-16 13:17:222010-03-16 13:21:42 00:04:20 385 243.91 385 259.71 27.10 80
44PSRPLR2010-03-16 13:45:482010-03-16 13:50:06 00:04:18 385 347.60 431 3.28 21.50 127
45PSRFBS2010-03-16 13:55:232010-03-16 14:11:13 00:15:50 431 22.55 431 80.29 34.30 7
46AV2OBS2010-03-16 14:35:052010-03-16 14:43:05 00:08:00 431 167.32 431 196.50 0.00 -
47PSRPLR2010-03-16 14:40:262010-03-16 14:42:18 00:01:52 431 186.83 431 193.64 21.50 127
48PSRFBS2010-03-16 15:16:442010-03-16 15:18:36 00:01:52 431 319.21 431 326.02 34.30 7
49PSRFBD2010-03-16 15:20:322010-03-16 15:22:50 00:02:18 431 333.07 431 341.46 34.30 43
50PSRFBS2010-03-16 15:24:312010-03-16 15:26:43 00:02:12 431 347.60 431 355.62 34.30 7
51PSRPLR2010-03-16 15:27:382010-03-16 15:36:10 00:08:32 431 358.96 477 30.09 21.50 127
52PSRFBS2010-03-16 15:43:292010-03-16 15:48:09 00:04:40 477 56.77 477 73.79 34.30 7
53PSMOB12010-03-16 15:53:412010-03-16 15:59:35 00:05:54 477 93.96 477 115.48 0.00 -
54AV2OBS2010-03-16 15:57:492010-03-16 16:00:23 00:02:34 477 108.98 477 118.34 0.00 -
55PSRWB12010-03-16 16:02:582010-03-16 16:05:30 00:02:32 477 127.82 477 137.06 27.10 80
56PSRWB12010-03-16 16:07:152010-03-16 16:10:37 00:03:22 477 143.44 477 155.72 27.10 80
57AV2OBS2010-03-16 16:11:462010-03-16 16:15:38 00:03:52 477 159.91 477 174.01 0.00 -
58PSMOB12010-03-16 16:12:262010-03-16 16:15:40 00:03:14 477 162.28 477 174.07 1.20 -
59PSRWB12010-03-16 16:34:482010-03-16 16:40:14 00:05:26 477 243.91 477 263.72 27.10 80
60PSRFBS2010-03-16 16:41:272010-03-16 16:43:19 00:01:52 477 268.16 477 274.96 34.30 7
61PSRPLR2010-03-16 17:07:212010-03-16 17:17:13 00:09:52 523 2.61 523 38.59 21.50 127
62PSRFBS2010-03-16 17:22:122010-03-16 17:28:12 00:06:00 523 56.77 523 78.65 34.30 7
63PSMOB12010-03-16 17:31:252010-03-16 17:36:53 00:05:28 523 90.32 523 110.25 0.00 -
64AV2OBS2010-03-16 17:34:442010-03-16 17:39:38 00:04:54 523 102.41 523 120.28 0.00 -
65AV2OBS2010-03-16 17:44:152010-03-16 17:46:07 00:01:52 523 137.12 523 143.92 -21.50 -
66PSMOB12010-03-16 17:45:342010-03-16 17:51:12 00:05:38 523 141.92 523 162.46 1.20 -
67PSRWB12010-03-16 18:13:312010-03-16 18:16:57 00:03:26 523 243.91 523 256.43 27.10 80
68PSRFBS2010-03-16 18:18:412010-03-16 18:20:33 00:01:52 523 262.69 523 269.49 34.30 7
69PSRFBS2010-03-16 18:53:072010-03-16 18:56:05 00:02:58 569 28.32 569 39.14 34.30 7
70PSRFBS2010-03-16 18:58:102010-03-16 19:04:48 00:06:38 569 46.74 569 70.93 34.30 7
71AV2OBS2010-03-16 19:09:562010-03-16 19:18:28 00:08:32 569 89.65 569 120.77 0.00 -
72PSMOB12010-03-16 19:16:472010-03-16 19:23:23 00:06:36 569 114.57 569 138.64 1.20 -
73PSRWB12010-03-16 19:52:142010-03-16 19:57:40 00:05:26 569 243.91 569 263.72 27.10 80
74PSRFBS2010-03-16 20:18:082010-03-16 20:22:00 00:03:52 569 338.36 569 352.46 34.30 7
75PSRFBS2010-03-16 20:34:152010-03-16 20:42:53 00:08:38 615 37.14 615 68.62 34.30 7
76PSRPLR2010-03-16 20:45:562010-03-16 20:48:26 00:02:30 615 79.74 615 88.86 21.50 127
77AV2OBS2010-03-16 20:48:182010-03-16 20:57:16 00:08:58 615 88.37 615 121.07 0.00 -
78PSRWB12010-03-16 21:06:252010-03-16 21:08:17 00:01:52 615 154.44 615 161.25 27.10 80
79AV2OBS2010-03-16 21:11:332010-03-16 21:13:25 00:01:52 615 173.10 615 179.91 0.00 -
80PSRWB12010-03-16 21:30:572010-03-16 21:33:59 00:03:02 615 243.91 615 254.97 27.10 80
81PSRFBS2010-03-16 21:55:182010-03-16 22:02:12 00:06:54 615 332.70 615 357.87 34.30 7
82PSRFBS2010-03-16 22:11:512010-03-16 22:17:15 00:05:24 661 33.06 661 52.76 34.30 7
83PSRFBS2010-03-16 22:24:432010-03-16 22:28:03 00:03:20 661 79.92 661 92.08 34.30 7
84AV2OBS2010-03-16 22:27:022010-03-16 22:28:54 00:01:52 661 88.43 661 95.24 0.00 -
85AV2OBS2010-03-16 22:31:392010-03-16 22:35:45 00:04:06 661 105.21 661 120.16 0.00 -
86PSMOB12010-03-16 22:36:082010-03-16 22:38:52 00:02:44 661 121.56 661 131.53 1.20 -
87AV2OBS2010-03-16 22:43:412010-03-16 22:45:33 00:01:52 661 149.15 661 155.96 21.50 -
88AV2OBS2010-03-16 22:50:522010-03-16 22:52:44 00:01:52 661 175.29 661 182.09 0.00 -
89PSRWB12010-03-16 22:55:032010-03-16 22:58:51 00:03:48 661 190.60 661 204.46 27.10 80
90AV2OBS2010-03-16 22:56:342010-03-16 22:58:26 00:01:52 661 196.13 661 202.94 0.00 -
91PSMOB22010-03-16 22:56:412010-03-16 22:58:35 00:01:54 661 196.50 661 203.43 0.00 -
92PSRWB12010-03-16 23:09:392010-03-16 23:11:35 00:01:56 661 243.85 661 250.90 27.10 80
93PSRFBS2010-03-16 23:43:432010-03-16 23:49:37 00:05:54 36 8.02 36 29.54 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
17 -8.877722010-03-15 23:00:43158.782492010-03-15 23:50:05
63-33.557302010-03-16 00:39:26134.102912010-03-16 01:28:48
109-58.236882010-03-16 02:18:09109.423332010-03-16 03:07:31
155-82.916462010-03-16 03:56:52 84.743752010-03-16 04:46:14
201-107.596052010-03-16 05:35:35 60.064162010-03-16 06:24:57
247-132.275632010-03-16 07:14:18 35.384582010-03-16 08:03:40
293-156.955212010-03-16 08:53:02 10.705002010-03-16 09:42:23
339178.365212010-03-16 10:31:45-13.974592010-03-16 11:21:06
385153.685622010-03-16 12:10:28-38.654172010-03-16 12:59:49
431129.006042010-03-16 13:49:11-63.333752010-03-16 14:38:32
477104.326462010-03-16 15:27:54-88.013332010-03-16 16:17:16
523 79.646872010-03-16 17:06:37-112.692922010-03-16 17:55:59
569 54.967292010-03-16 18:45:20-137.372502010-03-16 19:34:42
615 30.287712010-03-16 20:24:03-162.052082010-03-16 21:13:25
661 5.608132010-03-16 22:02:46173.268342010-03-16 22:52:08
36-19.071462010-03-16 23:41:29148.588752010-03-17 00:30:51
