>ALOS Data Take Simulation(Feb. 27, 2010)

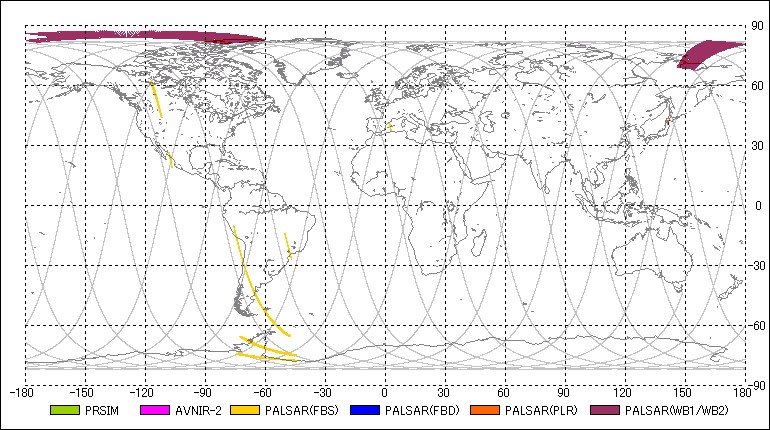

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2010-02-27 00:04:59	2010-02-27 00:13:47	00:08:48	16	242.08	16	274.17	-1.20	-
2	AV2	OBS	2010-02-27 00:05:45	2010-02-27 00:10:23	00:04:38	16	244.94	16	261.84	0.00	-
3	PSR	WB1	2010-02-27 00:59:39	2010-02-27 01:08:00	00:08:21	62	81.44	62	111.89	27.10	80
4	AV2	OBS	2010-02-27 01:13:46	2010-02-27 01:15:38	00:01:52	62	132.92	62	139.73	0.00	-
5	PSR	PLR	2010-02-27 01:13:59	2010-02-27 01:15:51	00:01:52	62	133.71	62	140.52	21.50	127
6	PSM	OB1	2010-02-27 01:17:51	2010-02-27 01:20:27	00:02:36	62	147.81	62	157.30	-1.20	-
7	AV2	OBS	2010-02-27 01:18:36	2010-02-27 01:20:28	00:01:52	62	150.55	62	157.36	0.00	-
8	AV2	OBS	2010-02-27 01:26:12	2010-02-27 01:29:24	00:03:12	62	178.33	62	190.00	0.00	-
9	PSM	OB2	2010-02-27 01:26:14	2010-02-27 01:30:14	00:04:00	62	178.39	62	192.97	0.00	-
10	PSM	OB1	2010-02-27 01:43:48	2010-02-27 01:51:40	00:07:52	62	242.45	62	271.14	-1.20	-
11	PSR	FBS	2010-02-27 02:07:58	2010-02-27 02:12:12	00:04:14	62	330.64	62	346.08	34.30	7
12	AV2	OBS	2010-02-27 02:47:31	2010-02-27 03:00:31	00:13:00	108	114.81	108	162.22	0.00	-
13	PSM	OB2	2010-02-27 02:53:51	2010-02-27 03:00:19	00:06:28	108	137.97	108	161.55	0.00	-
14	AV2	OBS	2010-02-27 03:02:48	2010-02-27 03:08:06	00:05:18	108	170.55	108	189.87	0.00	-
15	PSM	OB2	2010-02-27 03:04:01	2010-02-27 03:08:53	00:04:52	108	174.98	108	192.73	0.00	-
16	AV2	OBS	2010-02-27 03:23:19	2010-02-27 03:26:53	00:03:34	108	245.36	108	258.37	0.00	-
17	PSR	FBS	2010-02-27 03:35:26	2010-02-27 03:52:02	00:16:36	108	289.61	108	350.15	34.30	7
18	AV2	OBS	2010-02-27 04:31:51	2010-02-27 04:38:31	00:06:40	154	135.29	154	159.61	0.00	-
19	PSM	OB1	2010-02-27 05:01:33	2010-02-27 05:09:51	00:08:18	154	243.66	154	273.93	-1.20	-
20	AV2	OBS	2010-02-27 05:02:18	2010-02-27 05:04:46	00:02:28	154	246.34	154	255.33	0.00	-
21	PSR	FBS	2010-02-27 05:10:35	2010-02-27 05:14:49	00:04:14	154	276.54	154	291.98	34.30	7
22	PSR	FBS	2010-02-27 05:38:05	2010-02-27 05:40:47	00:02:42	200	16.84	200	26.68	34.30	7
23	PSR	FBS	2010-02-27 05:44:55	2010-02-27 05:50:37	00:05:42	200	41.76	200	62.54	34.30	7
24	PSM	OB1	2010-02-27 06:10:33	2010-02-27 06:17:05	00:06:32	200	135.23	200	159.06	-1.20	-
25	AV2	OBS	2010-02-27 06:11:18	2010-02-27 06:16:20	00:05:02	200	137.97	200	156.32	0.00	-
26	PSM	OB1	2010-02-27 06:40:50	2010-02-27 06:47:16	00:06:26	200	245.67	200	269.13	-1.20	-
27	PSR	FBS	2010-02-27 06:47:29	2010-02-27 06:50:23	00:02:54	200	269.92	200	280.50	34.30	7
28	PSM	OB1	2010-02-27 11:40:06	2010-02-27 11:44:46	00:04:40	338	257.03	338	274.05	-1.20	-
29	AV2	OBS	2010-02-27 12:58:07	2010-02-27 12:59:09	00:01:02	384	181.49	384	185.25	0.00	-
30	AV2	OBS	2010-02-27 13:14:51	2010-02-27 13:19:17	00:04:26	384	242.57	384	258.74	0.00	-
31	PSM	OB1	2010-02-27 14:32:14	2010-02-27 14:44:30	00:12:16	430	164.71	430	209.44	-1.20	-
32	PSM	OB1	2010-02-27 21:04:09	2010-02-27 21:06:51	00:02:42	614	153.95	614	163.80	-1.20	-
33	PSM	OB1	2010-02-27 21:30:02	2010-02-27 21:37:06	00:07:04	614	248.40	614	274.17	-1.20	-
34	PSR	FBS	2010-02-27 22:10:18	2010-02-27 22:12:00	00:01:42	660	35.19	660	41.39	34.30	7
35	AV2	OBS	2010-02-27 23:08:29	2010-02-27 23:11:35	00:03:06	660	247.37	660	258.68	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
16	-8.34120	2010-02-26 22:58:34	159.31901	2010-02-26 23:47:56
62	-33.02079	2010-02-27 00:37:17	134.63942	2010-02-27 01:26:39
108	-57.70037	2010-02-27 02:16:00	109.95984	2010-02-27 03:05:22
154	-82.37995	2010-02-27 03:54:44	85.28026	2010-02-27 04:44:05
200	-107.05953	2010-02-27 05:33:27	60.60068	2010-02-27 06:22:48
246	-131.73912	2010-02-27 07:12:10	35.92109	2010-02-27 08:01:31
292	-156.41870	2010-02-27 08:50:53	11.24151	2010-02-27 09:40:14
338	178.90172	2010-02-27 10:29:36	-13.43807	2010-02-27 11:18:57
384	154.22214	2010-02-27 12:08:19	-38.11766	2010-02-27 12:57:41
430	129.54255	2010-02-27 13:47:02	-62.79724	2010-02-27 14:36:24
476	104.86297	2010-02-27 15:25:45	-87.47682	2010-02-27 16:15:07
522	80.18339	2010-02-27 17:04:28	-112.15640	2010-02-27 17:53:50
568	55.50380	2010-02-27 18:43:11	-136.83599	2010-02-27 19:32:33
614	30.82422	2010-02-27 20:21:55	-161.51557	2010-02-27 21:11:16
660	6.14464	2010-02-27 22:00:38	173.80485	2010-02-27 22:49:59
35	-18.53494	2010-02-27 23:39:21	149.12527	2010-02-28 00:28:42
