>ALOS Data Take Simulation(Feb. 23, 2010)

Observation Area

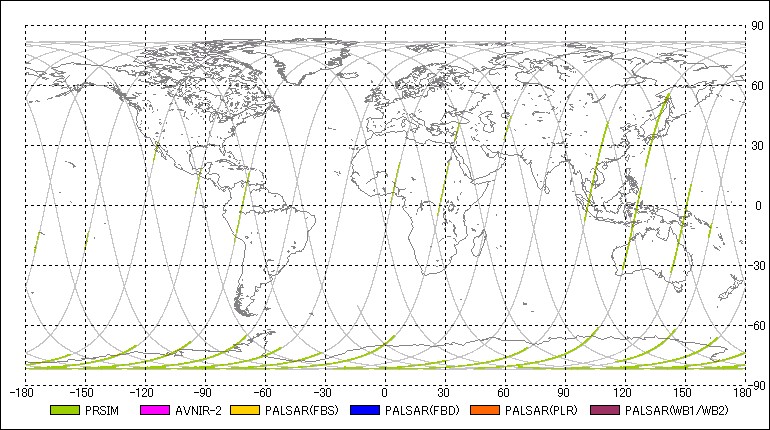

PRISM

AVNIR-2

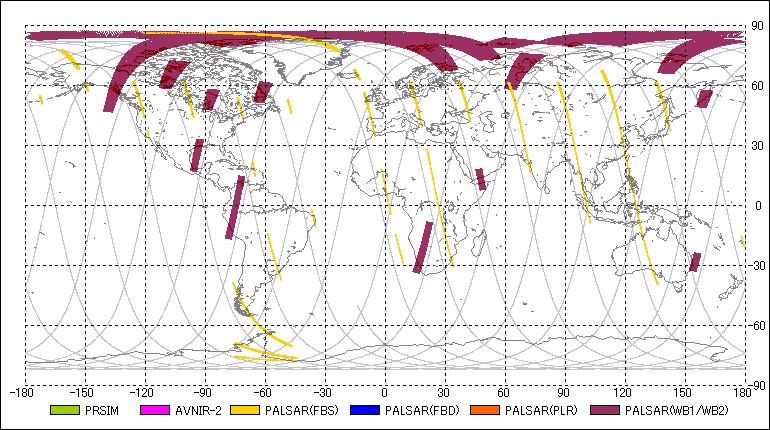

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-02-23 00:06:05	2010-02-23 00:09:05	00:03:00	32	120.89	32	131.83	27.10	80
2	PSM	OB2	2010-02-23 00:19:22	2010-02-23 00:31:34	00:12:12	32	169.33	32	213.82	0.00	-
3	AV2	OBS	2010-02-23 00:40:15	2010-02-23 00:42:39	00:02:24	32	245.49	32	254.24	0.00	-
4	PSR	FBS	2010-02-23 01:08:05	2010-02-23 01:11:03	00:02:58	32	347.05	32	357.87	34.30	7
5	PSR	FBS	2010-02-23 01:23:43	2010-02-23 01:26:21	00:02:38	78	44.00	78	53.61	34.30	7
6	PSR	WB1	2010-02-23 01:33:29	2010-02-23 01:42:59	00:09:30	78	79.62	78	114.26	27.10	80
7	PSM	OB2	2010-02-23 01:45:28	2010-02-23 01:55:40	00:10:12	78	123.32	78	160.52	0.00	-
8	AV2	OBS	2010-02-23 01:50:38	2010-02-23 01:55:38	00:05:00	78	142.16	78	160.40	0.00	-
9	PSM	OB2	2010-02-23 01:58:31	2010-02-23 02:09:49	00:11:18	78	170.91	78	212.12	0.00	-
10	PSM	OB1	2010-02-23 02:17:59	2010-02-23 02:25:07	00:07:08	78	241.90	78	267.91	-1.20	-
11	AV2	OBS	2010-02-23 02:18:46	2010-02-23 02:21:40	00:02:54	78	244.76	78	255.33	0.00	-
12	PSR	FBS	2010-02-23 02:39:20	2010-02-23 02:46:32	00:07:12	78	319.82	78	346.08	34.30	7
13	PSR	FBS	2010-02-23 02:53:46	2010-02-23 02:56:32	00:02:46	124	12.46	124	22.55	34.30	7
14	PSR	FBS	2010-02-23 03:01:50	2010-02-23 03:05:18	00:03:28	124	41.82	124	54.46	34.30	7
15	AV2	OBS	2010-02-23 03:25:23	2010-02-23 03:42:17	00:16:54	124	127.70	124	189.33	0.00	-
16	PSM	OB2	2010-02-23 03:28:12	2010-02-23 03:42:02	00:13:50	124	137.97	124	188.41	0.00	-
17	AV2	OBS	2010-02-23 03:58:15	2010-02-23 04:01:21	00:03:06	124	247.55	124	258.86	0.00	-
18	PSM	OB1	2010-02-23 03:59:44	2010-02-23 04:05:32	00:05:48	124	252.96	124	274.11	-1.20	-
19	PSR	FBS	2010-02-23 04:08:08	2010-02-23 04:18:26	00:10:18	124	283.59	124	321.16	34.30	7
20	PSR	FBS	2010-02-23 04:40:33	2010-02-23 04:46:17	00:05:44	170	41.82	170	62.72	34.30	7
21	PSR	WB1	2010-02-23 04:52:52	2010-02-23 04:56:18	00:03:26	170	86.73	170	99.25	27.10	80
22	AV2	OBS	2010-02-23 05:04:07	2010-02-23 05:07:59	00:03:52	170	127.76	170	141.86	0.00	-
23	AV2	OBS	2010-02-23 05:10:02	2010-02-23 05:16:30	00:06:28	170	149.33	170	172.92	0.00	-
24	AV2	OBS	2010-02-23 05:36:19	2010-02-23 05:40:01	00:03:42	170	245.18	170	258.68	0.00	-
25	PSM	OB1	2010-02-23 05:40:29	2010-02-23 05:43:25	00:02:56	170	260.38	170	271.07	-1.20	-
26	PSR	FBS	2010-02-23 05:44:12	2010-02-23 05:48:04	00:03:52	170	273.93	170	288.03	34.30	7
27	PSR	FBS	2010-02-23 06:16:22	2010-02-23 06:18:14	00:01:52	216	31.24	216	38.05	34.30	7
28	PSR	FBS	2010-02-23 06:19:16	2010-02-23 06:24:58	00:05:42	216	41.82	216	62.60	34.30	7
29	PSR	WB1	2010-02-23 06:31:35	2010-02-23 06:35:01	00:03:26	216	86.73	216	99.25	27.10	80
30	PSR	WB1	2010-02-23 06:35:46	2010-02-23 06:41:24	00:05:38	216	101.99	216	122.53	27.10	80
31	AV2	OBS	2010-02-23 06:42:50	2010-02-23 06:47:30	00:04:40	216	127.76	216	144.78	0.00	-
32	PSM	OB1	2010-02-23 06:44:53	2010-02-23 06:48:07	00:03:14	216	135.23	216	147.02	-1.20	-
33	AV2	OBS	2010-02-23 06:51:16	2010-02-23 06:54:24	00:03:08	216	158.51	216	169.94	0.00	-
34	AV2	OBS	2010-02-23 07:01:27	2010-02-23 07:06:07	00:04:40	216	195.65	216	212.67	0.00	-
35	AV2	OBS	2010-02-23 07:16:05	2010-02-23 07:18:45	00:02:40	216	249.01	216	258.74	0.00	-
36	PSR	FBS	2010-02-23 07:21:20	2010-02-23 07:24:02	00:02:42	216	268.16	216	278.00	34.30	7
37	PSR	FBS	2010-02-23 08:01:36	2010-02-23 08:03:36	00:02:00	262	54.94	262	62.24	34.30	7
38	PSR	FBS	2010-02-23 08:04:43	2010-02-23 08:08:01	00:03:18	262	66.37	262	78.40	34.30	7
39	PSR	WB1	2010-02-23 08:12:18	2010-02-23 08:14:10	00:01:52	262	94.03	262	100.83	27.10	80
40	PSM	OB1	2010-02-23 08:24:22	2010-02-23 08:26:58	00:02:36	262	138.03	262	147.51	-1.20	-
41	PSM	OB1	2010-02-23 08:30:02	2010-02-23 08:37:22	00:07:20	262	158.69	262	185.44	-1.20	-
42	AV2	OBS	2010-02-23 08:30:42	2010-02-23 08:35:30	00:04:48	262	161.13	262	178.63	0.00	-
43	PSR	WB1	2010-02-23 08:37:50	2010-02-23 08:45:30	00:07:40	262	187.14	262	215.10	27.10	80
44	AV2	OBS	2010-02-23 08:45:58	2010-02-23 08:47:24	00:01:26	262	216.80	262	222.03	0.00	-
45	PSM	OB1	2010-02-23 08:54:01	2010-02-23 09:01:43	00:07:42	262	246.15	262	274.23	-1.20	-
46	AV2	OBS	2010-02-23 08:54:48	2010-02-23 08:57:30	00:02:42	262	249.01	262	258.86	0.00	-
47	PSR	FBS	2010-02-23 09:38:37	2010-02-23 09:40:29	00:01:52	308	48.81	308	55.61	34.30	7
48	PSM	OB1	2010-02-23 10:08:39	2010-02-23 10:14:11	00:05:32	308	158.33	308	178.51	-1.20	-
49	AV2	OBS	2010-02-23 10:09:25	2010-02-23 10:12:13	00:02:48	308	161.13	308	171.34	0.00	-
50	PSM	OB1	2010-02-23 10:35:19	2010-02-23 10:40:23	00:05:04	308	255.58	308	274.05	-1.20	-
51	PSR	FBS	2010-02-23 10:57:43	2010-02-23 10:59:49	00:02:06	308	337.20	308	344.86	34.30	7
52	AV2	OBS	2010-02-23 11:48:18	2010-02-23 11:50:10	00:01:52	354	161.73	354	168.54	-34.30	-
53	PSM	OB1	2010-02-23 12:13:16	2010-02-23 12:19:06	00:05:50	354	252.78	354	274.05	-1.20	-
54	AV2	OBS	2010-02-23 12:14:02	2010-02-23 12:15:54	00:01:52	354	255.58	354	262.38	0.00	-
55	AV2	OBS	2010-02-23 12:41:11	2010-02-23 12:43:29	00:02:18	354	354.52	400	2.92	0.00	-
56	PSR	FBS	2010-02-23 12:52:23	2010-02-23 13:00:03	00:07:40	400	35.43	400	63.39	34.30	7
57	AV2	OBS	2010-02-23 13:32:44	2010-02-23 13:42:04	00:09:20	400	182.58	400	216.62	0.00	-
58	PSM	OB1	2010-02-23 13:50:14	2010-02-23 13:57:52	00:07:38	400	246.34	400	274.17	-1.20	-
59	AV2	OBS	2010-02-23 13:50:53	2010-02-23 13:53:51	00:02:58	400	248.77	400	259.59	0.00	-
60	PSR	FBS	2010-02-23 14:09:45	2010-02-23 14:40:03	00:30:18	400	317.57	446	68.07	34.30	7
61	PSR	WB1	2010-02-23 14:53:23	2010-02-23 14:56:49	00:03:26	446	116.70	446	129.22	27.10	80
62	PSM	OB1	2010-02-23 15:06:14	2010-02-23 15:15:58	00:09:44	446	163.50	446	198.99	-1.20	-
63	PSR	WB1	2010-02-23 15:06:22	2010-02-23 15:15:40	00:09:18	446	164.04	446	197.96	27.10	80
64	PSM	OB1	2010-02-23 15:29:48	2010-02-23 15:36:36	00:06:48	446	249.44	446	274.23	-1.20	-
65	AV2	OBS	2010-02-23 15:30:30	2010-02-23 15:33:02	00:02:32	446	251.99	446	261.23	0.00	-
66	PSR	FBS	2010-02-23 15:56:59	2010-02-23 16:17:11	00:20:12	446	348.63	492	62.30	34.30	7
67	PSR	WB1	2010-02-23 16:33:10	2010-02-23 16:36:36	00:03:26	492	120.52	492	133.05	27.10	80
68	PSR	WB1	2010-02-23 16:40:02	2010-02-23 16:45:03	00:05:01	492	145.63	492	163.92	27.10	80
69	PSM	OB1	2010-02-23 16:44:30	2010-02-23 16:47:48	00:03:18	492	161.85	492	173.89	0.00	-
70	PSM	OB1	2010-02-23 17:09:03	2010-02-23 17:15:13	00:06:10	492	251.44	492	273.93	-1.20	-
71	AV2	OBS	2010-02-23 17:09:42	2010-02-23 17:11:34	00:01:52	492	253.75	492	260.56	0.00	-
72	PSR	FBS	2010-02-23 17:42:42	2010-02-23 17:55:52	00:13:10	538	14.16	538	62.18	34.30	7
73	PSR	WB1	2010-02-23 17:58:33	2010-02-23 18:05:38	00:07:05	538	71.96	538	97.79	27.10	80
74	PSR	WB1	2010-02-23 18:07:53	2010-02-23 18:12:17	00:04:24	538	106.00	538	122.04	27.10	80
75	AV2	OBS	2010-02-23 18:15:14	2010-02-23 18:18:02	00:02:48	538	132.74	538	142.95	0.00	-
76	PSM	OB1	2010-02-23 18:19:23	2010-02-23 18:22:13	00:02:50	538	147.88	538	158.21	0.00	-
77	PSM	OB1	2010-02-23 18:49:14	2010-02-23 18:54:00	00:04:46	538	256.73	538	274.11	-1.20	-
78	PSR	WB1	2010-02-23 19:19:08	2010-02-23 19:22:38	00:03:30	584	5.77	584	18.54	27.10	80
79	PSR	FBS	2010-02-23 19:28:27	2010-02-23 19:34:51	00:06:24	584	39.75	584	63.09	34.30	7
80	PSR	WB1	2010-02-23 19:35:41	2010-02-23 19:54:20	00:18:39	584	66.13	584	134.14	27.10	80
81	PSM	OB1	2010-02-23 20:10:30	2010-02-23 20:13:06	00:02:36	584	193.09	584	202.58	-1.20	-
82	PSM	OB1	2010-02-23 20:27:35	2010-02-23 20:32:41	00:05:06	584	255.39	584	273.99	-1.20	-
83	PSR	FBS	2010-02-23 20:47:12	2010-02-23 21:03:58	00:16:46	584	326.93	630	28.08	34.30	7
84	PSR	FBS	2010-02-23 21:06:25	2010-02-23 21:13:17	00:06:52	630	37.01	630	62.06	34.30	7
85	PSM	OB1	2010-02-23 21:49:20	2010-02-23 21:52:06	00:02:46	630	193.52	630	203.61	-1.20	-
86	PSM	OB1	2010-02-23 22:04:03	2010-02-23 22:11:29	00:07:26	630	247.19	630	274.30	-1.20	-
87	AV2	OBS	2010-02-23 22:04:49	2010-02-23 22:07:13	00:02:24	630	249.98	630	258.74	0.00	-
88	PSR	FBS	2010-02-23 22:26:20	2010-02-23 22:30:56	00:04:36	630	328.45	630	345.22	34.30	7
89	PSR	FBS	2010-02-23 22:33:11	2010-02-23 22:40:07	00:06:56	630	353.43	5	18.72	34.30	7
90	PSR	FBS	2010-02-23 22:43:49	2010-02-23 22:50:39	00:06:50	5	32.21	5	57.13	34.30	7
91	PSR	FBS	2010-02-23 22:51:49	2010-02-23 22:53:49	00:02:00	5	61.39	5	68.68	34.30	7
92	PSR	FBS	2010-02-23 22:55:46	2010-02-23 23:00:14	00:04:28	5	75.85	5	92.14	34.30	7
93	AV2	OBS	2010-02-23 23:20:35	2010-02-23 23:22:33	00:01:58	5	166.29	5	173.46	0.00	-
94	PSM	OB2	2010-02-23 23:26:50	2010-02-23 23:28:44	00:01:54	5	189.08	5	196.01	0.00	-
95	PSR	WB1	2010-02-23 23:30:36	2010-02-23 23:33:44	00:03:08	5	202.82	5	214.25	27.10	80
96	PSM	OB1	2010-02-23 23:41:39	2010-02-23 23:46:43	00:05:04	5	243.18	5	261.65	-1.20	-
97	AV2	OBS	2010-02-23 23:42:24	2010-02-23 23:47:08	00:04:44	5	245.85	5	263.11	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
32	-16.92541	2010-02-22 23:32:54	150.73480	2010-02-23 00:22:16
78	-41.60499	2010-02-23 01:11:38	126.05522	2010-02-23 02:00:59
124	-66.28457	2010-02-23 02:50:21	101.37564	2010-02-23 03:39:42
170	-90.96415	2010-02-23 04:29:04	76.69606	2010-02-23 05:18:25
216	-115.64374	2010-02-23 06:07:47	52.01647	2010-02-23 06:57:08
262	-140.32332	2010-02-23 07:46:30	27.33689	2010-02-23 08:35:51
308	-165.00290	2010-02-23 09:25:13	2.65731	2010-02-23 10:14:35
354	170.31752	2010-02-23 11:03:56	-22.02228	2010-02-23 11:53:18
400	145.63793	2010-02-23 12:42:39	-46.70186	2010-02-23 13:32:01
446	120.95835	2010-02-23 14:21:22	-71.38144	2010-02-23 15:10:44
492	96.27877	2010-02-23 16:00:05	-96.06102	2010-02-23 16:49:27
538	71.59918	2010-02-23 17:38:49	-120.74061	2010-02-23 18:28:10
584	46.91960	2010-02-23 19:17:32	-145.42019	2010-02-23 20:06:53
630	22.24002	2010-02-23 20:56:15	-170.09977	2010-02-23 21:45:36
5	-2.43956	2010-02-23 22:34:58	165.22065	2010-02-23 23:24:19
