>ALOS Data Take Simulation(Jan. 04, 2010)

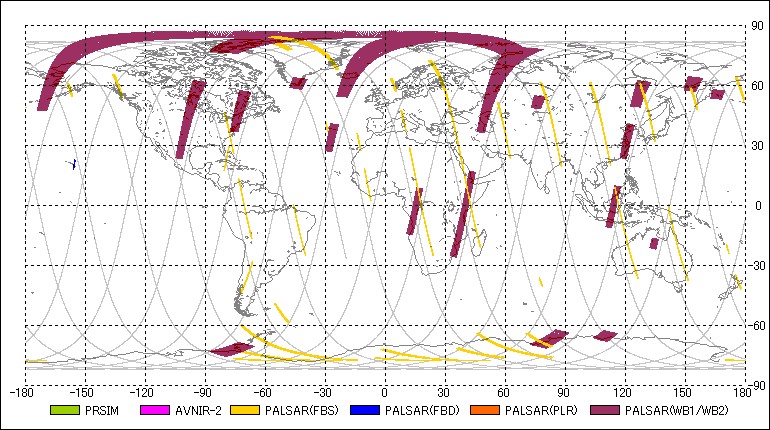

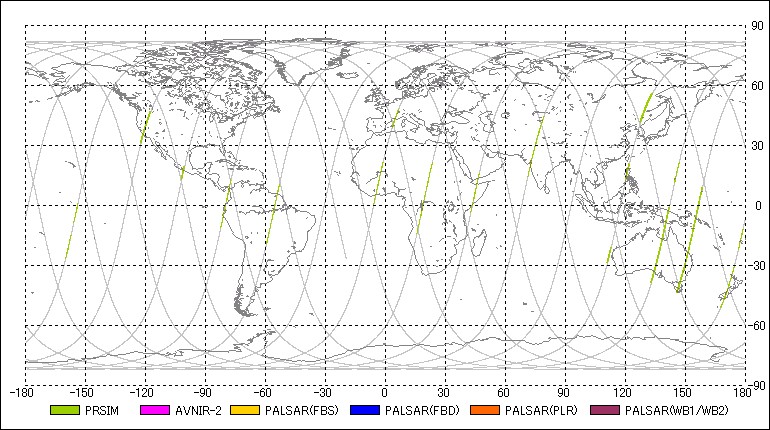

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-01-04 00:16:52	2010-01-04 00:18:44	00:01:52	48	35.01	48	41.82	34.30	7
2	PSR	FBS	2010-01-04 00:28:15	2010-01-04 00:30:37	00:02:22	48	76.52	48	85.15	34.30	7
3	PSR	WB1	2010-01-04 00:38:35	2010-01-04 00:41:05	00:02:30	48	114.20	48	123.32	27.10	80
4	PSM	OB1	2010-01-04 00:50:41	2010-01-04 00:53:33	00:02:52	48	158.33	48	168.78	1.20	-
5	AV2	OBS	2010-01-04 00:51:09	2010-01-04 00:54:17	00:03:08	48	160.03	48	171.46	0.00	-
6	PSM	OB2	2010-01-04 00:56:54	2010-01-04 01:07:18	00:10:24	48	181.00	48	218.93	0.00	-
7	PSR	WB1	2010-01-04 01:00:53	2010-01-04 01:02:55	00:02:02	48	195.53	48	202.94	27.10	80
8	PSR	WB1	2010-01-04 01:14:09	2010-01-04 01:16:05	00:01:56	48	243.91	48	250.96	27.10	80
9	PSR	FBS	2010-01-04 01:20:27	2010-01-04 01:25:07	00:04:40	48	266.88	48	283.90	34.30	7
10	PSR	FBS	2010-01-04 01:38:25	2010-01-04 01:46:09	00:07:44	48	332.40	94	0.61	34.30	7
11	PSR	WB1	2010-01-04 02:17:52	2010-01-04 02:22:00	00:04:08	94	116.27	94	131.34	27.10	80
12	PSM	OB2	2010-01-04 02:19:52	2010-01-04 02:23:50	00:03:58	94	123.56	94	138.03	0.00	-
13	PSR	WB1	2010-01-04 02:23:54	2010-01-04 02:29:10	00:05:16	94	138.27	94	157.48	27.10	80
14	PSM	OB2	2010-01-04 02:29:38	2010-01-04 02:31:52	00:02:14	94	159.18	94	167.32	0.00	-
15	PSR	WB1	2010-01-04 02:32:20	2010-01-04 02:38:42	00:06:22	94	169.03	94	192.24	27.10	80
16	PSM	OB2	2010-01-04 02:41:09	2010-01-04 02:43:13	00:02:04	94	201.18	94	208.72	0.00	-
17	PSR	WB1	2010-01-04 02:52:51	2010-01-04 02:55:53	00:03:02	94	243.85	94	254.91	27.10	80
18	PSR	FBS	2010-01-04 02:59:10	2010-01-04 03:01:52	00:02:42	94	266.88	94	276.73	34.30	7
19	PSR	FBS	2010-01-04 03:07:35	2010-01-04 03:10:59	00:03:24	94	297.57	94	309.97	34.30	7
20	PSR	FBS	2010-01-04 03:19:30	2010-01-04 03:28:28	00:08:58	94	341.03	140	13.74	34.30	7
21	PSR	FBS	2010-01-04 03:31:11	2010-01-04 03:37:35	00:06:24	140	23.64	140	46.98	34.30	7
22	AV2	OBS	2010-01-04 04:12:03	2010-01-04 04:14:03	00:02:00	140	172.67	140	179.97	0.00	-
23	AV2	OBS	2010-01-04 04:24:21	2010-01-04 04:26:13	00:01:52	140	217.53	140	224.34	-34.30	-
24	PSR	FBS	2010-01-04 04:38:54	2010-01-04 04:46:34	00:07:40	140	270.59	140	298.55	34.30	7
25	PSR	WB1	2010-01-04 05:37:19	2010-01-04 05:39:39	00:02:20	186	123.62	186	132.13	27.10	80
26	PSM	OB1	2010-01-04 05:40:30	2010-01-04 05:48:48	00:08:18	186	135.23	186	165.50	1.20	-
27	AV2	OBS	2010-01-04 05:41:15	2010-01-04 05:47:59	00:06:44	186	137.97	186	162.52	0.00	-
28	PSR	FBS	2010-01-04 06:16:37	2010-01-04 06:21:05	00:04:28	186	266.94	186	283.23	34.30	7
29	PSR	FBS	2010-01-04 06:56:23	2010-01-04 07:00:15	00:03:52	232	51.97	232	66.07	34.30	7
30	PSR	WB1	2010-01-04 07:09:13	2010-01-04 07:21:45	00:12:32	232	98.77	232	144.47	27.10	80
31	PSR	WB1	2010-01-04 07:26:32	2010-01-04 07:38:54	00:12:22	232	161.92	232	207.01	27.10	80
32	PSM	OB1	2010-01-04 07:27:08	2010-01-04 07:32:26	00:05:18	232	164.10	232	183.43	1.20	-
33	AV2	OBS	2010-01-04 07:27:41	2010-01-04 07:31:47	00:04:06	232	166.11	232	181.06	0.00	-
34	AV2	OBS	2010-01-04 07:35:11	2010-01-04 07:38:03	00:02:52	232	193.40	232	203.85	0.00	-
35	PSR	FBS	2010-01-04 07:55:20	2010-01-04 07:57:46	00:02:26	232	266.94	232	275.82	34.30	7
36	PSR	FBS	2010-01-04 08:35:20	2010-01-04 08:37:46	00:02:26	278	52.76	278	61.63	34.30	7
37	AV2	OBS	2010-01-04 08:57:01	2010-01-04 09:02:39	00:05:38	278	131.89	278	152.43	0.00	-
38	PSM	OB1	2010-01-04 09:04:16	2010-01-04 09:14:04	00:09:48	278	158.33	278	194.07	1.20	-
39	AV2	OBS	2010-01-04 09:05:02	2010-01-04 09:13:18	00:08:16	278	161.13	278	191.27	0.00	-
40	PSR	WB1	2010-01-04 09:07:32	2010-01-04 09:14:30	00:06:58	278	170.24	278	195.65	27.10	80
41	AV2	OBS	2010-01-04 09:17:31	2010-01-04 09:19:23	00:01:52	278	206.59	278	213.40	0.00	-
42	PSR	FBS	2010-01-04 10:12:25	2010-01-04 10:17:17	00:04:52	324	46.80	324	64.55	34.30	7
43	PSM	OB1	2010-01-04 10:35:36	2010-01-04 10:38:12	00:02:36	324	131.34	324	140.82	1.20	-
44	AV2	OBS	2010-01-04 10:36:22	2010-01-04 10:38:14	00:01:52	324	134.14	324	140.95	0.00	-
45	AV2	OBS	2010-01-04 10:42:48	2010-01-04 10:48:02	00:05:14	324	157.60	324	176.68	0.00	-
46	PSM	OB1	2010-01-04 10:42:59	2010-01-04 10:48:47	00:05:48	324	158.33	324	179.48	1.20	-
47	PSR	FBS	2010-01-04 11:26:01	2010-01-04 11:28:41	00:02:40	324	315.20	324	324.92	34.30	7
48	PSR	FBS	2010-01-04 11:31:00	2010-01-04 11:32:52	00:01:52	324	333.43	324	340.24	34.30	7
49	PSR	FBS	2010-01-04 11:50:58	2010-01-04 11:54:38	00:03:40	370	46.25	370	59.62	34.30	7
50	PSR	WB1	2010-01-04 12:03:53	2010-01-04 12:12:57	00:09:04	370	93.30	370	126.36	27.10	80
51	PSR	WB1	2010-01-04 12:16:06	2010-01-04 12:20:31	00:04:25	370	137.85	370	153.95	27.10	80
52	PSR	WB1	2010-01-04 12:47:11	2010-01-04 12:49:39	00:02:28	370	251.20	370	260.19	27.10	80
53	PSR	FBS	2010-01-04 13:05:55	2010-01-04 13:17:05	00:11:10	370	319.58	416	0.30	34.30	7
54	PSR	FBS	2010-01-04 13:25:09	2010-01-04 13:34:01	00:08:52	416	29.72	416	62.06	34.30	7
55	PSR	WB1	2010-01-04 13:48:29	2010-01-04 13:50:31	00:02:02	416	114.75	416	122.17	27.10	80
56	PSM	OB1	2010-01-04 14:03:33	2010-01-04 14:11:35	00:08:02	416	169.69	416	198.99	1.20	-
57	AV2	OBS	2010-01-04 14:12:56	2010-01-04 14:14:48	00:01:52	416	203.91	416	210.72	-41.50	-
58	PSR	FBS	2010-01-04 14:13:50	2010-01-04 14:19:08	00:05:18	416	207.26	416	226.58	34.30	7
59	PSR	FBS	2010-01-04 14:44:54	2010-01-04 14:58:18	00:13:24	416	320.55	462	9.42	34.30	7
60	PSR	FBS	2010-01-04 15:00:35	2010-01-04 15:12:47	00:12:12	462	17.75	462	62.24	34.30	7
61	PSR	WB1	2010-01-04 15:28:59	2010-01-04 15:35:13	00:06:14	462	121.31	462	144.05	27.10	80
62	PSR	FBS	2010-01-04 15:36:35	2010-01-04 15:40:33	00:03:58	462	149.03	462	163.50	34.30	7
63	PSM	OB1	2010-01-04 15:41:30	2010-01-04 15:48:06	00:06:36	462	166.90	462	190.97	1.20	-
64	AV2	OBS	2010-01-04 15:42:17	2010-01-04 15:48:07	00:05:50	462	169.76	462	191.03	0.00	-
65	PSR	FBS	2010-01-04 16:08:55	2010-01-04 16:10:47	00:01:52	462	266.94	462	273.75	34.30	7
66	PSR	FBS	2010-01-04 16:39:10	2010-01-04 16:51:32	00:12:22	508	17.20	508	62.30	34.30	7
67	PSR	WB1	2010-01-04 16:54:35	2010-01-04 17:02:48	00:08:13	508	73.48	508	103.45	27.10	80
68	PSR	WB1	2010-01-04 17:06:20	2010-01-04 17:17:36	00:11:16	508	116.27	508	157.36	27.10	80
69	PSM	OB2	2010-01-04 17:18:26	2010-01-04 17:20:18	00:01:52	508	160.40	508	167.20	0.00	-
70	PSR	FBS	2010-01-04 18:01:15	2010-01-04 18:03:07	00:01:52	508	316.54	508	323.34	34.30	7
71	PSR	FBS	2010-01-04 18:19:05	2010-01-04 18:27:29	00:08:24	554	21.58	554	52.21	34.30	7
72	AV2	OBS	2010-01-04 18:49:34	2010-01-04 18:53:26	00:03:52	554	132.74	554	146.84	0.00	-
73	PSM	OB2	2010-01-04 18:49:34	2010-01-04 18:53:54	00:04:20	554	132.74	554	148.54	0.00	-
74	PSR	FBS	2010-01-04 19:30:49	2010-01-04 19:33:45	00:02:56	554	283.17	554	293.87	34.30	7
75	PSR	FBS	2010-01-04 19:45:30	2010-01-04 20:12:02	00:26:32	554	336.72	600	73.48	34.30	7
76	PSR	FBD	2010-01-04 20:34:43	2010-01-04 20:36:43	00:02:00	600	156.20	600	163.50	41.50	46
77	PSM	OB1	2010-01-04 20:40:57	2010-01-04 20:43:37	00:02:40	600	178.93	600	188.66	1.20	-
78	AV2	OBS	2010-01-04 20:41:43	2010-01-04 20:43:35	00:01:52	600	181.73	600	188.54	0.00	-
79	PSM	OB1	2010-01-04 20:45:20	2010-01-04 20:48:34	00:03:14	600	194.92	600	206.71	1.20	-
80	AV2	OBS	2010-01-04 20:46:03	2010-01-04 20:47:55	00:01:52	600	197.53	600	204.34	0.00	-
81	PSR	FBS	2010-01-04 21:07:07	2010-01-04 21:12:27	00:05:20	600	274.36	600	293.81	34.30	7
82	PSR	FBS	2010-01-04 21:23:02	2010-01-04 21:38:40	00:15:38	600	332.40	646	29.42	34.30	7
83	PSR	FBS	2010-01-04 21:40:15	2010-01-04 21:43:41	00:03:26	646	35.19	646	47.71	34.30	7
84	PSR	FBS	2010-01-04 21:45:41	2010-01-04 21:48:11	00:02:30	646	55.00	646	64.12	34.30	7
85	PSR	WB1	2010-01-04 21:54:23	2010-01-04 22:07:10	00:12:47	646	86.73	646	133.35	27.10	80
86	AV2	OBS	2010-01-04 22:11:49	2010-01-04 22:13:41	00:01:52	646	150.31	646	157.11	-34.30	-
87	PSM	OB1	2010-01-04 22:23:17	2010-01-04 22:26:13	00:02:56	646	192.12	646	202.82	1.20	-
88	AV2	OBS	2010-01-04 22:24:03	2010-01-04 22:25:55	00:01:52	646	194.92	646	201.73	0.00	-
89	PSM	OB1	2010-01-04 22:28:14	2010-01-04 22:34:10	00:05:56	646	210.11	646	231.75	1.20	-
90	PSR	FBS	2010-01-04 22:45:48	2010-01-04 22:48:40	00:02:52	646	274.17	646	284.63	34.30	7
91	PSR	FBS	2010-01-04 23:09:26	2010-01-04 23:14:26	00:05:00	21	0.43	21	18.66	34.30	7
92	PSR	FBS	2010-01-04 23:16:14	2010-01-04 23:19:20	00:03:06	21	25.22	21	36.53	34.30	7
93	PSR	FBS	2010-01-04 23:27:28	2010-01-04 23:32:58	00:05:30	21	66.19	21	86.25	34.30	7
94	PSR	WB1	2010-01-04 23:42:24	2010-01-04 23:44:16	00:01:52	21	120.65	21	127.45	27.10	80
95	PSM	OB2	2010-01-04 23:56:09	2010-01-05 00:10:47	00:14:38	21	170.79	21	224.15	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
2	-0.83003	2010-01-03 22:28:32	166.83018	2010-01-03 23:17:53
48	-25.50961	2010-01-04 00:07:15	142.15060	2010-01-04 00:56:36
94	-50.18919	2010-01-04 01:45:58	117.47102	2010-01-04 02:35:19
140	-74.86877	2010-01-04 03:24:41	92.79144	2010-01-04 04:14:02
186	-99.54836	2010-01-04 05:03:24	68.11185	2010-01-04 05:52:45
232	-124.22794	2010-01-04 06:42:07	43.43227	2010-01-04 07:31:29
278	-148.90752	2010-01-04 08:20:50	18.75269	2010-01-04 09:10:12
324	-173.58710	2010-01-04 09:59:33	-5.92690	2010-01-04 10:48:55
370	161.73331	2010-01-04 11:38:16	-30.60648	2010-01-04 12:27:38
416	137.05373	2010-01-04 13:16:59	-55.28606	2010-01-04 14:06:21
462	112.37415	2010-01-04 14:55:43	-79.96564	2010-01-04 15:45:04
508	87.69456	2010-01-04 16:34:26	-104.64523	2010-01-04 17:23:47
554	63.01498	2010-01-04 18:13:09	-129.32481	2010-01-04 19:02:30
600	38.33540	2010-01-04 19:51:52	-154.00439	2010-01-04 20:41:13
646	13.65582	2010-01-04 21:30:35	-178.68397	2010-01-04 22:19:56
21	-11.02377	2010-01-04 23:09:18	156.63644	2010-01-04 23:58:40
