>ALOS Data Take Simulation(Dec. 26, 2009)

Observation Area

PRISM

AVNIR-2

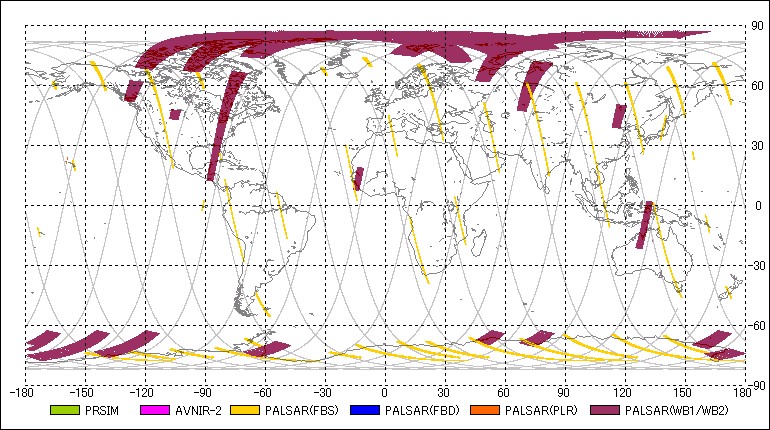

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12009-12-26 00:05:362009-12-26 00:08:12 00:02:36 15 252.17 15 261.65 1.20 -
2AV2OBS2009-12-26 00:06:222009-12-26 00:08:14 00:01:52 15 254.97 15 261.78 0.00 -
3PSRFBS2009-12-26 00:11:412009-12-26 00:15:43 00:04:02 15 274.42 15 289.13 34.30 7
4PSRFBS2009-12-26 00:56:522009-12-26 00:58:38 00:01:46 61 79.13 61 85.58 34.30 7
5PSRFBS2009-12-26 01:11:502009-12-26 01:15:58 00:04:08 61 133.71 61 148.79 34.30 7
6AV2OBS2009-12-26 01:12:132009-12-26 01:16:05 00:03:52 61 135.11 61 149.21 -34.30 -
7PSRWB12009-12-26 01:23:422009-12-26 01:30:48 00:07:06 61 176.99 61 202.88 27.10 80
8PSMOB22009-12-26 01:24:092009-12-26 01:34:37 00:10:28 61 178.63 61 216.80 0.00 -
9PSRFBS2009-12-26 01:48:342009-12-26 01:53:48 00:05:14 61 267.73 61 286.82 34.30 7
10PSRFBS2009-12-26 02:08:412009-12-26 02:15:53 00:07:12 61 341.03 107 7.29 34.30 7
11AV2OBS2009-12-26 02:48:242009-12-26 02:57:20 00:08:56 107 125.93 107 158.51 0.00 -
12PSMOB22009-12-26 02:48:292009-12-26 02:58:25 00:09:56 107 126.18 107 162.40 0.00 -
13PSRWB12009-12-26 02:49:032009-12-26 02:52:51 00:03:48 107 128.30 107 142.16 27.10 80
14AV2OBS2009-12-26 03:00:422009-12-26 03:05:57 00:05:15 107 170.79 107 189.93 0.00 -
15PSMOB22009-12-26 03:01:452009-12-26 03:06:51 00:05:06 107 174.56 107 193.16 0.00 -
16PSRWB12009-12-26 03:20:452009-12-26 03:23:31 00:02:46 107 243.91 107 254.00 27.10 80
17PSRFBS2009-12-26 03:29:082009-12-26 03:31:10 00:02:02 107 274.42 107 281.83 34.30 7
18PSRFBS2009-12-26 03:36:222009-12-26 03:40:26 00:04:04 107 300.80 107 315.63 34.30 7
19PSRFBS2009-12-26 03:44:112009-12-26 03:56:17 00:12:06 107 329.30 153 13.43 34.30 7
20PSRFBS2009-12-26 03:58:152009-12-26 04:01:41 00:03:26 153 20.60 153 33.12 34.30 7
21PSRFBS2009-12-26 04:08:102009-12-26 04:12:24 00:04:14 153 56.77 153 72.21 34.30 7
22AV2OBS2009-12-26 04:30:252009-12-26 04:37:37 00:07:12 153 137.91 153 164.16 0.00 -
23PSRWB12009-12-26 04:59:282009-12-26 05:02:00 00:02:32 153 243.91 153 253.14 27.10 80
24PSRFBS2009-12-26 05:09:322009-12-26 05:12:20 00:02:48 153 280.56 153 290.77 34.30 7
25PSRFBS2009-12-26 05:35:482009-12-26 05:51:08 00:15:20 199 16.35 199 72.27 34.30 7
26PSRWB12009-12-26 06:00:322009-12-26 06:07:56 00:07:24 199 106.55 199 133.53 27.10 80
27PSMOB12009-12-26 06:08:242009-12-26 06:15:18 00:06:54 199 135.23 199 160.40 1.20 -
28AV2OBS2009-12-26 06:11:272009-12-26 06:14:31 00:03:04 199 146.36 199 157.54 0.00 -
29PSRFBS2009-12-26 06:44:442009-12-26 06:49:26 00:04:42 199 267.73 199 284.87 34.30 7
30PSRFBS2009-12-26 07:25:202009-12-26 07:30:04 00:04:44 245 55.80 245 73.06 34.30 7
31PSRWB12009-12-26 07:33:492009-12-26 07:42:31 00:08:42 245 86.73 245 118.46 27.10 80
32PSMOB12009-12-26 07:48:042009-12-26 08:03:18 00:15:14 245 138.70 245 194.25 0.00 -
33AV2OBS2009-12-26 07:54:132009-12-26 08:02:29 00:08:16 245 161.13 245 191.27 0.00 -
34PSRFBS2009-12-26 08:25:172009-12-26 08:27:55 00:02:38 245 274.42 245 284.02 34.30 7
35PSRFBS2009-12-26 08:52:562009-12-26 08:55:02 00:02:06 291 15.26 291 22.91 34.30 7
36PSRFBS2009-12-26 09:04:062009-12-26 09:05:58 00:01:52 291 55.98 291 62.78 34.30 7
37PSMOB12009-12-26 09:32:102009-12-26 09:40:46 00:08:36 291 158.33 291 189.69 1.20 -
38AV2OBS2009-12-26 09:38:282009-12-26 09:40:48 00:02:20 291 181.30 291 189.81 0.00 -
39PSRFBS2009-12-26 10:03:372009-12-26 10:06:45 00:03:08 291 272.96 291 284.38 34.30 7
40PSRFBS2009-12-26 10:22:362009-12-26 10:24:28 00:01:52 291 342.25 291 349.05 34.30 7
41PSRFBS2009-12-26 10:40:512009-12-26 10:47:19 00:06:28 337 48.74 337 72.33 34.30 7
42PSRWB12009-12-26 10:53:272009-12-26 10:56:13 00:02:46 337 94.75 337 104.84 27.10 80
43PSMOB12009-12-26 11:10:532009-12-26 11:16:11 00:05:18 337 158.33 337 177.66 1.20 -
44PSRWB12009-12-26 11:11:182009-12-26 11:15:06 00:03:48 337 159.79 337 173.65 27.10 80
45PSRWB12009-12-26 11:36:132009-12-26 11:38:55 00:02:42 337 250.71 337 260.56 27.10 80
46PSRFBS2009-12-26 11:40:542009-12-26 11:44:36 00:03:42 337 267.79 337 281.29 34.30 7
47PSRFBS2009-12-26 11:52:352009-12-26 11:54:55 00:02:20 337 310.40 337 318.91 34.30 7
48PSRFBS2009-12-26 12:01:482009-12-26 12:04:54 00:03:06 337 344.01 337 355.31 34.30 7
49PSRFBS2009-12-26 12:11:502009-12-26 12:13:42 00:01:52 383 20.60 383 27.41 34.30 7
50PSRFBS2009-12-26 12:17:422009-12-26 12:25:24 00:07:42 383 42.00 383 70.08 34.30 7
51PSMOB12009-12-26 12:55:192009-12-26 13:03:11 00:07:52 383 179.18 383 207.86 1.20 -
52AV2OBS2009-12-26 12:56:012009-12-26 13:02:29 00:06:28 383 181.73 383 205.31 0.00 -
53PSRFBS2009-12-26 13:31:242009-12-26 13:45:22 00:13:58 383 310.76 429 1.70 34.30 7
54PSRFBS2009-12-26 13:51:212009-12-26 14:01:55 00:10:34 429 23.52 429 62.06 34.30 7
55PSMOB12009-12-26 14:30:192009-12-26 14:42:21 00:12:02 429 165.56 429 209.44 1.20 -
56AV2OBS2009-12-26 14:40:302009-12-26 14:42:22 00:01:52 429 202.70 429 209.51 0.00 -
57PSRFBS2009-12-26 15:00:252009-12-26 15:05:09 00:04:44 429 275.39 429 292.65 34.30 7
58PSRFBS2009-12-26 15:19:592009-12-26 15:40:39 00:20:40 429 346.74 475 62.12 34.30 7
59PSRWB12009-12-26 15:44:482009-12-26 15:52:42 00:07:54 475 77.19 475 106.00 27.10 80
60PSRWB12009-12-26 15:54:132009-12-26 16:09:55 00:15:42 475 111.53 475 168.78 27.10 80
61AV2OBS2009-12-26 16:09:202009-12-26 16:11:40 00:02:20 475 166.72 475 175.23 0.00 -
62PSRFBS2009-12-26 16:11:572009-12-26 16:14:03 00:02:06 475 176.20 475 183.86 34.30 7
63PSRWB12009-12-26 16:30:302009-12-26 16:35:08 00:04:38 475 243.91 475 260.80 27.10 80
64PSRFBS2009-12-26 16:37:032009-12-26 16:44:03 00:07:00 475 267.73 475 293.26 34.30 7
65PSRFBS2009-12-26 17:05:432009-12-26 17:19:21 00:13:38 521 12.34 521 62.06 34.30 7
66PSRWB12009-12-26 17:22:172009-12-26 17:33:22 00:11:05 521 72.75 521 113.17 27.10 80
67PSRWB12009-12-26 17:38:132009-12-26 17:40:05 00:01:52 521 130.86 521 137.66 27.10 80
68AV2OBS2009-12-26 17:42:482009-12-26 17:46:18 00:03:30 521 147.51 521 160.27 0.00 -
69PSMOB22009-12-26 17:44:112009-12-26 17:47:05 00:02:54 521 152.56 521 163.13 0.00 -
70PSRWB12009-12-26 18:09:132009-12-26 18:14:39 00:05:26 521 243.91 521 263.72 27.10 80
71PSRFBS2009-12-26 18:17:342009-12-26 18:22:42 00:05:08 521 274.36 521 293.08 34.30 7
72PSRFBS2009-12-26 18:44:572009-12-26 18:55:17 00:10:20 567 14.16 567 51.84 34.30 7
73PSRWB12009-12-26 19:00:222009-12-26 19:11:43 00:11:21 567 70.44 567 111.83 27.10 80
74PSRWB12009-12-26 19:12:572009-12-26 19:16:23 00:03:26 567 116.27 567 128.79 27.10 80
75AV2OBS2009-12-26 19:17:282009-12-26 19:19:20 00:01:52 567 132.74 567 139.55 0.00 -
76PSMOB22009-12-26 19:17:282009-12-26 19:19:20 00:01:52 567 132.74 567 139.55 0.00 -
77PSRWB12009-12-26 19:47:562009-12-26 19:53:04 00:05:08 567 243.91 567 262.63 27.10 80
78PSRFBS2009-12-26 19:54:432009-12-26 20:00:47 00:06:04 567 268.58 567 290.71 34.30 7
79PSRFBS2009-12-26 20:13:472009-12-26 20:21:05 00:07:18 567 338.11 613 4.74 34.30 7
80PSRFBS2009-12-26 20:28:052009-12-26 20:39:21 00:11:16 613 30.27 613 71.35 34.30 7
81PSRPLR2009-12-26 21:02:112009-12-26 21:04:03 00:01:52 613 154.62 613 161.43 26.20 131
82AV2OBS2009-12-26 21:02:492009-12-26 21:04:41 00:01:52 613 156.93 613 163.74 0.00 -
83PSMOB12009-12-26 21:11:292009-12-26 21:14:09 00:02:40 613 188.54 613 198.26 1.20 -
84AV2OBS2009-12-26 21:12:152009-12-26 21:14:07 00:01:52 613 191.33 613 198.14 0.00 -
85PSRWB12009-12-26 21:26:392009-12-26 21:29:45 00:03:06 613 243.91 613 255.21 27.10 80
86PSRFBS2009-12-26 21:32:592009-12-26 21:39:39 00:06:40 613 266.94 613 291.25 34.30 7
87PSRFBS2009-12-26 21:47:042009-12-26 21:56:58 00:09:54 613 318.30 613 354.40 34.30 7
88PSRFBS2009-12-26 22:04:352009-12-26 22:10:57 00:06:22 659 22.18 659 45.40 34.30 7
89PSRFBS2009-12-26 22:17:082009-12-26 22:19:00 00:01:52 659 67.95 659 74.76 34.30 7
90PSMOB12009-12-26 22:46:452009-12-26 22:49:27 00:02:42 659 175.96 659 185.80 1.20 -
91AV2OBS2009-12-26 22:47:142009-12-26 22:49:06 00:01:52 659 177.72 659 184.53 0.00 -
92PSMOB12009-12-26 22:52:142009-12-26 22:57:30 00:05:16 659 195.95 659 215.16 1.20 -
93AV2OBS2009-12-26 22:52:532009-12-26 22:54:45 00:01:52 659 198.32 659 205.13 0.00 -
94PSMOB12009-12-26 23:01:492009-12-26 23:04:25 00:02:36 659 230.90 659 240.38 1.20 -
95AV2OBS2009-12-26 23:02:362009-12-26 23:04:28 00:01:52 659 233.76 659 240.56 0.00 -
96PSRFBS2009-12-26 23:13:452009-12-26 23:17:47 00:04:02 659 274.42 659 289.13 34.30 7
97PSRFBS2009-12-26 23:37:192009-12-26 23:45:39 00:08:20 34 0.36 34 30.75 34.30 7
98PSRFBS2009-12-26 23:54:322009-12-26 23:56:24 00:01:52 34 63.15 34 69.96 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
15 -7.804692009-12-25 22:56:25159.855522009-12-25 23:45:47
61-32.484272009-12-26 00:35:09135.175942009-12-26 01:24:30
107-57.163862009-12-26 02:13:52110.496352009-12-26 03:03:13
153-81.843442009-12-26 03:52:35 85.816772009-12-26 04:41:56
199-106.523022009-12-26 05:31:18 61.137192009-12-26 06:20:39
245-131.202602009-12-26 07:10:01 36.457612009-12-26 07:59:23
291-155.882192009-12-26 08:48:44 11.778022009-12-26 09:38:06
337179.438232009-12-26 10:27:27-12.901562009-12-26 11:16:49
383154.758652009-12-26 12:06:10-37.581142009-12-26 12:55:32
429130.079072009-12-26 13:44:53-62.260732009-12-26 14:34:15
475105.399482009-12-26 15:23:36-86.940312009-12-26 16:12:58
521 80.719902009-12-26 17:02:20-111.619892009-12-26 17:51:41
567 56.040322009-12-26 18:41:03-136.299472009-12-26 19:30:24
613 31.360732009-12-26 20:19:46-160.979062009-12-26 21:09:07
659 6.681152009-12-26 21:58:29174.341362009-12-26 22:47:50
34-17.998432009-12-26 23:37:12149.661782009-12-27 00:26:33
