>ALOS Data Take Simulation(Sep. 21, 2009)

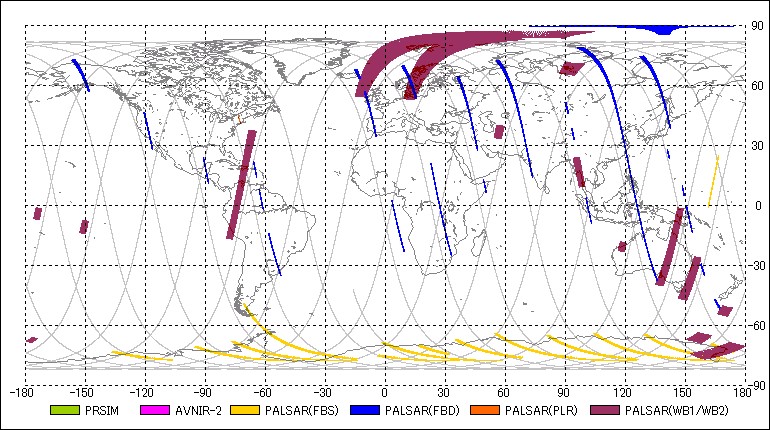

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12009-09-21 00:20:132009-09-21 00:31:31 00:11:18 31 180.27 31 221.48 27.10 80
2PSRFBS2009-09-21 00:44:102009-09-21 00:49:52 00:05:42 31 267.61 31 288.40 34.30 7
3PSMOB22009-09-21 01:43:202009-09-21 01:50:50 00:07:30 77 123.38 77 150.73 0.00 -
4AV2OBS2009-09-21 01:48:292009-09-21 01:50:49 00:02:20 77 142.16 77 150.67 0.00 -
5PSMOB22009-09-21 01:56:422009-09-21 02:03:12 00:06:30 77 172.13 77 195.83 0.00 -
6AV2OBS2009-09-21 01:56:482009-09-21 02:02:06 00:05:18 77 172.49 77 191.82 0.00 -
7PSRWB12009-09-21 02:03:392009-09-21 02:05:29 00:01:50 77 197.47 77 204.16 27.10 80
8AV2OBS2009-09-21 02:05:572009-09-21 02:09:49 00:03:52 77 205.86 77 219.96 0.00 -
9PSRFBS2009-09-21 02:22:412009-09-21 02:25:59 00:03:18 77 266.88 77 278.91 34.30 7
10PSRFBD2009-09-21 02:37:492009-09-21 02:44:25 00:06:36 77 322.07 77 346.14 34.30 43
11PSRFBD2009-09-21 02:47:012009-09-21 02:50:27 00:03:26 77 355.62 123 8.14 34.30 43
12PSRFBD2009-09-21 02:51:312009-09-21 02:54:19 00:02:48 123 12.03 123 22.25 34.30 43
13PSRPLR2009-09-21 02:58:582009-09-21 03:00:50 00:01:52 123 39.20 123 46.01 21.50 127
14PSMOB22009-09-21 03:16:512009-09-21 03:21:57 00:05:06 123 104.42 123 123.02 0.00 -
15PSMOB22009-09-21 03:26:032009-09-21 03:40:05 00:14:02 123 137.97 123 189.14 0.00 -
16AV2OBS2009-09-21 03:30:202009-09-21 03:40:12 00:09:52 123 153.59 123 189.57 0.00 -
17PSRFBS2009-09-21 04:03:012009-09-21 04:13:13 00:10:12 123 272.78 123 309.97 34.30 7
18PSRFBD2009-09-21 04:29:182009-09-21 04:33:30 00:04:12 169 8.63 169 23.95 34.30 43
19PSRWB12009-09-21 04:56:112009-09-21 04:58:27 00:02:16 169 106.67 169 114.93 27.10 80
20PSMOB12009-09-21 05:01:122009-09-21 05:15:00 00:13:48 169 124.96 169 175.29 -1.20 -
21AV2OBS2009-09-21 05:01:572009-09-21 05:14:15 00:12:18 169 127.70 169 172.55 0.00 -
22PSRFBS2009-09-21 05:40:132009-09-21 05:46:11 00:05:58 169 267.25 169 289.00 34.30 7
23PSRFBD2009-09-21 06:12:432009-09-21 06:18:33 00:05:50 215 25.77 215 47.04 34.30 43
24PSMOB22009-09-21 06:33:122009-09-21 06:39:26 00:06:14 215 100.47 215 123.20 0.00 -
25AV2OBS2009-09-21 06:42:412009-09-21 06:51:19 00:08:38 215 135.05 215 166.53 0.00 -
26PSMOB12009-09-21 06:42:432009-09-21 06:46:03 00:03:20 215 135.17 215 147.33 -1.20 -
27PSRWB12009-09-21 06:43:402009-09-21 06:46:06 00:02:26 215 138.64 215 147.51 27.10 80
28AV2OBS2009-09-21 06:58:042009-09-21 07:02:32 00:04:28 215 191.15 215 207.44 0.00 -
29PSRFBS2009-09-21 07:19:152009-09-21 07:23:57 00:04:42 215 268.40 215 285.54 34.30 7
30PSRFBD2009-09-21 07:59:272009-09-21 08:04:35 00:05:08 261 55.00 261 73.72 34.30 43
31PSMOB12009-09-21 08:10:492009-09-21 08:18:11 00:07:22 261 96.46 261 123.32 -1.20 -
32PSMOB12009-09-21 08:24:512009-09-21 08:44:33 00:19:42 261 147.63 261 219.47 -1.20 -
33AV2OBS2009-09-21 08:28:332009-09-21 08:33:25 00:04:52 261 161.13 261 178.87 0.00 -
34PSRWB12009-09-21 09:48:152009-09-21 09:58:06 00:09:51 307 91.78 307 127.70 27.10 80
35AV2OBS2009-09-21 10:00:062009-09-21 10:01:58 00:01:52 307 134.93 307 141.74 -41.50 -
36PSRFBS2009-09-21 10:37:272009-09-21 10:40:27 00:03:00 307 271.20 307 282.14 34.30 7
37PSRWB12009-09-21 11:25:352009-09-21 11:36:30 00:10:55 353 86.73 353 126.54 27.10 80
38PSMOB12009-09-21 11:42:072009-09-21 11:46:43 00:04:36 353 146.96 353 163.74 -1.20 -
39AV2OBS2009-09-21 11:42:492009-09-21 11:44:41 00:01:52 353 149.52 353 156.32 0.00 -
40PSRFBD2009-09-21 12:24:302009-09-21 12:27:22 00:02:52 353 301.59 353 312.04 34.30 43
41PSRFBD2009-09-21 12:30:132009-09-21 12:32:25 00:02:12 353 322.43 353 330.46 34.30 43
42PSRFBD2009-09-21 12:36:082009-09-21 12:40:32 00:04:24 353 344.01 399 0.06 34.30 43
43PSRFBD2009-09-21 12:41:172009-09-21 12:43:17 00:02:00 399 2.80 399 10.09 34.30 43
44PSRFBD2009-09-21 12:46:272009-09-21 12:48:19 00:01:52 399 21.64 399 28.44 9.90 36
45PSRFBD2009-09-21 12:50:272009-09-21 13:01:17 00:10:50 399 36.22 399 75.73 34.30 43
46PSRFBD2009-09-21 13:03:302009-09-21 13:05:22 00:01:52 399 83.81 399 90.62 49.00 51
47AV2OBS2009-09-21 13:05:572009-09-21 13:07:49 00:01:52 399 92.75 399 99.56 0.00 -
48PSMOB12009-09-21 13:28:532009-09-21 13:35:07 00:06:14 399 176.32 399 199.05 -1.20 -
49AV2OBS2009-09-21 13:29:392009-09-21 13:34:25 00:04:46 399 179.12 399 196.50 0.00 -
50PSRFBS2009-09-21 13:57:122009-09-21 13:59:22 00:02:10 399 279.58 399 287.48 34.30 7
51PSRFBD2009-09-21 14:08:132009-09-21 14:41:15 00:33:02 399 319.76 445 80.23 34.30 43
52PSRWB12009-09-21 14:57:582009-09-21 15:13:32 00:15:34 445 141.19 445 197.96 27.10 80
53PSMOB12009-09-21 15:04:052009-09-21 15:13:49 00:09:44 445 163.50 445 198.99 -1.20 -
54PSRFBS2009-09-21 15:34:142009-09-21 15:39:42 00:05:28 445 273.44 445 293.38 34.30 7
55PSRFBD2009-09-21 15:54:482009-09-21 15:59:02 00:04:14 445 348.45 491 3.89 34.30 43
56PSRWB12009-09-21 15:59:582009-09-21 16:04:36 00:04:38 491 7.29 491 24.19 27.10 80
57PSRFBD2009-09-21 16:06:282009-09-21 16:08:34 00:02:06 491 31.00 491 38.66 34.30 43
58PSRFBD2009-09-21 16:10:002009-09-21 16:12:12 00:02:12 491 43.88 491 51.91 34.30 43
59PSRFBS2009-09-21 17:11:102009-09-21 17:18:30 00:07:20 491 266.94 491 293.68 34.30 7
60PSRFBD2009-09-21 17:39:512009-09-21 17:56:47 00:16:56 537 11.55 537 73.30 34.30 43
61PSMOB12009-09-21 18:09:312009-09-21 18:19:47 00:10:16 537 119.80 537 157.24 -1.20 -
62AV2OBS2009-09-21 18:10:142009-09-21 18:19:08 00:08:54 537 122.35 537 154.80 0.00 -
63PSRFBS2009-09-21 18:51:192009-09-21 18:56:57 00:05:38 537 272.17 537 292.71 34.30 7
64PSRFBD2009-09-21 19:16:332009-09-21 19:19:03 00:02:30 583 4.19 583 13.31 34.30 43
65PSRFBD2009-09-21 19:22:192009-09-21 19:33:19 00:11:00 583 25.22 583 65.34 34.30 43
66PSMOB12009-09-21 19:46:492009-09-21 19:51:25 00:04:36 583 114.57 583 131.34 -1.20 -
67AV2OBS2009-09-21 19:47:352009-09-21 19:51:27 00:03:52 583 117.36 583 131.46 0.00 -
68PSRWB12009-09-21 20:06:322009-09-21 20:08:54 00:02:22 583 186.47 583 195.10 27.10 80
69PSRWB12009-09-21 20:23:062009-09-21 20:27:18 00:04:12 583 246.88 583 262.20 27.10 80
70PSRFBS2009-09-21 20:28:362009-09-21 20:35:58 00:07:22 583 266.94 583 293.81 34.30 7
71PSRFBD2009-09-21 20:46:382009-09-21 20:59:56 00:13:18 583 332.70 629 21.21 34.30 43
72PSRFBD2009-09-21 21:08:192009-09-21 21:13:29 00:05:10 629 51.78 629 70.63 34.30 43
73PSMOB12009-09-21 21:22:322009-09-21 21:28:46 00:06:14 629 103.63 629 126.36 -1.20 -
74AV2OBS2009-09-21 21:23:182009-09-21 21:28:00 00:04:42 629 106.42 629 123.56 0.00 -
75PSRWB12009-09-21 21:43:292009-09-21 21:45:41 00:02:12 629 180.03 629 188.05 27.10 80
76PSRWB12009-09-21 21:57:192009-09-21 21:59:11 00:01:52 629 230.47 629 237.28 27.10 80
77PSRWB12009-09-21 22:01:192009-09-21 22:03:11 00:01:52 629 245.06 629 251.87 27.10 80
78PSRFBS2009-09-21 22:09:202009-09-21 22:13:40 00:04:20 629 274.30 629 290.10 34.30 7
79PSRFBD2009-09-21 22:25:432009-09-21 22:33:29 00:07:46 629 334.04 4 2.37 41.50 46
80PSRFBD2009-09-21 22:41:432009-09-21 22:48:35 00:06:52 4 32.40 4 57.44 34.30 43
81PSRFBD2009-09-21 22:49:472009-09-21 22:51:39 00:01:52 4 61.75 4 68.56 34.30 43
82PSMOB12009-09-21 23:02:082009-09-21 23:05:34 00:03:26 4 106.79 4 119.31 -1.20 -
83AV2OBS2009-09-21 23:02:402009-09-21 23:04:48 00:02:08 4 108.79 4 116.57 0.00 -
84AV2OBS2009-09-21 23:07:162009-09-21 23:09:08 00:01:52 4 125.57 4 132.38 0.00 -
85PSRFBS2009-09-21 23:15:022009-09-21 23:22:48 00:07:46 4 153.83 4 182.15 34.30 7
86PSRWB12009-09-21 23:29:042009-09-21 23:35:36 00:06:32 4 205.01 4 228.83 27.10 80
87PSRFBS2009-09-21 23:49:002009-09-21 23:51:22 00:02:22 4 277.76 4 286.39 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
31-16.388892009-09-20 23:30:46151.271322009-09-21 00:20:07
77-41.068482009-09-21 01:09:29126.591732009-09-21 01:58:50
123-65.748062009-09-21 02:48:12101.912152009-09-21 03:37:33
169-90.427642009-09-21 04:26:55 77.232572009-09-21 05:16:17
215-115.107222009-09-21 06:05:38 52.552992009-09-21 06:55:00
261-139.786812009-09-21 07:44:21 27.873402009-09-21 08:33:43
307-164.466392009-09-21 09:23:04 3.193822009-09-21 10:12:26
353170.854032009-09-21 11:01:47-21.485762009-09-21 11:51:09
399146.174452009-09-21 12:40:30-46.165352009-09-21 13:29:52
445121.494862009-09-21 14:19:14-70.844932009-09-21 15:08:35
491 96.815282009-09-21 15:57:57-95.524512009-09-21 16:47:18
537 72.135702009-09-21 17:36:40-120.204092009-09-21 18:26:01
583 47.456112009-09-21 19:15:23-144.883682009-09-21 20:04:44
629 22.776532009-09-21 20:54:06-169.563262009-09-21 21:43:28
4 -1.903052009-09-21 22:32:49165.757162009-09-21 23:22:11
