>ALOS Data Take Simulation(Jul. 28, 2009)

Observation Area

PRISM

AVNIR-2

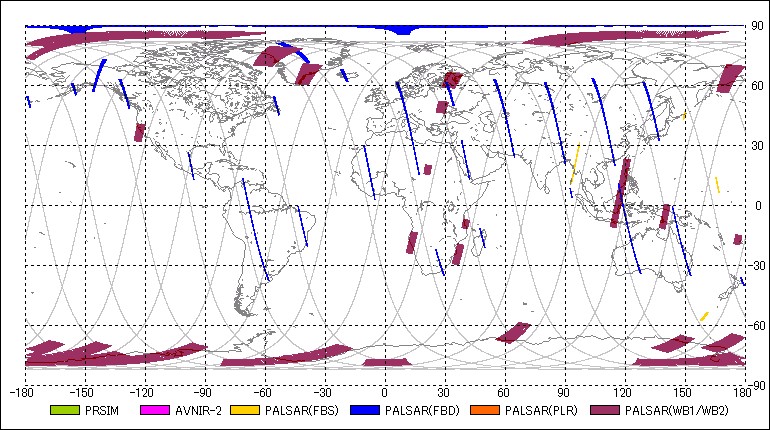

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2009-07-28 00:17:532009-07-28 00:21:19 00:03:26 44 70.08 44 82.60 34.30 43
2PSMOB12009-07-28 00:27:062009-07-28 00:34:42 00:07:36 44 103.63 44 131.34 1.20 -
3PSRFBS2009-07-28 00:34:412009-07-28 00:36:33 00:01:52 44 131.28 44 138.09 34.30 7
4PSRWB12009-07-28 00:47:362009-07-28 00:51:34 00:03:58 44 178.39 44 192.85 27.10 80
5AV2OBS2009-07-28 00:54:212009-07-28 00:56:13 00:01:52 44 203.00 44 209.81 -34.30 -
6PSMOB22009-07-28 00:56:402009-07-28 00:59:16 00:02:36 44 211.45 44 220.93 0.00 -
7PSRFBD2009-07-28 01:31:062009-07-28 01:37:18 00:06:12 44 337.02 44 359.63 34.30 43
8PSRFBD2009-07-28 01:49:152009-07-28 01:52:31 00:03:16 90 43.21 90 55.13 34.30 43
9PSMOB22009-07-28 02:09:352009-07-28 02:15:13 00:05:38 90 117.36 90 137.91 0.00 -
10AV2OBS2009-07-28 02:15:302009-07-28 02:17:34 00:02:04 90 138.94 90 146.48 0.00 -
11AV2OBS2009-07-28 02:19:242009-07-28 02:30:38 00:11:14 90 153.16 90 194.13 0.00 -
12PSRWB12009-07-28 02:20:042009-07-28 02:30:08 00:10:04 90 155.59 90 192.30 27.10 80
13PSMOB22009-07-28 02:21:392009-07-28 02:30:37 00:08:58 90 161.37 90 194.07 0.00 -
14PSRFBD2009-07-28 03:05:002009-07-28 03:19:56 00:14:56 90 319.45 136 13.92 34.30 43
15PSMOB22009-07-28 03:48:172009-07-28 04:05:51 00:17:34 136 117.30 136 181.36 0.00 -
16AV2OBS2009-07-28 03:53:562009-07-28 04:05:08 00:11:12 136 137.91 136 178.75 0.00 -
17PSRFBS2009-07-28 03:56:302009-07-28 04:02:50 00:06:20 136 147.27 136 170.36 34.30 7
18PSRWB12009-07-28 04:21:472009-07-28 04:25:13 00:03:26 136 239.47 136 251.99 27.10 80
19PSRWB12009-07-28 04:28:592009-07-28 04:30:51 00:01:52 136 265.73 136 272.53 27.10 80
20PSRFBD2009-07-28 04:57:442009-07-28 05:02:10 00:04:26 182 10.58 182 26.74 34.30 43
21AV2OBS2009-07-28 05:26:022009-07-28 05:28:54 00:02:52 182 113.78 182 124.23 0.00 -
22AV2OBS2009-07-28 05:31:522009-07-28 05:40:38 00:08:46 182 135.05 182 167.02 0.00 -
23PSRFBS2009-07-28 06:42:202009-07-28 06:44:32 00:02:12 228 32.03 228 40.05 41.50 10
24PSRFBD2009-07-28 06:46:202009-07-28 06:51:04 00:04:44 228 46.62 228 63.88 34.30 43
25PSRWB12009-07-28 06:57:202009-07-28 07:00:46 00:03:26 228 86.73 228 99.25 27.10 80
26AV2OBS2009-07-28 07:01:322009-07-28 07:04:32 00:03:00 228 102.05 228 112.99 0.00 -
27PSMOB12009-07-28 07:04:592009-07-28 07:09:41 00:04:42 228 114.63 228 131.77 1.20 -
28AV2OBS2009-07-28 07:11:552009-07-28 07:16:05 00:04:10 228 139.91 228 155.11 0.00 -
29PSMOB12009-07-28 07:18:322009-07-28 07:23:20 00:04:48 228 164.04 228 181.55 1.20 -
30AV2OBS2009-07-28 07:19:162009-07-28 07:23:08 00:03:52 228 166.72 228 180.82 0.00 -
31PSRWB12009-07-28 07:24:332009-07-28 07:26:25 00:01:52 228 185.98 228 192.79 27.10 80
32AV2OBS2009-07-28 07:25:262009-07-28 07:27:18 00:01:52 228 189.20 228 196.01 0.00 -
33PSRWB12009-07-28 07:27:592009-07-28 07:31:23 00:03:24 228 198.50 228 210.90 27.10 80
34PSRFBD2009-07-28 08:26:542009-07-28 08:29:10 00:02:16 274 53.36 274 61.63 34.30 43
35PSRFBD2009-07-28 08:35:112009-07-28 08:37:27 00:02:16 274 83.57 274 91.84 49.00 51
36PSRWB12009-07-28 08:43:022009-07-28 08:45:42 00:02:40 274 112.20 274 121.92 27.10 80
37PSRWB12009-07-28 08:46:562009-07-28 08:49:08 00:02:12 274 126.42 274 134.44 27.10 80
38AV2OBS2009-07-28 08:52:192009-07-28 09:09:29 00:17:10 274 146.05 274 208.65 0.00 -
39PSMOB12009-07-28 08:55:412009-07-28 09:05:29 00:09:48 274 158.33 274 194.07 1.20 -
40PSRWB12009-07-28 08:55:462009-07-28 08:57:38 00:01:52 274 158.63 274 165.44 27.10 80
41PSRWB12009-07-28 09:04:572009-07-28 09:08:33 00:03:36 274 192.12 274 205.25 27.10 80
42PSRWB12009-07-28 09:21:302009-07-28 09:26:50 00:05:20 274 252.48 274 271.93 27.10 80
43PSRFBD2009-07-28 10:03:562009-07-28 10:06:08 00:02:12 320 47.16 320 55.19 34.30 43
44AV2OBS2009-07-28 10:20:142009-07-28 10:24:14 00:04:00 320 106.67 320 121.25 0.00 -
45AV2OBS2009-07-28 10:26:022009-07-28 10:29:23 00:03:21 320 127.82 320 140.03 0.00 -
46PSMOB12009-07-28 10:26:132009-07-28 10:29:23 00:03:10 320 128.49 320 140.03 1.20 -
47AV2OBS2009-07-28 10:31:142009-07-28 10:39:24 00:08:10 320 146.78 320 176.56 0.00 -
48PSMOB12009-07-28 10:34:242009-07-28 10:40:08 00:05:44 320 158.33 320 179.24 1.20 -
49PSRFBD2009-07-28 11:17:522009-07-28 11:19:44 00:01:52 320 316.84 320 323.65 34.30 43
50PSRFBS2009-07-28 11:30:522009-07-28 11:33:34 00:02:42 366 4.25 366 14.10 34.30 7
51PSRFBD2009-07-28 12:58:062009-07-28 13:08:20 00:10:14 366 322.37 366 359.69 34.30 43
52PSRFBD2009-07-28 13:16:442009-07-28 13:25:26 00:08:42 412 30.33 412 62.06 34.30 43
53PSMOB12009-07-28 13:36:182009-07-28 13:39:42 00:03:24 412 101.62 412 114.02 1.20 -
54PSRWB12009-07-28 13:37:542009-07-28 13:41:20 00:03:26 412 107.46 412 119.98 27.10 80
55AV2OBS2009-07-28 13:55:512009-07-28 14:02:19 00:06:28 412 172.92 412 196.50 0.00 -
56PSMOB22009-07-28 14:11:552009-07-28 14:14:27 00:02:32 412 231.51 412 240.75 0.00 -
57PSRWB12009-07-28 14:17:262009-07-28 14:23:08 00:05:42 412 251.69 412 272.47 27.10 80
58PSRFBD2009-07-28 14:37:022009-07-28 14:50:14 00:13:12 412 323.16 458 11.30 34.30 43
59PSRFBD2009-07-28 14:52:002009-07-28 15:04:46 00:12:46 458 17.75 458 64.30 34.30 43
60PSMOB12009-07-28 15:12:122009-07-28 15:25:54 00:13:42 458 91.35 458 141.31 1.20 -
61PSRWB12009-07-28 15:14:082009-07-28 15:17:28 00:03:20 458 98.40 458 110.56 27.10 80
62AV2OBS2009-07-28 15:33:012009-07-28 15:39:19 00:06:18 458 167.32 458 190.30 0.00 -
63PSRWB12009-07-28 15:57:482009-07-28 16:01:44 00:03:56 458 257.70 458 272.05 27.10 80
64PSRFBD2009-07-28 16:26:222009-07-28 16:28:14 00:01:52 504 1.82 504 8.63 34.30 43
65PSRFBD2009-07-28 16:30:482009-07-28 16:42:56 00:12:08 504 17.99 504 62.24 34.30 43
66PSMOB12009-07-28 16:49:322009-07-28 17:11:48 00:22:16 504 86.37 504 167.57 1.20 -
67AV2OBS2009-07-28 16:52:202009-07-28 16:54:16 00:01:56 504 96.52 504 103.57 0.00 -
68PSRWB12009-07-28 17:34:402009-07-28 17:40:20 00:05:40 504 250.90 504 271.56 27.10 80
69PSRFBD2009-07-28 18:10:322009-07-28 18:21:58 00:11:26 550 21.76 550 63.45 34.30 43
70PSMOB12009-07-28 18:28:192009-07-28 18:32:29 00:04:10 550 86.55 550 101.74 1.20 -
71PSMOB22009-07-28 18:35:522009-07-28 18:38:20 00:02:28 550 114.08 550 123.08 0.00 -
72PSMOB12009-07-28 18:42:132009-07-28 18:46:03 00:03:50 550 137.24 550 151.22 1.20 -
73PSRWB12009-07-28 18:42:252009-07-28 18:45:25 00:03:00 550 137.97 550 148.91 27.10 80
74PSRWB12009-07-28 19:13:102009-07-28 19:19:28 00:06:18 550 250.11 550 273.08 27.10 80
75PSRFBD2009-07-28 19:36:532009-07-28 19:40:05 00:03:12 550 336.59 550 348.26 34.30 43
76PSRFBD2009-07-28 19:46:152009-07-28 19:52:15 00:06:00 596 10.76 596 32.64 34.30 43
77PSRFBD2009-07-28 19:56:272009-07-28 20:00:19 00:03:52 596 47.95 596 62.06 34.30 43
78PSMOB12009-07-28 20:07:022009-07-28 20:09:42 00:02:40 596 86.55 596 96.27 1.20 -
79AV2OBS2009-07-28 20:07:332009-07-28 20:09:25 00:01:52 596 88.43 596 95.24 0.00 -
80AV2OBS2009-07-28 20:11:492009-07-28 20:13:41 00:01:52 596 103.99 596 110.80 0.00 -
81PSRFBD2009-07-28 20:12:112009-07-28 20:17:17 00:05:06 596 105.33 596 123.93 41.50 46
82AV2OBS2009-07-28 20:16:022009-07-28 20:17:54 00:01:52 596 119.37 596 126.18 0.00 -
83PSRWB12009-07-28 20:50:472009-07-28 20:53:53 00:03:06 596 246.09 596 257.40 27.10 80
84PSRFBD2009-07-28 21:11:412009-07-28 21:15:59 00:04:18 596 322.31 596 337.99 34.30 43
85PSRFBD2009-07-28 21:25:412009-07-28 21:39:03 00:13:22 642 13.37 642 62.12 34.30 43
86PSRFBD2009-07-28 21:44:562009-07-28 21:47:12 00:02:16 642 83.57 642 91.84 49.00 51
87AV2OBS2009-07-28 21:46:162009-07-28 21:48:08 00:01:52 642 88.43 642 95.24 0.00 -
88PSMOB22009-07-28 21:51:052009-07-28 21:54:39 00:03:34 642 106.00 642 119.01 0.00 -
89AV2OBS2009-07-28 21:52:272009-07-28 21:54:19 00:01:52 642 110.98 642 117.79 21.50 -
90PSMOB12009-07-28 22:14:352009-07-28 22:17:25 00:02:50 642 191.70 642 202.03 1.20 -
91PSRWB12009-07-28 22:15:072009-07-28 22:17:03 00:01:56 642 193.64 642 200.69 27.10 80
92AV2OBS2009-07-28 22:20:382009-07-28 22:24:30 00:03:52 642 213.76 642 227.86 0.00 -
93PSRFBS2009-07-28 22:26:052009-07-28 22:27:57 00:01:52 642 233.63 642 240.44 34.30 7
94AV2OBS2009-07-28 22:26:332009-07-28 22:28:25 00:01:52 642 235.34 642 242.14 -34.30 -
95PSRWB12009-07-28 22:29:412009-07-28 22:32:39 00:02:58 642 246.76 642 257.58 27.10 80
96PSRFBD2009-07-28 23:00:582009-07-28 23:09:00 00:08:02 17 0.85 17 30.15 34.30 43
97PSRFBD2009-07-28 23:17:142009-07-28 23:19:34 00:02:20 17 60.17 17 68.68 34.30 43
98PSRWB12009-07-28 23:24:132009-07-28 23:34:48 00:10:35 17 85.58 17 124.17 27.10 80
99PSMOB22009-07-28 23:30:272009-07-28 23:36:45 00:06:18 17 108.37 17 131.34 0.00 -
100AV2OBS2009-07-28 23:52:572009-07-28 23:54:49 00:01:52 17 190.42 17 197.23 0.00 -
101PSMOB12009-07-28 23:56:272009-07-29 00:00:49 00:04:22 17 203.18 17 219.11 1.20 -
102AV2OBS2009-07-28 23:56:502009-07-29 00:00:50 00:04:00 17 204.58 17 219.17 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
44-23.363562009-07-27 23:58:40144.296652009-07-28 00:48:01
90-48.043142009-07-28 01:37:23119.617072009-07-28 02:26:44
136-72.722722009-07-28 03:16:06 94.937492009-07-28 04:05:27
182-97.402312009-07-28 04:54:49 70.257902009-07-28 05:44:10
228-122.081892009-07-28 06:33:32 45.578322009-07-28 07:22:54
274-146.761472009-07-28 08:12:15 20.898742009-07-28 09:01:37
320-171.441052009-07-28 09:50:58 -3.780852009-07-28 10:40:20
366163.879362009-07-28 11:29:41-28.460432009-07-28 12:19:03
412139.199782009-07-28 13:08:24-53.140012009-07-28 13:57:46
458114.520202009-07-28 14:47:07-77.819592009-07-28 15:36:29
504 89.840622009-07-28 16:25:51-102.499182009-07-28 17:15:12
550 65.161032009-07-28 18:04:34-127.178762009-07-28 18:53:55
596 40.481452009-07-28 19:43:17-151.858342009-07-28 20:32:38
642 15.801872009-07-28 21:22:00-176.537922009-07-28 22:11:21
17 -8.877722009-07-28 23:00:43158.782492009-07-28 23:50:05
