>ALOS Data Take Simulation(Jun. 20, 2009)

Observation Area

PRISM

AVNIR-2

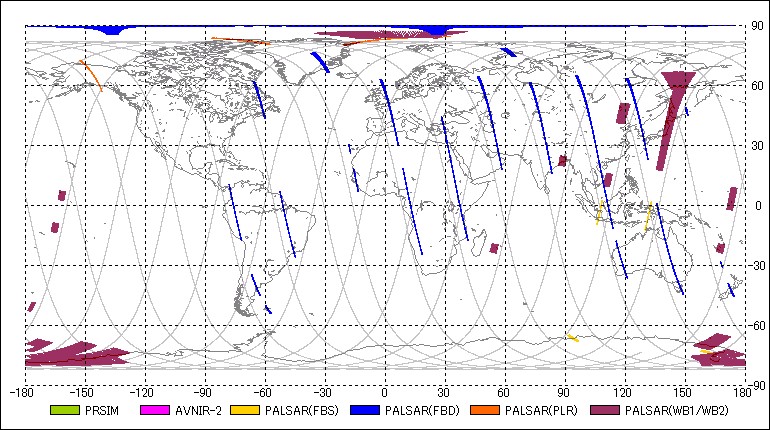

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12009-06-20 00:57:152009-06-20 01:06:53 00:09:38 58 103.99 58 139.12 -1.20 -
2PSRWB12009-06-20 00:59:162009-06-20 01:13:36 00:14:20 58 111.35 58 163.62 27.10 80
3AV2OBS2009-06-20 01:04:582009-06-20 01:10:12 00:05:14 58 132.19 58 151.28 0.00 -
4PSMOB22009-06-20 01:14:452009-06-20 01:24:47 00:10:02 58 167.81 58 204.40 0.00 -
5PSRFBS2009-06-20 01:17:132009-06-20 01:21:51 00:04:38 58 176.81 58 193.70 34.30 7
6AV2OBS2009-06-20 01:17:542009-06-20 01:22:46 00:04:52 58 179.30 58 197.05 0.00 -
7PSRFBD2009-06-20 01:59:402009-06-20 02:09:24 00:09:44 58 331.61 104 7.11 34.30 43
8PSRFBD2009-06-20 02:18:472009-06-20 02:24:37 00:05:50 104 41.39 104 62.66 34.30 43
9PSMOB22009-06-20 02:38:512009-06-20 02:51:39 00:12:48 104 114.51 104 161.19 0.00 -
10AV2OBS2009-06-20 02:41:492009-06-20 02:50:51 00:09:02 104 125.33 104 158.27 0.00 -
11PSRWB12009-06-20 02:42:242009-06-20 02:45:46 00:03:22 104 127.51 104 139.79 27.10 80
12PSRWB12009-06-20 02:52:072009-06-20 02:54:29 00:02:22 104 162.89 104 171.52 27.10 80
13PSMOB22009-06-20 02:54:572009-06-20 03:00:31 00:05:34 104 173.22 104 193.52 0.00 -
14PSRFBS2009-06-20 02:55:462009-06-20 02:59:52 00:04:06 104 176.20 104 191.15 34.30 7
15AV2OBS2009-06-20 02:58:452009-06-20 03:00:37 00:01:52 104 187.08 104 193.88 0.00 -
16PSRFBD2009-06-20 03:30:192009-06-20 03:32:11 00:01:52 104 302.19 104 309.00 34.30 43
17PSRFBD2009-06-20 03:32:572009-06-20 03:36:39 00:03:42 104 311.80 104 325.29 34.30 43
18PSRFBD2009-06-20 03:40:412009-06-20 03:49:07 00:08:26 104 340.00 150 10.76 34.30 43
19AV2OBS2009-06-20 04:18:222009-06-20 04:19:24 00:01:02 150 117.42 150 121.19 0.00 -
20AV2OBS2009-06-20 04:24:022009-06-20 04:31:20 00:07:18 150 138.09 150 164.71 0.00 -
21PSMOB22009-06-20 04:27:202009-06-20 04:30:52 00:03:32 150 150.12 150 163.01 0.00 -
22PSRWB12009-06-20 04:28:242009-06-20 04:30:24 00:02:00 150 154.01 150 161.31 27.10 80
23PSMOB12009-06-20 05:51:022009-06-20 06:08:56 00:17:54 196 95.36 196 160.64 -1.20 -
24AV2OBS2009-06-20 05:59:562009-06-20 06:08:12 00:08:16 196 127.82 196 157.96 0.00 -
25PSRWB12009-06-20 06:19:142009-06-20 06:21:06 00:01:52 196 198.20 196 205.01 27.10 80
26PSRPLR2009-06-20 07:18:472009-06-20 07:23:57 00:05:10 242 55.37 242 74.21 21.50 127
27PSRFBD2009-06-20 07:26:302009-06-20 07:28:46 00:02:16 242 83.57 242 91.84 49.00 51
28PSMOB12009-06-20 07:31:022009-06-20 07:37:24 00:06:22 242 100.04 242 123.26 -1.20 -
29AV2OBS2009-06-20 07:35:472009-06-20 07:41:53 00:06:06 242 117.36 242 139.61 0.00 -
30AV2OBS2009-06-20 07:44:192009-06-20 07:52:17 00:07:58 242 148.54 242 177.60 0.00 -
31PSMOB12009-06-20 07:47:202009-06-20 07:51:12 00:03:52 242 159.54 242 173.65 -1.20 -
32PSRFBD2009-06-20 11:46:252009-06-20 11:48:51 00:02:26 334 311.37 334 320.24 34.30 43
33PSRFBD2009-06-20 11:50:292009-06-20 11:52:03 00:01:34 334 326.20 334 331.91 34.30 43
34PSRFBD2009-06-20 12:11:292009-06-20 12:13:21 00:01:52 380 42.79 380 49.60 34.30 43
35PSRWB12009-06-20 12:15:192009-06-20 12:18:17 00:02:58 380 56.77 380 67.59 27.10 80
36AV2OBS2009-06-20 12:25:252009-06-20 12:27:19 00:01:54 380 93.60 380 100.53 0.00 -
37AV2OBS2009-06-20 12:30:152009-06-20 12:32:07 00:01:52 380 111.23 380 118.03 0.00 -
38AV2OBS2009-06-20 12:37:512009-06-20 12:39:43 00:01:52 380 138.94 380 145.75 0.00 -
39AV2OBS2009-06-20 12:49:482009-06-20 12:55:40 00:05:52 380 182.52 380 203.91 0.00 -
40PSMOB22009-06-20 12:49:482009-06-20 12:56:22 00:06:34 380 182.52 380 206.47 0.00 -
41PSRFBD2009-06-20 13:25:272009-06-20 13:38:49 00:13:22 380 312.53 426 1.28 34.30 43
42PSRFBD2009-06-20 13:44:092009-06-20 13:56:07 00:11:58 426 20.73 426 64.36 34.30 43
43PSRPLR2009-06-20 14:02:452009-06-20 14:05:35 00:02:50 426 88.55 426 98.89 21.50 127
44AV2OBS2009-06-20 14:06:112009-06-20 14:10:17 00:04:06 426 101.01 426 115.97 0.00 -
45AV2OBS2009-06-20 14:25:012009-06-20 14:32:21 00:07:20 426 169.69 426 196.44 0.00 -
46PSMOB22009-06-20 14:25:182009-06-20 14:43:34 00:18:16 426 170.79 426 237.40 0.00 -
47PSRWB12009-06-20 14:50:342009-06-20 14:53:04 00:02:30 426 262.93 426 272.05 27.10 80
48PSRFBS2009-06-20 14:54:122009-06-20 14:56:04 00:01:52 426 276.12 426 282.93 34.30 7
49PSRFBD2009-06-20 15:06:262009-06-20 15:12:18 00:05:52 426 320.79 426 342.19 34.30 43
50PSRFBD2009-06-20 15:13:242009-06-20 15:35:14 00:21:50 426 346.20 472 65.82 34.30 43
51PSRWB12009-06-20 15:40:582009-06-20 15:42:50 00:01:52 472 86.73 472 93.54 27.10 80
52AV2OBS2009-06-20 15:44:542009-06-20 15:47:04 00:02:10 472 101.01 472 108.92 0.00 -
53PSMOB12009-06-20 15:48:162009-06-20 16:05:22 00:17:06 472 113.35 472 175.71 -1.20 -
54PSRWB12009-06-20 16:27:092009-06-20 16:32:09 00:05:00 472 255.15 472 273.38 27.10 80
55PSRFBD2009-06-20 16:59:382009-06-20 17:12:58 00:13:20 518 13.61 518 62.24 34.30 43
56PSRFBD2009-06-20 17:15:562009-06-20 17:17:48 00:01:52 518 73.06 518 79.86 34.30 43
57AV2OBS2009-06-20 17:20:092009-06-20 17:24:05 00:03:56 518 88.43 518 102.78 0.00 -
58PSMOB12009-06-20 17:27:212009-06-20 17:40:55 00:13:34 518 114.63 518 164.10 -1.20 -
59AV2OBS2009-06-20 17:34:182009-06-20 17:40:08 00:05:50 518 140.03 518 161.31 0.00 -
60PSRWB12009-06-20 18:04:402009-06-20 18:09:56 00:05:16 518 250.77 518 269.98 27.10 80
61PSRFBS2009-06-20 18:14:312009-06-20 18:16:11 00:01:40 518 286.69 518 292.77 34.30 7
62PSRFBD2009-06-20 18:38:532009-06-20 18:52:31 00:13:38 564 15.56 564 65.28 34.30 43
63AV2OBS2009-06-20 18:58:522009-06-20 19:03:12 00:04:20 564 88.43 564 104.24 0.00 -
64AV2OBS2009-06-20 19:06:482009-06-20 19:13:22 00:06:34 564 117.30 564 141.25 0.00 -
65PSMOB12009-06-20 19:09:302009-06-20 19:12:06 00:02:36 564 127.15 564 136.63 -1.20 -
66PSRWB12009-06-20 19:42:562009-06-20 19:47:18 00:04:22 564 249.07 564 265.00 27.10 80
67PSRFBD2009-06-20 20:07:502009-06-20 20:25:36 00:17:46 564 339.94 610 44.73 34.30 43
68PSRFBD2009-06-20 20:36:152009-06-20 20:38:31 00:02:16 610 83.57 610 91.84 49.00 51
69PSMOB22009-06-20 20:40:072009-06-20 20:43:27 00:03:20 610 97.61 610 109.77 0.00 -
70AV2OBS2009-06-20 20:44:232009-06-20 20:46:15 00:01:52 610 113.17 610 119.98 -34.30 -
71PSRWB12009-06-20 21:00:242009-06-20 21:02:16 00:01:52 610 171.64 610 178.45 27.10 80
72PSRWB12009-06-20 21:04:472009-06-20 21:06:43 00:01:56 610 187.62 610 194.68 27.10 80
73PSRWB12009-06-20 21:15:502009-06-20 21:17:42 00:01:52 610 227.86 610 234.67 27.10 80
74PSRWB12009-06-20 21:20:432009-06-20 21:23:29 00:02:46 610 245.67 610 255.76 27.10 80
75PSRFBD2009-06-20 21:44:372009-06-20 21:57:13 00:12:36 610 332.83 656 18.78 34.30 43
76PSRFBD2009-06-20 21:59:512009-06-20 22:09:31 00:09:40 656 28.38 656 63.64 34.30 43
77AV2OBS2009-06-20 22:20:582009-06-20 22:23:46 00:02:48 656 105.39 656 115.60 0.00 -
78AV2OBS2009-06-20 22:26:032009-06-20 22:27:55 00:01:52 656 123.99 656 130.80 0.00 -
79AV2OBS2009-06-20 22:33:042009-06-20 22:34:56 00:01:52 656 149.52 656 156.32 0.00 -
80PSRWB12009-06-20 22:38:372009-06-20 22:42:19 00:03:42 656 169.82 656 183.31 27.10 80
81PSRWB12009-06-20 22:46:252009-06-20 22:48:17 00:01:52 656 198.20 656 205.01 27.10 80
82PSRFBD2009-06-20 23:32:032009-06-20 23:35:55 00:03:52 31 4.62 31 18.72 34.30 43
83PSRFBD2009-06-20 23:37:222009-06-20 23:39:14 00:01:52 31 24.01 31 30.81 34.30 43
84PSRFBD2009-06-20 23:48:322009-06-20 23:51:58 00:03:26 31 64.79 31 77.31 34.30 43
85PSRPLR2009-06-20 23:52:522009-06-20 23:54:54 00:02:02 31 80.53 31 87.95 21.50 127
86PSMOB12009-06-20 23:59:242009-06-21 00:06:12 00:06:48 31 104.36 31 129.16 -1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
12 -6.195152009-06-19 22:49:59161.465062009-06-19 23:39:21
58-30.874732009-06-20 00:28:42136.785472009-06-20 01:18:04
104-55.554322009-06-20 02:07:25112.105892009-06-20 02:56:47
150-80.233902009-06-20 03:46:08 87.426312009-06-20 04:35:30
196-104.913482009-06-20 05:24:52 62.746732009-06-20 06:14:13
242-129.593072009-06-20 07:03:35 38.067142009-06-20 07:52:56
288-154.272652009-06-20 08:42:18 13.387562009-06-20 09:31:39
334-178.952232009-06-20 10:21:01-11.292022009-06-20 11:10:22
380156.368192009-06-20 11:59:44-35.971612009-06-20 12:49:06
426131.688602009-06-20 13:38:27-60.651192009-06-20 14:27:49
472107.009022009-06-20 15:17:10-85.330772009-06-20 16:06:32
518 82.329442009-06-20 16:55:53-110.010352009-06-20 17:45:15
564 57.649862009-06-20 18:34:36-134.689942009-06-20 19:23:58
610 32.970272009-06-20 20:13:19-159.369522009-06-20 21:02:41
656 8.290692009-06-20 21:52:03175.950902009-06-20 22:41:24
31-16.388892009-06-20 23:30:46151.271322009-06-21 00:20:07
