>ALOS Data Take Simulation(Aug. 24, 2009)
Observation Area
PRISM

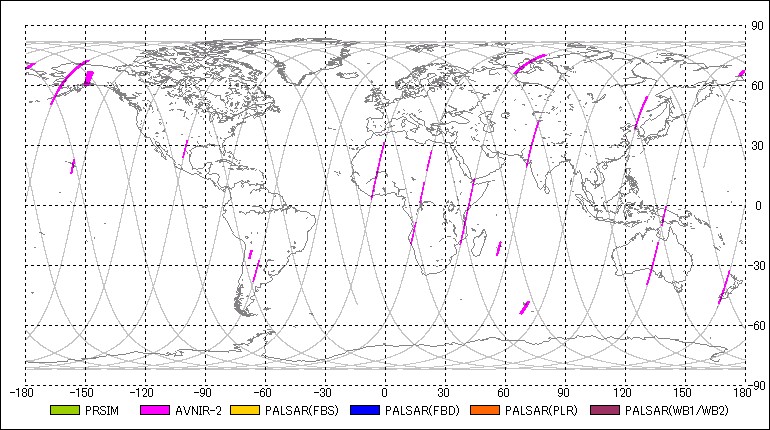

AVNIR-2

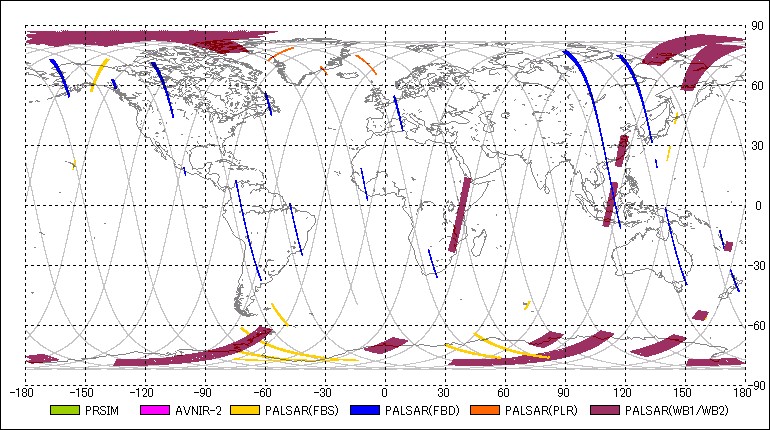

PALSAR
Observation Plan
| No. | Sensor | Mode | Start Date | End Date |
Obs. Time |
Start Path |
Start Arg. Lat. |
End Path |
End Arg. Lat. |
Angle |
Tbable |
| 1 | PSR | WB1 | 2009-08-24 00:36:30 | 2009-08-24 00:47:27 |
00:10:57 |
51 |
83.15 |
51 |
123.08 |
27.10 |
80 |
| 2 | PSR | FBS | 2009-08-24 00:49:58 | 2009-08-24 00:52:10 |
00:02:12 |
51 |
132.26 |
51 |
140.28 |
34.30 |
7 |
| 3 | PSR | FBS | 2009-08-24 00:54:38 | 2009-08-24 00:57:16 |
00:02:38 |
51 |
149.27 |
51 |
158.88 |
34.30 |
7 |
| 4 | PSM | OB2 | 2009-08-24 01:02:56 | 2009-08-24 01:06:40 |
00:03:44 |
51 |
179.54 |
51 |
193.16 |
0.00 |
- |
| 5 | AV2 | OBS | 2009-08-24 01:03:12 | 2009-08-24 01:05:52 |
00:02:40 |
51 |
180.51 |
51 |
190.24 |
0.00 |
- |
| 6 | AV2 | OBS | 2009-08-24 01:08:12 | 2009-08-24 01:14:04 |
00:05:52 |
51 |
198.75 |
51 |
220.14 |
0.00 |
- |
| 7 | PSR | WB1 | 2009-08-24 01:20:41 | 2009-08-24 01:28:33 |
00:07:52 |
51 |
244.27 |
51 |
272.96 |
27.10 |
80 |
| 8 | PSR | FBD | 2009-08-24 01:44:52 | 2009-08-24 01:52:42 |
00:07:50 |
51 |
332.46 |
97 |
1.03 |
34.30 |
43 |
| 9 | PSR | FBD | 2009-08-24 02:04:16 | 2009-08-24 02:07:58 |
00:03:42 |
97 |
43.21 |
97 |
56.71 |
34.30 |
43 |
| 10 | PSR | WB1 | 2009-08-24 02:13:07 | 2009-08-24 02:22:35 |
00:09:28 |
97 |
75.49 |
97 |
110.01 |
27.10 |
80 |
| 11 | AV2 | OBS | 2009-08-24 02:26:41 | 2009-08-24 02:31:13 |
00:04:32 |
97 |
124.96 |
97 |
141.49 |
0.00 |
- |
| 12 | PSR | WB1 | 2009-08-24 02:31:49 | 2009-08-24 02:36:39 |
00:04:50 |
97 |
143.68 |
97 |
161.31 |
27.10 |
80 |
| 13 | PSM | OB2 | 2009-08-24 02:34:19 | 2009-08-24 02:45:31 |
00:11:12 |
97 |
152.80 |
97 |
193.64 |
0.00 |
- |
| 14 | PSR | WB1 | 2009-08-24 02:38:20 | 2009-08-24 02:45:00 |
00:06:40 |
97 |
167.45 |
97 |
191.76 |
27.10 |
80 |
| 15 | PSR | WB1 | 2009-08-24 02:59:33 | 2009-08-24 03:02:13 |
00:02:40 |
97 |
244.76 |
97 |
254.48 |
27.10 |
80 |
| 16 | PSR | FBS | 2009-08-24 03:13:29 | 2009-08-24 03:17:27 |
00:03:58 |
97 |
295.57 |
97 |
310.03 |
34.30 |
7 |
| 17 | PSR | FBD | 2009-08-24 03:20:01 | 2009-08-24 03:34:41 |
00:14:40 |
97 |
319.45 |
143 |
12.95 |
34.30 |
43 |
| 18 | PSM | OB2 | 2009-08-24 04:03:52 | 2009-08-24 04:17:22 |
00:13:30 |
143 |
119.31 |
143 |
168.54 |
0.00 |
- |
| 19 | PSR | FBS | 2009-08-24 04:33:37 | 2009-08-24 04:35:29 |
00:01:52 |
143 |
227.86 |
143 |
234.67 |
34.30 |
7 |
| 20 | AV2 | OBS | 2009-08-24 04:34:05 | 2009-08-24 04:35:57 |
00:01:52 |
143 |
229.56 |
143 |
236.37 |
-34.30 |
- |
| 21 | PSR | FBS | 2009-08-24 04:45:14 | 2009-08-24 04:52:34 |
00:07:20 |
143 |
270.16 |
143 |
296.91 |
34.30 |
7 |
| 22 | PSR | FBD | 2009-08-24 05:13:26 | 2009-08-24 05:15:06 |
00:01:40 |
189 |
13.01 |
189 |
19.08 |
34.30 |
43 |
| 23 | PSR | FBD | 2009-08-24 05:21:19 | 2009-08-24 05:29:39 |
00:08:20 |
189 |
41.82 |
189 |
72.21 |
34.30 |
43 |
| 24 | PSM | OB1 | 2009-08-24 05:41:19 | 2009-08-24 05:54:53 |
00:13:34 |
189 |
114.69 |
189 |
164.16 |
1.20 |
- |
| 25 | AV2 | OBS | 2009-08-24 05:47:41 | 2009-08-24 05:54:01 |
00:06:20 |
189 |
137.91 |
189 |
161.00 |
0.00 |
- |
| 26 | AV2 | OBS | 2009-08-24 06:04:27 | 2009-08-24 06:06:19 |
00:01:52 |
189 |
199.11 |
189 |
205.92 |
-34.30 |
- |
| 27 | PSR | FBS | 2009-08-24 06:23:04 | 2009-08-24 06:27:22 |
00:04:18 |
189 |
266.94 |
189 |
282.62 |
34.30 |
7 |
| 28 | PSR | FBD | 2009-08-24 07:04:09 | 2009-08-24 07:06:01 |
00:01:52 |
235 |
56.77 |
235 |
63.57 |
34.30 |
43 |
| 29 | AV2 | OBS | 2009-08-24 07:16:41 | 2009-08-24 07:19:35 |
00:02:54 |
235 |
102.47 |
235 |
113.05 |
0.00 |
- |
| 30 | PSM | OB1 | 2009-08-24 07:20:03 | 2009-08-24 07:22:47 |
00:02:44 |
235 |
114.75 |
235 |
124.72 |
1.20 |
- |
| 31 | PSR | WB1 | 2009-08-24 07:33:49 | 2009-08-24 07:44:39 |
00:10:50 |
235 |
164.95 |
235 |
204.46 |
27.10 |
80 |
| 32 | AV2 | OBS | 2009-08-24 07:34:17 | 2009-08-24 07:43:21 |
00:09:04 |
235 |
166.72 |
235 |
199.78 |
0.00 |
- |
| 33 | PSR | WB1 | 2009-08-24 07:56:39 | 2009-08-24 07:59:25 |
00:02:46 |
235 |
248.28 |
235 |
258.37 |
27.10 |
80 |
| 34 | PSR | FBS | 2009-08-24 08:01:46 | 2009-08-24 08:04:06 |
00:02:20 |
235 |
266.94 |
235 |
275.45 |
34.30 |
7 |
| 35 | PSR | FBD | 2009-08-24 08:41:39 | 2009-08-24 08:47:33 |
00:05:54 |
281 |
52.33 |
281 |
73.85 |
34.30 |
43 |
| 36 | PSM | OB1 | 2009-08-24 09:00:31 | 2009-08-24 09:09:59 |
00:09:28 |
281 |
121.13 |
281 |
155.65 |
1.20 |
- |
| 37 | AV2 | OBS | 2009-08-24 09:09:09 | 2009-08-24 09:11:57 |
00:02:48 |
281 |
152.62 |
281 |
162.83 |
0.00 |
- |
| 38 | AV2 | OBS | 2009-08-24 09:13:28 | 2009-08-24 09:16:16 |
00:02:48 |
281 |
168.42 |
281 |
178.63 |
0.00 |
- |
| 39 | AV2 | OBS | 2009-08-24 09:18:59 | 2009-08-24 09:21:59 |
00:03:00 |
281 |
188.54 |
281 |
199.48 |
0.00 |
- |
| 40 | PSM | OB1 | 2009-08-24 10:34:08 | 2009-08-24 10:45:52 |
00:11:44 |
327 |
102.53 |
327 |
145.32 |
1.20 |
- |
| 41 | AV2 | OBS | 2009-08-24 10:46:44 | 2009-08-24 10:54:34 |
00:07:50 |
327 |
148.48 |
327 |
177.05 |
0.00 |
- |
| 42 | PSR | FBD | 2009-08-24 11:32:08 | 2009-08-24 11:35:50 |
00:03:42 |
327 |
314.05 |
327 |
327.54 |
34.30 |
43 |
| 43 | PSR | FBD | 2009-08-24 11:38:10 | 2009-08-24 11:41:22 |
00:03:12 |
327 |
336.05 |
327 |
347.72 |
34.30 |
43 |
| 44 | PSR | WB1 | 2009-08-24 12:51:01 | 2009-08-24 12:59:19 |
00:08:18 |
373 |
241.72 |
373 |
271.99 |
27.10 |
80 |
| 45 | PSR | FBS | 2009-08-24 13:06:49 | 2009-08-24 13:08:41 |
00:01:52 |
373 |
299.34 |
373 |
306.14 |
34.30 |
7 |
| 46 | PSR | FBD | 2009-08-24 13:11:49 | 2009-08-24 13:23:15 |
00:11:26 |
373 |
317.57 |
373 |
359.26 |
34.30 |
43 |
| 47 | PSR | FBD | 2009-08-24 13:28:00 | 2009-08-24 13:29:52 |
00:01:52 |
419 |
16.59 |
419 |
23.40 |
34.30 |
43 |
| 48 | PSR | FBD | 2009-08-24 13:31:27 | 2009-08-24 13:44:21 |
00:12:54 |
419 |
29.17 |
419 |
76.22 |
34.30 |
43 |
| 49 | PSM | OB1 | 2009-08-24 13:50:13 | 2009-08-24 13:55:09 |
00:04:56 |
419 |
97.67 |
419 |
115.66 |
1.20 |
- |
| 50 | PSM | OB2 | 2009-08-24 14:10:39 | 2009-08-24 14:16:13 |
00:05:34 |
419 |
172.13 |
419 |
192.43 |
0.00 |
- |
| 51 | AV2 | OBS | 2009-08-24 14:19:15 | 2009-08-24 14:23:09 |
00:03:54 |
419 |
203.55 |
419 |
217.77 |
-34.30 |
- |
| 52 | PSM | OB1 | 2009-08-24 14:20:21 | 2009-08-24 14:22:57 |
00:02:36 |
419 |
207.50 |
419 |
216.98 |
1.20 |
- |
| 53 | PSM | OB2 | 2009-08-24 14:26:20 | 2009-08-24 14:29:14 |
00:02:54 |
419 |
229.32 |
419 |
239.89 |
0.00 |
- |
| 54 | PSR | FBD | 2009-08-24 14:58:19 | 2009-08-24 15:23:39 |
00:25:20 |
419 |
345.95 |
465 |
78.34 |
34.30 |
43 |
| 55 | PSR | PLR | 2009-08-24 15:29:02 | 2009-08-24 15:31:40 |
00:02:38 |
465 |
97.98 |
465 |
107.58 |
21.50 |
127 |
| 56 | PSM | OB1 | 2009-08-24 15:42:57 | 2009-08-24 15:50:39 |
00:07:42 |
465 |
148.73 |
465 |
176.81 |
1.20 |
- |
| 57 | PSM | OB1 | 2009-08-24 17:12:18 | 2009-08-24 17:26:44 |
00:14:26 |
511 |
114.57 |
511 |
167.20 |
1.20 |
- |
| 58 | AV2 | OBS | 2009-08-24 17:21:17 | 2009-08-24 17:23:37 |
00:02:20 |
511 |
147.33 |
511 |
155.84 |
0.00 |
- |
| 59 | PSR | WB1 | 2009-08-24 17:52:15 | 2009-08-24 17:55:27 |
00:03:12 |
511 |
260.26 |
511 |
271.93 |
27.10 |
80 |
| 60 | PSR | FBS | 2009-08-24 20:27:05 | 2009-08-24 20:32:15 |
00:05:10 |
603 |
104.90 |
603 |
123.75 |
34.30 |
7 |
| 61 | AV2 | OBS | 2009-08-24 20:29:25 | 2009-08-24 20:31:17 |
00:01:52 |
603 |
113.41 |
603 |
120.22 |
-41.50 |
- |
| 62 | PSR | FBS | 2009-08-24 20:41:06 | 2009-08-24 20:43:06 |
00:02:00 |
603 |
156.02 |
603 |
163.31 |
34.30 |
7 |
| 63 | AV2 | OBS | 2009-08-24 20:41:34 | 2009-08-24 20:43:26 |
00:01:52 |
603 |
157.72 |
603 |
164.53 |
-34.30 |
- |
| 64 | PSR | FBS | 2009-08-24 21:13:33 | 2009-08-24 21:18:53 |
00:05:20 |
603 |
274.36 |
603 |
293.81 |
34.30 |
7 |
| 65 | PSR | FBD | 2009-08-24 21:26:28 | 2009-08-24 21:31:02 |
00:04:34 |
603 |
321.40 |
603 |
338.05 |
34.30 |
43 |
| 66 | PSR | FBD | 2009-08-24 21:46:48 | 2009-08-24 21:52:12 |
00:05:24 |
649 |
35.62 |
649 |
55.31 |
34.30 |
43 |
| 67 | PSR | PLR | 2009-08-24 21:54:41 | 2009-08-24 21:58:07 |
00:03:26 |
649 |
64.36 |
649 |
76.89 |
21.50 |
127 |
| 68 | PSR | WB1 | 2009-08-24 22:00:49 | 2009-08-24 22:04:15 |
00:03:26 |
649 |
86.73 |
649 |
99.25 |
27.10 |
80 |
| 69 | AV2 | OBS | 2009-08-24 22:05:59 | 2009-08-24 22:12:25 |
00:06:26 |
649 |
105.57 |
649 |
129.03 |
0.00 |
- |
| 70 | PSR | WB1 | 2009-08-24 22:31:07 | 2009-08-24 22:32:59 |
00:01:52 |
649 |
197.23 |
649 |
204.04 |
27.10 |
80 |
| 71 | AV2 | OBS | 2009-08-24 22:35:19 | 2009-08-24 22:39:57 |
00:04:38 |
649 |
212.54 |
649 |
229.44 |
0.00 |
- |
| 72 | PSR | WB1 | 2009-08-24 22:40:54 | 2009-08-24 22:42:46 |
00:01:52 |
649 |
232.84 |
649 |
239.65 |
27.10 |
80 |
| 73 | PSR | WB1 | 2009-08-24 22:44:41 | 2009-08-24 22:48:25 |
00:03:44 |
649 |
246.64 |
649 |
260.26 |
27.10 |
80 |
| 74 | PSR | FBS | 2009-08-24 22:52:15 | 2009-08-24 22:55:41 |
00:03:26 |
649 |
274.23 |
649 |
286.76 |
34.30 |
7 |
| 75 | PSR | FBD | 2009-08-24 23:15:53 | 2009-08-24 23:20:53 |
00:05:00 |
24 |
0.43 |
24 |
18.66 |
34.30 |
43 |
| 76 | PSR | PLR | 2009-08-24 23:33:21 | 2009-08-24 23:35:13 |
00:01:52 |
24 |
64.18 |
24 |
70.99 |
21.50 |
127 |
| 77 | PSR | WB1 | 2009-08-24 23:39:32 | 2009-08-24 23:42:58 |
00:03:26 |
24 |
86.73 |
24 |
99.25 |
27.10 |
80 |
| 78 | PSM | OB1 | 2009-08-24 23:44:59 | 2009-08-24 23:51:29 |
00:06:30 |
24 |
106.55 |
24 |
130.25 |
1.20 |
- |
| 79 | AV2 | OBS | 2009-08-24 23:45:12 | 2009-08-24 23:47:04 |
00:01:52 |
24 |
107.40 |
24 |
114.20 |
0.00 |
- |
Node information(Nominal Time)
| Path | Ascending Node | Descending Node |
Longitude | Time(UTC) | Longitude | Time(UTC) |
| 5 | -2.43956 | 2009-08-23 22:34:58 | 165.22065 | 2009-08-23 23:24:19 |
| 51 | -27.11915 | 2009-08-24 00:13:41 | 140.54106 | 2009-08-24 01:03:02 |
| 97 | -51.79873 | 2009-08-24 01:52:24 | 115.86148 | 2009-08-24 02:41:46 |
| 143 | -76.47831 | 2009-08-24 03:31:07 | 91.18190 | 2009-08-24 04:20:29 |
| 189 | -101.15789 | 2009-08-24 05:09:50 | 66.50231 | 2009-08-24 05:59:12 |
| 235 | -125.83748 | 2009-08-24 06:48:33 | 41.82273 | 2009-08-24 07:37:55 |
| 281 | -150.51706 | 2009-08-24 08:27:16 | 17.14315 | 2009-08-24 09:16:38 |
| 327 | -175.19664 | 2009-08-24 10:06:00 | -7.53643 | 2009-08-24 10:55:21 |
| 373 | 160.12377 | 2009-08-24 11:44:43 | -32.21602 | 2009-08-24 12:34:04 |
| 419 | 135.44419 | 2009-08-24 13:23:26 | -56.89560 | 2009-08-24 14:12:47 |
| 465 | 110.76461 | 2009-08-24 15:02:09 | -81.57518 | 2009-08-24 15:51:30 |
| 511 | 86.08503 | 2009-08-24 16:40:52 | -106.25476 | 2009-08-24 17:30:13 |
| 557 | 61.40544 | 2009-08-24 18:19:35 | -130.93435 | 2009-08-24 19:08:57 |
| 603 | 36.72586 | 2009-08-24 19:58:18 | -155.61393 | 2009-08-24 20:47:40 |
| 649 | 12.04628 | 2009-08-24 21:37:01 | 179.70649 | 2009-08-24 22:26:23 |
| 24 | -12.63330 | 2009-08-24 23:15:44 | 155.02690 | 2009-08-25 00:05:06 |
