>ALOS Data Take Simulation(Mar. 28, 2009)

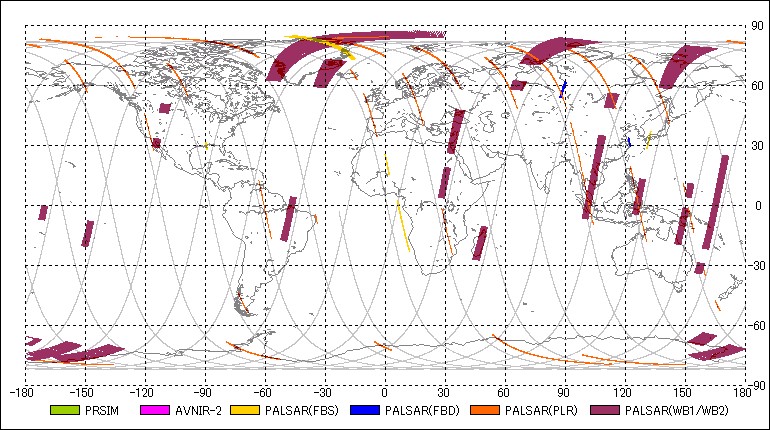

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12009-03-28 00:06:052009-03-28 00:08:39 00:02:34 26 167.87 26 177.23 27.10 80
2PSRWB12009-03-28 00:09:262009-03-28 00:15:05 00:05:39 26 180.09 26 200.69 27.10 80
3AV2OBS2009-03-28 00:09:402009-03-28 00:16:40 00:07:00 26 180.94 26 206.47 0.00 -
4PSMOB12009-03-28 00:17:072009-03-28 00:22:29 00:05:22 26 208.11 26 227.68 -1.20 -
5PSRPLR2009-03-28 00:37:312009-03-28 00:39:33 00:02:02 26 282.50 26 289.92 21.50 127
6PSRPLR2009-03-28 00:55:462009-03-28 00:57:46 00:02:00 26 349.05 26 356.35 21.50 127
7PSRPLR2009-03-28 01:18:502009-03-28 01:23:58 00:05:08 72 73.12 72 91.84 21.50 127
8PSRWB12009-03-28 01:25:432009-03-28 01:32:13 00:06:30 72 98.28 72 121.98 27.10 80
9AV2OBS2009-03-28 01:33:012009-03-28 01:39:57 00:06:56 72 124.90 72 150.18 0.00 -
10PSMOB22009-03-28 01:33:022009-03-28 01:39:42 00:06:40 72 124.96 72 149.27 0.00 -
11PSRFBS2009-03-28 01:37:362009-03-28 01:40:38 00:03:02 72 141.62 72 152.68 34.30 7
12PSRWB12009-03-28 01:44:112009-03-28 01:49:37 00:05:26 72 165.62 72 185.44 27.10 80
13AV2OBS2009-03-28 01:51:212009-03-28 01:54:01 00:02:40 72 191.76 72 201.48 0.00 -
14PSMOB12009-03-28 01:54:282009-03-28 01:59:10 00:04:42 72 203.12 72 220.26 -1.20 -
15PSRPLR2009-03-28 02:32:242009-03-28 02:41:04 00:08:40 72 341.46 118 13.07 21.50 127
16PSRWB12009-03-28 03:11:052009-03-28 03:13:43 00:02:38 118 122.47 118 132.07 27.10 80
17AV2OBS2009-03-28 03:12:302009-03-28 03:25:49 00:13:19 118 127.70 118 176.26 0.00 -
18PSMOB22009-03-28 03:12:302009-03-28 03:25:34 00:13:04 118 127.70 118 175.35 0.00 -
19PSRWB12009-03-28 03:16:542009-03-28 03:29:02 00:12:08 118 143.68 118 187.93 27.10 80
20AV2OBS2009-03-28 03:27:242009-03-28 03:29:41 00:02:17 118 182.03 118 190.36 0.00 -
21PSRPLR2009-03-28 04:00:392009-03-28 04:04:19 00:03:40 118 303.29 118 316.66 21.50 127
22PSRFBS2009-03-28 04:23:192009-03-28 04:25:11 00:01:52 164 25.89 164 32.70 34.30 7
23PSRPLR2009-03-28 04:30:412009-03-28 04:36:07 00:05:26 164 52.76 164 72.57 21.50 127
24PSRFBD2009-03-28 04:48:122009-03-28 04:51:04 00:02:52 164 116.70 164 127.15 34.30 43
25AV2OBS2009-03-28 04:51:142009-03-28 04:58:04 00:06:50 164 127.76 164 152.68 0.00 -
26PSMOB22009-03-28 04:51:142009-03-28 05:05:00 00:13:46 164 127.76 164 177.96 0.00 -
27PSRPLR2009-03-28 05:31:512009-03-28 05:35:43 00:03:52 164 275.88 164 289.98 21.50 127
28PSRPLR2009-03-28 06:01:532009-03-28 06:07:49 00:05:56 210 25.41 210 47.04 21.50 127
29PSRPLR2009-03-28 06:10:362009-03-28 06:18:40 00:08:04 210 57.19 210 86.61 21.50 127
30PSRWB12009-03-28 06:20:422009-03-28 06:25:00 00:04:18 210 93.96 210 109.65 27.10 80
31PSRWB12009-03-28 06:26:452009-03-28 06:28:37 00:01:52 210 116.03 210 122.83 27.10 80
32PSMOB12009-03-28 06:29:142009-03-28 06:39:32 00:10:18 210 125.08 210 162.64 -1.20 -
33AV2OBS2009-03-28 06:29:572009-03-28 06:36:43 00:06:46 210 127.76 210 152.43 0.00 -
34PSRWB12009-03-28 06:46:542009-03-28 06:52:08 00:05:14 210 189.51 210 208.59 27.10 80
35PSRPLR2009-03-28 07:48:462009-03-28 07:54:00 00:05:14 256 55.19 256 74.27 21.50 127
36PSRPLR2009-03-28 07:55:112009-03-28 07:57:03 00:01:52 256 78.53 256 85.33 21.50 127
37PSMOB12009-03-28 08:05:042009-03-28 08:17:26 00:12:22 256 114.63 256 159.73 -1.20 -
38PSRWB12009-03-28 08:09:292009-03-28 08:16:07 00:06:38 256 130.74 256 154.93 27.10 80
39PSRWB12009-03-28 08:17:282009-03-28 08:22:16 00:04:48 256 159.85 256 177.35 27.10 80
40PSRPLR2009-03-28 12:14:392009-03-28 12:16:39 00:02:00 348 304.75 348 312.04 21.50 127
41PSRPLR2009-03-28 12:19:352009-03-28 12:21:47 00:02:12 348 322.74 348 330.76 21.50 127
42PSRPLR2009-03-28 12:25:312009-03-28 12:29:45 00:04:14 348 344.37 348 359.81 21.50 127
43PSRPLR2009-03-28 12:30:372009-03-28 12:32:53 00:02:16 394 2.98 394 11.24 21.50 127
44PSRPLR2009-03-28 12:40:322009-03-28 12:50:54 00:10:22 394 39.14 394 76.95 21.50 127
45PSMOB12009-03-28 12:54:352009-03-28 12:57:39 00:03:04 394 90.38 394 101.56 -1.20 -
46AV2OBS2009-03-28 12:55:152009-03-28 12:57:07 00:01:52 394 92.81 394 99.62 0.00 -
47PSRWB12009-03-28 12:58:382009-03-28 13:03:08 00:04:30 394 105.15 394 121.56 27.10 80
48PSMOB12009-03-28 12:59:212009-03-28 13:02:31 00:03:10 394 107.76 394 119.31 -1.20 -
49PSRWB12009-03-28 13:17:412009-03-28 13:24:21 00:06:40 394 174.62 394 198.93 27.10 80
50PSMOB12009-03-28 13:18:232009-03-28 13:29:01 00:10:38 394 177.17 394 215.95 -1.20 -
51PSMOB12009-03-28 13:32:182009-03-28 13:34:54 00:02:36 394 227.92 394 237.40 -1.20 -
52AV2OBS2009-03-28 13:33:042009-03-28 13:34:56 00:01:52 394 230.72 394 237.52 0.00 -
53PSRPLR2009-03-28 13:43:122009-03-28 13:46:10 00:02:58 394 267.67 394 278.49 21.50 127
54PSRPLR2009-03-28 14:03:032009-03-28 14:14:13 00:11:10 394 340.06 440 20.79 21.50 127
55PSRFBD2009-03-28 14:16:052009-03-28 14:17:57 00:01:52 440 27.59 440 34.40 34.30 43
56PSRPLR2009-03-28 14:21:242009-03-28 14:30:22 00:08:58 440 46.98 440 79.68 21.50 127
57PSRWB12009-03-28 14:32:422009-03-28 14:40:55 00:08:13 440 88.19 440 118.15 27.10 80
58PSMOB12009-03-28 14:53:282009-03-28 15:04:06 00:10:38 440 163.92 440 202.70 -1.20 -
59AV2OBS2009-03-28 14:54:142009-03-28 15:03:51 00:09:37 440 166.72 440 201.79 0.00 -
60PSRPLR2009-03-28 15:44:032009-03-28 15:58:47 00:14:44 440 348.39 486 42.12 21.50 127
61PSRPLR2009-03-28 16:00:072009-03-28 16:09:39 00:09:32 486 46.98 486 81.75 21.50 127
62PSRPLR2009-03-28 16:11:302009-03-28 16:13:22 00:01:52 486 88.49 486 95.30 21.50 127
63AV2OBS2009-03-28 16:12:052009-03-28 16:14:53 00:02:48 486 90.62 486 100.83 0.00 -
64AV2OBS2009-03-28 16:16:412009-03-28 16:19:25 00:02:44 486 107.40 486 117.36 0.00 -
65PSMOB12009-03-28 16:30:302009-03-28 16:34:00 00:03:30 486 157.78 486 170.55 -1.20 -
66AV2OBS2009-03-28 16:32:182009-03-28 16:34:10 00:01:52 486 164.29 486 171.09 0.00 -
67PSRWB12009-03-28 16:56:322009-03-28 16:59:58 00:03:26 486 252.72 486 265.24 27.10 80
68PSRPLR2009-03-28 17:38:502009-03-28 17:46:40 00:07:50 532 46.98 532 75.55 21.50 127
69AV2OBS2009-03-28 17:50:112009-03-28 17:59:03 00:08:52 532 88.37 532 120.71 0.00 -
70PSMOB12009-03-28 18:00:262009-03-28 18:09:48 00:09:22 532 125.75 532 159.91 -1.20 -
71PSRWB12009-03-28 18:00:592009-03-28 18:02:51 00:01:52 532 127.76 532 134.56 27.10 80
72PSRWB12009-03-28 18:05:472009-03-28 18:07:39 00:01:52 532 145.20 532 152.01 27.10 80
73PSRWB12009-03-28 18:34:422009-03-28 18:38:08 00:03:26 532 250.71 532 263.23 27.10 80
74PSRPLR2009-03-28 18:39:212009-03-28 18:43:15 00:03:54 532 267.67 532 281.89 21.50 127
75PSRPLR2009-03-28 19:20:212009-03-28 19:26:59 00:06:38 578 57.19 578 81.38 21.50 127
76AV2OBS2009-03-28 19:28:542009-03-28 19:37:48 00:08:54 578 88.37 578 120.83 0.00 -
77PSMOB12009-03-28 19:36:062009-03-28 19:40:58 00:04:52 578 114.57 578 132.32 -1.20 -
78PSRWB12009-03-28 19:55:542009-03-28 19:59:58 00:04:04 578 186.83 578 201.66 27.10 80
79PSRWB12009-03-28 20:12:322009-03-28 20:16:50 00:04:18 578 247.49 578 263.17 27.10 80
80PSRPLR2009-03-28 20:18:402009-03-28 20:25:16 00:06:36 578 269.86 578 293.93 21.50 127
81PSRPLR2009-03-28 20:36:012009-03-28 20:43:05 00:07:04 578 333.13 578 358.90 21.50 127
82PSRPLR2009-03-28 20:53:552009-03-28 21:01:51 00:07:56 624 38.35 624 67.28 21.50 127
83PSRPLR2009-03-28 21:03:352009-03-28 21:07:27 00:03:52 624 73.60 624 87.70 21.50 127
84AV2OBS2009-03-28 21:12:372009-03-28 21:16:59 00:04:22 624 106.61 624 122.53 0.00 -
85PSRWB12009-03-28 21:32:322009-03-28 21:35:02 00:02:30 624 179.24 624 188.35 27.10 80
86PSMOB12009-03-28 21:35:252009-03-28 21:38:01 00:02:36 624 189.69 624 199.17 -1.20 -
87PSRWB12009-03-28 21:50:392009-03-28 21:52:51 00:02:12 624 245.30 624 253.33 27.10 80
88PSRFBS2009-03-28 22:14:592009-03-28 22:22:45 00:07:46 624 334.04 670 2.37 41.50 10
89PSRFBS2009-03-28 22:25:472009-03-28 22:29:13 00:03:26 670 13.43 670 25.95 34.30 7
90PSRPLR2009-03-28 22:31:072009-03-28 22:37:45 00:06:38 670 32.82 670 57.01 21.50 127
91PSRPLR2009-03-28 22:38:562009-03-28 22:41:02 00:02:06 670 61.39 670 69.04 21.50 127
92PSRFBS2009-03-28 22:41:472009-03-28 22:45:55 00:04:08 670 71.72 670 86.79 34.30 7
93AV2OBS2009-03-28 22:51:142009-03-28 22:54:24 00:03:10 670 106.24 670 117.79 0.00 -
94PSMOB12009-03-28 22:55:432009-03-28 22:58:33 00:02:50 670 122.59 670 132.92 -1.20 -
95PSRWB12009-03-28 23:04:172009-03-28 23:17:47 00:13:30 670 153.83 670 203.06 27.10 80
96AV2OBS2009-03-28 23:07:462009-03-28 23:11:38 00:03:52 670 166.53 670 180.64 0.00 -
97PSRWB12009-03-28 23:19:052009-03-28 23:21:11 00:02:06 670 207.80 670 215.46 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
26-13.706332009-03-27 23:20:02153.953882009-03-28 00:09:23
72-38.385912009-03-28 00:58:45129.274302009-03-28 01:48:06
118-63.065492009-03-28 02:37:28104.594712009-03-28 03:26:50
164-87.745082009-03-28 04:16:11 79.915132009-03-28 05:05:33
210-112.424662009-03-28 05:54:54 55.235552009-03-28 06:44:16
256-137.104242009-03-28 07:33:37 30.555972009-03-28 08:22:59
302-161.783832009-03-28 09:12:20 5.876382009-03-28 10:01:42
348173.536592009-03-28 10:51:04-18.803202009-03-28 11:40:25
394148.857012009-03-28 12:29:47-43.482782009-03-28 13:19:08
440124.177432009-03-28 14:08:30-68.162372009-03-28 14:57:51
486 99.497842009-03-28 15:47:13-92.841952009-03-28 16:36:34
532 74.818262009-03-28 17:25:56-117.521532009-03-28 18:15:17
578 50.138682009-03-28 19:04:39-142.201112009-03-28 19:54:01
624 25.459102009-03-28 20:43:22-166.880702009-03-28 21:32:44
670 0.779512009-03-28 22:22:05168.439722009-03-28 23:11:27
