>ALOS Data Take Simulation(May. 13, 2009)

Observation Area

PRISM

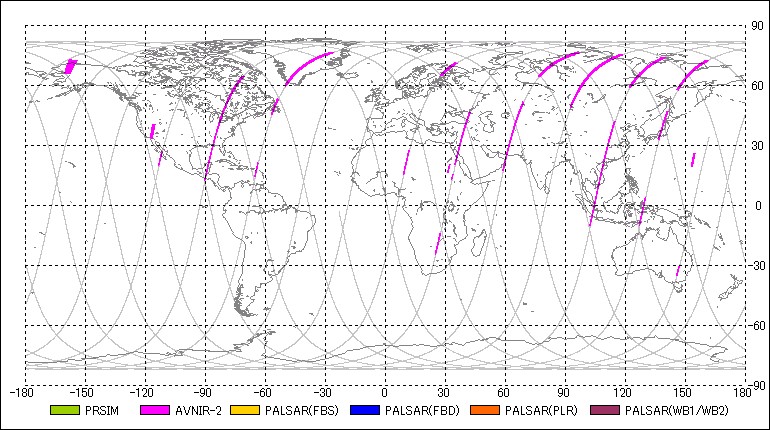

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-05-13 00:01:552009-05-13 00:03:47 00:01:52 26 152.68 26 159.48 34.30 7
2AV2OBS2009-05-13 00:02:222009-05-13 00:04:14 00:01:52 26 154.32 26 161.13 -34.30 -
3PSRWB12009-05-13 00:06:042009-05-13 00:08:38 00:02:34 26 167.81 26 177.17 27.10 80
4PSRWB12009-05-13 00:11:252009-05-13 00:13:17 00:01:52 26 187.32 26 194.13 27.10 80
5PSMOB12009-05-13 00:13:502009-05-13 00:17:26 00:03:36 26 196.13 26 209.26 1.20 -
6AV2OBS2009-05-13 00:17:532009-05-13 00:19:05 00:01:12 26 210.90 26 215.28 0.00 -
7PSRPLR2009-05-13 00:33:282009-05-13 00:39:32 00:06:04 26 267.73 26 289.85 23.10 128
8PSRPLR2009-05-13 01:18:492009-05-13 01:21:11 00:02:22 72 73.12 72 81.75 23.10 128
9AV2OBS2009-05-13 01:27:462009-05-13 01:32:08 00:04:22 72 105.76 72 121.68 0.00 -
10AV2OBS2009-05-13 01:35:042009-05-13 01:39:08 00:04:04 72 132.38 72 147.21 0.00 -
11PSMOB22009-05-13 01:35:402009-05-13 01:39:42 00:04:02 72 134.56 72 149.27 0.00 -
12AV2OBS2009-05-13 01:47:042009-05-13 01:50:56 00:03:52 72 176.14 72 190.24 0.00 -
13PSMOB22009-05-13 01:47:042009-05-13 01:54:48 00:07:44 72 176.14 72 204.34 0.00 -
14PSRFBS2009-05-13 01:47:112009-05-13 01:51:57 00:04:46 72 176.56 72 193.95 34.30 7
15PSRPLR2009-05-13 02:12:102009-05-13 02:17:08 00:04:58 72 267.67 72 285.78 23.10 128
16PSRPLR2009-05-13 02:35:382009-05-13 02:37:30 00:01:52 72 353.25 118 0.06 21.50 127
17PSRPLR2009-05-13 02:38:242009-05-13 02:41:02 00:02:38 118 3.34 118 12.95 23.10 128
18AV2OBS2009-05-13 03:06:012009-05-13 03:10:29 00:04:28 118 104.05 118 120.34 0.00 -
19PSMOB22009-05-13 03:12:322009-05-13 03:30:10 00:17:38 118 127.76 118 192.06 0.00 -
20AV2OBS2009-05-13 03:15:182009-05-13 03:29:41 00:14:23 118 137.91 118 190.36 0.00 -
21PSRFBS2009-05-13 03:21:262009-05-13 03:28:28 00:07:02 118 160.27 118 185.92 34.30 7
22PSRPLR2009-05-13 03:50:542009-05-13 03:54:32 00:03:38 118 267.73 118 280.98 23.10 128
23PSRPLR2009-05-13 03:56:472009-05-13 03:58:43 00:01:56 118 289.19 118 296.24 23.10 128
24PSRPLR2009-05-13 04:31:432009-05-13 04:36:07 00:04:24 164 56.59 164 72.63 23.10 128
25AV2OBS2009-05-13 04:44:182009-05-13 04:52:00 00:07:42 164 102.41 164 130.49 0.00 -
26PSMOB22009-05-13 04:51:142009-05-13 05:05:00 00:13:46 164 127.76 164 177.96 0.00 -
27PSRPLR2009-05-13 06:10:362009-05-13 06:14:56 00:04:20 210 57.19 210 73.00 23.10 128
28PSRWB12009-05-13 06:18:422009-05-13 06:25:33 00:06:51 210 86.67 210 111.65 27.10 80
29AV2OBS2009-05-13 06:22:412009-05-13 06:26:23 00:03:42 210 101.20 210 114.69 0.00 -
30PSMOB12009-05-13 06:29:122009-05-13 06:38:28 00:09:16 210 125.02 210 158.82 1.20 -
31AV2OBS2009-05-13 06:29:582009-05-13 06:39:32 00:09:34 210 127.76 210 162.64 0.00 -
32PSRWB12009-05-13 06:35:032009-05-13 06:38:31 00:03:28 210 146.30 210 158.94 27.10 80
33PSRPLR2009-05-13 07:08:202009-05-13 07:13:34 00:05:14 210 267.73 210 286.82 23.10 128
34PSRWB12009-05-13 07:59:252009-05-13 08:05:20 00:05:55 256 94.03 256 115.60 27.10 80
35PSMOB12009-05-13 08:05:042009-05-13 08:17:28 00:12:24 256 114.63 256 159.85 1.20 -
36PSRWB12009-05-13 08:09:292009-05-13 08:18:58 00:09:29 256 130.74 256 165.32 27.10 80
37AV2OBS2009-05-13 08:10:052009-05-13 08:19:21 00:09:16 256 132.86 256 166.66 0.00 -
38PSRWB12009-05-13 08:19:492009-05-13 08:25:59 00:06:10 256 168.36 256 190.85 27.10 80
39AV2OBS2009-05-13 08:26:482009-05-13 08:29:42 00:02:54 256 193.88 256 204.46 0.00 -
40PSRPLR2009-05-13 08:47:032009-05-13 08:51:43 00:04:40 256 267.73 256 284.75 23.10 128
41PSRFBD2009-05-13 09:17:152009-05-13 09:19:07 00:01:52 302 17.81 302 24.62 41.50 46
42PSRPLR2009-05-13 09:25:512009-05-13 09:27:43 00:01:52 302 49.17 302 55.98 23.10 128
43PSRPLR2009-05-13 09:29:102009-05-13 09:32:16 00:03:06 302 61.33 302 72.63 23.10 128
44AV2OBS2009-05-13 09:41:462009-05-13 09:43:40 00:01:54 302 107.21 302 114.14 0.00 -
45AV2OBS2009-05-13 09:54:062009-05-13 09:57:26 00:03:20 302 152.19 302 164.35 0.00 -
46PSRPLR2009-05-13 10:25:472009-05-13 10:30:11 00:04:24 302 267.73 302 283.78 23.10 128
47PSRPLR2009-05-13 10:48:212009-05-13 10:50:13 00:01:52 302 350.03 302 356.83 23.10 128
48PSRPLR2009-05-13 11:05:262009-05-13 11:11:42 00:06:16 348 52.33 348 75.18 23.10 128
49PSRWB12009-05-13 11:16:312009-05-13 11:38:34 00:22:03 348 92.75 348 173.16 27.10 80
50PSMOB12009-05-13 11:22:242009-05-13 11:31:08 00:08:44 348 114.20 348 146.05 1.20 -
51PSRPLR2009-05-13 12:04:292009-05-13 12:08:11 00:03:42 348 267.67 348 281.16 23.10 128
52PSRPLR2009-05-13 12:27:362009-05-13 12:29:28 00:01:52 348 351.97 348 358.78 21.50 127
53PSRPLR2009-05-13 12:40:412009-05-13 12:42:33 00:01:52 394 39.69 394 46.50 21.50 127
54PSRPLR2009-05-13 12:44:192009-05-13 12:50:53 00:06:34 394 52.94 394 76.89 23.10 128
55PSRWB12009-05-13 12:54:382009-05-13 13:01:08 00:06:30 394 90.56 394 114.26 27.10 80
56PSRWB12009-05-13 13:18:242009-05-13 13:34:30 00:16:06 394 177.29 394 236.00 27.10 80
57PSMOB12009-05-13 13:22:062009-05-13 13:25:06 00:03:00 394 190.72 394 201.66 1.20 -
58PSMOB12009-05-13 13:32:182009-05-13 13:34:54 00:02:36 394 227.92 394 237.40 1.20 -
59PSRPLR2009-05-13 13:43:122009-05-13 13:49:10 00:05:58 394 267.67 394 289.43 23.10 128
60PSRPLR2009-05-13 14:03:022009-05-13 14:08:26 00:05:24 394 340.00 394 359.69 21.50 127
61PSRPLR2009-05-13 14:11:022009-05-13 14:13:04 00:02:02 440 9.18 440 16.59 21.50 127
62PSRPLR2009-05-13 14:21:242009-05-13 14:30:22 00:08:58 440 46.98 440 79.68 23.10 128
63AV2OBS2009-05-13 14:36:122009-05-13 14:41:18 00:05:06 440 100.95 440 119.55 0.00 -
64AV2OBS2009-05-13 14:43:072009-05-13 14:45:19 00:02:12 440 126.18 440 134.20 0.00 -
65AV2OBS2009-05-13 14:52:022009-05-13 14:53:54 00:01:52 440 158.69 440 165.50 0.00 -
66PSMOB12009-05-13 14:57:442009-05-13 15:04:10 00:06:26 440 179.48 440 202.94 1.20 -
67PSRPLR2009-05-13 15:21:562009-05-13 15:29:02 00:07:06 440 267.73 440 293.62 23.10 128
68PSRPLR2009-05-13 15:44:032009-05-13 15:52:45 00:08:42 440 348.39 486 20.12 23.10 128
69PSRPLR2009-05-13 15:56:132009-05-13 15:58:05 00:01:52 486 32.76 486 39.57 21.50 127
70PSRPLR2009-05-13 16:02:552009-05-13 16:08:15 00:05:20 486 57.19 486 76.64 23.10 128
71PSMOB12009-05-13 16:11:222009-05-13 16:20:12 00:08:50 486 88.01 486 120.22 1.20 -
72AV2OBS2009-05-13 16:18:352009-05-13 16:33:13 00:14:38 486 114.33 486 167.69 0.00 -
73PSRPLR2009-05-13 17:00:392009-05-13 17:07:59 00:07:20 486 267.73 486 294.47 23.10 128
74PSRPLR2009-05-13 17:38:502009-05-13 17:46:42 00:07:52 532 46.98 532 75.67 23.10 128
75PSMOB12009-05-13 17:49:412009-05-13 18:03:59 00:14:18 532 86.55 532 138.70 1.20 -
76AV2OBS2009-05-13 18:04:202009-05-13 18:06:16 00:01:56 532 139.97 532 147.02 -41.50 -
77AV2OBS2009-05-13 18:07:572009-05-13 18:09:49 00:01:52 532 153.10 532 159.91 0.00 -
78PSRWB12009-05-13 18:34:422009-05-13 18:38:08 00:03:26 532 250.71 532 263.23 27.10 80
79PSRPLR2009-05-13 18:39:212009-05-13 18:46:21 00:07:00 532 267.67 532 293.20 23.10 128
80PSRPLR2009-05-13 19:20:212009-05-13 19:24:55 00:04:34 578 57.19 578 73.85 23.10 128
81PSMOB12009-05-13 19:28:252009-05-13 19:41:07 00:12:42 578 86.55 578 132.86 1.20 -
82PSRWB12009-05-13 19:29:222009-05-13 19:35:35 00:06:13 578 90.07 578 112.75 27.10 80
83PSRWB12009-05-13 19:55:542009-05-13 19:57:46 00:01:52 578 186.83 578 193.64 27.10 80
84PSRPLR2009-05-13 20:18:062009-05-13 20:25:28 00:07:22 578 267.73 578 294.60 23.10 128
85PSRPLR2009-05-13 20:37:402009-05-13 20:39:32 00:01:52 578 339.15 578 345.95 21.50 127
86PSRPLR2009-05-13 20:55:372009-05-13 21:01:55 00:06:18 624 44.55 624 67.53 23.10 128
87PSRPLR2009-05-13 21:04:422009-05-13 21:07:38 00:02:56 624 77.74 624 88.43 23.10 128
88PSMOB12009-05-13 21:08:312009-05-13 21:17:43 00:09:12 624 91.65 624 125.20 1.20 -
89AV2OBS2009-05-13 21:12:512009-05-13 21:14:43 00:01:52 624 107.40 624 114.20 -41.50 -
90PSRPLR2009-05-13 21:56:482009-05-13 22:03:20 00:06:32 624 267.73 624 291.56 23.10 128
91PSRFBS2009-05-13 22:14:592009-05-13 22:22:45 00:07:46 624 334.04 670 2.37 41.50 10
92PSRPLR2009-05-13 22:32:012009-05-13 22:37:49 00:05:48 670 36.10 670 57.25 23.10 128
93PSRPLR2009-05-13 22:39:032009-05-13 22:46:01 00:06:58 670 61.81 670 87.22 23.10 128
94PSMOB12009-05-13 22:50:312009-05-13 22:58:35 00:08:04 670 103.57 670 132.98 1.20 -
95PSRWB12009-05-13 23:04:172009-05-13 23:12:03 00:07:46 670 153.83 670 182.15 27.10 80
96PSRPLR2009-05-13 23:35:312009-05-13 23:41:51 00:06:20 670 267.67 670 290.77 23.10 128

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
26-13.706332009-05-12 23:20:02153.953882009-05-13 00:09:23
72-38.385912009-05-13 00:58:45129.274302009-05-13 01:48:06
118-63.065492009-05-13 02:37:28104.594712009-05-13 03:26:50
164-87.745082009-05-13 04:16:11 79.915132009-05-13 05:05:33
210-112.424662009-05-13 05:54:54 55.235552009-05-13 06:44:16
256-137.104242009-05-13 07:33:37 30.555972009-05-13 08:22:59
302-161.783832009-05-13 09:12:20 5.876382009-05-13 10:01:42
348173.536592009-05-13 10:51:04-18.803202009-05-13 11:40:25
394148.857012009-05-13 12:29:47-43.482782009-05-13 13:19:08
440124.177432009-05-13 14:08:30-68.162372009-05-13 14:57:51
486 99.497842009-05-13 15:47:13-92.841952009-05-13 16:36:34
532 74.818262009-05-13 17:25:56-117.521532009-05-13 18:15:17
578 50.138682009-05-13 19:04:39-142.201112009-05-13 19:54:01
624 25.459102009-05-13 20:43:22-166.880702009-05-13 21:32:44
670 0.779512009-05-13 22:22:05168.439722009-05-13 23:11:27
