>ALOS Data Take Simulation(May. 02, 2009)

Observation Area

PRISM

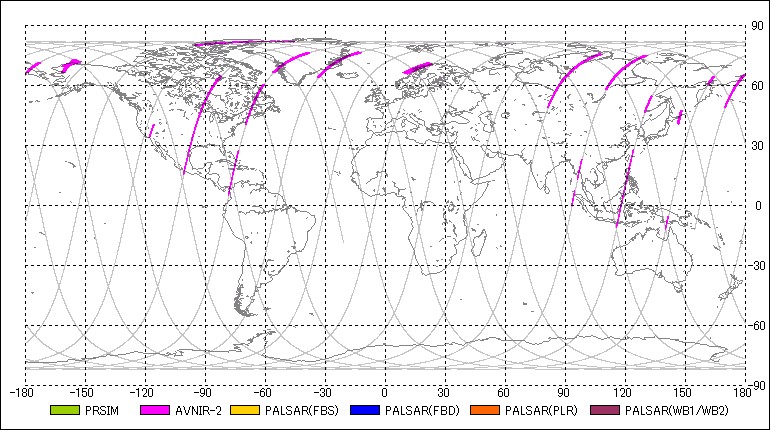

AVNIR-2

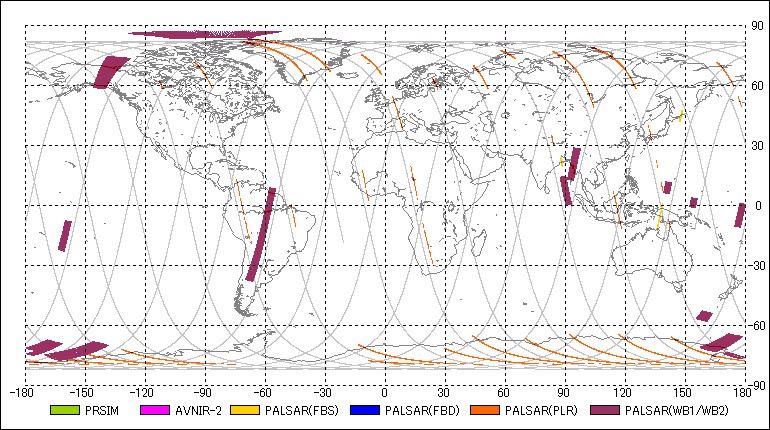

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-05-02 00:21:502009-05-02 00:28:18 00:06:28 47 60.96 47 84.54 23.10 128
2AV2OBS2009-05-02 00:36:322009-05-02 00:37:42 00:01:10 47 114.57 47 118.82 0.00 -
3PSRFBS2009-05-02 00:41:072009-05-02 00:43:15 00:02:08 47 131.28 47 139.06 34.30 7
4AV2OBS2009-05-02 00:41:312009-05-02 00:43:27 00:01:56 47 132.74 47 139.79 -34.30 -
5PSRWB12009-05-02 00:50:562009-05-02 00:53:08 00:02:12 47 167.08 47 175.10 27.10 80
6PSRFBS2009-05-02 00:53:562009-05-02 00:58:00 00:04:04 47 178.02 47 192.85 34.30 7
7PSMOB22009-05-02 00:55:472009-05-02 01:05:23 00:09:36 47 184.77 47 219.78 0.00 -
8AV2OBS2009-05-02 00:55:562009-05-02 00:57:48 00:01:52 47 185.32 47 192.12 0.00 -
9PSRPLR2009-05-02 01:18:312009-05-02 01:24:09 00:05:38 47 267.67 47 288.21 23.10 128
10PSRPLR2009-05-02 01:40:202009-05-02 01:44:08 00:03:48 47 347.23 93 1.09 23.10 128
11AV2OBS2009-05-02 02:18:002009-05-02 02:20:24 00:02:24 93 124.60 93 133.35 0.00 -
12PSMOB22009-05-02 02:22:042009-05-02 02:37:00 00:14:56 93 139.43 93 193.88 0.00 -
13AV2OBS2009-05-02 02:25:332009-05-02 02:36:15 00:10:42 93 152.13 93 191.15 0.00 -
14PSRPLR2009-05-02 02:57:092009-05-02 02:59:47 00:02:38 93 267.37 93 276.97 23.10 128
15PSRPLR2009-05-02 03:17:282009-05-02 03:26:12 00:08:44 93 341.46 139 13.31 23.10 128
16PSRPLR2009-05-02 03:38:142009-05-02 03:42:28 00:04:14 139 57.13 139 72.57 23.10 128
17AV2OBS2009-05-02 03:50:452009-05-02 03:55:49 00:05:04 139 102.84 139 121.31 0.00 -
18PSRWB12009-05-02 04:03:392009-05-02 04:08:41 00:05:02 139 149.88 139 168.24 27.10 80
19AV2OBS2009-05-02 04:05:332009-05-02 04:08:21 00:02:48 139 156.81 139 167.02 0.00 -
20AV2OBS2009-05-02 04:09:552009-05-02 04:11:49 00:01:54 139 172.73 139 179.66 0.00 -
21PSRPLR2009-05-02 05:16:572009-05-02 05:18:37 00:01:40 185 57.19 185 63.27 23.10 128
22AV2OBS2009-05-02 05:29:142009-05-02 05:37:04 00:07:50 185 101.93 185 130.49 0.00 -
23PSRPLR2009-05-02 09:32:072009-05-02 09:36:57 00:04:50 277 267.67 277 285.30 23.10 128
24PSRPLR2009-05-02 10:10:292009-05-02 10:12:31 00:02:02 323 47.59 323 55.00 23.10 128
25PSRPLR2009-05-02 10:13:232009-05-02 10:17:25 00:04:02 323 58.17 323 72.87 23.10 128
26PSMOB12009-05-02 10:25:302009-05-02 10:37:00 00:11:30 323 102.35 323 144.29 1.20 -
27PSRPLR2009-05-02 11:10:502009-05-02 11:14:54 00:04:04 323 267.67 323 282.50 23.10 128
28AV2OBS2009-05-02 12:04:212009-05-02 12:06:13 00:01:52 369 102.84 369 109.65 41.50 -
29PSRPLR2009-05-02 12:49:202009-05-02 12:52:50 00:03:30 369 266.88 369 279.64 23.10 128
30PSRPLR2009-05-02 13:11:212009-05-02 13:13:13 00:01:52 369 347.17 369 353.98 21.50 127
31PSRPLR2009-05-02 13:16:202009-05-02 13:18:12 00:01:52 415 5.35 415 12.16 23.10 128
32PSRPLR2009-05-02 13:19:282009-05-02 13:21:20 00:01:52 415 16.77 415 23.58 23.10 128
33PSRPLR2009-05-02 13:22:552009-05-02 13:26:03 00:03:08 415 29.36 415 40.78 23.10 128
34PSRPLR2009-05-02 13:30:332009-05-02 13:37:03 00:06:30 415 57.19 415 80.90 23.10 128
35PSMOB12009-05-02 13:42:012009-05-02 13:46:17 00:04:16 415 99.01 415 114.57 1.20 -
36AV2OBS2009-05-02 13:42:302009-05-02 13:46:22 00:03:52 415 100.83 415 114.93 0.00 -
37PSRWB12009-05-02 14:01:302009-05-02 14:15:02 00:13:32 415 170.06 415 219.41 27.10 80
38PSRPLR2009-05-02 14:28:182009-05-02 14:35:08 00:06:50 415 267.79 415 292.71 23.10 128
39PSRPLR2009-05-02 14:49:502009-05-02 14:55:52 00:06:02 415 346.32 461 8.33 23.10 128
40PSRPLR2009-05-02 15:06:282009-05-02 15:15:08 00:08:40 461 46.98 461 78.59 23.10 128
41AV2OBS2009-05-02 15:21:202009-05-02 15:24:28 00:03:08 461 101.20 461 112.62 0.00 -
42AV2OBS2009-05-02 15:26:092009-05-02 15:31:51 00:05:42 461 118.76 461 139.55 0.00 -
43AV2OBS2009-05-02 15:35:242009-05-02 15:41:36 00:06:12 461 152.49 461 175.10 0.00 -
44PSMOB12009-05-02 15:38:582009-05-02 15:45:54 00:06:56 461 165.50 461 190.79 1.20 -
45PSRPLR2009-05-02 16:06:592009-05-02 16:14:13 00:07:14 461 267.67 461 294.05 23.10 128
46PSRWB12009-05-02 16:31:472009-05-02 16:36:17 00:04:30 461 358.11 507 14.53 27.10 80
47PSRFBS2009-05-02 16:37:022009-05-02 16:38:54 00:01:52 507 17.26 507 24.07 34.30 7
48PSRPLR2009-05-02 16:40:122009-05-02 16:42:04 00:01:52 507 28.81 507 35.62 21.50 127
49PSRPLR2009-05-02 16:52:112009-05-02 16:54:03 00:01:52 507 72.51 507 79.32 23.10 128
50PSMOB12009-05-02 16:56:062009-05-02 17:06:08 00:10:02 507 86.79 507 123.38 1.20 -
51AV2OBS2009-05-02 17:03:362009-05-02 17:17:22 00:13:46 507 114.14 507 164.35 0.00 -
52PSRWB12009-05-02 17:41:032009-05-02 17:44:29 00:03:26 507 250.71 507 263.23 27.10 80
53PSRPLR2009-05-02 17:45:422009-05-02 17:52:58 00:07:16 507 267.67 507 294.17 23.10 128
54PSRPLR2009-05-02 18:26:422009-05-02 18:30:34 00:03:52 553 57.19 553 71.29 23.10 128
55PSMOB12009-05-02 18:34:442009-05-02 18:51:56 00:17:12 553 86.49 553 149.21 1.20 -
56AV2OBS2009-05-02 18:49:042009-05-02 18:50:56 00:01:52 553 138.76 553 145.57 21.50 -
57PSRWB12009-05-02 19:19:292009-05-02 19:22:51 00:03:22 553 249.68 553 261.96 27.10 80
58PSRPLR2009-05-02 19:24:272009-05-02 19:30:59 00:06:32 553 267.73 553 291.56 23.10 128
59PSRPLR2009-05-02 20:05:312009-05-02 20:07:23 00:01:52 599 57.56 599 64.36 21.50 127
60PSMOB12009-05-02 20:13:292009-05-02 20:16:05 00:02:36 599 86.55 599 96.03 1.20 -
61AV2OBS2009-05-02 20:13:592009-05-02 20:16:07 00:02:08 599 88.37 599 96.15 0.00 -
62PSRWB12009-05-02 20:18:092009-05-02 20:23:11 00:05:02 599 103.63 599 121.98 27.10 80
63PSMOB12009-05-02 20:18:122009-05-02 20:24:10 00:05:58 599 103.81 599 125.57 1.20 -
64PSRWB12009-05-02 20:40:592009-05-02 20:45:41 00:04:42 599 186.83 599 203.97 27.10 80
65PSRWB12009-05-02 20:57:102009-05-02 21:00:12 00:03:02 599 245.91 599 256.97 27.10 80
66PSRPLR2009-05-02 21:02:562009-05-02 21:10:12 00:07:16 599 266.94 599 293.44 23.10 128
67PSRPLR2009-05-02 21:19:412009-05-02 21:26:07 00:06:26 599 328.02 599 351.48 23.10 128
68PSRPLR2009-05-02 21:28:422009-05-02 21:33:56 00:05:14 645 0.91 645 20.00 23.10 128
69PSRPLR2009-05-02 21:38:202009-05-02 21:43:34 00:05:14 645 35.98 645 55.07 23.10 128
70PSRPLR2009-05-02 21:46:062009-05-02 21:49:32 00:03:26 645 64.36 645 76.89 23.10 128
71PSMOB12009-05-02 21:52:122009-05-02 21:54:58 00:02:46 645 86.55 645 96.64 1.20 -
72PSRWB12009-05-02 21:52:142009-05-02 21:54:06 00:01:52 645 86.73 645 93.54 27.10 80
73PSMOB12009-05-02 21:56:432009-05-02 22:03:47 00:07:04 645 103.02 645 128.79 1.20 -
74AV2OBS2009-05-02 21:57:382009-05-02 21:59:30 00:01:52 645 106.42 645 113.23 -21.50 -
75PSRWB12009-05-02 22:17:132009-05-02 22:21:05 00:03:52 645 177.84 645 191.94 27.10 80
76PSRWB12009-05-02 22:32:252009-05-02 22:34:17 00:01:52 645 233.27 645 240.08 27.10 80
77PSRPLR2009-05-02 22:41:522009-05-02 22:46:52 00:05:00 645 267.67 645 285.90 23.10 128
78PSRPLR2009-05-02 23:07:212009-05-02 23:12:21 00:05:00 20 0.67 20 18.90 23.10 128
79PSRPLR2009-05-02 23:25:092009-05-02 23:30:53 00:05:44 20 65.52 20 86.43 23.10 128
80AV2OBS2009-05-02 23:35:192009-05-02 23:42:53 00:07:34 20 102.66 20 130.25 34.30 -
81PSMOB12009-05-02 23:36:022009-05-02 23:39:34 00:03:32 20 105.21 20 118.09 1.20 -
82PSRWB12009-05-02 23:55:132009-05-02 23:57:05 00:01:52 20 175.23 20 182.03 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
1 -0.293512009-05-01 22:26:23167.366702009-05-01 23:15:44
47-24.973102009-05-02 00:05:06142.687112009-05-02 00:54:27
93-49.652682009-05-02 01:43:49118.007532009-05-02 02:33:11
139-74.332262009-05-02 03:22:32 93.327952009-05-02 04:11:54
185-99.011842009-05-02 05:01:15 68.648372009-05-02 05:50:37
231-123.691432009-05-02 06:39:58 43.968782009-05-02 07:29:20
277-148.371012009-05-02 08:18:41 19.289202009-05-02 09:08:03
323-173.050592009-05-02 09:57:24 -5.390382009-05-02 10:46:46
369162.269832009-05-02 11:36:08-30.069972009-05-02 12:25:29
415137.590242009-05-02 13:14:51-54.749552009-05-02 14:04:12
461112.910662009-05-02 14:53:34-79.429132009-05-02 15:42:55
507 88.231082009-05-02 16:32:17-104.108712009-05-02 17:21:38
553 63.551492009-05-02 18:11:00-128.788302009-05-02 19:00:22
599 38.871912009-05-02 19:49:43-153.467882009-05-02 20:39:05
645 14.192332009-05-02 21:28:26-178.147462009-05-02 22:17:48
20-10.487252009-05-02 23:07:09157.172962009-05-02 23:56:31
