>ALOS Data Take Simulation(Mar. 12, 2009)

Observation Area

PRISM

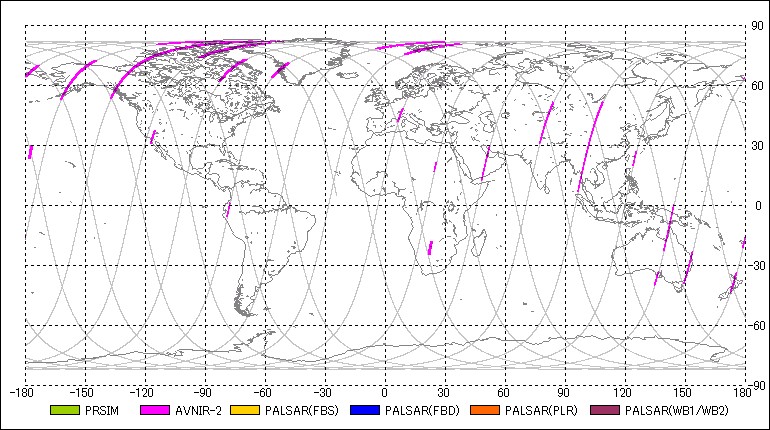

AVNIR-2

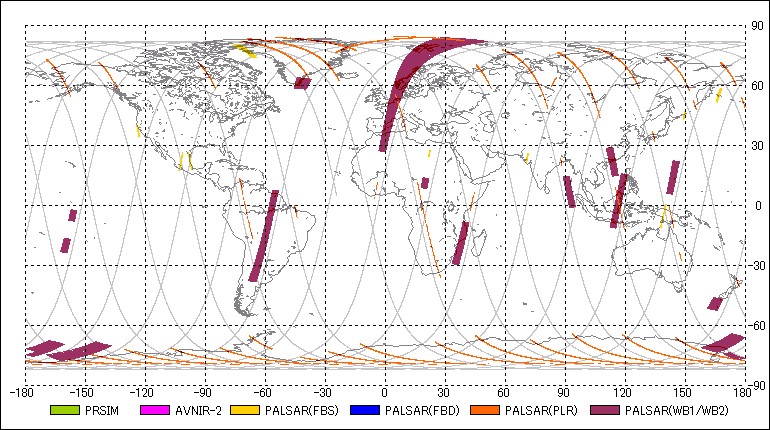

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-03-12 00:15:372009-03-12 00:21:57 00:06:20 44 61.75 44 84.85 23.10 128
2PSRFBS2009-03-12 00:34:412009-03-12 00:36:33 00:01:52 44 131.28 44 138.09 34.30 7
3PSRWB12009-03-12 00:41:362009-03-12 00:46:46 00:05:10 44 156.51 44 175.35 27.10 80
4PSRFBS2009-03-12 00:47:362009-03-12 00:51:30 00:03:54 44 178.39 44 192.61 34.30 7
5AV2OBS2009-03-12 00:47:592009-03-12 00:54:19 00:06:20 44 179.78 44 202.88 0.00 -
6AV2OBS2009-03-12 00:57:112009-03-12 00:59:03 00:01:52 44 213.33 44 220.14 0.00 -
7PSRPLR2009-03-12 01:12:052009-03-12 01:17:49 00:05:44 44 267.67 44 288.58 23.10 128
8PSRPLR2009-03-12 01:35:102009-03-12 01:37:32 00:02:22 44 351.85 90 0.49 23.10 128
9PSRFBS2009-03-12 01:57:182009-03-12 01:59:44 00:02:26 90 72.57 90 81.44 34.30 7
10PSMOB22009-03-12 02:11:022009-03-12 02:21:18 00:10:16 90 122.65 90 160.09 0.00 -
11AV2OBS2009-03-12 02:19:232009-03-12 02:21:15 00:01:52 90 153.10 90 159.91 0.00 -
12PSRWB12009-03-12 02:22:052009-03-12 02:30:09 00:08:04 90 162.95 90 192.37 27.10 80
13PSMOB12009-03-12 02:30:582009-03-12 02:36:02 00:05:04 90 195.34 90 213.82 -1.20 -
14PSRPLR2009-03-12 02:50:492009-03-12 02:55:13 00:04:24 90 267.73 90 283.78 23.10 128
15PSRPLR2009-03-12 03:11:022009-03-12 03:20:00 00:08:58 90 341.46 136 14.16 23.10 128
16PSRPLR2009-03-12 03:31:482009-03-12 03:36:02 00:04:14 136 57.19 136 72.63 23.10 128
17AV2OBS2009-03-12 03:51:092009-03-12 04:03:38 00:12:29 136 127.76 136 173.28 0.00 -
18PSMOB22009-03-12 03:51:092009-03-12 04:02:51 00:11:42 136 127.76 136 170.42 0.00 -
19PSRPLR2009-03-12 04:29:192009-03-12 04:32:53 00:03:34 136 266.94 136 279.95 23.10 128
20PSRPLR2009-03-12 04:33:462009-03-12 04:36:32 00:02:46 136 283.17 136 293.26 23.10 128
21PSRFBS2009-03-12 04:59:112009-03-12 05:02:13 00:03:02 182 15.86 182 26.93 34.30 7
22PSRPLR2009-03-12 05:26:072009-03-12 05:27:59 00:01:52 182 114.08 182 120.89 23.10 128
23AV2OBS2009-03-12 05:29:522009-03-12 05:35:44 00:05:52 182 127.76 182 149.15 0.00 -
24PSMOB22009-03-12 05:29:522009-03-12 05:41:02 00:11:10 182 127.76 182 168.48 0.00 -
25PSRFBS2009-03-12 05:36:412009-03-12 05:38:37 00:01:56 182 152.62 182 159.67 34.30 7
26PSRPLR2009-03-12 06:08:152009-03-12 06:13:19 00:05:04 182 267.73 182 286.21 23.10 128
27PSRFBS2009-03-12 06:42:202009-03-12 06:44:32 00:02:12 228 32.03 228 40.05 41.50 10
28PSRPLR2009-03-12 06:49:112009-03-12 06:53:35 00:04:24 228 57.01 228 73.06 23.10 128
29PSMOB12009-03-12 07:06:512009-03-12 07:20:17 00:13:26 228 121.44 228 170.42 -1.20 -
30AV2OBS2009-03-12 07:14:512009-03-12 07:19:29 00:04:38 228 150.61 228 167.51 0.00 -
31PSRPLR2009-03-12 07:20:452009-03-12 07:23:53 00:03:08 228 172.13 228 183.55 23.10 128
32PSRWB12009-03-12 07:24:532009-03-12 07:31:21 00:06:28 228 187.20 228 210.78 27.10 80
33PSRPLR2009-03-12 07:46:462009-03-12 07:52:02 00:05:16 228 267.00 228 286.21 23.10 128
34PSRPLR2009-03-12 08:26:482009-03-12 08:32:38 00:05:50 274 53.00 274 74.27 23.10 128
35PSMOB12009-03-12 08:43:422009-03-12 08:53:20 00:09:38 274 114.63 274 149.76 -1.20 -
36PSRFBS2009-03-12 08:53:472009-03-12 08:55:17 00:01:30 274 151.40 274 156.87 34.30 7
37AV2OBS2009-03-12 08:55:452009-03-12 08:57:03 00:01:18 274 158.57 274 163.31 0.00 -
38PSRWB12009-03-12 08:57:312009-03-12 08:59:35 00:02:04 274 165.01 274 172.55 27.10 80
39AV2OBS2009-03-12 09:06:212009-03-12 09:08:13 00:01:52 274 197.23 274 204.04 41.50 -
40PSRPLR2009-03-12 09:25:422009-03-12 09:30:32 00:04:50 274 267.73 274 285.36 23.10 128
41PSRPLR2009-03-12 10:03:562009-03-12 10:05:58 00:02:02 320 47.16 320 54.58 23.10 128
42PSRPLR2009-03-12 10:07:032009-03-12 10:10:57 00:03:54 320 58.59 320 72.81 23.10 128
43PSRWB12009-03-12 10:16:392009-03-12 10:33:10 00:16:31 320 93.60 320 153.83 27.10 80
44PSMOB12009-03-12 10:26:442009-03-12 10:29:20 00:02:36 320 130.37 320 139.85 -1.20 -
45AV2OBS2009-03-12 10:26:572009-03-12 10:28:49 00:01:52 320 131.16 320 137.97 0.00 -
46PSRPLR2009-03-12 10:36:392009-03-12 10:39:43 00:03:04 320 166.47 320 177.66 23.10 128
47PSRPLR2009-03-12 11:04:242009-03-12 11:08:32 00:04:08 320 267.67 320 282.74 23.10 128
48PSRPLR2009-03-12 11:17:552009-03-12 11:19:47 00:01:52 320 317.02 320 323.83 21.50 127
49PSRPLR2009-03-12 11:42:222009-03-12 11:44:14 00:01:52 366 46.19 366 53.00 23.10 128
50PSRPLR2009-03-12 11:45:012009-03-12 11:50:25 00:05:24 366 55.80 366 75.49 23.10 128
51AV2OBS2009-03-12 11:55:392009-03-12 11:57:43 00:02:04 366 94.63 366 102.17 0.00 -
52PSRPLR2009-03-12 12:42:542009-03-12 12:46:26 00:03:32 366 266.88 366 279.77 23.10 128
53PSRPLR2009-03-12 13:00:172009-03-12 13:02:09 00:01:52 366 330.33 366 337.14 21.50 127
54PSRPLR2009-03-12 13:04:402009-03-12 13:08:32 00:03:52 366 346.32 412 0.43 23.10 128
55PSRPLR2009-03-12 13:16:382009-03-12 13:18:44 00:02:06 412 29.96 412 37.62 21.50 127
56PSRPLR2009-03-12 13:24:052009-03-12 13:30:27 00:06:22 412 57.13 412 80.35 23.10 128
57PSRPLR2009-03-12 13:33:142009-03-12 13:36:44 00:03:30 412 90.44 412 103.20 23.10 128
58AV2OBS2009-03-12 13:33:362009-03-12 13:35:28 00:01:52 412 91.84 412 98.64 0.00 -
59PSRWB12009-03-12 13:39:542009-03-12 13:41:58 00:02:04 412 114.75 412 122.29 27.10 80
60PSMOB12009-03-12 13:55:052009-03-12 14:03:01 00:07:56 412 170.12 412 199.05 -1.20 -
61PSRWB12009-03-12 13:55:242009-03-12 14:08:38 00:13:14 412 171.28 412 219.53 27.10 80
62PSMOB12009-03-12 14:09:562009-03-12 14:14:26 00:04:30 412 224.34 412 240.75 -1.20 -
63PSRPLR2009-03-12 14:21:372009-03-12 14:28:35 00:06:58 412 266.94 412 292.35 23.10 128
64PSRPLR2009-03-12 14:43:202009-03-12 14:49:46 00:06:26 412 346.14 458 9.60 21.50 127
65PSRWB12009-03-12 14:50:372009-03-12 14:55:07 00:04:30 458 12.70 458 29.11 27.10 80
66PSRPLR2009-03-12 14:58:462009-03-12 15:08:34 00:09:48 458 42.42 458 78.16 23.10 128
67AV2OBS2009-03-12 15:16:322009-03-12 15:18:40 00:02:08 458 107.21 458 114.99 0.00 -
68PSMOB12009-03-12 15:32:192009-03-12 15:39:59 00:07:40 458 164.71 458 192.67 -1.20 -
69AV2OBS2009-03-12 15:36:092009-03-12 15:38:05 00:01:56 458 178.75 458 185.80 0.00 -
70PSRPLR2009-03-12 16:00:332009-03-12 16:07:49 00:07:16 458 267.67 458 294.17 23.10 128
71PSRWB12009-03-12 16:25:042009-03-12 16:29:56 00:04:52 458 357.08 504 14.83 27.10 80
72PSRPLR2009-03-12 16:30:452009-03-12 16:32:37 00:01:52 504 17.81 504 24.62 23.10 128
73PSRPLR2009-03-12 16:38:442009-03-12 16:47:42 00:08:58 504 46.92 504 79.62 23.10 128
74PSRPLR2009-03-12 16:48:362009-03-12 16:50:28 00:01:52 504 82.90 504 89.71 23.10 128
75AV2OBS2009-03-12 16:54:392009-03-12 16:58:03 00:03:24 504 105.03 504 117.42 0.00 -
76PSRFBS2009-03-12 17:07:402009-03-12 17:10:48 00:03:08 504 152.43 504 163.86 34.30 7
77PSRWB12009-03-12 17:34:402009-03-12 17:38:06 00:03:26 504 250.90 504 263.42 27.10 80
78PSRPLR2009-03-12 17:39:172009-03-12 17:46:35 00:07:18 504 267.73 504 294.35 23.10 128
79PSRPLR2009-03-12 18:20:142009-03-12 18:24:10 00:03:56 550 57.13 550 71.48 23.10 128
80AV2OBS2009-03-12 18:30:222009-03-12 18:33:10 00:02:48 550 94.03 550 104.24 0.00 -
81PSMOB12009-03-12 18:36:002009-03-12 18:46:04 00:10:04 550 114.57 550 151.28 -1.20 -
82AV2OBS2009-03-12 18:43:272009-03-12 18:45:19 00:01:52 550 141.74 550 148.54 21.50 -
83PSRWB12009-03-12 19:13:102009-03-12 19:16:34 00:03:24 550 250.11 550 262.50 27.10 80
84PSRPLR2009-03-12 19:18:002009-03-12 19:24:26 00:06:26 550 267.73 550 291.19 23.10 128
85AV2OBS2009-03-12 20:07:482009-03-12 20:17:54 00:10:06 596 89.35 596 126.18 0.00 -
86PSMOB12009-03-12 20:14:432009-03-12 20:17:57 00:03:14 596 114.57 596 126.36 -1.20 -
87PSRWB12009-03-12 20:32:592009-03-12 20:35:05 00:02:06 596 181.18 596 188.84 27.10 80
88PSRWB12009-03-12 20:36:562009-03-12 20:39:28 00:02:32 596 195.59 596 204.83 27.10 80
89PSRWB12009-03-12 20:50:472009-03-12 20:53:53 00:03:06 596 246.09 596 257.40 27.10 80
90PSRPLR2009-03-12 20:56:302009-03-12 21:03:48 00:07:18 596 266.94 596 293.56 23.10 128
91PSRPLR2009-03-12 21:11:312009-03-12 21:25:39 00:14:08 596 321.70 642 13.25 23.10 128
92PSRPLR2009-03-12 21:31:442009-03-12 21:37:26 00:05:42 642 35.43 642 56.22 23.10 128
93PSRPLR2009-03-12 21:43:062009-03-12 21:46:12 00:03:06 642 76.89 642 88.19 23.10 128
94AV2OBS2009-03-12 21:46:162009-03-12 21:48:08 00:01:52 642 88.43 642 95.24 0.00 -
95AV2OBS2009-03-12 21:51:022009-03-12 21:56:44 00:05:42 642 105.82 642 126.60 0.00 -
96AV2OBS2009-03-12 22:03:182009-03-12 22:05:10 00:01:52 642 150.55 642 157.36 -41.50 -
97PSMOB12009-03-12 22:14:352009-03-12 22:17:25 00:02:50 642 191.70 642 202.03 -1.20 -
98AV2OBS2009-03-12 22:15:212009-03-12 22:17:13 00:01:52 642 194.49 642 201.30 0.00 -
99AV2OBS2009-03-12 22:20:382009-03-12 22:23:26 00:02:48 642 213.76 642 223.97 0.00 -
100PSRWB12009-03-12 22:24:002009-03-12 22:26:16 00:02:16 642 226.04 642 234.30 27.10 80
101PSRPLR2009-03-12 22:35:242009-03-12 22:41:28 00:06:04 642 267.61 642 289.73 23.10 128
102PSRPLR2009-03-12 23:17:302009-03-12 23:24:32 00:07:02 17 61.14 17 86.79 23.10 128
103AV2OBS2009-03-12 23:30:282009-03-12 23:32:26 00:01:58 17 108.43 17 115.60 0.00 -
104PSRFBS2009-03-12 23:33:402009-03-12 23:36:10 00:02:30 17 120.04 17 129.16 34.30 7
105PSMOB12009-03-12 23:55:142009-03-13 00:02:02 00:06:48 17 198.75 17 223.55 -1.20 -
106AV2OBS2009-03-12 23:56:302009-03-13 00:00:52 00:04:22 17 203.31 17 219.23 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
44-23.363562009-03-11 23:58:40144.296652009-03-12 00:48:01
90-48.043142009-03-12 01:37:23119.617072009-03-12 02:26:44
136-72.722722009-03-12 03:16:06 94.937492009-03-12 04:05:27
182-97.402312009-03-12 04:54:49 70.257902009-03-12 05:44:10
228-122.081892009-03-12 06:33:32 45.578322009-03-12 07:22:54
274-146.761472009-03-12 08:12:15 20.898742009-03-12 09:01:37
320-171.441052009-03-12 09:50:58 -3.780852009-03-12 10:40:20
366163.879362009-03-12 11:29:41-28.460432009-03-12 12:19:03
412139.199782009-03-12 13:08:24-53.140012009-03-12 13:57:46
458114.520202009-03-12 14:47:07-77.819592009-03-12 15:36:29
504 89.840622009-03-12 16:25:51-102.499182009-03-12 17:15:12
550 65.161032009-03-12 18:04:34-127.178762009-03-12 18:53:55
596 40.481452009-03-12 19:43:17-151.858342009-03-12 20:32:38
642 15.801872009-03-12 21:22:00-176.537922009-03-12 22:11:21
17 -8.877722009-03-12 23:00:43158.782492009-03-12 23:50:05
