>ALOS Data Take Simulation(Feb. 22, 2009)

Observation Area

PRISM

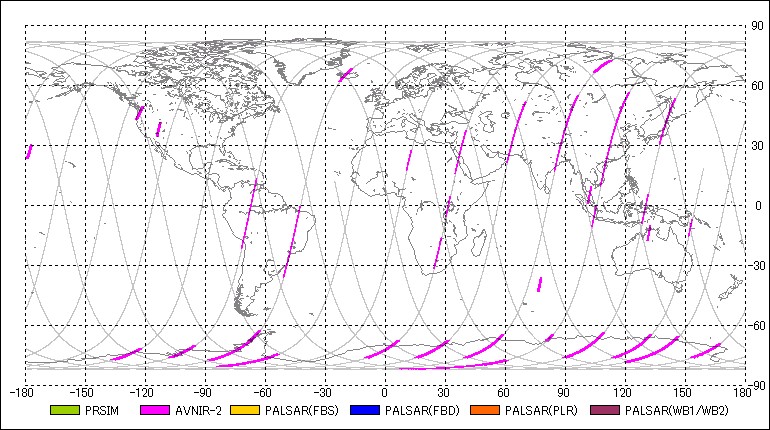

AVNIR-2

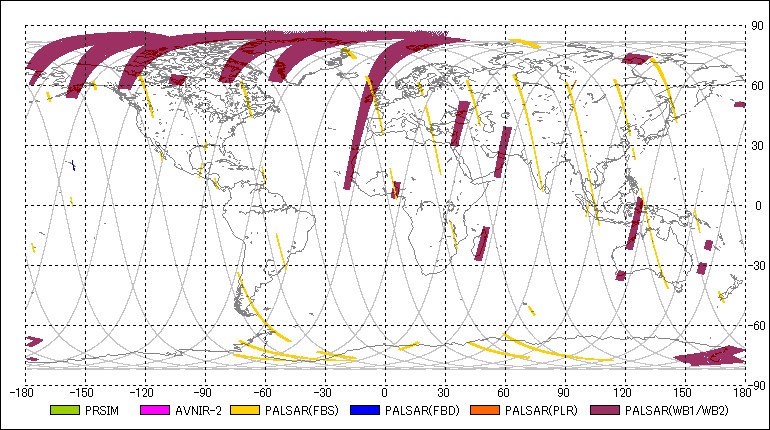

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12009-02-22 00:04:512009-02-22 00:09:35 00:04:44 24 178.99 24 196.26 1.20 -
2AV2OBS2009-02-22 00:07:042009-02-22 00:09:24 00:02:20 24 187.08 24 195.59 0.00 -
3PSMOB12009-02-22 00:22:232009-02-22 00:30:57 00:08:34 24 242.93 24 274.17 1.20 -
4AV2OBS2009-02-22 00:23:092009-02-22 00:26:43 00:03:34 24 245.79 24 258.80 0.00 -
5AV2OBS2009-02-22 01:29:012009-02-22 01:35:25 00:06:24 70 125.93 70 149.27 0.00 -
6PSMOB22009-02-22 01:29:082009-02-22 01:35:30 00:06:22 70 126.36 70 149.58 0.00 -
7AV2OBS2009-02-22 01:42:172009-02-22 01:48:25 00:06:08 70 174.31 70 196.68 0.00 -
8PSRWB12009-02-22 01:42:292009-02-22 01:50:13 00:07:44 70 175.04 70 203.24 27.10 80
9PSMOB22009-02-22 01:42:532009-02-22 01:47:19 00:04:26 70 176.50 70 192.67 0.00 -
10PSRWB12009-02-22 01:52:402009-02-22 01:54:32 00:01:52 70 212.24 70 219.05 27.10 80
11PSMOB12009-02-22 02:00:532009-02-22 02:09:39 00:08:46 70 242.14 70 274.11 1.20 -
12AV2OBS2009-02-22 02:01:362009-02-22 02:05:26 00:03:50 70 244.76 70 258.74 0.00 -
13PSRFBS2009-02-22 02:23:402009-02-22 02:29:24 00:05:44 70 325.23 70 346.14 34.30 7
14PSRFBS2009-02-22 02:35:302009-02-22 02:38:32 00:03:02 116 8.45 116 19.51 34.30 7
15PSRFBS2009-02-22 02:44:392009-02-22 02:50:21 00:05:42 116 41.82 116 62.60 34.30 7
16PSRWB12009-02-22 03:01:182009-02-22 03:03:10 00:01:52 116 102.47 116 109.28 27.10 80
17AV2OBS2009-02-22 03:06:552009-02-22 03:25:15 00:18:20 116 122.96 116 189.81 0.00 -
18PSRFBS2009-02-22 03:21:522009-02-22 03:24:26 00:02:34 116 177.47 116 186.83 34.30 7
19AV2OBS2009-02-22 03:40:322009-02-22 03:41:30 00:00:58 116 245.55 116 249.07 0.00 -
20AV2OBS2009-02-22 03:44:332009-02-22 03:47:21 00:02:48 116 260.19 116 270.41 0.00 -
21PSRFBS2009-02-22 03:48:172009-02-22 03:50:33 00:02:16 116 273.81 116 282.08 34.30 7
22PSRFBS2009-02-22 03:51:452009-02-22 04:02:41 00:10:56 116 286.45 116 326.32 34.30 7
23PSRFBS2009-02-22 04:13:342009-02-22 04:15:38 00:02:04 162 6.02 162 13.55 34.30 7
24AV2OBS2009-02-22 04:40:522009-02-22 04:42:44 00:01:52 162 105.57 162 112.38 0.00 -
25PSRPLR2009-02-22 04:43:322009-02-22 04:45:32 00:02:00 162 115.30 162 122.59 23.10 128
26AV2OBS2009-02-22 04:45:592009-02-22 04:56:35 00:10:36 162 124.23 162 162.89 0.00 -
27PSMOB22009-02-22 04:46:562009-02-22 04:54:32 00:07:36 162 127.76 162 155.47 0.00 -
28AV2OBS2009-02-22 05:11:062009-02-22 05:12:58 00:01:52 162 215.83 162 222.63 34.30 -
29AV2OBS2009-02-22 05:19:192009-02-22 05:22:53 00:03:34 162 245.79 162 258.80 0.00 -
30PSMOB12009-02-22 05:23:202009-02-22 05:26:22 00:03:02 162 260.44 162 271.50 1.20 -
31PSRFBS2009-02-22 05:25:292009-02-22 05:31:15 00:05:46 162 268.28 162 289.31 34.30 7
32PSRFBS2009-02-22 05:56:142009-02-22 05:58:06 00:01:52 208 20.42 208 27.23 34.30 7
33PSRFBS2009-02-22 06:02:052009-02-22 06:10:25 00:08:20 208 41.76 208 72.14 34.30 7
34AV2OBS2009-02-22 06:25:392009-02-22 06:34:03 00:08:24 208 127.70 208 158.33 0.00 -
35PSMOB22009-02-22 06:25:392009-02-22 06:34:09 00:08:30 208 127.70 208 158.69 0.00 -
36PSRWB12009-02-22 06:28:532009-02-22 06:36:25 00:07:32 208 139.49 208 166.96 27.10 80
37PSRWB12009-02-22 06:42:382009-02-22 06:47:52 00:05:14 208 189.63 208 208.72 27.10 80
38AV2OBS2009-02-22 06:58:512009-02-22 07:01:35 00:02:44 208 248.77 208 258.74 0.00 -
39PSRFBS2009-02-22 06:59:192009-02-22 07:01:21 00:02:02 208 250.47 208 257.89 34.30 7
40PSRFBS2009-02-22 07:04:292009-02-22 07:07:15 00:02:46 208 269.31 208 279.40 34.30 7
41PSRFBS2009-02-22 07:44:422009-02-22 07:46:34 00:01:52 254 55.98 254 62.78 34.30 7
42PSRWB12009-02-22 08:04:032009-02-22 08:10:47 00:06:44 254 126.54 254 151.10 27.10 80
43AV2OBS2009-02-22 08:08:222009-02-22 08:14:22 00:06:00 254 142.28 254 164.16 0.00 -
44AV2OBS2009-02-22 08:17:322009-02-22 08:20:20 00:02:48 254 175.71 254 185.92 0.00 -
45AV2OBS2009-02-22 08:23:042009-02-22 08:27:26 00:04:22 254 195.89 254 211.81 0.00 -
46AV2OBS2009-02-22 08:37:382009-02-22 08:40:20 00:02:42 254 249.01 254 258.86 0.00 -
47PSRFBS2009-02-22 09:07:222009-02-22 09:09:14 00:01:52 254 357.44 300 4.25 34.30 7
48PSRFBD2009-02-22 09:12:052009-02-22 09:14:11 00:02:06 300 14.65 300 22.31 50.80 53
49PSRFBS2009-02-22 09:21:442009-02-22 09:23:44 00:02:00 300 49.84 300 57.13 34.30 7
50AV2OBS2009-02-22 09:49:482009-02-22 09:52:36 00:02:48 300 152.19 300 162.40 0.00 -
51PSRWB12009-02-22 09:53:532009-02-22 09:56:43 00:02:50 300 167.08 300 177.41 27.10 80
52PSMOB12009-02-22 10:17:332009-02-22 10:23:11 00:05:38 300 253.39 300 273.93 1.20 -
53PSRFBS2009-02-22 10:39:432009-02-22 10:41:35 00:01:52 300 334.22 300 341.03 34.30 7
54PSRWB12009-02-22 11:12:142009-02-22 11:34:16 00:22:02 346 92.75 346 173.10 27.10 80
55PSMOB12009-02-22 11:56:182009-02-22 12:01:58 00:05:40 346 253.51 346 274.17 1.20 -
56AV2OBS2009-02-22 11:57:062009-02-22 11:59:34 00:02:28 346 256.43 346 265.42 0.00 -
57PSRFBS2009-02-22 12:11:162009-02-22 12:13:32 00:02:16 346 308.09 346 316.35 34.30 7
58PSRFBS2009-02-22 12:21:072009-02-22 12:24:59 00:03:52 346 344.01 346 358.11 34.30 7
59PSRFBS2009-02-22 12:36:222009-02-22 12:45:56 00:09:34 392 39.63 392 74.52 34.30 7
60AV2OBS2009-02-22 12:55:462009-02-22 12:57:38 00:01:52 392 110.37 392 117.18 0.00 -
61AV2OBS2009-02-22 13:14:572009-02-22 13:24:50 00:09:53 392 180.33 392 216.37 0.00 -
62PSMOB12009-02-22 13:31:322009-02-22 13:40:42 00:09:10 392 240.81 392 274.23 1.20 -
63AV2OBS2009-02-22 13:32:172009-02-22 13:36:55 00:04:38 392 243.54 392 260.44 0.00 -
64PSRFBS2009-02-22 13:52:022009-02-22 14:06:40 00:14:38 392 315.56 438 8.93 34.30 7
65PSRFBS2009-02-22 14:09:542009-02-22 14:12:10 00:02:16 438 20.73 438 28.99 34.30 7
66PSRFBS2009-02-22 14:13:152009-02-22 14:21:37 00:08:22 438 32.94 438 63.45 34.30 7
67PSRWB12009-02-22 14:28:242009-02-22 14:36:45 00:08:21 438 88.19 438 118.64 27.10 80
68AV2OBS2009-02-22 14:49:562009-02-22 14:59:33 00:09:37 438 166.72 438 201.79 0.00 -
69PSMOB12009-02-22 15:12:292009-02-22 15:19:25 00:06:56 438 248.95 438 274.23 1.20 -
70AV2OBS2009-02-22 15:13:162009-02-22 15:15:10 00:01:54 438 251.75 438 258.68 0.00 -
71PSRFBS2009-02-22 15:39:352009-02-22 15:59:59 00:20:24 438 347.78 484 62.18 34.30 7
72PSRFBS2009-02-22 16:04:192009-02-22 16:06:11 00:01:52 484 77.92 484 84.73 34.30 7
73PSRWB12009-02-22 16:07:072009-02-22 16:15:32 00:08:25 484 88.19 484 118.88 27.10 80
74PSRFBS2009-02-22 16:23:122009-02-22 16:25:04 00:01:52 484 146.84 484 153.65 34.30 7
75PSRFBS2009-02-22 16:26:132009-02-22 16:28:51 00:02:38 484 157.84 484 167.45 34.30 7
76PSMOB12009-02-22 16:51:402009-02-22 16:58:00 00:06:20 484 250.65 484 273.75 1.20 -
77AV2OBS2009-02-22 16:52:252009-02-22 16:54:17 00:01:52 484 253.39 484 260.19 0.00 -
78PSRFBS2009-02-22 17:22:582009-02-22 17:39:44 00:16:46 530 4.80 530 65.95 34.30 7
79PSRWB12009-02-22 17:52:422009-02-22 17:54:38 00:01:56 530 113.17 530 120.22 27.10 80
80AV2OBS2009-02-22 17:59:462009-02-22 18:01:38 00:01:52 530 138.94 530 145.75 -34.30 -
81PSMOB12009-02-22 18:31:412009-02-22 18:36:49 00:05:08 530 255.39 530 274.11 1.20 -
82PSRWB12009-02-22 18:33:012009-02-22 18:35:37 00:02:36 530 260.26 530 269.74 27.10 80
83PSRFBS2009-02-22 18:44:202009-02-22 18:46:12 00:01:52 530 301.52 530 308.33 34.30 7
84PSRFBS2009-02-22 19:10:472009-02-22 19:17:39 00:06:52 576 37.99 576 63.03 34.30 7
85PSRWB12009-02-22 19:24:092009-02-22 19:33:55 00:09:46 576 86.67 576 122.29 27.10 80
86AV2OBS2009-02-22 19:35:412009-02-22 19:37:33 00:01:52 576 128.79 576 135.60 34.30 -
87PSRWB12009-02-22 20:08:172009-02-22 20:13:13 00:04:56 576 247.67 576 265.66 27.10 80
88PSMOB12009-02-22 20:10:292009-02-22 20:15:31 00:05:02 576 255.70 576 274.05 1.20 -
89PSRFBS2009-02-22 20:14:292009-02-22 20:20:59 00:06:30 576 270.22 576 293.93 34.30 7
90PSRFBS2009-02-22 20:32:332009-02-22 20:36:47 00:04:14 576 336.11 576 351.55 34.30 7
91PSRFBS2009-02-22 20:42:452009-02-22 20:52:55 00:10:10 622 13.31 622 50.39 34.30 7
92PSRFBS2009-02-22 20:53:472009-02-22 20:56:07 00:02:20 622 53.55 622 62.06 34.30 7
93PSRWB12009-02-22 21:04:222009-02-22 21:13:55 00:09:33 622 92.14 622 126.97 27.10 80
94PSMOB12009-02-22 21:47:032009-02-22 21:54:17 00:07:14 622 247.80 622 274.17 1.20 -
95AV2OBS2009-02-22 21:47:492009-02-22 21:50:03 00:02:14 622 250.65 622 258.80 0.00 -
96PSRFBS2009-02-22 21:54:192009-02-22 21:58:13 00:03:54 622 274.30 622 288.52 34.30 7
97PSRFBS2009-02-22 22:18:032009-02-22 22:22:57 00:04:54 668 0.85 668 18.72 34.30 7
98PSRFBS2009-02-22 22:27:052009-02-22 22:35:39 00:08:34 668 33.85 668 65.09 34.30 7
99PSRFBS2009-02-22 22:37:362009-02-22 22:39:36 00:02:00 668 72.14 668 79.44 34.30 7
100PSRWB12009-02-22 22:42:252009-02-22 22:50:48 00:08:23 668 89.71 668 120.28 27.10 80
101PSRWB12009-02-22 22:51:402009-02-22 22:53:52 00:02:12 668 123.44 668 131.46 27.10 80
102AV2OBS2009-02-22 22:58:332009-02-22 23:00:25 00:01:52 668 148.54 668 155.35 41.50 -
103PSMOB12009-02-22 23:09:442009-02-22 23:14:12 00:04:28 668 189.33 668 205.62 1.20 -
104PSRWB12009-02-22 23:11:442009-02-22 23:13:36 00:01:52 668 196.62 668 203.43 27.10 80
105PSRWB12009-02-22 23:14:482009-02-22 23:16:58 00:02:10 668 207.86 668 215.77 27.10 80
106PSMOB12009-02-22 23:24:422009-02-22 23:32:14 00:07:32 668 243.91 668 271.38 1.20 -
107AV2OBS2009-02-22 23:25:292009-02-22 23:29:33 00:04:04 668 246.76 668 261.59 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
24-12.633302009-02-21 23:15:44155.026902009-02-22 00:05:06
70-37.312892009-02-22 00:54:27130.347322009-02-22 01:43:49
116-61.992472009-02-22 02:33:11105.667742009-02-22 03:22:32
162-86.672052009-02-22 04:11:54 80.988162009-02-22 05:01:15
208-111.351632009-02-22 05:50:37 56.308572009-02-22 06:39:58
254-136.031222009-02-22 07:29:20 31.628992009-02-22 08:18:41
300-160.710802009-02-22 09:08:03 6.949412009-02-22 09:57:24
346174.609622009-02-22 10:46:46-17.730172009-02-22 11:36:08
392149.930032009-02-22 12:25:29-42.409762009-02-22 13:14:51
438125.250452009-02-22 14:04:12-67.089342009-02-22 14:53:34
484100.570872009-02-22 15:42:55-91.768922009-02-22 16:32:17
530 75.891292009-02-22 17:21:38-116.448512009-02-22 18:11:00
576 51.211702009-02-22 19:00:22-141.128092009-02-22 19:49:43
622 26.532122009-02-22 20:39:05-165.807672009-02-22 21:28:26
668 1.852542009-02-22 22:17:48169.512752009-02-22 23:07:09
43-22.827042009-02-22 23:56:31144.833162009-02-23 00:45:52
