>ALOS Data Take Simulation(Feb. 06, 2009)

Observation Area

PRISM

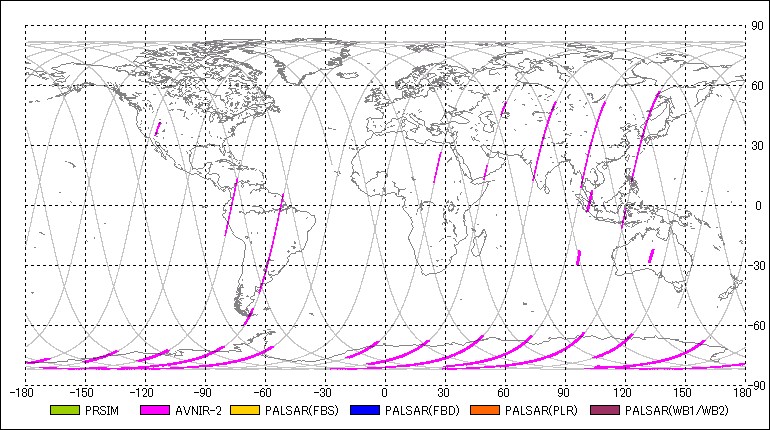

AVNIR-2

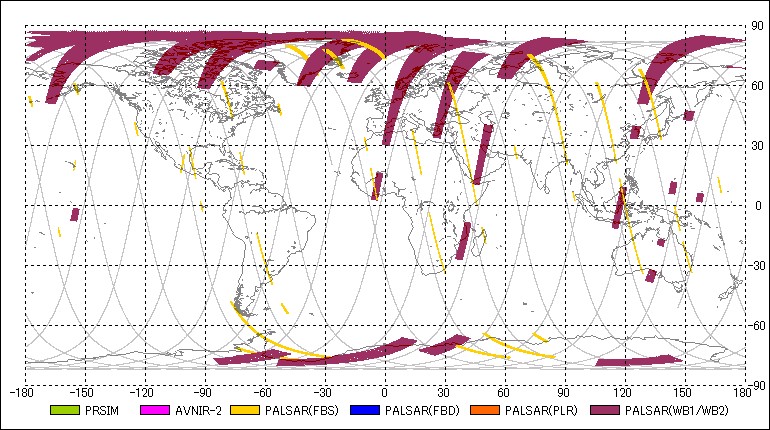

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-02-06 00:11:432009-02-06 00:16:41 00:04:58 42 63.15 42 81.26 34.30 7
2PSRWB12009-02-06 00:30:262009-02-06 00:32:18 00:01:52 42 131.46 42 138.27 27.10 80
3PSRWB12009-02-06 00:40:142009-02-06 00:42:26 00:02:12 42 167.20 42 175.23 27.10 80
4PSMOB12009-02-06 00:43:052009-02-06 00:47:41 00:04:36 42 177.60 42 194.37 1.20 -
5PSRWB12009-02-06 00:48:082009-02-06 00:49:38 00:01:30 42 196.01 42 201.48 27.10 80
6AV2OBS2009-02-06 00:50:062009-02-06 00:51:58 00:01:52 42 203.18 42 209.99 -41.50 -
7PSRWB12009-02-06 00:52:252009-02-06 00:54:39 00:02:14 42 211.63 42 219.78 27.10 80
8PSMOB12009-02-06 01:00:542009-02-06 01:09:34 00:08:40 42 242.57 42 274.17 1.20 -
9AV2OBS2009-02-06 01:01:402009-02-06 01:05:20 00:03:40 42 245.36 42 258.74 0.00 -
10PSRFBS2009-02-06 01:44:572009-02-06 01:47:09 00:02:12 88 43.21 88 51.24 34.30 7
11PSRWB12009-02-06 01:54:082009-02-06 02:08:45 00:14:37 88 76.70 88 130.01 27.10 80
12AV2OBS2009-02-06 02:06:362009-02-06 02:19:10 00:12:34 88 122.17 88 167.99 0.00 -
13PSRWB12009-02-06 02:11:142009-02-06 02:13:34 00:02:20 88 139.06 88 147.57 27.10 80
14PSMOB22009-02-06 02:14:392009-02-06 02:16:31 00:01:52 88 151.52 88 158.33 0.00 -
15PSRWB12009-02-06 02:19:382009-02-06 02:25:56 00:06:18 88 169.69 88 192.67 27.10 80
16AV2OBS2009-02-06 02:22:512009-02-06 02:25:37 00:02:46 88 181.43 88 191.51 0.00 -
17PSMOB12009-02-06 02:39:272009-02-06 02:48:17 00:08:50 88 241.96 88 274.17 1.20 -
18AV2OBS2009-02-06 02:40:132009-02-06 02:47:01 00:06:48 88 244.76 88 269.55 0.00 -
19PSRFBS2009-02-06 02:56:022009-02-06 02:58:08 00:02:06 88 302.38 88 310.03 34.30 7
20PSRFBS2009-02-06 03:00:132009-02-06 03:08:01 00:07:48 88 317.63 88 346.08 34.30 7
21PSRFBS2009-02-06 03:15:302009-02-06 03:19:12 00:03:42 134 13.43 134 26.93 34.30 7
22PSRFBS2009-02-06 03:23:172009-02-06 03:28:59 00:05:42 134 41.82 134 62.60 34.30 7
23AV2OBS2009-02-06 03:46:512009-02-06 04:01:39 00:14:48 134 127.76 134 181.73 0.00 -
24AV2OBS2009-02-06 04:07:152009-02-06 04:09:07 00:01:52 134 202.09 134 208.90 41.50 -
25AV2OBS2009-02-06 04:19:232009-02-06 04:24:37 00:05:14 134 246.40 134 265.48 0.00 -
26PSRFBS2009-02-06 04:26:122009-02-06 04:37:06 00:10:54 134 271.26 134 311.01 34.30 7
27PSRFBS2009-02-06 04:49:082009-02-06 04:51:04 00:01:56 134 354.83 180 1.88 34.30 7
28PSRFBS2009-02-06 04:53:372009-02-06 04:58:41 00:05:04 180 11.24 180 29.72 34.30 7
29AV2OBS2009-02-06 05:25:342009-02-06 05:36:30 00:10:56 180 127.76 180 167.63 0.00 -
30AV2OBS2009-02-06 05:58:032009-02-06 06:04:43 00:06:40 180 246.15 180 270.47 0.00 -
31PSRWB12009-02-06 05:58:112009-02-06 06:01:37 00:03:26 180 246.70 180 259.22 27.10 80
32PSRFBS2009-02-06 06:03:572009-02-06 06:08:35 00:04:38 180 267.67 180 284.57 34.30 7
33PSRFBS2009-02-06 06:38:192009-02-06 06:40:45 00:02:26 226 33.00 226 41.88 34.30 7
34PSRWB12009-02-06 06:54:582009-02-06 07:01:20 00:06:22 226 93.72 226 116.94 27.10 80
35AV2OBS2009-02-06 07:04:182009-02-06 07:06:10 00:01:52 226 127.76 226 134.56 0.00 -
36PSMOB22009-02-06 07:04:192009-02-06 07:06:11 00:01:52 226 127.82 226 134.63 0.00 -
37PSRWB12009-02-06 07:07:152009-02-06 07:16:01 00:08:46 226 138.52 226 170.49 27.10 80
38PSMOB12009-02-06 07:11:362009-02-06 07:15:44 00:04:08 226 154.44 226 169.51 1.20 -
39AV2OBS2009-02-06 07:13:082009-02-06 07:15:00 00:01:52 226 160.03 226 166.84 0.00 -
40PSRWB12009-02-06 07:20:412009-02-06 07:26:23 00:05:42 226 187.50 226 208.29 27.10 80
41PSRWB12009-02-06 07:37:212009-02-06 07:43:43 00:06:22 226 248.28 226 271.50 27.10 80
42AV2OBS2009-02-06 07:37:322009-02-06 07:41:26 00:03:54 226 248.95 226 263.17 0.00 -
43PSMOB12009-02-06 07:38:352009-02-06 07:44:27 00:05:52 226 252.78 226 274.17 1.20 -
44PSRFBS2009-02-06 08:22:402009-02-06 08:24:56 00:02:16 272 53.55 272 61.81 34.30 7
45PSRWB12009-02-06 08:35:462009-02-06 08:48:19 00:12:33 272 101.38 272 147.15 27.10 80
46AV2OBS2009-02-06 08:50:022009-02-06 08:54:10 00:04:08 272 153.35 272 168.42 0.00 -
47PSMOB12009-02-06 09:15:362009-02-06 09:23:10 00:07:34 272 246.58 272 274.17 1.20 -
48AV2OBS2009-02-06 09:16:222009-02-06 09:18:56 00:02:34 272 249.38 272 258.74 0.00 -
49PSRFBS2009-02-06 09:41:462009-02-06 09:43:38 00:01:52 272 342.06 272 348.87 34.30 7
50PSRFBS2009-02-06 09:59:442009-02-06 10:01:50 00:02:06 318 47.53 318 55.19 34.30 7
51PSRWB12009-02-06 10:12:202009-02-06 10:28:02 00:15:42 318 93.54 318 150.79 27.10 80
52PSRWB12009-02-06 10:31:192009-02-06 10:35:35 00:04:16 318 162.71 318 178.26 27.10 80
53PSMOB12009-02-06 10:56:372009-02-06 11:01:51 00:05:14 318 254.97 318 274.05 1.20 -
54PSRWB12009-02-06 10:56:562009-02-06 11:00:08 00:03:12 318 256.12 318 267.79 27.10 80
55PSRFBS2009-02-06 11:26:312009-02-06 11:29:21 00:02:50 364 4.01 364 14.34 34.30 7
56PSRWB12009-02-06 11:50:382009-02-06 11:58:00 00:07:22 364 91.96 364 118.82 27.10 80
57PSMOB12009-02-06 12:33:592009-02-06 12:40:37 00:06:38 364 250.04 364 274.23 1.20 -
58AV2OBS2009-02-06 12:34:372009-02-06 12:40:27 00:05:50 364 252.35 364 273.63 0.00 -
59PSRFBS2009-02-06 12:54:122009-02-06 12:59:06 00:04:54 364 323.77 364 341.64 34.30 7
60PSRFBS2009-02-06 13:00:042009-02-06 13:04:00 00:03:56 364 345.16 364 359.51 34.30 7
61PSRFBS2009-02-06 13:12:382009-02-06 13:23:00 00:10:22 410 31.00 410 68.80 34.30 7
62PSRWB12009-02-06 13:28:452009-02-06 13:37:14 00:08:29 410 89.77 410 120.71 27.10 80
63AV2OBS2009-02-06 13:51:522009-02-06 14:05:38 00:13:46 410 174.07 410 224.27 0.00 -
64AV2OBS2009-02-06 14:07:482009-02-06 14:10:04 00:02:16 410 232.18 410 240.44 0.00 -
65PSMOB12009-02-06 14:12:352009-02-06 14:19:19 00:06:44 410 249.62 410 274.17 1.20 -
66AV2OBS2009-02-06 14:13:202009-02-06 14:19:12 00:05:52 410 252.35 410 273.75 0.00 -
67PSRFBS2009-02-06 14:32:492009-02-06 14:46:37 00:13:48 410 323.40 456 13.74 34.30 7
68PSRFBS2009-02-06 14:47:572009-02-06 14:59:53 00:11:56 456 18.60 456 62.12 34.30 7
69PSRWB12009-02-06 15:11:502009-02-06 15:13:42 00:01:52 456 105.69 456 112.50 27.10 80
70AV2OBS2009-02-06 15:28:342009-02-06 15:36:26 00:07:52 456 166.72 456 195.40 0.00 -
71PSMOB12009-02-06 15:29:372009-02-06 15:32:13 00:02:36 456 170.55 456 180.03 1.20 -
72PSMOB12009-02-06 15:51:472009-02-06 15:58:03 00:06:16 456 251.38 456 274.23 1.20 -
73AV2OBS2009-02-06 15:52:332009-02-06 15:54:25 00:01:52 456 254.18 456 260.98 0.00 -
74PSRFBS2009-02-06 16:21:352009-02-06 16:23:27 00:01:52 502 0.06 502 6.87 34.30 7
75PSRFBS2009-02-06 16:26:382009-02-06 16:42:34 00:15:56 502 18.48 502 76.58 34.30 7
76PSRWB12009-02-06 16:45:452009-02-06 16:55:02 00:09:17 502 88.19 502 122.04 27.10 80
77PSRFBS2009-02-06 17:03:322009-02-06 17:06:40 00:03:08 502 153.04 502 164.47 34.30 7
78PSMOB12009-02-06 17:30:402009-02-06 17:36:44 00:06:04 502 251.99 502 274.11 1.20 -
79AV2OBS2009-02-06 17:31:262009-02-06 17:33:18 00:01:52 502 254.79 502 261.59 0.00 -
80PSRFBS2009-02-06 18:06:092009-02-06 18:08:31 00:02:22 548 21.39 548 30.02 34.30 7
81PSRWB12009-02-06 18:25:032009-02-06 18:31:48 00:06:45 548 90.26 548 114.87 27.10 80
82AV2OBS2009-02-06 18:38:002009-02-06 18:39:52 00:01:52 548 137.54 548 144.35 21.50 -
83PSMOB12009-02-06 19:10:352009-02-06 19:15:27 00:04:52 548 256.37 548 274.11 1.20 -
84AV2OBS2009-02-06 19:11:222009-02-06 19:15:44 00:04:22 548 259.22 548 275.15 0.00 -
85PSRFBS2009-02-06 19:18:482009-02-06 19:20:52 00:02:04 548 286.33 548 293.87 34.30 7
86PSRFBS2009-02-06 19:33:042009-02-06 19:36:00 00:02:56 548 338.36 548 349.05 34.30 7
87PSRFBS2009-02-06 19:38:292009-02-06 19:56:01 00:17:32 548 358.11 594 62.06 34.30 7
88PSRFBS2009-02-06 20:22:012009-02-06 20:24:01 00:02:00 594 156.81 594 164.10 50.80 17
89PSRWB12009-02-06 20:28:282009-02-06 20:30:48 00:02:20 594 180.39 594 188.90 27.10 80
90PSMOB12009-02-06 20:48:572009-02-06 20:54:09 00:05:12 594 255.09 594 274.05 1.20 -
91PSRWB12009-02-06 20:50:392009-02-06 20:53:37 00:02:58 594 261.23 594 272.05 27.10 80
92PSRFBS2009-02-06 20:54:242009-02-06 20:59:36 00:05:12 594 274.96 594 293.93 34.30 7
93PSRFBS2009-02-06 21:07:402009-02-06 21:16:44 00:09:04 594 323.34 594 356.41 34.30 7
94PSRFBS2009-02-06 21:21:182009-02-06 21:28:14 00:06:56 640 13.07 640 38.35 34.30 7
95PSRFBS2009-02-06 21:37:312009-02-06 21:40:57 00:03:26 640 72.14 640 84.67 34.30 7
96PSRWB12009-02-06 21:42:372009-02-06 21:53:19 00:10:42 640 90.74 640 129.76 27.10 80
97PSMOB12009-02-06 22:16:002009-02-06 22:20:16 00:04:16 640 212.54 640 228.10 1.20 -
98PSMOB12009-02-06 22:25:132009-02-06 22:32:29 00:07:16 640 246.15 640 272.65 1.20 -
99AV2OBS2009-02-06 22:25:592009-02-06 22:31:21 00:05:22 640 248.89 640 268.46 0.00 -
100PSRFBS2009-02-06 22:32:562009-02-06 22:36:14 00:03:18 640 274.30 640 286.33 34.30 7
101PSRFBS2009-02-06 22:56:402009-02-06 23:01:34 00:04:54 15 0.85 15 18.72 34.30 7
102PSRFBS2009-02-06 23:03:222009-02-06 23:05:48 00:02:26 15 25.22 15 34.10 34.30 7
103PSRFBS2009-02-06 23:14:452009-02-06 23:18:11 00:03:26 15 66.74 15 79.26 34.30 7
104PSRWB12009-02-06 23:20:122009-02-06 23:27:02 00:06:50 15 86.61 15 111.53 27.10 80
105PSRWB12009-02-06 23:43:512009-02-06 23:45:39 00:01:48 15 172.86 15 179.42 27.10 80
106PSMOB12009-02-06 23:46:072009-02-06 23:50:13 00:04:06 15 181.12 15 196.07 1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
42-22.290532009-02-05 23:54:22145.369682009-02-06 00:43:44
88-46.970112009-02-06 01:33:05120.690092009-02-06 02:22:27
134-71.649702009-02-06 03:11:48 96.010512009-02-06 04:01:10
180-96.329282009-02-06 04:50:31 71.330932009-02-06 05:39:53
226-121.008862009-02-06 06:29:14 46.651352009-02-06 07:18:36
272-145.688452009-02-06 08:07:58 21.971762009-02-06 08:57:19
318-170.368032009-02-06 09:46:41 -2.707822009-02-06 10:36:02
364164.952392009-02-06 11:25:24-27.387402009-02-06 12:14:45
410140.272812009-02-06 13:04:07-52.066992009-02-06 13:53:28
456115.593222009-02-06 14:42:50-76.746572009-02-06 15:32:12
502 90.913642009-02-06 16:21:33-101.426152009-02-06 17:10:55
548 66.234062009-02-06 18:00:16-126.105732009-02-06 18:49:38
594 41.554482009-02-06 19:38:59-150.785322009-02-06 20:28:21
640 16.874892009-02-06 21:17:42-175.464902009-02-06 22:07:04
15 -7.804692009-02-06 22:56:25159.855522009-02-06 23:45:47
