>ALOS Data Take Simulation(Jan. 18, 2009)

Observation Area

PRISM

AVNIR-2

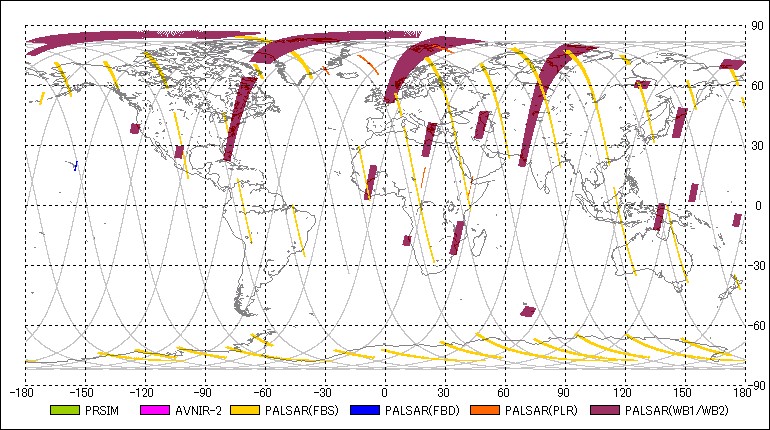

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-01-18 00:26:202009-01-18 00:33:16 00:06:56 49 61.69 49 86.97 34.30 7
2PSRWB12009-01-18 00:45:012009-01-18 00:49:45 00:04:44 49 129.82 49 147.09 27.10 80
3AV2OBS2009-01-18 00:52:592009-01-18 00:56:23 00:03:24 49 158.94 49 171.34 0.00 -
4PSMOB22009-01-18 00:53:012009-01-18 00:56:25 00:03:24 49 159.00 49 171.40 0.00 -
5PSRWB12009-01-18 00:58:122009-01-18 01:02:26 00:04:14 49 177.90 49 193.34 27.10 80
6AV2OBS2009-01-18 00:58:482009-01-18 01:01:40 00:02:52 49 180.15 49 190.60 0.00 -
7PSMOB22009-01-18 00:59:042009-01-18 01:02:24 00:03:20 49 181.12 49 193.28 0.00 -
8AV2OBS2009-01-18 01:06:372009-01-18 01:08:29 00:01:52 49 208.59 49 215.40 34.30 -
9PSRFBS2009-01-18 01:22:442009-01-18 01:27:12 00:04:28 49 267.37 49 283.66 34.30 7
10PSRFBS2009-01-18 01:40:282009-01-18 01:48:18 00:07:50 49 332.10 95 0.61 34.30 7
11PSRFBS2009-01-18 02:05:002009-01-18 02:07:38 00:02:38 95 61.57 95 71.17 34.30 7
12PSRWB12009-01-18 02:19:572009-01-18 02:21:37 00:01:40 95 116.03 95 122.10 27.10 80
13PSMOB22009-01-18 02:22:052009-01-18 02:28:19 00:06:14 95 123.81 95 146.54 0.00 -
14AV2OBS2009-01-18 02:22:212009-01-18 02:27:53 00:05:32 95 124.84 95 145.02 0.00 -
15AV2OBS2009-01-18 02:30:032009-01-18 02:40:27 00:10:24 95 152.92 95 190.85 0.00 -
16PSMOB22009-01-18 02:31:182009-01-18 02:41:22 00:10:04 95 157.42 95 194.13 0.00 -
17AV2OBS2009-01-18 03:00:202009-01-18 03:02:12 00:01:52 95 263.29 95 270.10 -41.50 -
18PSRFBS2009-01-18 03:03:222009-01-18 03:05:48 00:02:26 95 274.42 95 283.29 34.30 7
19PSRFBS2009-01-18 03:21:062009-01-18 03:30:40 00:09:34 95 339.03 141 13.92 34.30 7
20PSRFBS2009-01-18 03:34:582009-01-18 03:39:42 00:04:44 141 29.60 141 46.86 34.30 7
21AV2OBS2009-01-18 04:01:522009-01-18 04:12:10 00:10:18 141 127.76 141 165.32 0.00 -
22AV2OBS2009-01-18 04:26:272009-01-18 04:28:19 00:01:52 141 217.35 141 224.15 -34.30 -
23PSRWB12009-01-18 04:30:092009-01-18 04:32:01 00:01:52 141 230.84 141 237.65 27.10 80
24PSRFBS2009-01-18 04:44:402009-01-18 04:47:18 00:02:38 141 283.78 141 293.38 34.30 7
25PSRFBS2009-01-18 05:08:422009-01-18 05:18:28 00:09:46 187 11.43 187 47.04 34.30 7
26PSRFBS2009-01-18 05:21:072009-01-18 05:26:47 00:05:40 187 56.71 187 77.37 34.30 7
27PSRWB12009-01-18 05:32:182009-01-18 05:49:52 00:17:34 187 97.49 187 161.55 27.10 80
28AV2OBS2009-01-18 05:34:542009-01-18 05:39:02 00:04:08 187 106.97 187 122.04 0.00 -
29AV2OBS2009-01-18 05:40:372009-01-18 05:45:49 00:05:12 187 127.82 187 146.78 0.00 -
30AV2OBS2009-01-18 05:48:082009-01-18 05:50:00 00:01:52 187 155.23 187 162.04 0.00 -
31AV2OBS2009-01-18 06:07:292009-01-18 06:09:21 00:01:52 187 225.79 187 232.60 -21.50 -
32PSMOB12009-01-18 06:12:482009-01-18 06:15:50 00:03:02 187 245.18 187 256.24 -1.20 -
33AV2OBS2009-01-18 06:13:312009-01-18 06:15:53 00:02:22 187 247.80 187 256.43 0.00 -
34PSRFBS2009-01-18 06:18:592009-01-18 06:23:49 00:04:50 187 267.73 187 285.36 34.30 7
35PSRFBS2009-01-18 06:59:512009-01-18 07:04:13 00:04:22 233 56.77 233 72.69 34.30 7
36PSRWB12009-01-18 07:20:232009-01-18 07:24:43 00:04:20 233 131.65 233 147.45 27.10 80
37PSMOB12009-01-18 07:25:242009-01-18 07:31:30 00:06:06 233 149.94 233 172.19 -1.20 -
38AV2OBS2009-01-18 07:27:372009-01-18 07:30:25 00:02:48 233 158.03 233 168.24 0.00 -
39PSRPLR2009-01-18 07:29:112009-01-18 07:33:07 00:03:56 233 163.74 233 178.08 21.50 127
40PSRWB12009-01-18 07:35:342009-01-18 07:40:44 00:05:10 233 187.02 233 205.86 27.10 80
41PSRFBS2009-01-18 07:59:322009-01-18 08:02:30 00:02:58 233 274.42 233 285.24 34.30 7
42PSRFBS2009-01-18 08:37:252009-01-18 08:42:49 00:05:24 279 52.57 279 72.27 34.30 7
43AV2OBS2009-01-18 08:57:032009-01-18 08:58:55 00:01:52 279 124.17 279 130.98 0.00 -
44PSRWB12009-01-18 09:00:392009-01-18 09:05:53 00:05:14 279 137.30 279 156.38 27.10 80
45PSRPLR2009-01-18 09:06:502009-01-18 09:10:16 00:03:26 279 159.79 279 172.31 21.50 127
46AV2OBS2009-01-18 09:09:352009-01-18 09:11:17 00:01:42 279 169.88 279 176.08 0.00 -
47PSRWB12009-01-18 09:16:172009-01-18 09:18:09 00:01:52 279 194.31 279 201.12 27.10 80
48PSRFBS2009-01-18 09:38:152009-01-18 09:40:45 00:02:30 279 274.42 279 283.53 34.30 7
49PSRFBS2009-01-18 10:14:332009-01-18 10:16:39 00:02:06 325 46.80 325 54.46 34.30 7
50PSRFBS2009-01-18 10:17:432009-01-18 10:21:37 00:03:54 325 58.35 325 72.57 34.30 7
51PSRWB12009-01-18 10:27:192009-01-18 10:37:10 00:09:51 325 93.36 325 129.28 27.10 80
52AV2OBS2009-01-18 10:39:322009-01-18 10:41:24 00:01:52 325 137.91 325 144.71 0.00 -
53PSRWB12009-01-18 10:45:172009-01-18 10:50:37 00:05:20 325 158.82 325 178.26 27.10 80
54PSRFBS2009-01-18 11:15:082009-01-18 11:18:50 00:03:42 325 267.73 325 281.22 34.30 7
55PSRFBS2009-01-18 11:28:032009-01-18 11:30:55 00:02:52 325 314.84 325 325.29 34.30 7
56PSRFBS2009-01-18 11:53:002009-01-18 11:57:40 00:04:40 371 45.83 371 62.85 34.30 7
57PSRFBS2009-01-18 13:07:502009-01-18 13:19:18 00:11:28 371 318.73 417 0.55 34.30 7
58PSRFBS2009-01-18 13:27:152009-01-18 13:36:11 00:08:56 417 29.54 417 62.12 34.30 7
59PSRFBS2009-01-18 13:38:032009-01-18 13:39:59 00:01:56 417 68.92 417 75.97 34.30 7
60AV2OBS2009-01-18 13:46:412009-01-18 13:49:29 00:02:48 417 100.41 417 110.62 0.00 -
61AV2OBS2009-01-18 14:15:042009-01-18 14:16:56 00:01:52 417 203.91 417 210.72 -41.50 -
62PSRFBS2009-01-18 14:35:072009-01-18 14:38:55 00:03:48 417 276.97 417 290.83 34.30 7
63PSRFBS2009-01-18 14:47:302009-01-18 15:00:20 00:12:50 417 322.19 463 9.00 34.30 7
64PSRFBS2009-01-18 15:02:422009-01-18 15:19:24 00:16:42 463 17.63 463 78.53 34.30 7
65PSRWB12009-01-18 15:22:032009-01-18 15:27:43 00:05:40 463 88.19 463 108.86 27.10 80
66PSMOB12009-01-18 15:24:402009-01-18 15:29:00 00:04:20 463 97.67 463 113.47 -1.20 -
67PSRWB12009-01-18 15:29:132009-01-18 15:41:19 00:12:06 463 114.26 463 158.39 27.10 80
68PSRFBS2009-01-18 16:11:182009-01-18 16:18:14 00:06:56 463 267.73 463 293.02 34.30 7
69PSRFBS2009-01-18 16:41:112009-01-18 16:58:29 00:17:18 509 16.77 509 79.86 34.30 7
70PSMOB12009-01-18 17:00:142009-01-18 17:05:42 00:05:28 509 86.25 509 106.18 -1.20 -
71AV2OBS2009-01-18 17:03:002009-01-18 17:05:00 00:02:00 509 96.33 509 103.63 0.00 -
72PSRWB12009-01-18 17:17:292009-01-18 17:19:43 00:02:14 509 149.15 509 157.30 27.10 80
73PSRFBS2009-01-18 17:51:512009-01-18 17:57:05 00:05:14 509 274.48 509 293.56 34.30 7
74PSRFBS2009-01-18 18:21:132009-01-18 18:34:59 00:13:46 555 21.58 555 71.78 34.30 7
75PSRPLR2009-01-18 18:36:042009-01-18 18:37:54 00:01:50 555 75.73 555 82.42 21.50 127
76PSRWB12009-01-18 18:53:102009-01-18 18:55:02 00:01:52 555 138.03 555 144.84 27.10 80
77PSRFBS2009-01-18 19:29:222009-01-18 19:34:58 00:05:36 555 270.04 555 290.46 34.30 7
78PSRFBS2009-01-18 19:52:412009-01-18 20:14:31 00:21:50 555 355.07 601 74.70 34.30 7
79PSMOB12009-01-18 20:17:312009-01-18 20:20:07 00:02:36 601 85.64 601 95.12 -1.20 -
80PSRFBD2009-01-18 20:37:022009-01-18 20:38:54 00:01:52 601 156.81 601 163.62 34.30 43
81PSMOB12009-01-18 20:43:322009-01-18 20:46:12 00:02:40 601 180.51 601 190.24 -1.20 -
82AV2OBS2009-01-18 20:43:512009-01-18 20:46:11 00:02:20 601 181.73 601 190.24 0.00 -
83AV2OBS2009-01-18 20:48:052009-01-18 20:49:57 00:01:52 601 197.11 601 203.91 0.00 -
84PSRFBS2009-01-18 21:07:132009-01-18 21:14:37 00:07:24 601 266.88 601 293.87 34.30 7
85PSRFBS2009-01-18 21:24:142009-01-18 21:43:34 00:19:20 601 328.94 647 39.45 34.30 7
86PSRFBS2009-01-18 21:44:272009-01-18 21:48:19 00:03:52 647 42.67 647 56.77 34.30 7
87PSRPLR2009-01-18 21:50:242009-01-18 21:53:50 00:03:26 647 64.36 647 76.89 21.50 127
88PSRFBS2009-01-18 22:06:102009-01-18 22:08:32 00:02:22 647 121.86 647 130.49 34.30 7
89PSRWB12009-01-18 22:23:002009-01-18 22:25:16 00:02:16 647 183.25 647 191.51 27.10 80
90AV2OBS2009-01-18 22:26:152009-01-18 22:28:07 00:01:52 647 195.10 647 201.91 0.00 -
91PSMOB12009-01-18 22:32:372009-01-18 22:36:57 00:04:20 647 218.32 647 234.12 -1.20 -
92AV2OBS2009-01-18 22:35:052009-01-18 22:36:57 00:01:52 647 227.37 647 234.18 0.00 -
93PSRFBS2009-01-18 22:47:582009-01-18 22:51:56 00:03:58 647 274.30 647 288.76 34.30 7
94PSRFBS2009-01-18 23:11:352009-01-18 23:19:37 00:08:02 22 0.43 22 29.72 34.30 7
95PSRPLR2009-01-18 23:29:042009-01-18 23:30:56 00:01:52 22 64.18 22 70.99 21.50 127
96PSRWB12009-01-18 23:34:562009-01-18 23:42:13 00:07:17 22 85.58 22 112.14 27.10 80
97PSRWB12009-01-18 23:57:332009-01-19 00:00:37 00:03:04 22 168.05 22 179.24 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
3 -1.366542009-01-17 22:30:40166.293672009-01-17 23:20:02
49-26.046122009-01-18 00:09:23141.614092009-01-18 00:58:45
95-50.725702009-01-18 01:48:06116.934512009-01-18 02:37:28
141-75.405292009-01-18 03:26:50 92.254922009-01-18 04:16:11
187-100.084872009-01-18 05:05:33 67.575342009-01-18 05:54:54
233-124.764452009-01-18 06:44:16 42.895762009-01-18 07:33:37
279-149.444032009-01-18 08:22:59 18.216172009-01-18 09:12:20
325-174.123622009-01-18 10:01:42 -6.463412009-01-18 10:51:04
371161.196802009-01-18 11:40:25-31.142992009-01-18 12:29:47
417136.517222009-01-18 13:19:08-55.822572009-01-18 14:08:30
463111.837632009-01-18 14:57:51-80.502162009-01-18 15:47:13
509 87.158052009-01-18 16:36:34-105.181742009-01-18 17:25:56
555 62.478472009-01-18 18:15:17-129.861322009-01-18 19:04:39
601 37.798892009-01-18 19:54:01-154.540902009-01-18 20:43:22
647 13.119302009-01-18 21:32:44-179.220492009-01-18 22:22:05
22-11.560282009-01-18 23:11:27156.099932009-01-19 00:00:48
