>ALOS Data Take Simulation(Jan. 05, 2009)

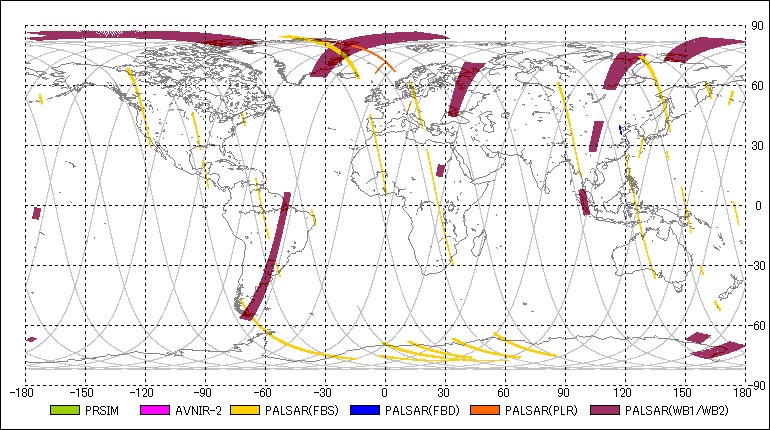

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12009-01-05 00:18:362009-01-05 00:34:26 00:15:50 32 166.53 32 224.27 -1.20 -
2AV2OBS2009-01-05 00:19:212009-01-05 00:34:10 00:14:49 32 169.33 32 223.36 0.00 -
3PSRFBS2009-01-05 00:46:062009-01-05 00:51:56 00:05:50 32 266.82 32 288.09 34.30 7
4PSRFBS2009-01-05 01:08:112009-01-05 01:11:03 00:02:52 32 347.41 32 357.87 34.30 7
5PSRWB12009-01-05 01:33:292009-01-05 01:41:18 00:07:49 78 79.62 78 108.13 27.10 80
6PSMOB12009-01-05 01:44:432009-01-05 01:53:21 00:08:38 78 120.59 78 152.07 -1.20 -
7AV2OBS2009-01-05 01:45:282009-01-05 01:49:20 00:03:52 78 123.32 78 137.42 0.00 -
8PSRFBS2009-01-05 01:51:082009-01-05 01:54:42 00:03:34 78 144.05 78 157.05 34.30 7
9PSMOB22009-01-05 01:58:312009-01-05 02:12:01 00:13:30 78 170.91 78 220.14 0.00 -
10AV2OBS2009-01-05 01:58:342009-01-05 02:04:18 00:05:44 78 171.09 78 192.00 0.00 -
11PSRFBS2009-01-05 02:24:492009-01-05 02:28:05 00:03:16 78 266.82 78 278.73 34.30 7
12PSRFBS2009-01-05 02:39:502009-01-05 02:43:16 00:03:26 78 321.64 78 334.16 34.30 7
13PSRFBS2009-01-05 02:45:102009-01-05 02:54:04 00:08:54 78 341.03 124 13.49 34.30 7
14PSRFBS2009-01-05 03:00:472009-01-05 03:03:13 00:02:26 124 37.99 124 46.86 34.30 7
15PSRWB12009-01-05 03:18:142009-01-05 03:23:58 00:05:44 124 101.62 124 122.53 27.10 80
16PSRWB12009-01-05 03:27:492009-01-05 03:32:37 00:04:48 124 136.57 124 154.07 27.10 80
17PSMOB22009-01-05 03:37:312009-01-05 03:42:03 00:04:32 124 171.94 124 188.48 0.00 -
18AV2OBS2009-01-05 03:38:252009-01-05 03:42:17 00:03:52 124 175.23 124 189.33 0.00 -
19PSRFBS2009-01-05 04:05:092009-01-05 04:15:55 00:10:46 124 272.72 124 311.98 34.30 7
20PSRFBS2009-01-05 04:30:482009-01-05 04:35:22 00:04:34 170 6.26 170 22.91 34.30 7
21PSRFBS2009-01-05 04:36:062009-01-05 04:41:58 00:05:52 170 25.65 170 47.04 34.30 7
22AV2OBS2009-01-05 05:04:082009-01-05 05:10:48 00:06:40 170 127.82 170 152.13 0.00 -
23PSRFBS2009-01-05 06:15:062009-01-05 06:26:50 00:11:44 216 26.62 216 69.41 34.30 7
24PSRWB12009-01-05 08:15:472009-01-05 08:23:55 00:08:08 262 106.73 262 136.39 27.10 80
25PSMOB12009-01-05 08:24:222009-01-05 08:27:48 00:03:26 262 138.03 262 150.55 -1.20 -
26PSRWB12009-01-05 08:30:012009-01-05 08:32:09 00:02:08 262 158.63 262 166.41 27.10 80
27PSRFBS2009-01-05 09:38:372009-01-05 09:40:33 00:01:56 308 48.81 308 55.86 34.30 7
28PSRPLR2009-01-05 09:59:522009-01-05 10:02:18 00:02:26 308 126.24 308 135.11 21.50 127
29AV2OBS2009-01-05 10:09:052009-01-05 10:12:13 00:03:08 308 159.91 308 171.34 0.00 -
30PSRFBS2009-01-05 11:00:442009-01-05 11:04:32 00:03:48 308 348.26 354 2.13 34.30 7
31PSRFBS2009-01-05 11:18:092009-01-05 11:20:57 00:02:48 354 51.72 354 61.93 34.30 7
32PSRPLR2009-01-05 11:33:122009-01-05 11:35:18 00:02:06 354 106.67 354 114.33 21.50 127
33PSRFBS2009-01-05 12:27:192009-01-05 12:29:21 00:02:02 354 304.02 354 311.43 34.30 7
34PSRFBS2009-01-05 12:32:252009-01-05 12:34:25 00:02:00 354 322.61 354 329.91 34.30 7
35PSRFBS2009-01-05 12:38:172009-01-05 12:45:19 00:07:02 354 344.01 400 9.66 34.30 7
36PSRFBS2009-01-05 12:48:322009-01-05 12:50:24 00:01:52 400 21.39 400 28.20 9.90 0
37PSRFBS2009-01-05 12:52:132009-01-05 13:03:25 00:11:12 400 34.83 400 75.67 34.30 7
38PSRWB12009-01-05 13:07:242009-01-05 13:14:33 00:07:09 400 90.20 400 116.27 27.10 80
39PSRWB12009-01-05 13:29:582009-01-05 13:48:23 00:18:25 400 172.43 400 239.59 27.10 80
40PSRFBS2009-01-05 14:10:332009-01-05 14:28:35 00:18:02 400 320.49 446 26.26 34.30 7
41PSRFBD2009-01-05 14:30:352009-01-05 14:32:27 00:01:52 446 33.55 446 40.36 34.30 43
42PSRWB12009-01-05 15:58:132009-01-05 16:02:19 00:04:06 446 353.13 492 8.02 27.10 80
43PSRFBS2009-01-05 16:03:262009-01-05 16:17:12 00:13:46 492 12.10 492 62.30 34.30 7
44AV2OBS2009-01-05 16:44:042009-01-05 16:45:56 00:01:52 492 160.33 492 167.14 21.50 -
45PSMOB12009-01-05 20:10:302009-01-05 20:13:10 00:02:40 584 193.09 584 202.82 -1.20 -
46AV2OBS2009-01-05 20:11:162009-01-05 20:13:08 00:01:52 584 195.89 584 202.70 0.00 -
47PSRWB12009-01-05 20:25:152009-01-05 20:29:23 00:04:08 584 246.88 584 261.96 27.10 80
48PSMOB12009-01-05 20:27:152009-01-05 20:30:25 00:03:10 584 254.24 584 265.79 -1.20 -
49PSRFBS2009-01-05 20:33:202009-01-05 20:38:10 00:04:50 584 276.36 584 293.99 34.30 7
50PSRFBS2009-01-05 20:47:282009-01-05 21:03:58 00:16:30 584 327.90 630 28.08 34.30 7
51PSRFBS2009-01-05 21:06:142009-01-05 21:13:18 00:07:04 630 36.35 630 62.12 34.30 7
52PSRPLR2009-01-05 21:14:142009-01-05 21:20:06 00:05:52 630 65.58 630 86.97 21.50 127
53AV2OBS2009-01-05 21:38:452009-01-05 21:40:37 00:01:52 630 154.93 630 161.73 35.40 -
54PSRWB12009-01-05 21:45:382009-01-05 21:47:48 00:02:10 630 180.03 630 187.93 27.10 80
55AV2OBS2009-01-05 21:48:502009-01-05 21:51:58 00:03:08 630 191.70 630 203.12 0.00 -
56PSMOB12009-01-05 21:49:202009-01-05 21:52:06 00:02:46 630 193.52 630 203.61 -1.20 -
57PSRWB12009-01-05 22:03:282009-01-05 22:05:20 00:01:52 630 245.06 630 251.87 27.10 80
58PSRFBS2009-01-05 22:11:302009-01-05 22:16:02 00:04:32 630 274.36 630 290.89 34.30 7
59PSRFBS2009-01-05 22:35:502009-01-05 22:47:30 00:11:40 5 3.10 5 45.65 34.30 7
60PSRFBS2009-01-05 22:51:522009-01-05 22:58:46 00:06:54 5 61.57 5 86.73 34.30 7
61PSRFBS2009-01-05 23:08:142009-01-05 23:10:44 00:02:30 5 121.25 5 130.37 34.30 7
62PSMOB12009-01-05 23:20:322009-01-05 23:23:08 00:02:36 5 166.11 5 175.59 -1.20 -
63PSMOB12009-01-05 23:26:042009-01-05 23:28:44 00:02:40 5 186.29 5 196.01 -1.20 -
64AV2OBS2009-01-05 23:26:472009-01-05 23:28:39 00:01:52 5 188.90 5 195.71 0.00 -
65AV2OBS2009-01-05 23:32:192009-01-05 23:34:11 00:01:52 5 209.08 5 215.89 0.00 -
66PSRFBS2009-01-05 23:50:132009-01-05 23:54:15 00:04:02 5 274.36 5 289.06 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
32-16.925412009-01-04 23:32:54150.734802009-01-05 00:22:16
78-41.604992009-01-05 01:11:38126.055222009-01-05 02:00:59
124-66.284572009-01-05 02:50:21101.375642009-01-05 03:39:42
170-90.964152009-01-05 04:29:04 76.696062009-01-05 05:18:25
216-115.643742009-01-05 06:07:47 52.016472009-01-05 06:57:08
262-140.323322009-01-05 07:46:30 27.336892009-01-05 08:35:51
308-165.002902009-01-05 09:25:13 2.657312009-01-05 10:14:35
354170.317522009-01-05 11:03:56-22.022282009-01-05 11:53:18
400145.637932009-01-05 12:42:39-46.701862009-01-05 13:32:01
446120.958352009-01-05 14:21:22-71.381442009-01-05 15:10:44
492 96.278772009-01-05 16:00:05-96.061022009-01-05 16:49:27
538 71.599182009-01-05 17:38:49-120.740612009-01-05 18:28:10
584 46.919602009-01-05 19:17:32-145.420192009-01-05 20:06:53
630 22.240022009-01-05 20:56:15-170.099772009-01-05 21:45:36
5 -2.439562009-01-05 22:34:58165.220652009-01-05 23:24:19
