>ALOS Data Take Simulation(Dec. 13, 2008)

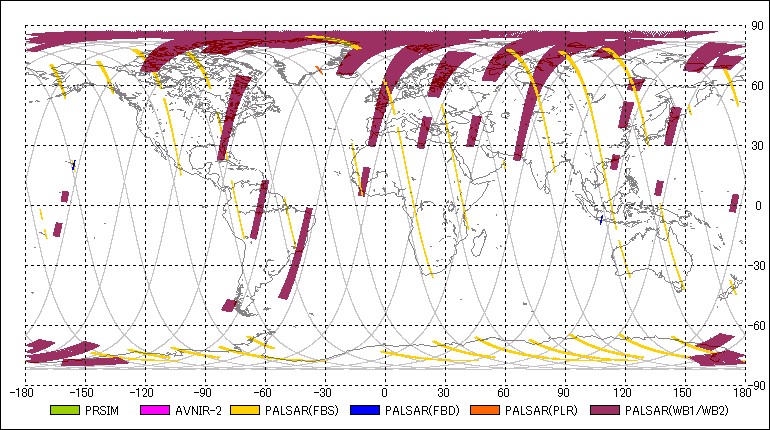

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12008-12-13 00:44:512008-12-13 00:53:24 00:08:33 55 82.29 55 113.47 27.10 80
2PSRWB12008-12-13 00:57:502008-12-13 01:03:40 00:05:50 55 129.64 55 150.91 27.10 80
3PSRWB12008-12-13 01:07:592008-12-13 01:10:35 00:02:36 55 166.66 55 176.14 27.10 80
4PSMOB22008-12-13 01:11:252008-12-13 01:21:41 00:10:16 55 179.18 55 216.62 0.00 -
5AV2OBS2008-12-13 01:11:342008-12-13 01:14:38 00:03:04 55 179.72 55 190.91 0.00 -
6PSRFBS2008-12-13 01:35:362008-12-13 01:39:44 00:04:08 55 267.37 55 282.44 34.30 7
7PSRFBS2008-12-13 01:52:472008-12-13 02:02:09 00:09:22 55 330.03 101 4.19 34.30 7
8PSRWB12008-12-13 02:32:312008-12-13 02:34:45 00:02:14 101 114.93 101 123.08 27.10 80
9AV2OBS2008-12-13 02:35:132008-12-13 02:44:31 00:09:18 101 124.78 101 158.69 0.00 -
10PSMOB22008-12-13 02:35:162008-12-13 02:40:40 00:05:24 101 124.96 101 144.65 0.00 -
11PSRWB12008-12-13 02:35:482008-12-13 02:40:00 00:04:12 101 126.85 101 142.16 27.10 80
12PSRWB12008-12-13 02:43:052008-12-13 02:45:41 00:02:36 101 153.47 101 162.95 27.10 80
13AV2OBS2008-12-13 02:47:362008-12-13 02:53:14 00:05:38 101 169.94 101 190.48 0.00 -
14PSMOB22008-12-13 02:47:432008-12-13 02:54:07 00:06:24 101 170.36 101 193.70 0.00 -
15PSRFBD2008-12-13 02:51:242008-12-13 02:53:16 00:01:52 101 183.80 101 190.60 34.30 43
16PSRFBS2008-12-13 03:34:312008-12-13 03:43:09 00:08:38 101 341.03 147 12.52 34.30 7
17PSRFBS2008-12-13 03:45:232008-12-13 03:52:35 00:07:12 147 20.60 147 46.86 34.30 7
18PSRFBS2008-12-13 03:55:172008-12-13 04:00:57 00:05:40 147 56.71 147 77.37 34.30 7
19PSRWB12008-12-13 04:05:372008-12-13 04:08:49 00:03:12 147 94.39 147 106.06 27.10 80
20AV2OBS2008-12-13 04:14:462008-12-13 04:25:24 00:10:38 147 127.82 147 166.60 0.00 -
21AV2OBS2008-12-13 04:48:462008-12-13 04:51:12 00:02:26 147 251.75 147 260.62 -41.50 -
22PSRFBS2008-12-13 04:57:032008-12-13 04:59:49 00:02:46 147 281.95 147 292.04 34.30 7
23PSRFBS2008-12-13 05:22:012008-12-13 05:33:15 00:11:14 193 13.01 193 53.97 34.30 7
24PSRFBS2008-12-13 05:34:002008-12-13 05:40:06 00:06:06 193 56.77 193 79.01 34.30 7
25PSRWB12008-12-13 05:44:212008-12-13 06:01:53 00:17:32 193 94.45 193 158.39 27.10 80
26AV2OBS2008-12-13 05:47:542008-12-13 05:49:46 00:01:52 193 107.40 193 114.20 0.00 -
27AV2OBS2008-12-13 05:53:292008-12-13 05:58:13 00:04:44 193 127.76 193 145.02 0.00 -
28PSMOB12008-12-13 06:19:292008-12-13 06:22:05 00:02:36 193 222.57 193 232.05 -1.20 -
29PSRFBS2008-12-13 06:31:512008-12-13 06:36:43 00:04:52 193 267.73 193 285.48 34.30 7
30PSRFBS2008-12-13 07:12:012008-12-13 07:17:09 00:05:08 239 54.15 239 72.87 34.30 7
31PSRWB12008-12-13 07:20:572008-12-13 07:29:37 00:08:40 239 86.73 239 118.34 27.10 80
32PSRWB12008-12-13 07:33:542008-12-13 07:38:44 00:04:50 239 133.96 239 151.58 27.10 80
33PSRFBS2008-12-13 08:12:242008-12-13 08:15:20 00:02:56 239 274.42 239 285.11 34.30 7
34PSRFBS2008-12-13 08:40:072008-12-13 08:42:17 00:02:10 285 15.44 285 23.34 9.90 0
35PSRFBS2008-12-13 08:50:042008-12-13 08:55:22 00:05:18 285 51.72 285 71.05 34.30 7
36PSRWB12008-12-13 09:03:392008-12-13 09:10:34 00:06:55 285 101.26 285 126.48 27.10 80
37PSRWB12008-12-13 09:12:442008-12-13 09:17:39 00:04:55 285 134.38 285 152.31 27.10 80
38PSRFBS2008-12-13 09:51:072008-12-13 09:53:39 00:02:32 285 274.42 285 283.66 34.30 7
39PSRFBS2008-12-13 10:09:242008-12-13 10:11:16 00:01:52 285 341.03 285 347.84 34.30 7
40PSRFBS2008-12-13 10:12:052008-12-13 10:14:07 00:02:02 285 350.82 285 358.23 34.30 7
41PSRFBS2008-12-13 10:27:422008-12-13 10:34:28 00:06:46 331 47.77 331 72.45 34.30 7
42PSRWB12008-12-13 10:40:112008-12-13 10:56:07 00:15:56 331 93.30 331 151.40 27.10 80
43PSMOB12008-12-13 10:49:152008-12-13 10:53:13 00:03:58 331 126.36 331 140.82 -1.20 -
44AV2OBS2008-12-13 10:50:012008-12-13 10:51:53 00:01:52 331 129.16 331 135.96 0.00 -
45PSRWB12008-12-13 10:58:252008-12-13 11:02:59 00:04:34 331 159.79 331 176.44 27.10 80
46PSRFBS2008-12-13 11:28:002008-12-13 11:31:42 00:03:42 331 267.73 331 281.22 34.30 7
47PSRFBS2008-12-13 11:40:192008-12-13 11:42:57 00:02:38 331 312.59 331 322.19 34.30 7
48PSRFBS2008-12-13 12:05:162008-12-13 12:07:08 00:01:52 377 43.64 377 50.45 34.30 7
49PSRWB12008-12-13 12:17:062008-12-13 12:24:52 00:07:46 377 86.73 377 115.05 27.10 80
50PSRWB12008-12-13 12:42:452008-12-13 12:55:58 00:13:13 377 180.27 377 228.47 27.10 80
51PSRFBS2008-12-13 13:19:382008-12-13 13:32:20 00:12:42 377 314.77 423 1.09 34.30 7
52PSRFBS2008-12-13 13:39:292008-12-13 13:53:53 00:14:24 423 27.17 423 79.68 34.30 7
53PSRWB12008-12-13 13:55:492008-12-13 13:59:05 00:03:16 423 86.73 423 98.64 27.10 80
54PSMOB12008-12-13 14:00:312008-12-13 14:04:13 00:03:42 423 103.87 423 117.36 -1.20 -
55AV2OBS2008-12-13 14:01:142008-12-13 14:03:34 00:02:20 423 106.48 423 114.99 0.00 -
56PSRWB12008-12-13 14:17:372008-12-13 14:26:17 00:08:40 423 166.23 423 197.84 27.10 80
57AV2OBS2008-12-13 14:27:442008-12-13 14:29:36 00:01:52 423 203.12 423 209.93 -21.50 -
58PSRWB12008-12-13 14:34:212008-12-13 14:36:29 00:02:08 423 227.25 423 235.03 27.10 80
59PSRWB12008-12-13 14:44:142008-12-13 14:46:36 00:02:22 423 263.29 423 271.93 27.10 80
60PSRFBS2008-12-13 14:47:472008-12-13 14:52:05 00:04:18 423 276.24 423 291.92 34.30 7
61PSRFBS2008-12-13 15:00:062008-12-13 15:06:00 00:05:54 423 321.16 423 342.67 34.30 7
62PSRFBS2008-12-13 15:06:512008-12-13 15:32:09 00:25:18 423 345.77 469 78.04 34.30 7
63PSRWB12008-12-13 15:34:562008-12-13 15:38:24 00:03:28 469 88.19 469 100.83 27.10 80
64PSRWB12008-12-13 15:41:552008-12-13 15:54:07 00:12:12 469 113.66 469 158.15 27.10 80
65PSRFBS2008-12-13 16:24:092008-12-13 16:31:09 00:07:00 469 267.67 469 293.20 34.30 7
66PSRFBS2008-12-13 16:53:272008-12-13 17:11:11 00:17:44 515 14.53 515 79.20 34.30 7
67PSRWB12008-12-13 17:13:152008-12-13 17:18:03 00:04:48 515 86.73 515 104.24 27.10 80
68PSRWB12008-12-13 17:58:132008-12-13 18:03:37 00:05:24 515 250.71 515 270.41 27.10 80
69PSRFBS2008-12-13 18:04:432008-12-13 18:09:53 00:05:10 515 274.42 515 293.26 34.30 7
70PSRFBS2008-12-13 18:32:372008-12-13 18:34:23 00:01:46 561 16.17 561 22.61 34.30 7
71PSRWB12008-12-13 18:51:572008-12-13 18:59:15 00:07:18 561 86.67 561 113.29 27.10 80
72PSRWB12008-12-13 19:36:332008-12-13 19:41:05 00:04:32 561 249.25 561 265.79 27.10 80
73PSRFBS2008-12-13 19:42:032008-12-13 19:47:41 00:05:38 561 269.37 561 289.92 34.30 7
74PSRFBS2008-12-13 20:02:592008-12-13 20:20:51 00:17:52 561 345.71 607 50.87 34.30 7
75PSRFBD2008-12-13 20:49:382008-12-13 20:51:34 00:01:56 607 155.84 607 162.89 21.50 39
76PSRWB12008-12-13 20:54:012008-12-13 20:56:03 00:02:02 607 171.82 607 179.24 27.10 80
77PSRWB12008-12-13 20:58:252008-12-13 21:00:53 00:02:28 607 187.81 607 196.80 27.10 80
78PSRWB12008-12-13 21:14:172008-12-13 21:17:09 00:02:52 607 245.67 607 256.12 27.10 80
79PSRFBS2008-12-13 21:20:052008-12-13 21:26:51 00:06:46 607 266.88 607 291.56 34.30 7
80PSRFBS2008-12-13 21:34:552008-12-13 21:56:23 00:21:28 607 320.97 653 39.26 34.30 7
81PSRFBS2008-12-13 21:57:362008-12-13 22:03:04 00:05:28 653 43.64 653 63.57 34.30 7
82PSRFBS2008-12-13 22:06:462008-12-13 22:09:24 00:02:38 653 77.07 653 86.67 34.30 7
83PSRWB12008-12-13 22:33:112008-12-13 22:36:09 00:02:58 653 173.40 653 184.22 27.10 80
84AV2OBS2008-12-13 22:46:592008-12-13 22:48:51 00:01:52 653 223.73 653 230.53 0.00 -
85PSRFBS2008-12-13 23:00:532008-12-13 23:04:55 00:04:02 653 274.48 653 289.19 34.30 7
86PSRFBS2008-12-13 23:25:042008-12-13 23:32:54 00:07:50 28 2.67 28 31.24 34.30 7
87PSRPLR2008-12-13 23:41:562008-12-13 23:43:48 00:01:52 28 64.18 28 70.99 21.50 127
88PSRWB12008-12-13 23:47:492008-12-13 23:55:06 00:07:17 28 85.58 28 112.14 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
9 -4.585612008-12-12 22:43:33163.074592008-12-12 23:32:54
55-29.265202008-12-13 00:22:16138.395012008-12-13 01:11:38
101-53.944782008-12-13 02:00:59113.715432008-12-13 02:50:21
147-78.624362008-12-13 03:39:42 89.035852008-12-13 04:29:04
193-103.303942008-12-13 05:18:25 64.356262008-12-13 06:07:47
239-127.983532008-12-13 06:57:08 39.676682008-12-13 07:46:30
285-152.663112008-12-13 08:35:51 14.997102008-12-13 09:25:13
331-177.342692008-12-13 10:14:35 -9.682482008-12-13 11:03:56
377157.977722008-12-13 11:53:18-34.362072008-12-13 12:42:39
423133.298142008-12-13 13:32:01-59.041652008-12-13 14:21:22
469108.618562008-12-13 15:10:44-83.721232008-12-13 16:00:05
515 83.938982008-12-13 16:49:27-108.400822008-12-13 17:38:49
561 59.259392008-12-13 18:28:10-133.080402008-12-13 19:17:32
607 34.579812008-12-13 20:06:53-157.759982008-12-13 20:56:15
653 9.900232008-12-13 21:45:36177.560442008-12-13 22:34:58
28-14.779352008-12-13 23:24:19152.880852008-12-14 00:13:41
