>ALOS Data Take Simulation(Jan. 12, 2009)

Observation Area

PRISM

AVNIR-2

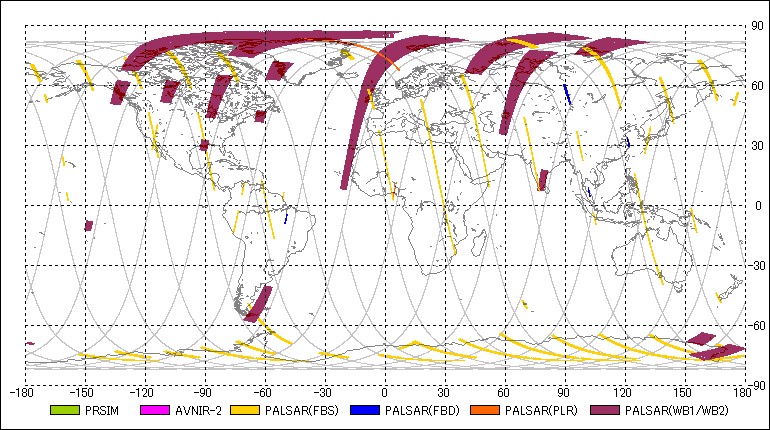

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2009-01-12 00:20:152009-01-12 00:22:07 00:01:52 27 211.75 27 218.56 34.30 -
2PSMOB12009-01-12 01:34:122009-01-12 01:42:08 00:07:56 73 121.38 73 150.31 -1.20 -
3AV2OBS2009-01-12 01:34:582009-01-12 01:37:12 00:02:14 73 124.17 73 132.32 0.00 -
4PSRFBS2009-01-12 01:39:082009-01-12 01:43:30 00:04:22 73 139.37 73 155.29 34.30 7
5AV2OBS2009-01-12 01:49:092009-01-12 01:53:11 00:04:02 73 175.89 73 190.60 0.00 -
6PSMOB22009-01-12 01:49:102009-01-12 02:01:16 00:12:06 73 175.96 73 220.08 0.00 -
7PSRFBS2009-01-12 02:14:052009-01-12 02:17:33 00:03:28 73 266.82 73 279.46 34.30 7
8PSRFBS2009-01-12 02:34:262009-01-12 02:43:14 00:08:48 73 341.03 119 13.13 34.30 7
9PSRFBS2009-01-12 02:56:052009-01-12 03:00:53 00:04:48 119 59.99 119 77.49 34.30 7
10AV2OBS2009-01-12 03:14:392009-01-12 03:31:50 00:17:11 119 127.70 119 190.36 0.00 -
11PSMOB22009-01-12 03:19:282009-01-12 03:32:06 00:12:38 119 145.26 119 191.33 0.00 -
12PSRFBS2009-01-12 03:54:532009-01-12 03:56:45 00:01:52 119 274.42 119 281.22 34.30 7
13PSRFBS2009-01-12 03:57:502009-01-12 04:04:38 00:06:48 119 285.18 119 309.97 34.30 7
14PSRFBS2009-01-12 04:19:502009-01-12 04:31:14 00:11:24 165 5.41 165 46.98 34.30 7
15PSRFBS2009-01-12 04:33:552009-01-12 04:40:45 00:06:50 165 56.77 165 81.69 34.30 7
16PSRWB12009-01-12 04:44:082009-01-12 04:47:14 00:03:06 165 94.03 165 105.33 27.10 80
17AV2OBS2009-01-12 04:53:232009-01-12 05:00:11 00:06:48 165 127.76 165 152.56 0.00 -
18PSMOB22009-01-12 04:53:572009-01-12 04:59:45 00:05:48 165 129.82 165 150.97 0.00 -
19PSRWB12009-01-12 05:02:332009-01-12 05:05:59 00:03:26 165 161.19 165 173.71 27.10 80
20PSRFBS2009-01-12 05:34:352009-01-12 05:37:37 00:03:02 165 278.00 165 289.06 34.30 7
21PSRFBS2009-01-12 06:03:032009-01-12 06:09:55 00:06:52 211 21.76 211 46.80 34.30 7
22PSRFBS2009-01-12 06:12:382009-01-12 06:17:32 00:04:54 211 56.77 211 74.64 34.30 7
23PSRWB12009-01-12 06:24:392009-01-12 06:36:57 00:12:18 211 100.59 211 145.44 27.10 80
24AV2OBS2009-01-12 06:32:062009-01-12 06:38:42 00:06:36 211 127.76 211 151.83 0.00 -
25PSMOB22009-01-12 06:32:062009-01-12 06:39:26 00:07:20 211 127.76 211 154.50 0.00 -
26AV2OBS2009-01-12 06:58:362009-01-12 07:00:28 00:01:52 211 224.40 211 231.20 41.50 -
27AV2OBS2009-01-12 07:04:422009-01-12 07:06:34 00:01:52 211 246.64 211 253.45 34.30 -
28PSRFBS2009-01-12 07:05:422009-01-12 07:07:34 00:01:52 211 250.29 211 257.10 34.30 7
29PSRFBS2009-01-12 07:10:282009-01-12 07:15:18 00:04:50 211 267.67 211 285.30 34.30 7
30PSRFBS2009-01-12 07:51:022009-01-12 07:55:56 00:04:54 257 55.61 257 73.48 34.30 7
31PSRWB12009-01-12 08:00:422009-01-12 08:07:10 00:06:28 257 90.86 257 114.45 27.10 80
32AV2OBS2009-01-12 08:17:452009-01-12 08:24:49 00:07:04 257 153.04 257 178.81 0.00 -
33AV2OBS2009-01-12 08:31:032009-01-12 08:35:05 00:04:02 257 201.54 257 216.25 0.00 -
34PSRFBS2009-01-12 08:51:032009-01-12 08:53:15 00:02:12 257 274.48 257 282.50 34.30 7
35PSRFBS2009-01-12 09:14:312009-01-12 09:16:23 00:01:52 303 0.06 303 6.87 34.30 7
36PSRFBS2009-01-12 09:19:242009-01-12 09:21:16 00:01:52 303 17.81 303 24.62 41.50 10
37PSRFBS2009-01-12 09:28:032009-01-12 09:29:55 00:01:52 303 49.41 303 56.22 34.30 7
38PSRFBS2009-01-12 09:31:002009-01-12 09:34:02 00:03:02 303 60.17 303 71.23 34.30 7
39AV2OBS2009-01-12 09:52:562009-01-12 09:57:04 00:04:08 303 140.16 303 155.23 0.00 -
40AV2OBS2009-01-12 09:58:422009-01-12 10:01:46 00:03:04 303 161.13 303 172.31 0.00 -
41PSRPLR2009-01-12 10:00:202009-01-12 10:02:58 00:02:38 303 167.08 303 176.68 21.50 127
42PSRFBS2009-01-12 10:29:452009-01-12 10:31:57 00:02:12 303 274.42 303 282.44 34.30 7
43PSRFBS2009-01-12 11:07:092009-01-12 11:13:25 00:06:16 349 50.75 349 73.60 34.30 7
44PSRWB12009-01-12 11:18:372009-01-12 11:40:43 00:22:06 349 92.57 349 173.16 27.10 80
45AV2OBS2009-01-12 11:34:232009-01-12 11:39:43 00:05:20 349 150.12 349 169.57 0.00 -
46PSRFBS2009-01-12 12:06:392009-01-12 12:10:01 00:03:22 349 267.73 349 280.01 34.30 7
47PSRFBS2009-01-12 12:17:412009-01-12 12:19:45 00:02:04 349 308.03 349 315.56 34.30 7
48PSRFBS2009-01-12 12:27:332009-01-12 12:31:37 00:04:04 349 344.01 349 358.84 34.30 7
49PSRFBS2009-01-12 12:42:352009-01-12 12:49:37 00:07:02 395 38.84 395 64.49 34.30 7
50PSRFBS2009-01-12 13:19:172009-01-12 13:21:09 00:01:52 395 172.61 395 179.42 50.00 34
51PSRFBD2009-01-12 13:22:152009-01-12 13:24:11 00:01:56 395 183.43 395 190.48 34.30 43
52PSRWB12009-01-12 13:32:162009-01-12 13:37:55 00:05:39 395 220.02 395 240.62 27.10 80
53PSRFBS2009-01-12 13:48:452009-01-12 13:50:39 00:01:54 395 280.13 395 287.06 34.30 7
54PSRFBS2009-01-12 13:58:592009-01-12 14:15:03 00:16:04 395 317.45 441 16.05 34.30 7
55PSRFBD2009-01-12 14:18:122009-01-12 14:20:04 00:01:52 441 27.53 441 34.34 34.30 43
56PSRFBS2009-01-12 14:23:282009-01-12 14:32:40 00:09:12 441 46.74 441 80.29 34.30 7
57PSRWB12009-01-12 14:39:512009-01-12 14:42:57 00:03:06 441 106.48 441 117.79 27.10 80
58PSRWB12009-01-12 14:46:422009-01-12 14:48:48 00:02:06 441 131.46 441 139.12 27.10 80
59PSRFBS2009-01-12 14:56:312009-01-12 14:58:53 00:02:22 441 167.20 441 175.83 34.30 7
60PSRFBS2009-01-12 15:00:212009-01-12 15:04:13 00:03:52 441 181.24 441 195.34 34.30 7
61AV2OBS2009-01-12 15:06:022009-01-12 15:07:54 00:01:52 441 201.91 441 208.72 41.50 -
62PSRFBS2009-01-12 15:25:542009-01-12 15:31:00 00:05:06 441 274.42 441 293.02 34.30 7
63PSRFBS2009-01-12 15:46:052009-01-12 15:48:23 00:02:18 441 347.96 441 356.35 34.30 7
64PSRFBD2009-01-12 15:49:592009-01-12 15:51:51 00:01:52 487 2.25 487 9.06 34.30 43
65PSRFBS2009-01-12 15:54:562009-01-12 15:59:36 00:04:40 487 20.24 487 37.26 34.30 7
66PSRFBD2009-01-12 16:02:462009-01-12 16:06:12 00:03:26 487 48.81 487 61.33 34.30 43
67PSRFBS2009-01-12 16:10:392009-01-12 16:12:35 00:01:56 487 77.55 487 84.60 34.30 7
68PSRWB12009-01-12 16:13:342009-01-12 16:18:21 00:04:47 487 88.19 487 105.63 27.10 80
69PSRWB12009-01-12 16:20:272009-01-12 16:26:59 00:06:32 487 113.29 487 137.12 27.10 80
70PSRWB12009-01-12 16:29:252009-01-12 16:31:25 00:02:00 487 145.99 487 153.28 27.10 80
71PSMOB12009-01-12 16:32:412009-01-12 16:35:17 00:02:36 487 157.90 487 167.39 -1.20 -
72AV2OBS2009-01-12 16:33:272009-01-12 16:35:33 00:02:06 487 160.70 487 168.36 0.00 -
73PSMOB12009-01-12 16:45:482009-01-12 16:48:24 00:02:36 487 205.74 487 215.22 -1.20 -
74PSRFBS2009-01-12 17:02:482009-01-12 17:09:52 00:07:04 487 267.73 487 293.50 34.30 7
75PSRFBS2009-01-12 17:29:212009-01-12 17:40:19 00:10:58 533 4.56 533 44.55 34.30 7
76PSRWB12009-01-12 17:51:532009-01-12 17:55:07 00:03:14 533 86.73 533 98.52 27.10 80
77PSRWB12009-01-12 17:59:592009-01-12 18:03:29 00:03:30 533 116.27 533 129.03 27.10 80
78PSRFBS2009-01-12 18:06:002009-01-12 18:10:04 00:04:04 533 138.21 533 153.04 34.30 7
79AV2OBS2009-01-12 18:06:022009-01-12 18:11:16 00:05:14 533 138.33 533 157.42 0.00 -
80PSRFBS2009-01-12 18:39:262009-01-12 18:41:28 00:02:02 533 260.13 533 267.55 34.30 7
81PSRFBS2009-01-12 18:42:542009-01-12 18:48:20 00:05:26 533 272.84 533 292.65 34.30 7
82PSRFBS2009-01-12 18:51:442009-01-12 18:53:36 00:01:52 533 304.99 533 311.80 34.30 7
83PSRFBS2009-01-12 19:08:502009-01-12 19:25:00 00:16:10 579 7.35 579 66.31 34.30 7
84PSRWB12009-01-12 19:30:362009-01-12 19:37:45 00:07:09 579 86.73 579 112.81 27.10 80
85PSRWB12009-01-12 19:38:422009-01-12 19:42:34 00:03:52 579 116.27 579 130.37 27.10 80
86PSRWB12009-01-12 19:58:032009-01-12 19:59:55 00:01:52 579 186.83 579 193.64 27.10 80
87PSRWB12009-01-12 20:15:182009-01-12 20:18:56 00:03:38 579 249.74 579 262.99 27.10 80
88PSRFBS2009-01-12 20:20:012009-01-12 20:27:23 00:07:22 579 266.94 579 293.81 34.30 7
89PSRFBS2009-01-12 20:38:032009-01-12 21:00:09 00:22:06 579 332.70 625 53.30 34.30 7
90PSRPLR2009-01-12 21:03:412009-01-12 21:09:33 00:05:52 625 66.19 625 87.58 21.50 127
91PSMOB12009-01-12 21:37:342009-01-12 21:40:10 00:02:36 625 189.69 625 199.17 -1.20 -
92AV2OBS2009-01-12 21:38:162009-01-12 21:40:08 00:01:52 625 192.30 625 199.11 0.00 -
93PSMOB12009-01-12 21:47:202009-01-12 21:50:00 00:02:40 625 225.37 625 235.09 -1.20 -
94AV2OBS2009-01-12 21:48:062009-01-12 21:49:58 00:01:52 625 228.16 625 234.97 0.00 -
95PSRWB12009-01-12 21:52:482009-01-12 21:54:58 00:02:10 625 245.30 625 253.21 27.10 80
96PSRFBS2009-01-12 21:58:562009-01-12 22:05:10 00:06:14 625 267.67 625 290.40 34.30 7
97PSRFBS2009-01-12 22:24:182009-01-12 22:34:40 00:10:22 671 0.18 671 37.99 34.30 7
98PSRFBS2009-01-12 22:36:492009-01-12 22:40:15 00:03:26 671 45.83 671 58.35 34.30 7
99PSRFBS2009-01-12 22:43:552009-01-12 22:45:47 00:01:52 671 71.72 671 78.53 34.30 7
100PSRFBS2009-01-12 22:57:402009-01-12 23:00:10 00:02:30 671 121.86 671 130.98 34.30 7
101PSMOB12009-01-12 23:08:532009-01-12 23:13:39 00:04:46 671 162.77 671 180.15 -1.20 -
102AV2OBS2009-01-12 23:09:382009-01-12 23:13:30 00:03:52 671 165.50 671 179.60 0.00 -
103PSRFBS2009-01-12 23:39:302009-01-12 23:43:32 00:04:02 671 274.42 671 289.13 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
27-14.242842009-01-11 23:22:11153.417372009-01-12 00:11:32
73-38.922422009-01-12 01:00:54128.737782009-01-12 01:50:15
119-63.602012009-01-12 02:39:37104.058202009-01-12 03:28:58
165-88.281592009-01-12 04:18:20 79.378622009-01-12 05:07:41
211-112.961172009-01-12 05:57:03 54.699042009-01-12 06:46:25
257-137.640762009-01-12 07:35:46 30.019452009-01-12 08:25:08
303-162.320342009-01-12 09:14:29 5.339872009-01-12 10:03:51
349173.000082009-01-12 10:53:12-19.339712009-01-12 11:42:34
395148.320502009-01-12 12:31:55-44.019302009-01-12 13:21:17
441123.640912009-01-12 14:10:39-68.698882009-01-12 15:00:00
487 98.961332009-01-12 15:49:22-93.378462009-01-12 16:38:43
533 74.281752009-01-12 17:28:05-118.058042009-01-12 18:17:26
579 49.602172009-01-12 19:06:48-142.737632009-01-12 19:56:09
625 24.922582009-01-12 20:45:31-167.417212009-01-12 21:34:52
671 0.243002009-01-12 22:24:14167.903212009-01-12 23:13:36
