>ALOS Data Take Simulation(Dec. 20, 2008)

Observation Area

PRISM

AVNIR-2

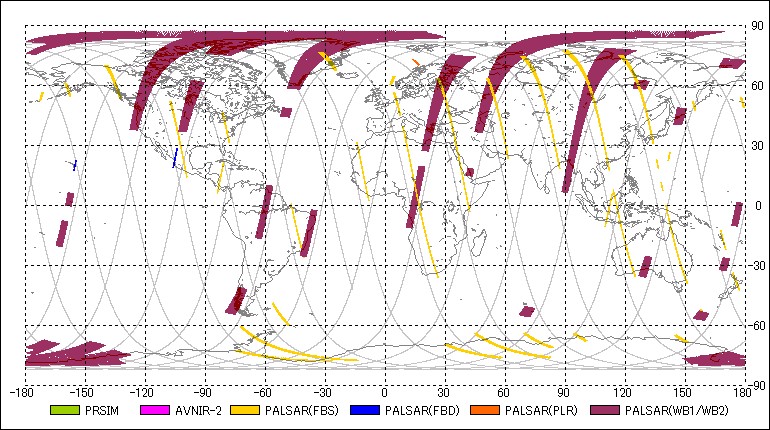

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12008-12-20 00:47:102008-12-20 00:50:06 00:02:56 50 129.82 50 140.52 27.10 80
2PSRFBS2008-12-20 00:53:152008-12-20 00:55:07 00:01:52 50 152.07 50 158.88 34.30 7
3AV2OBS2008-12-20 00:54:552008-12-20 00:56:47 00:01:52 50 158.15 50 164.95 0.00 -
4PSMOB22008-12-20 00:54:552008-12-20 00:56:47 00:01:52 50 158.15 50 164.95 0.00 -
5PSMOB22008-12-20 01:01:102008-12-20 01:11:16 00:10:06 50 180.94 50 217.77 0.00 -
6PSRWB12008-12-20 01:07:422008-12-20 01:11:08 00:03:26 50 204.70 50 217.22 27.10 80
7AV2OBS2008-12-20 01:08:152008-12-20 01:10:37 00:02:22 50 206.77 50 215.40 34.30 -
8PSRFBS2008-12-20 01:42:302008-12-20 01:50:32 00:08:02 50 331.61 96 0.91 34.30 7
9PSRWB12008-12-20 02:22:032008-12-20 02:23:49 00:01:46 96 115.84 96 122.29 27.10 80
10PSMOB22008-12-20 02:24:172008-12-20 02:30:21 00:06:04 96 123.99 96 146.11 0.00 -
11AV2OBS2008-12-20 02:24:322008-12-20 02:30:06 00:05:34 96 124.90 96 145.20 0.00 -
12AV2OBS2008-12-20 02:32:092008-12-20 02:42:37 00:10:28 96 152.68 96 190.85 0.00 -
13PSMOB22008-12-20 02:32:142008-12-20 02:43:38 00:11:24 96 152.98 96 194.55 0.00 -
14PSRFBS2008-12-20 02:37:432008-12-20 02:42:53 00:05:10 96 173.04 96 191.88 34.30 7
15PSRFBS2008-12-20 03:11:292008-12-20 03:15:23 00:03:54 96 296.12 96 310.34 34.30 7
16PSRFBS2008-12-20 03:37:002008-12-20 03:41:50 00:04:50 142 29.23 142 46.86 34.30 7
17PSRWB12008-12-20 03:56:162008-12-20 04:16:52 00:20:36 142 99.43 142 174.56 27.10 80
18AV2OBS2008-12-20 04:04:032008-12-20 04:14:33 00:10:30 142 127.82 142 166.11 0.00 -
19PSRWB12008-12-20 04:32:152008-12-20 04:34:11 00:01:56 142 230.66 142 237.71 27.10 80
20PSRFBS2008-12-20 04:43:072008-12-20 04:50:35 00:07:28 142 270.28 142 297.51 34.30 7
21PSRFBS2008-12-20 05:11:012008-12-20 05:22:07 00:11:06 188 12.03 188 52.51 34.30 7
22AV2OBS2008-12-20 05:42:442008-12-20 05:47:50 00:05:06 188 127.76 188 146.36 0.00 -
23PSMOB12008-12-20 06:15:132008-12-20 06:17:49 00:02:36 188 246.15 188 255.64 -1.20 -
24AV2OBS2008-12-20 06:17:282008-12-20 06:19:20 00:01:52 188 254.36 188 261.17 21.50 -
25PSRFBS2008-12-20 06:21:082008-12-20 06:25:18 00:04:10 188 267.73 188 282.93 34.30 7
26PSRFBS2008-12-20 07:00:382008-12-20 07:05:54 00:05:16 234 51.78 234 70.99 34.30 7
27PSRWB12008-12-20 07:10:122008-12-20 07:26:02 00:15:50 234 86.67 234 144.41 27.10 80
28PSRWB12008-12-20 07:30:232008-12-20 07:32:03 00:01:40 234 160.27 234 166.35 27.10 80
29AV2OBS2008-12-20 07:34:152008-12-20 07:36:43 00:02:28 234 174.44 234 183.43 0.00 -
30PSRFBS2008-12-20 08:39:342008-12-20 08:42:04 00:02:30 280 52.57 280 61.69 34.30 7
31PSRWB12008-12-20 08:53:232008-12-20 09:07:16 00:13:53 280 102.96 280 153.59 27.10 80
32PSMOB12008-12-20 09:05:132008-12-20 09:07:49 00:02:36 280 146.11 280 155.59 -1.20 -
33PSRWB12008-12-20 09:08:482008-12-20 09:17:52 00:09:04 280 159.24 280 192.30 27.10 80
34PSRFBS2008-12-20 10:16:422008-12-20 10:18:48 00:02:06 326 46.80 326 54.46 34.30 7
35PSRFBS2008-12-20 10:35:022008-12-20 10:36:54 00:01:52 326 113.66 326 120.46 34.30 7
36AV2OBS2008-12-20 10:44:192008-12-20 10:47:07 00:02:48 326 147.51 326 157.72 0.00 -
37PSRFBS2008-12-20 11:30:062008-12-20 11:33:14 00:03:08 326 314.47 326 325.90 34.30 7
38PSRFBS2008-12-20 11:35:512008-12-20 11:39:13 00:03:22 326 335.44 326 347.72 34.30 7
39PSRFBS2008-12-20 11:55:022008-12-20 11:56:56 00:01:54 372 45.40 372 52.33 34.30 7
40PSRWB12008-12-20 12:32:172008-12-20 12:39:15 00:06:58 372 181.24 372 206.65 27.10 80
41PSRFBS2008-12-20 13:04:502008-12-20 13:06:42 00:01:52 372 299.94 372 306.75 34.30 7
42PSRFBS2008-12-20 13:09:492008-12-20 13:21:21 00:11:32 372 318.12 418 0.18 34.30 7
43PSRFBS2008-12-20 13:22:422008-12-20 13:24:34 00:01:52 418 5.11 418 11.91 34.30 7
44PSRFBS2008-12-20 13:25:502008-12-20 13:27:42 00:01:52 418 16.53 418 23.34 34.30 7
45PSRFBS2008-12-20 13:29:112008-12-20 13:42:09 00:12:58 418 28.75 418 76.03 34.30 7
46PSRWB12008-12-20 13:45:492008-12-20 13:54:52 00:09:03 418 89.41 418 122.41 27.10 80
47PSRWB12008-12-20 13:56:542008-12-20 13:58:46 00:01:52 418 129.82 418 136.63 27.10 80
48PSRWB12008-12-20 14:07:382008-12-20 14:15:30 00:07:52 418 168.90 418 197.59 27.10 80
49PSMOB12008-12-20 14:18:132008-12-20 14:20:49 00:02:36 418 207.50 418 216.98 -1.20 -
50AV2OBS2008-12-20 14:18:462008-12-20 14:20:50 00:02:04 418 209.57 418 217.10 0.00 -
51PSRWB12008-12-20 14:21:532008-12-20 14:26:05 00:04:12 418 220.93 418 236.25 27.10 80
52PSRWB12008-12-20 14:33:442008-12-20 14:35:54 00:02:10 418 264.15 418 272.05 27.10 80
53PSRFBS2008-12-20 14:39:432008-12-20 14:41:35 00:01:52 418 285.97 418 292.77 34.30 7
54PSRFBS2008-12-20 14:49:322008-12-20 15:02:18 00:12:46 418 321.76 464 8.33 34.30 7
55PSRFBS2008-12-20 15:04:142008-12-20 15:21:30 00:17:16 464 15.38 464 78.34 34.30 7
56PSRFBS2008-12-20 15:43:052008-12-20 15:48:05 00:05:00 464 156.99 464 175.23 34.30 7
57PSRWB12008-12-20 16:10:252008-12-20 16:14:37 00:04:12 464 256.73 464 272.05 27.10 80
58PSRFBS2008-12-20 16:43:132008-12-20 16:59:25 00:16:12 510 16.35 510 75.43 34.30 7
59PSRWB12008-12-20 17:02:312008-12-20 17:07:21 00:04:50 510 86.73 510 104.36 27.10 80
60PSRWB12008-12-20 17:10:372008-12-20 17:18:13 00:07:36 510 116.27 510 143.99 27.10 80
61PSMOB12008-12-20 17:14:552008-12-20 17:17:31 00:02:36 510 131.95 510 141.43 -1.20 -
62PSRFBD2008-12-20 17:19:532008-12-20 17:23:15 00:03:22 510 150.00 510 162.28 34.30 43
63PSRWB12008-12-20 17:47:292008-12-20 17:53:03 00:05:34 510 250.71 510 271.01 27.10 80
64PSRFBS2008-12-20 17:57:242008-12-20 17:59:20 00:01:56 510 286.88 510 293.93 34.30 7
65PSRFBS2008-12-20 18:23:212008-12-20 18:35:01 00:11:40 556 21.52 556 64.06 34.30 7
66PSRWB12008-12-20 18:41:142008-12-20 18:56:43 00:15:29 556 86.67 556 143.13 27.10 80
67PSMOB12008-12-20 18:54:572008-12-20 18:58:03 00:03:06 556 136.75 556 148.06 -1.20 -
68PSRWB12008-12-20 19:25:562008-12-20 19:30:44 00:04:48 556 249.68 556 267.18 27.10 80
69PSRFBS2008-12-20 19:34:572008-12-20 19:38:03 00:03:06 556 282.62 556 293.93 34.30 7
70PSRFBS2008-12-20 19:54:402008-12-20 20:13:46 00:19:06 556 354.52 602 64.18 34.30 7
71PSRPLR2008-12-20 20:15:082008-12-20 20:16:36 00:01:28 602 69.17 602 74.52 21.50 127
72PSRFBD2008-12-20 20:39:042008-12-20 20:41:04 00:02:00 602 156.45 602 163.74 34.30 43
73PSRWB12008-12-20 20:43:302008-12-20 20:45:54 00:02:24 602 172.55 602 181.30 27.10 80
74PSRWB12008-12-20 20:47:212008-12-20 20:51:29 00:04:08 602 186.59 602 201.66 27.10 80
75PSMOB12008-12-20 20:49:242008-12-20 20:51:48 00:02:24 602 194.13 602 202.88 -1.20 -
76PSRFBS2008-12-20 21:11:252008-12-20 21:16:43 00:05:18 602 274.42 602 293.74 34.30 7
77PSRFBS2008-12-20 21:24:192008-12-20 21:45:45 00:21:26 602 321.40 648 39.57 34.30 7
78PSRFBS2008-12-20 21:46:392008-12-20 21:50:31 00:03:52 648 42.91 648 57.01 34.30 7
79PSRFBS2008-12-20 22:08:192008-12-20 22:10:09 00:01:50 648 121.86 648 128.55 34.30 7
80PSRWB12008-12-20 22:23:332008-12-20 22:27:25 00:03:52 648 177.41 648 191.51 27.10 80
81PSRWB12008-12-20 22:31:132008-12-20 22:33:33 00:02:20 648 205.37 648 213.88 27.10 80
82PSMOB12008-12-20 22:34:522008-12-20 22:38:24 00:03:32 648 218.68 648 231.57 -1.20 -
83PSRWB12008-12-20 22:38:522008-12-20 22:40:36 00:01:44 648 233.27 648 239.59 27.10 80
84PSRFBS2008-12-20 22:50:072008-12-20 22:53:37 00:03:30 648 274.30 648 287.06 34.30 7
85PSRFBS2008-12-20 23:13:432008-12-20 23:22:23 00:08:40 23 0.43 23 32.03 34.30 7
86PSRFBS2008-12-20 23:31:382008-12-20 23:34:50 00:03:12 23 65.76 23 77.43 34.30 7
87PSRWB12008-12-20 23:37:222008-12-20 23:44:12 00:06:50 23 86.61 23 111.53 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
4 -1.903052008-12-19 22:32:49165.757162008-12-19 23:22:11
50-26.582632008-12-20 00:11:32141.077582008-12-20 01:00:54
96-51.262222008-12-20 01:50:15116.397992008-12-20 02:39:37
142-75.941802008-12-20 03:28:58 91.718412008-12-20 04:18:20
188-100.621382008-12-20 05:07:41 67.038832008-12-20 05:57:03
234-125.300962008-12-20 06:46:25 42.359242008-12-20 07:35:46
280-149.980552008-12-20 08:25:08 17.679662008-12-20 09:14:29
326-174.660132008-12-20 10:03:51 -6.999922008-12-20 10:53:12
372160.660292008-12-20 11:42:34-31.679502008-12-20 12:31:55
418135.980702008-12-20 13:21:17-56.359092008-12-20 14:10:39
464111.301122008-12-20 15:00:00-81.038672008-12-20 15:49:22
510 86.621542008-12-20 16:38:43-105.718252008-12-20 17:28:05
556 61.941962008-12-20 18:17:26-130.397832008-12-20 19:06:48
602 37.262372008-12-20 19:56:09-155.077422008-12-20 20:45:31
648 12.582792008-12-20 21:34:52-179.757002008-12-20 22:24:14
23-12.096792008-12-20 23:13:36155.563422008-12-21 00:02:57
