>ALOS Data Take Simulation(Nov. 17, 2008)

Observation Area

PRISM

AVNIR-2

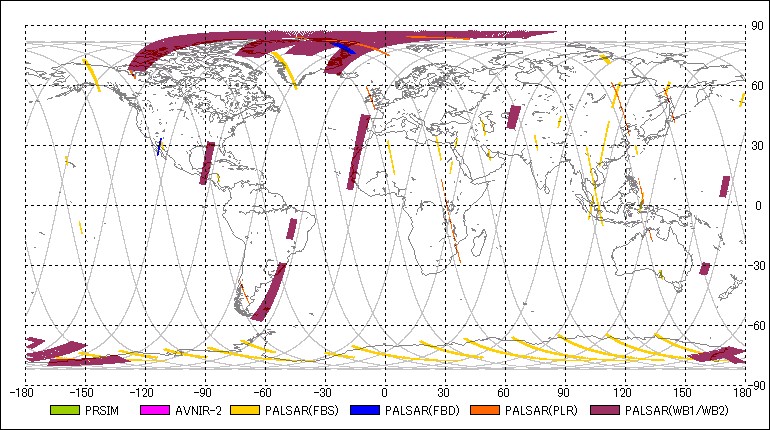

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-11-17 00:05:112008-11-17 00:11:05 00:05:54 21 203.73 21 225.25 0.00 -
2AV2OBS2008-11-17 00:15:142008-11-17 00:18:02 00:02:48 21 240.38 21 250.59 0.00 -
3PSRFBS2008-11-17 01:03:302008-11-17 01:09:16 00:05:46 67 56.34 67 77.37 34.30 7
4PSRFBS2008-11-17 01:20:022008-11-17 01:22:22 00:02:20 67 116.70 67 125.20 34.30 7
5AV2OBS2008-11-17 01:23:072008-11-17 01:29:21 00:06:14 67 127.94 67 150.67 0.00 -
6PSMOB22008-11-17 01:23:142008-11-17 01:33:08 00:09:54 67 128.37 67 164.47 0.00 -
7PSRFBS2008-11-17 01:35:192008-11-17 01:38:45 00:03:26 67 172.43 67 184.95 34.30 7
8PSMOB22008-11-17 01:36:372008-11-17 01:47:57 00:11:20 67 177.17 67 218.50 0.00 -
9AV2OBS2008-11-17 01:40:042008-11-17 01:47:12 00:07:08 67 189.75 67 215.77 0.00 -
10PSRFBS2008-11-17 02:01:282008-11-17 02:06:30 00:05:02 67 267.73 67 286.09 34.30 7
11PSRFBS2008-11-17 02:58:452008-11-17 03:02:57 00:04:12 113 116.70 113 132.01 34.30 7
12AV2OBS2008-11-17 03:00:352008-11-17 03:12:09 00:11:34 113 123.32 113 165.50 0.00 -
13PSRFBS2008-11-17 03:04:172008-11-17 03:11:05 00:06:48 113 136.81 113 161.61 34.30 7
14PSMOB22008-11-17 03:14:252008-11-17 03:20:25 00:06:00 113 173.77 113 195.65 0.00 -
15PSRFBS2008-11-17 03:14:252008-11-17 03:18:27 00:04:02 113 173.77 113 188.48 34.30 7
16AV2OBS2008-11-17 03:15:202008-11-17 03:19:14 00:03:54 113 177.11 113 191.33 0.00 -
17PSRFBS2008-11-17 03:42:012008-11-17 03:43:53 00:01:52 113 274.48 113 281.29 34.30 7
18PSRPLR2008-11-17 03:51:172008-11-17 03:55:09 00:03:52 113 308.27 113 322.37 23.10 128
19PSRFBS2008-11-17 04:08:052008-11-17 04:09:57 00:01:52 159 9.54 159 16.35 34.30 7
20AV2OBS2008-11-17 04:34:462008-11-17 04:36:38 00:01:52 159 106.79 159 113.60 0.00 -
21AV2OBS2008-11-17 04:38:542008-11-17 04:44:22 00:05:28 159 121.92 159 141.86 0.00 -
22PSRFBS2008-11-17 04:42:192008-11-17 04:44:27 00:02:08 159 134.32 159 142.10 34.30 7
23AV2OBS2008-11-17 04:46:392008-11-17 04:48:49 00:02:10 159 150.12 159 158.03 0.00 -
24PSMOB22008-11-17 04:46:392008-11-17 04:49:23 00:02:44 159 150.12 159 160.09 0.00 -
25AV2OBS2008-11-17 05:14:042008-11-17 05:16:32 00:02:28 159 250.11 159 259.10 -34.30 -
26PSRFBS2008-11-17 05:22:022008-11-17 05:24:54 00:02:52 159 279.16 159 289.61 34.30 7
27PSRFBS2008-11-17 05:51:152008-11-17 05:53:13 00:01:58 205 25.71 205 32.88 34.30 25
28PSRPLR2008-11-17 06:01:182008-11-17 06:03:10 00:01:52 205 62.36 205 69.17 21.50 127
29AV2OBS2008-11-17 06:12:392008-11-17 06:14:31 00:01:52 205 103.81 205 110.62 0.00 -
30PSRWB12008-11-17 06:19:332008-11-17 06:23:15 00:03:42 205 128.91 205 142.41 27.10 80
31PSMOB22008-11-17 06:21:132008-11-17 06:23:33 00:02:20 205 135.05 205 143.56 0.00 -
32AV2OBS2008-11-17 06:24:012008-11-17 06:27:53 00:03:52 205 145.20 205 159.30 0.00 -
33AV2OBS2008-11-17 06:52:122008-11-17 06:54:04 00:01:52 205 247.98 205 254.79 21.50 -
34PSRFBS2008-11-17 06:57:362008-11-17 07:02:22 00:04:46 205 267.67 205 285.05 34.30 7
35PSRFBS2008-11-17 07:37:592008-11-17 07:43:09 00:05:10 251 54.94 251 73.79 34.30 7
36PSMOB12008-11-17 07:54:222008-11-17 07:59:30 00:05:08 251 114.69 251 133.41 1.20 -
37AV2OBS2008-11-17 07:55:062008-11-17 07:58:58 00:03:52 251 117.36 251 131.46 0.00 -
38PSRFBS2008-11-17 08:02:432008-11-17 08:04:35 00:01:52 251 145.14 251 151.95 34.30 7
39PSMOB12008-11-17 08:05:102008-11-17 08:17:02 00:11:52 251 154.07 251 197.35 1.20 -
40PSRFBS2008-11-17 08:05:562008-11-17 08:08:14 00:02:18 251 156.93 251 165.32 34.30 7
41AV2OBS2008-11-17 08:17:302008-11-17 08:21:02 00:03:32 251 199.05 251 211.94 -41.50 -
42PSRFBS2008-11-17 08:38:092008-11-17 08:40:45 00:02:36 251 274.42 251 283.90 34.30 7
43PSRFBS2008-11-17 08:57:092008-11-17 08:59:27 00:02:18 251 343.64 251 352.03 34.30 7
44PSRFBS2008-11-17 09:06:312008-11-17 09:08:23 00:01:52 297 17.81 297 24.62 34.30 7
45PSMOB12008-11-17 09:40:372008-11-17 09:52:23 00:11:46 297 142.16 297 185.07 1.20 -
46AV2OBS2008-11-17 09:45:492008-11-17 09:51:41 00:05:52 297 161.13 297 182.52 0.00 -
47PSRFBS2008-11-17 10:16:522008-11-17 10:19:12 00:02:20 297 274.42 297 282.93 34.30 7
48AV2OBS2008-11-17 11:14:302008-11-17 11:16:28 00:01:58 343 124.54 343 131.71 0.00 -
49PSRWB12008-11-17 11:16:542008-11-17 11:27:49 00:10:55 343 133.29 343 173.10 27.10 80
50PSMOB12008-11-17 11:19:072008-11-17 11:28:23 00:09:16 343 141.37 343 175.17 1.20 -
51PSRFBS2008-11-17 11:53:452008-11-17 11:57:27 00:03:42 343 267.67 343 281.16 34.30 7
52PSRPLR2008-11-17 12:29:582008-11-17 12:31:50 00:01:52 389 39.75 389 46.56 21.50 127
53PSRPLR2008-11-17 12:32:542008-11-17 12:35:24 00:02:30 389 50.45 389 59.56 23.10 128
54PSRWB12008-11-17 12:42:512008-11-17 12:50:28 00:07:37 389 86.73 389 114.51 27.10 80
55PSRWB12008-11-17 13:09:572008-11-17 13:13:21 00:03:24 389 185.56 389 197.96 27.10 80
56PSRWB12008-11-17 13:16:042008-11-17 13:24:53 00:08:49 389 207.86 389 240.02 27.10 80
57PSRFBS2008-11-17 13:32:172008-11-17 13:35:13 00:02:56 389 267.00 389 277.70 34.30 7
58PSRFBS2008-11-17 13:47:012008-11-17 13:48:53 00:01:52 389 320.73 389 327.54 21.50 3
59PSRPLR2008-11-17 13:52:302008-11-17 13:54:32 00:02:02 389 340.73 389 348.14 21.50 127
60PSRPLR2008-11-17 13:57:282008-11-17 14:01:36 00:04:08 389 358.84 435 13.92 23.10 128
61PSRFBS2008-11-17 14:04:112008-11-17 14:06:03 00:01:52 435 23.34 435 30.15 34.30 7
62PSRPLR2008-11-17 14:06:492008-11-17 14:14:53 00:08:04 435 32.94 435 62.36 23.10 128
63PSRFBS2008-11-17 14:16:482008-11-17 14:18:40 00:01:52 435 69.35 435 76.16 34.30 7
64PSRWB12008-11-17 14:21:342008-11-17 14:26:31 00:04:57 435 86.73 435 104.78 27.10 80
65AV2OBS2008-11-17 14:27:382008-11-17 14:31:22 00:03:44 435 108.86 435 122.47 0.00 -
66PSMOB12008-11-17 14:42:512008-11-17 14:52:23 00:09:32 435 164.35 435 199.11 1.20 -
67AV2OBS2008-11-17 14:43:332008-11-17 14:51:39 00:08:06 435 166.90 435 196.44 0.00 -
68PSRWB12008-11-17 15:09:302008-11-17 15:12:22 00:02:52 435 261.53 435 271.99 27.10 80
69PSRFBS2008-11-17 15:13:082008-11-17 15:18:18 00:05:10 435 274.78 435 293.62 34.30 7
70PSRFBS2008-11-17 15:33:062008-11-17 15:44:42 00:11:36 435 347.60 481 29.90 34.30 7
71PSRPLR2008-11-17 15:59:382008-11-17 16:01:30 00:01:52 481 84.30 481 91.11 21.50 127
72PSRWB12008-11-17 16:02:172008-11-17 16:05:27 00:03:10 481 94.03 481 105.57 27.10 80
73PSMOB12008-11-17 16:07:112008-11-17 16:20:13 00:13:02 481 111.89 481 159.42 1.20 -
74PSRWB12008-11-17 16:16:472008-11-17 16:23:17 00:06:30 481 146.90 481 170.61 27.10 80
75PSMOB12008-11-17 16:24:222008-11-17 16:27:32 00:03:10 481 174.50 481 186.04 1.20 -
76PSRFBS2008-11-17 16:49:562008-11-17 16:57:00 00:07:04 481 267.79 481 293.56 34.30 7
77PSRFBS2008-11-17 17:22:142008-11-17 17:24:52 00:02:38 527 25.59 527 35.19 34.30 7
78PSRFBD2008-11-17 17:54:592008-11-17 17:58:01 00:03:02 527 145.02 527 156.08 34.30 43
79AV2OBS2008-11-17 17:56:402008-11-17 17:58:50 00:02:10 527 151.10 527 159.00 0.00 -
80PSRWB12008-11-17 18:23:582008-11-17 18:28:10 00:04:12 527 250.71 527 266.03 27.10 80
81PSMOB12008-11-17 18:24:392008-11-17 18:27:39 00:03:00 527 253.21 527 264.15 1.20 -
82PSRFBS2008-11-17 18:29:212008-11-17 18:35:33 00:06:12 527 270.34 527 292.95 34.30 7
83PSRFBS2008-11-17 18:59:342008-11-17 19:01:30 00:01:56 573 20.54 573 27.59 34.30 7
84PSRFBS2008-11-17 19:03:012008-11-17 19:05:39 00:02:38 573 33.12 573 42.73 34.30 7
85PSRWB12008-11-17 19:17:432008-11-17 19:24:52 00:07:09 573 86.67 573 112.75 27.10 80
86AV2OBS2008-11-17 19:47:562008-11-17 19:49:48 00:01:52 573 196.92 573 203.73 -41.50 -
87PSRWB12008-11-17 20:01:582008-11-17 20:06:22 00:04:24 573 248.10 573 264.15 27.10 80
88PSRFBS2008-11-17 20:07:282008-11-17 20:13:52 00:06:24 573 268.10 573 291.44 34.30 7
89PSRPLR2008-11-17 20:24:112008-11-17 20:36:21 00:12:10 573 329.12 619 13.49 23.10 128
90PSRFBS2008-11-17 20:38:172008-11-17 20:42:09 00:03:52 619 20.54 619 34.64 34.30 7
91PSRPLR2008-11-17 20:53:012008-11-17 20:56:53 00:03:52 619 74.21 619 88.31 21.50 127
92AV2OBS2008-11-17 21:15:382008-11-17 21:17:30 00:01:52 619 156.75 619 163.56 21.50 -
93PSMOB12008-11-17 21:23:382008-11-17 21:26:14 00:02:36 619 185.92 619 195.40 1.20 -
94AV2OBS2008-11-17 21:24:242008-11-17 21:26:16 00:01:52 619 188.72 619 195.53 0.00 -
95AV2OBS2008-11-17 21:40:332008-11-17 21:42:41 00:02:08 619 247.61 619 255.39 0.00 -
96PSRFBS2008-11-17 21:46:042008-11-17 21:52:24 00:06:20 619 267.73 619 290.83 34.30 7
97PSRFBS2008-11-17 22:15:042008-11-17 22:20:18 00:05:14 665 13.43 665 32.52 34.30 7
98PSRPLR2008-11-17 22:24:032008-11-17 22:27:55 00:03:52 665 46.19 665 60.29 21.50 127
99PSRFBD2008-11-17 22:31:492008-11-17 22:33:59 00:02:10 665 74.58 665 82.48 34.30 43
100PSRFBS2008-11-17 22:44:572008-11-17 22:47:27 00:02:30 665 122.47 665 131.59 34.30 7
101AV2OBS2008-11-17 22:52:102008-11-17 22:54:02 00:01:52 665 148.73 665 155.53 34.30 -
102PSRWB12008-11-17 22:56:242008-11-17 22:59:50 00:03:26 665 164.22 665 176.75 27.10 80
103PSMOB12008-11-17 22:57:282008-11-17 23:00:18 00:02:50 665 168.11 665 178.45 1.20 -
104AV2OBS2008-11-17 23:05:582008-11-17 23:07:50 00:01:52 665 199.11 665 205.92 0.00 -
105PSRWB12008-11-17 23:08:252008-11-17 23:10:35 00:02:10 665 208.05 665 215.95 27.10 80
106PSRFBS2008-11-17 23:26:372008-11-17 23:30:39 00:04:02 665 274.36 665 289.06 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
21-11.023772008-11-16 23:09:18156.636442008-11-16 23:58:40
67-35.703352008-11-17 00:48:01131.956862008-11-17 01:37:23
113-60.382932008-11-17 02:26:44107.277282008-11-17 03:16:06
159-85.062512008-11-17 04:05:27 82.597692008-11-17 04:54:49
205-109.742102008-11-17 05:44:10 57.918112008-11-17 06:33:32
251-134.421682008-11-17 07:22:54 33.238532008-11-17 08:12:15
297-159.101262008-11-17 09:01:37 8.558952008-11-17 09:50:58
343176.219152008-11-17 10:40:20-16.120642008-11-17 11:29:41
389151.539572008-11-17 12:19:03-40.800222008-11-17 13:08:24
435126.859992008-11-17 13:57:46-65.479802008-11-17 14:47:07
481102.180412008-11-17 15:36:29-90.159382008-11-17 16:25:51
527 77.500822008-11-17 17:15:12-114.838972008-11-17 18:04:34
573 52.821242008-11-17 18:53:55-139.518552008-11-17 19:43:17
619 28.141662008-11-17 20:32:38-164.198132008-11-17 21:22:00
665 3.462082008-11-17 22:11:21171.122282008-11-17 23:00:43
40-21.217512008-11-17 23:50:05146.442702008-11-18 00:39:26
