>ALOS Data Take Simulation(Nov. 13, 2008)

Observation Area

PRISM

AVNIR-2

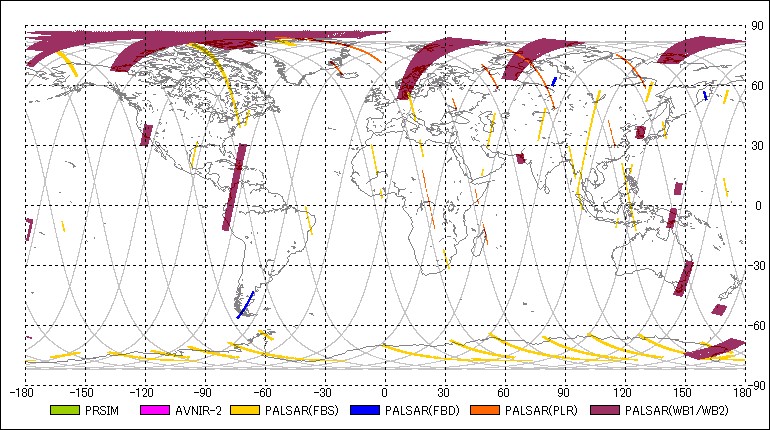

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2008-11-13 00:05:152008-11-13 00:07:07 00:01:52 37 78.77 37 85.58 34.30 7
2AV2OBS2008-11-13 00:25:472008-11-13 00:27:39 00:01:52 37 153.59 37 160.40 0.00 -
3PSRWB12008-11-13 00:29:392008-11-13 00:31:51 00:02:12 37 167.69 37 175.71 27.10 80
4PSMOB12008-11-13 00:32:072008-11-13 00:36:55 00:04:48 37 176.75 37 194.25 1.20 -
5AV2OBS2008-11-13 00:32:562008-11-13 00:36:12 00:03:16 37 179.72 37 191.64 0.00 -
6PSRWB12008-11-13 00:33:092008-11-13 00:36:25 00:03:16 37 180.45 37 192.37 27.10 80
7PSMOB12008-11-13 00:38:442008-11-13 00:44:56 00:06:12 37 200.81 37 223.42 1.20 -
8AV2OBS2008-11-13 00:39:242008-11-13 00:44:08 00:04:44 37 203.31 37 220.57 0.00 -
9PSRFBS2008-11-13 00:57:052008-11-13 01:02:15 00:05:10 37 267.73 37 286.57 34.30 7
10PSRFBS2008-11-13 01:17:432008-11-13 01:22:19 00:04:36 37 343.04 37 359.81 34.30 7
11PSRWB12008-11-13 01:43:452008-11-13 01:52:17 00:08:32 83 77.92 83 109.04 27.10 80
12PSRFBS2008-11-13 01:54:222008-11-13 01:57:40 00:03:18 83 116.70 83 128.73 34.30 7
13PSMOB22008-11-13 01:56:032008-11-13 02:05:17 00:09:14 83 122.77 83 156.45 0.00 -
14AV2OBS2008-11-13 01:56:302008-11-13 02:05:12 00:08:42 83 124.48 83 156.20 0.00 -
15PSRWB12008-11-13 02:00:332008-11-13 02:02:47 00:02:14 83 139.24 83 147.39 27.10 80
16PSRFBS2008-11-13 02:05:452008-11-13 02:07:37 00:01:52 83 158.15 83 164.95 34.30 7
17PSMOB22008-11-13 02:08:052008-11-13 02:22:45 00:14:40 83 166.66 83 220.14 0.00 -
18PSRFBS2008-11-13 02:13:162008-11-13 02:15:08 00:01:52 83 185.62 83 192.43 41.50 10
19AV2OBS2008-11-13 02:16:202008-11-13 02:21:56 00:05:36 83 196.80 83 217.22 0.00 -
20PSRFBS2008-11-13 03:11:102008-11-13 03:24:02 00:12:52 129 36.77 129 83.69 34.30 7
21AV2OBS2008-11-13 03:29:502008-11-13 03:31:42 00:01:52 129 104.84 129 111.65 0.00 -
22PSRFBS2008-11-13 03:34:152008-11-13 03:49:11 00:14:56 129 120.89 129 175.35 34.30 7
23AV2OBS2008-11-13 03:36:072008-11-13 03:52:51 00:16:44 129 127.76 129 188.78 0.00 -
24PSMOB22008-11-13 03:36:072008-11-13 03:52:01 00:15:54 129 127.76 129 185.74 0.00 -
25PSRFBS2008-11-13 04:19:572008-11-13 04:22:03 00:02:06 129 287.61 129 295.26 34.30 7
26AV2OBS2008-11-13 05:08:162008-11-13 05:10:36 00:02:20 175 103.81 175 112.32 0.00 -
27PSRFBD2008-11-13 05:11:102008-11-13 05:13:02 00:01:52 175 114.33 175 121.13 34.30 43
28PSRFBS2008-11-13 05:15:262008-11-13 05:20:38 00:05:12 175 129.88 175 148.85 34.30 7
29AV2OBS2008-11-13 05:16:502008-11-13 05:20:26 00:03:36 175 135.05 175 148.18 0.00 -
30AV2OBS2008-11-13 05:48:252008-11-13 05:50:17 00:01:52 175 250.17 175 256.97 -21.50 -
31PSRFBS2008-11-13 05:53:142008-11-13 05:58:52 00:05:38 175 267.73 175 288.27 34.30 7
32PSRWB12008-11-13 06:44:272008-11-13 06:50:46 00:06:19 221 94.51 221 117.55 27.10 80
33PSRFBS2008-11-13 06:54:542008-11-13 07:00:18 00:05:24 221 132.62 221 152.31 34.30 7
34AV2OBS2008-11-13 06:55:022008-11-13 07:01:18 00:06:16 221 133.11 221 155.96 0.00 -
35PSMOB12008-11-13 06:56:162008-11-13 07:02:04 00:05:48 221 137.60 221 158.75 1.20 -
36PSRFBS2008-11-13 07:02:362008-11-13 07:04:04 00:01:28 221 160.70 221 166.05 34.30 7
37PSMOB12008-11-13 07:10:382008-11-13 07:16:00 00:05:22 221 190.00 221 209.57 1.20 -
38AV2OBS2008-11-13 07:12:392008-11-13 07:15:15 00:02:36 221 197.35 221 206.83 0.00 -
39AV2OBS2008-11-13 07:26:222008-11-13 07:28:24 00:02:02 221 247.37 221 254.79 41.50 -
40PSRFBS2008-11-13 07:33:462008-11-13 07:36:52 00:03:06 221 274.42 221 285.72 34.30 7
41AV2OBS2008-11-13 07:40:232008-11-13 07:42:15 00:01:52 221 298.49 221 305.29 0.00 -
42AV2OBS2008-11-13 07:44:302008-11-13 07:46:22 00:01:52 221 313.50 221 320.31 0.00 -
43AV2OBS2008-11-13 07:48:372008-11-13 07:50:29 00:01:52 221 328.51 221 335.32 0.00 -
44AV2OBS2008-11-13 07:52:442008-11-13 07:54:36 00:01:52 221 343.52 221 350.33 0.00 -
45AV2OBS2008-11-13 07:56:512008-11-13 07:58:43 00:01:52 221 358.54 267 5.35 0.00 -
46AV2OBS2008-11-13 08:00:582008-11-13 08:02:50 00:01:52 267 13.55 267 20.36 0.00 -
47AV2OBS2008-11-13 08:05:042008-11-13 08:06:56 00:01:52 267 28.51 267 35.31 0.00 -
48AV2OBS2008-11-13 08:09:112008-11-13 08:11:03 00:01:52 267 43.52 267 50.33 0.00 -
49AV2OBS2008-11-13 08:13:172008-11-13 08:15:09 00:01:52 267 58.47 267 65.28 0.00 -
50PSRFBS2008-11-13 08:14:282008-11-13 08:19:02 00:04:34 267 62.78 267 79.44 34.30 7
51AV2OBS2008-11-13 08:29:262008-11-13 08:32:14 00:02:48 267 117.36 267 127.58 0.00 -
52AV2OBS2008-11-13 08:33:462008-11-13 08:37:38 00:03:52 267 133.17 267 147.27 0.00 -
53AV2OBS2008-11-13 08:41:302008-11-13 08:49:44 00:08:14 267 161.37 267 191.39 0.00 -
54AV2OBS2008-11-13 08:51:262008-11-13 08:54:40 00:03:14 267 197.59 267 209.38 21.50 -
55PSRFBS2008-11-13 09:12:302008-11-13 09:14:50 00:02:20 267 274.42 267 282.93 34.30 7
56PSRFBS2008-11-13 09:31:452008-11-13 09:33:47 00:02:02 267 344.62 267 352.03 34.30 7
57AV2CA12008-11-13 09:35:342008-11-13 09:43:22 00:07:48 267 358.54 313 26.99 0.00 -
58PSRWB12008-11-13 10:01:452008-11-13 10:10:56 00:09:11 313 94.03 313 127.51 27.10 80
59AV2OBS2008-11-13 10:12:062008-11-13 10:13:58 00:01:52 313 131.77 313 138.58 -21.50 -
60PSMOB12008-11-13 10:13:442008-11-13 10:24:58 00:11:14 313 137.73 313 178.69 1.20 -
61PSRFBS2008-11-13 10:49:232008-11-13 10:53:15 00:03:52 313 267.73 313 281.83 34.30 7
62PSRFBS2008-11-13 11:15:212008-11-13 11:18:29 00:03:08 359 2.43 359 13.86 34.30 7
63PSRFBD2008-11-13 11:28:372008-11-13 11:30:29 00:01:52 359 50.81 359 57.62 34.30 43
64PSMOB12008-11-13 11:54:492008-11-13 11:57:29 00:02:40 359 146.36 359 156.08 1.20 -
65PSRFBS2008-11-13 13:02:042008-11-13 13:05:02 00:02:58 405 31.61 405 42.42 34.30 7
66PSRPLR2008-11-13 13:09:052008-11-13 13:14:31 00:05:26 405 57.19 405 77.01 21.50 127
67PSMOB12008-11-13 13:41:122008-11-13 13:48:00 00:06:48 405 174.31 405 199.11 1.20 -
68AV2OBS2008-11-13 13:41:582008-11-13 13:48:52 00:06:54 405 177.11 405 202.27 0.00 -
69AV2OBS2008-11-13 13:51:242008-11-13 13:53:16 00:01:52 405 211.51 405 218.32 -41.50 -
70PSRFBD2008-11-13 13:54:282008-11-13 13:59:02 00:04:34 405 222.63 405 239.29 34.30 43
71PSRFBS2008-11-13 14:09:512008-11-13 14:12:33 00:02:42 405 278.79 405 288.64 34.30 7
72PSRFBS2008-11-13 14:28:042008-11-13 14:37:56 00:09:52 405 345.22 451 21.21 34.30 7
73PSRPLR2008-11-13 14:39:292008-11-13 14:43:53 00:04:24 451 26.86 451 42.91 23.10 128
74PSRFBS2008-11-13 15:08:002008-11-13 15:10:46 00:02:46 451 130.86 451 140.95 34.30 7
75PSRWB12008-11-13 15:12:402008-11-13 15:25:12 00:12:32 451 147.88 451 193.58 27.10 80
76PSMOB12008-11-13 15:16:512008-11-13 15:26:19 00:09:28 451 163.13 451 197.65 1.20 -
77PSRFBS2008-11-13 15:45:592008-11-13 15:52:27 00:06:28 451 269.31 451 292.89 34.30 7
78PSRFBS2008-11-13 16:09:422008-11-13 16:13:00 00:03:18 451 355.86 497 7.90 34.30 7
79PSRFBS2008-11-13 16:13:582008-11-13 16:18:58 00:05:00 497 11.43 497 29.66 34.30 7
80PSRPLR2008-11-13 16:23:432008-11-13 16:32:49 00:09:06 497 46.92 497 80.11 21.50 127
81AV2OBS2008-11-13 16:50:352008-11-13 16:52:27 00:01:52 497 144.96 497 151.77 0.00 -
82PSRFBS2008-11-13 16:51:092008-11-13 16:55:17 00:04:08 497 147.02 497 162.10 21.50 3
83PSRFBS2008-11-13 17:21:272008-11-13 17:23:19 00:01:52 497 257.52 497 264.33 34.30 7
84PSRFBS2008-11-13 17:26:062008-11-13 17:31:22 00:05:16 497 274.42 497 293.62 34.30 7
85PSRWB12008-11-13 17:54:472008-11-13 17:56:43 00:01:56 543 19.02 543 26.07 27.10 80
86PSRPLR2008-11-13 18:05:142008-11-13 18:09:18 00:04:04 543 57.19 543 72.02 21.50 127
87PSRWB12008-11-13 18:13:202008-11-13 18:16:18 00:02:58 543 86.73 543 97.55 27.10 80
88PSRWB12008-11-13 18:27:312008-11-13 18:31:01 00:03:30 543 138.45 543 151.22 27.10 80
89PSMOB12008-11-13 18:27:492008-11-13 18:30:25 00:02:36 543 139.55 543 149.03 1.20 -
90PSRFBS2008-11-13 19:00:532008-11-13 19:02:45 00:01:52 543 260.13 543 266.94 34.30 7
91PSRFBS2008-11-13 19:03:592008-11-13 19:09:37 00:05:38 543 271.44 543 291.98 34.30 7
92PSRPLR2008-11-13 19:22:102008-11-13 19:26:04 00:03:54 543 337.75 543 351.97 23.10 128
93PSRPLR2008-11-13 19:28:022008-11-13 19:30:44 00:02:42 543 359.14 589 9.00 21.50 127
94PSRPLR2008-11-13 19:41:092008-11-13 19:43:09 00:02:00 589 46.98 589 54.28 21.50 127
95PSRWB12008-11-13 19:52:032008-11-13 19:59:22 00:07:19 589 86.67 589 113.35 27.10 80
96PSMOB12008-11-13 20:18:592008-11-13 20:21:43 00:02:44 589 184.89 589 194.86 1.20 -
97AV2OBS2008-11-13 20:19:452008-11-13 20:23:45 00:04:00 589 187.75 589 202.33 0.00 -
98PSRWB12008-11-13 20:35:532008-11-13 20:40:09 00:04:16 589 246.58 589 262.14 27.10 80
99PSRFBS2008-11-13 20:41:472008-11-13 20:48:51 00:07:04 589 268.10 589 293.87 34.30 7
100PSRFBS2008-11-13 20:57:352008-11-13 21:00:57 00:03:22 589 325.71 589 337.99 34.30 7
101PSRPLR2008-11-13 21:03:142008-11-13 21:12:08 00:08:54 589 346.32 635 18.78 23.10 128
102PSRFBS2008-11-13 21:13:062008-11-13 21:16:02 00:02:56 635 22.31 635 33.00 34.30 7
103PSRFBS2008-11-13 21:18:012008-11-13 21:22:39 00:04:38 635 40.17 635 57.07 34.30 7
104PSRPLR2008-11-13 21:26:202008-11-13 21:31:16 00:04:56 635 70.50 635 88.49 21.50 127
105PSRWB12008-11-13 21:57:572008-11-13 22:02:25 00:04:28 635 185.80 635 202.09 27.10 80
106PSMOB12008-11-13 22:05:272008-11-13 22:08:37 00:03:10 635 213.15 635 224.70 1.20 -
107AV2OBS2008-11-13 22:06:192008-11-13 22:08:27 00:02:08 635 216.31 635 224.09 0.00 -
108PSRWB12008-11-13 22:10:022008-11-13 22:11:54 00:01:52 635 229.87 635 236.67 27.10 80
109PSRFBS2008-11-13 22:22:142008-11-13 22:26:26 00:04:12 635 274.42 635 289.73 34.30 7
110PSRFBS2008-11-13 22:46:062008-11-13 22:47:58 00:01:52 10 1.46 10 8.27 34.30 7
111PSRFBS2008-11-13 22:49:242008-11-13 22:54:12 00:04:48 10 13.43 10 30.94 34.30 7
112PSRPLR2008-11-13 23:03:222008-11-13 23:05:52 00:02:30 10 64.36 10 73.48 21.50 127
113PSRWB12008-11-13 23:09:302008-11-13 23:16:53 00:07:23 10 86.73 10 113.66 27.10 80
114PSRFBS2008-11-13 23:18:512008-11-13 23:21:17 00:02:26 10 120.89 10 129.76 34.30 7
115AV2OBS2008-11-13 23:31:092008-11-13 23:34:51 00:03:42 10 165.74 10 179.24 0.00 -
116AV2OBS2008-11-13 23:36:262008-11-13 23:38:44 00:02:18 10 184.95 10 193.34 0.00 -
117PSRWB12008-11-13 23:42:302008-11-13 23:47:58 00:05:28 10 207.07 10 227.01 27.10 80
118AV2OBS2008-11-13 23:51:372008-11-13 23:55:31 00:03:54 10 240.32 10 254.54 0.00 -
119PSRFBS2008-11-13 23:58:532008-11-14 00:01:23 00:02:30 10 266.82 10 275.94 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
37-19.607972008-11-12 23:43:38148.052242008-11-13 00:33:00
83-44.287552008-11-13 01:22:21123.372662008-11-13 02:11:43
129-68.967132008-11-13 03:01:04 98.693072008-11-13 03:50:26
175-93.646722008-11-13 04:39:48 74.013492008-11-13 05:29:09
221-118.326302008-11-13 06:18:31 49.333912008-11-13 07:07:52
267-143.005882008-11-13 07:57:14 24.654332008-11-13 08:46:35
313-167.685462008-11-13 09:35:57 -0.025262008-11-13 10:25:18
359167.634952008-11-13 11:14:40-24.704842008-11-13 12:04:01
405142.955372008-11-13 12:53:23-49.384422008-11-13 13:42:45
451118.275792008-11-13 14:32:06-74.064002008-11-13 15:21:28
497 93.596202008-11-13 16:10:49-98.743592008-11-13 17:00:11
543 68.916622008-11-13 17:49:32-123.423172008-11-13 18:38:54
589 44.237042008-11-13 19:28:15-148.102752008-11-13 20:17:37
635 19.557462008-11-13 21:06:59-172.782342008-11-13 21:56:20
10 -5.122132008-11-13 22:45:42162.538082008-11-13 23:35:03
