>ALOS Data Take Simulation(Oct. 11, 2008)

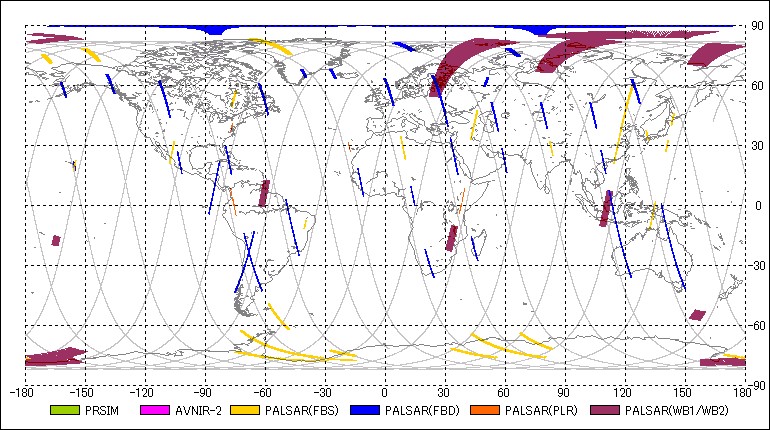

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2008-10-11 00:37:112008-10-11 00:39:03 00:01:52 54 62.18 54 68.98 34.30 43
2PSRFBS2008-10-11 00:40:252008-10-11 00:43:27 00:03:02 54 73.97 54 85.03 34.30 7
3PSRWB12008-10-11 00:45:112008-10-11 00:50:27 00:05:16 54 91.29 54 110.50 27.10 80
4PSRFBS2008-10-11 00:56:292008-10-11 00:58:45 00:02:16 54 132.50 54 140.76 34.30 7
5AV2OBS2008-10-11 00:56:522008-10-11 01:02:50 00:05:58 54 133.96 54 155.72 -34.30 -
6PSRFBS2008-10-11 01:00:162008-10-11 01:02:22 00:02:06 54 146.30 54 153.95 34.30 7
7PSMOB12008-10-11 01:05:272008-10-11 01:08:15 00:02:48 54 165.20 54 175.41 -1.20 -
8AV2OBS2008-10-11 01:06:112008-10-11 01:08:03 00:01:52 54 167.93 54 174.74 0.00 -
9PSRFBS2008-10-11 01:08:432008-10-11 01:13:15 00:04:32 54 177.11 54 193.64 34.30 7
10PSMOB12008-10-11 01:13:422008-10-11 01:20:30 00:06:48 54 195.28 54 220.08 -1.20 -
11AV2OBS2008-10-11 01:14:352008-10-11 01:18:45 00:04:10 54 198.50 54 213.70 0.00 -
12PSRFBD2008-10-11 01:51:152008-10-11 01:59:43 00:08:28 54 332.22 100 3.10 34.30 43
13PSRFBD2008-10-11 02:10:422008-10-11 02:15:42 00:05:00 100 43.21 100 61.45 34.30 43
14PSMOB12008-10-11 02:26:442008-10-11 02:32:38 00:05:54 100 101.62 100 123.14 -1.20 -
15AV2OBS2008-10-11 02:27:292008-10-11 02:31:53 00:04:24 100 104.36 100 120.40 0.00 -
16PSRFBS2008-10-11 02:30:522008-10-11 02:42:50 00:11:58 100 116.70 100 160.33 34.30 7
17AV2OBS2008-10-11 02:38:432008-10-11 02:41:51 00:03:08 100 145.32 100 156.75 0.00 -
18PSRWB12008-10-11 02:45:572008-10-11 02:51:23 00:05:26 100 171.70 100 191.51 27.10 80
19AV2OBS2008-10-11 02:48:042008-10-11 02:50:20 00:02:16 100 179.48 100 187.75 0.00 -
20PSRFBS2008-10-11 03:14:372008-10-11 03:16:29 00:01:52 100 276.24 100 283.05 34.30 7
21PSRFBS2008-10-11 03:19:252008-10-11 03:23:53 00:04:28 100 293.81 100 310.09 34.30 7
22PSRFBD2008-10-11 03:25:022008-10-11 03:33:46 00:08:44 100 314.23 100 346.08 34.30 43
23PSRPLR2008-10-11 03:35:422008-10-11 03:40:06 00:04:24 100 353.19 146 9.18 21.50 127
24PSRFBD2008-10-11 03:41:162008-10-11 03:45:44 00:04:28 146 13.43 146 29.72 34.30 43
25PSRFBD2008-10-11 04:00:292008-10-11 04:02:45 00:02:16 146 83.57 146 91.84 49.00 51
26AV2OBS2008-10-11 04:05:352008-10-11 04:11:23 00:05:48 146 102.17 146 123.32 0.00 -
27PSRFBS2008-10-11 04:51:372008-10-11 04:58:37 00:07:00 146 269.98 146 295.51 34.30 7
28PSRFBD2008-10-11 05:20:022008-10-11 05:23:44 00:03:42 192 13.61 192 27.11 34.30 43
29PSRFBD2008-10-11 05:27:452008-10-11 05:33:31 00:05:46 192 41.82 192 62.85 34.30 43
30PSRWB12008-10-11 05:42:032008-10-11 05:47:31 00:05:28 192 93.90 192 113.84 27.10 80
31PSMOB12008-10-11 05:42:312008-10-11 05:50:05 00:07:34 192 95.61 192 123.20 -1.20 -
32AV2OBS2008-10-11 05:45:342008-10-11 05:49:20 00:03:46 192 106.73 192 120.46 0.00 -
33PSMOB22008-10-11 05:53:212008-10-11 05:56:47 00:03:26 192 135.11 192 147.63 0.00 -
34AV2OBS2008-10-11 05:54:072008-10-11 05:56:01 00:01:54 192 137.97 192 144.90 0.00 -
35PSRFBS2008-10-11 06:29:422008-10-11 06:33:40 00:03:58 192 267.67 192 282.14 34.30 7
36PSRFBD2008-10-11 07:09:502008-10-11 07:13:12 00:03:22 238 54.03 238 66.31 34.30 43
37PSRFBS2008-10-11 07:14:232008-10-11 07:16:53 00:02:30 238 70.63 238 79.74 34.30 7
38PSRWB12008-10-11 07:18:482008-10-11 07:21:10 00:02:22 238 86.73 238 95.36 27.10 80
39PSMOB12008-10-11 07:22:252008-10-11 07:28:49 00:06:24 238 99.92 238 123.26 -1.20 -
40AV2OBS2008-10-11 07:23:062008-10-11 07:27:44 00:04:38 238 102.41 238 119.31 0.00 -
41PSRFBD2008-10-11 07:26:242008-10-11 07:28:16 00:01:52 238 114.45 238 121.25 34.30 43
42PSRFBS2008-10-11 07:30:552008-10-11 07:35:39 00:04:44 238 130.92 238 148.18 34.30 7
43PSMOB12008-10-11 07:39:282008-10-11 07:52:52 00:13:24 238 162.10 238 210.96 -1.20 -
44PSRPLR2008-10-11 07:41:342008-10-11 07:45:48 00:04:14 238 169.82 238 185.25 21.50 127
45PSRWB12008-10-11 07:46:542008-10-11 07:50:56 00:04:02 238 189.20 238 203.91 27.10 80
46PSRFBD2008-10-11 08:38:042008-10-11 08:40:00 00:01:56 284 15.80 284 22.85 9.90 36
47PSRFBD2008-10-11 08:47:592008-10-11 08:50:45 00:02:46 284 51.97 284 62.06 34.30 43
48PSRFBS2008-10-11 08:52:502008-10-11 08:54:42 00:01:52 284 69.65 284 76.46 34.30 7
49PSRWB12008-10-11 08:59:342008-10-11 09:08:25 00:08:51 284 94.21 284 126.48 27.10 80
50PSMOB12008-10-11 09:02:512008-10-11 09:07:29 00:04:38 284 106.18 284 123.08 -1.20 -
51PSMOB12008-10-11 09:12:462008-10-11 09:19:30 00:06:44 284 142.34 284 166.90 -1.20 -
52AV2OBS2008-10-11 09:17:402008-10-11 09:22:44 00:05:04 284 160.21 284 178.69 0.00 -
53PSRFBS2008-10-11 12:42:142008-10-11 12:44:06 00:01:52 376 186.23 376 193.03 34.30 7
54PSRFBD2008-10-11 13:17:412008-10-11 13:30:11 00:12:30 376 315.50 422 1.09 34.30 43
55PSRFBS2008-10-11 13:38:142008-10-11 13:40:16 00:02:02 422 30.45 422 37.87 34.30 7
56PSRFBD2008-10-11 13:43:182008-10-11 13:47:20 00:04:02 422 48.93 422 63.64 34.30 43
57AV2OBS2008-10-11 14:01:512008-10-11 14:03:43 00:01:52 422 116.57 422 123.38 0.00 -
58PSRWB12008-10-11 14:15:282008-10-11 14:19:42 00:04:14 422 166.23 422 181.67 27.10 80
59PSRFBD2008-10-11 14:22:332008-10-11 14:31:45 00:09:12 422 192.06 422 225.61 34.30 43
60PSRFBS2008-10-11 14:44:412008-10-11 14:46:33 00:01:52 422 272.72 422 279.52 34.30 7
61PSRFBD2008-10-11 14:58:002008-10-11 15:10:42 00:12:42 422 321.34 468 7.66 34.30 43
62PSRFBD2008-10-11 15:12:232008-10-11 15:16:15 00:03:52 468 13.80 468 27.90 34.30 43
63PSRFBD2008-10-11 15:18:382008-10-11 15:22:50 00:04:12 468 36.59 468 51.91 34.30 43
64PSRFBS2008-10-11 15:41:502008-10-11 15:44:44 00:02:54 468 121.13 468 131.71 34.30 7
65PSRPLR2008-10-11 15:46:142008-10-11 15:48:06 00:01:52 468 137.24 468 144.05 21.50 127
66AV2OBS2008-10-11 15:46:462008-10-11 15:48:38 00:01:52 468 139.12 468 145.93 -21.50 -
67PSRFBD2008-10-11 15:51:402008-10-11 15:59:30 00:07:50 468 156.99 468 185.56 34.30 43
68PSRWB12008-10-11 16:20:422008-10-11 16:23:10 00:02:28 468 262.93 468 271.93 27.10 80
69PSRFBS2008-10-11 16:53:322008-10-11 16:56:10 00:02:38 514 22.61 514 32.21 34.30 7
70PSRFBD2008-10-11 16:57:222008-10-11 17:01:34 00:04:12 514 36.59 514 51.91 34.30 43
71PSRFBD2008-10-11 17:07:202008-10-11 17:09:12 00:01:52 514 72.93 514 79.74 34.30 43
72PSRFBD2008-10-11 17:10:142008-10-11 17:12:30 00:02:16 514 83.57 514 91.84 49.00 51
73PSMOB12008-10-11 17:18:072008-10-11 17:23:27 00:05:20 514 112.26 514 131.71 -1.20 -
74AV2OBS2008-10-11 17:27:202008-10-11 17:29:12 00:01:52 514 145.93 514 152.74 -34.30 -
75PSRFBS2008-10-11 17:27:362008-10-11 17:31:12 00:03:36 514 146.90 514 160.03 34.30 7
76PSRWB12008-10-11 17:57:082008-10-11 18:01:28 00:04:20 514 254.60 514 270.41 27.10 80
77PSRFBD2008-10-11 18:29:552008-10-11 18:33:53 00:03:58 560 14.16 560 28.63 34.30 43
78PSRFBD2008-10-11 18:35:342008-10-11 18:40:14 00:04:40 560 34.77 560 51.78 34.30 43
79PSMOB12008-10-11 18:57:272008-10-11 19:06:11 00:08:44 560 114.57 560 146.42 -1.20 -
80AV2OBS2008-10-11 18:58:172008-10-11 19:05:15 00:06:58 560 117.55 560 142.95 0.00 -
81PSMOB12008-10-11 19:36:282008-10-11 19:39:12 00:02:44 560 256.79 560 266.76 -1.20 -
82PSRFBS2008-10-11 19:43:162008-10-11 19:46:38 00:03:22 560 281.65 560 293.93 34.30 7
83PSRFBD2008-10-11 19:56:312008-10-11 20:00:27 00:03:56 560 329.97 560 344.31 34.30 43
84PSRFBD2008-10-11 20:08:252008-10-11 20:14:05 00:05:40 606 13.37 606 34.04 34.30 43
85PSRFBD2008-10-11 20:15:032008-10-11 20:22:43 00:07:40 606 37.56 606 65.52 34.30 43
86PSRFBD2008-10-11 20:25:352008-10-11 20:27:27 00:01:52 606 75.97 606 82.78 34.30 43
87PSMOB12008-10-11 20:34:362008-10-11 20:38:54 00:04:18 606 108.79 606 124.48 -1.20 -
88AV2OBS2008-10-11 20:35:222008-10-11 20:38:06 00:02:44 606 111.59 606 121.56 0.00 -
89PSRFBS2008-10-11 20:47:362008-10-11 20:49:36 00:02:00 606 156.20 606 163.50 21.50 3
90PSMOB12008-10-11 20:52:112008-10-11 20:55:01 00:02:50 606 172.92 606 183.25 -1.20 -
91AV2OBS2008-10-11 20:52:572008-10-11 20:54:49 00:01:52 606 175.71 606 182.52 0.00 -
92PSRWB12008-10-11 20:58:042008-10-11 20:59:56 00:01:52 606 194.43 606 201.24 27.10 80
93PSRFBS2008-10-11 21:20:002008-10-11 21:25:14 00:05:14 606 274.42 606 293.50 34.30 7
94PSRFBD2008-10-11 21:32:482008-10-11 21:37:26 00:04:38 606 321.10 606 337.99 34.30 43
95PSRFBD2008-10-11 21:42:532008-10-11 21:46:05 00:03:12 606 357.87 652 9.54 34.30 43
96PSRFBS2008-10-11 21:49:102008-10-11 21:53:02 00:03:52 652 20.73 652 34.83 34.30 7
97PSRFBD2008-10-11 21:56:382008-10-11 22:01:06 00:04:28 652 47.95 652 64.24 34.30 43
98PSMOB12008-10-11 22:11:412008-10-11 22:19:13 00:07:32 652 102.84 652 130.31 -1.20 -
99AV2OBS2008-10-11 22:12:262008-10-11 22:19:18 00:06:52 652 105.57 652 130.61 0.00 -
100AV2OBS2008-10-11 22:33:252008-10-11 22:35:23 00:01:58 652 182.09 652 189.27 0.00 -
101PSRWB12008-10-11 22:47:162008-10-11 22:49:10 00:01:54 652 232.60 652 239.53 27.10 80
102PSRFBS2008-10-11 22:58:432008-10-11 23:01:27 00:02:44 652 274.36 652 284.32 34.30 7
103PSRFBD2008-10-11 23:22:452008-10-11 23:27:19 00:04:34 27 2.07 27 18.72 34.30 43
104PSRPLR2008-10-11 23:29:072008-10-11 23:30:59 00:01:52 27 25.22 27 32.03 21.50 127
105PSRFBD2008-10-11 23:39:082008-10-11 23:41:00 00:01:52 27 61.75 27 68.56 34.30 43
106PSMOB12008-10-11 23:50:462008-10-11 23:53:22 00:02:36 27 104.24 27 113.72 -1.20 -
107AV2OBS2008-10-11 23:51:322008-10-11 23:53:24 00:01:52 27 107.03 27 113.84 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
8 -4.049102008-10-10 22:41:24163.611112008-10-10 23:30:46
54-28.728682008-10-11 00:20:07138.931522008-10-11 01:09:29
100-53.408272008-10-11 01:58:50114.251942008-10-11 02:48:12
146-78.087852008-10-11 03:37:33 89.572362008-10-11 04:26:55
192-102.767432008-10-11 05:16:17 64.892782008-10-11 06:05:38
238-127.447012008-10-11 06:55:00 40.213192008-10-11 07:44:21
284-152.126602008-10-11 08:33:43 15.533612008-10-11 09:23:04
330-176.806182008-10-11 10:12:26 -9.145972008-10-11 11:01:47
376158.514242008-10-11 11:51:09-33.825552008-10-11 12:40:30
422133.834652008-10-11 13:29:52-58.505142008-10-11 14:19:14
468109.155072008-10-11 15:08:35-83.184722008-10-11 15:57:57
514 84.475492008-10-11 16:47:18-107.864302008-10-11 17:36:40
560 59.795912008-10-11 18:26:01-132.543892008-10-11 19:15:23
606 35.116322008-10-11 20:04:44-157.223472008-10-11 20:54:06
652 10.436742008-10-11 21:43:28178.096952008-10-11 22:32:49
27-14.242842008-10-11 23:22:11153.417372008-10-12 00:11:32
