>ALOS Data Take Simulation(Oct. 07, 2008)

Observation Area

PRISM

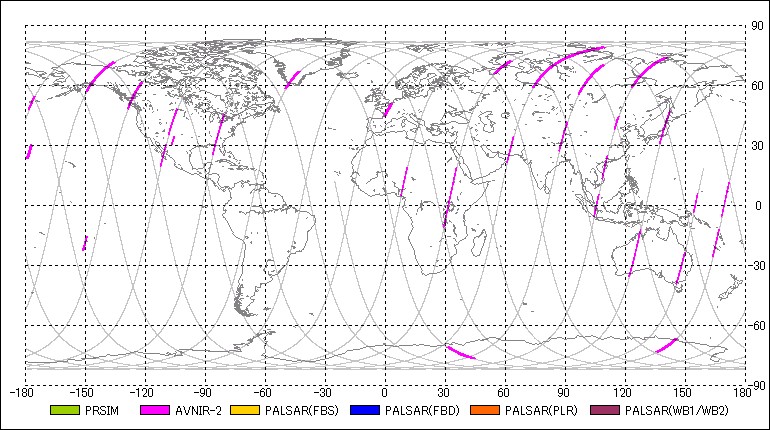

AVNIR-2

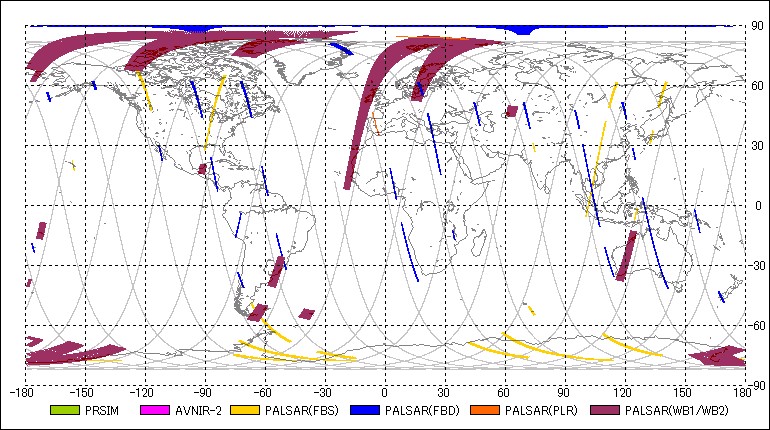

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-10-07 00:03:302008-10-07 00:06:06 00:02:36 24 174.07 24 183.55 0.00 -
2PSMOB12008-10-07 00:08:272008-10-07 00:11:11 00:02:44 24 192.12 24 202.09 -1.20 -
3AV2OBS2008-10-07 00:11:382008-10-07 00:16:00 00:04:22 24 203.73 24 219.66 0.00 -
4PSRFBS2008-10-07 01:26:282008-10-07 01:30:40 00:04:12 70 116.70 70 132.01 34.30 7
5AV2OBS2008-10-07 01:30:462008-10-07 01:35:24 00:04:38 70 132.32 70 149.21 0.00 -
6PSMOB22008-10-07 01:30:462008-10-07 01:35:26 00:04:40 70 132.32 70 149.33 0.00 -
7PSRFBS2008-10-07 01:33:162008-10-07 01:35:36 00:02:20 70 141.43 70 149.94 34.30 7
8PSRFBS2008-10-07 01:43:582008-10-07 01:46:16 00:02:18 70 180.45 70 188.84 34.30 7
9PSRWB12008-10-07 01:47:022008-10-07 01:54:36 00:07:34 70 191.64 70 219.23 27.10 80
10AV2OBS2008-10-07 01:47:072008-10-07 01:53:42 00:06:35 70 192.00 70 216.01 0.00 -
11PSMOB12008-10-07 01:48:002008-10-07 01:50:36 00:02:36 70 195.22 70 204.70 -1.20 -
12PSRFBD2008-10-07 02:23:402008-10-07 02:29:24 00:05:44 70 325.23 70 346.14 34.30 43
13PSRFBD2008-10-07 02:33:572008-10-07 02:38:33 00:04:36 116 2.80 116 19.57 34.30 43
14PSRFBD2008-10-07 02:44:392008-10-07 02:50:21 00:05:42 116 41.82 116 62.60 34.30 43
15AV2OBS2008-10-07 03:01:422008-10-07 03:06:12 00:04:30 116 103.99 116 120.40 0.00 -
16PSRFBS2008-10-07 03:05:112008-10-07 03:09:23 00:04:12 116 116.70 116 132.01 34.30 7
17AV2OBS2008-10-07 03:10:132008-10-07 03:12:05 00:01:52 116 135.05 116 141.86 0.00 -
18PSRFBS2008-10-07 03:10:432008-10-07 03:24:29 00:13:46 116 136.81 116 187.02 34.30 7
19AV2OBS2008-10-07 03:15:382008-10-07 03:18:55 00:03:17 116 154.80 116 166.78 0.00 -
20PSMOB22008-10-07 03:17:012008-10-07 03:18:53 00:01:52 116 159.79 116 166.60 0.00 -
21AV2OBS2008-10-07 03:21:062008-10-07 03:24:10 00:03:04 116 174.68 116 185.86 0.00 -
22PSRFBS2008-10-07 03:48:172008-10-07 03:50:33 00:02:16 116 273.81 116 282.08 34.30 7
23PSRFBS2008-10-07 03:51:442008-10-07 03:58:14 00:06:30 116 286.39 116 310.09 34.30 7
24PSRFBD2008-10-07 03:59:502008-10-07 04:02:40 00:02:50 116 315.93 116 326.26 34.30 43
25PSRFBD2008-10-07 04:13:112008-10-07 04:18:31 00:05:20 162 4.62 162 24.07 34.30 43
26PSRFBD2008-10-07 04:23:222008-10-07 04:29:04 00:05:42 162 41.82 162 62.60 34.30 43
27PSRFBD2008-10-07 04:34:492008-10-07 04:37:05 00:02:16 162 83.57 162 91.84 49.00 51
28PSMOB12008-10-07 04:39:172008-10-07 04:45:53 00:06:36 162 99.86 162 123.93 -1.20 -
29AV2OBS2008-10-07 04:41:352008-10-07 04:45:53 00:04:18 162 108.19 162 123.87 0.00 -
30PSMOB22008-10-07 04:48:582008-10-07 04:54:34 00:05:36 162 135.11 162 155.53 0.00 -
31AV2OBS2008-10-07 04:49:442008-10-07 04:53:46 00:04:02 162 137.97 162 152.68 0.00 -
32PSRFBS2008-10-07 05:25:292008-10-07 05:31:15 00:05:46 162 268.28 162 289.31 34.30 7
33PSRFBD2008-10-07 05:56:142008-10-07 05:58:58 00:02:44 208 20.42 208 30.39 34.30 43
34PSRFBS2008-10-07 06:03:082008-10-07 06:10:24 00:07:16 208 45.58 208 72.08 34.30 7
35PSMOB12008-10-07 06:16:342008-10-07 06:24:26 00:07:52 208 94.57 208 123.26 -1.20 -
36AV2OBS2008-10-07 06:17:202008-10-07 06:23:40 00:06:20 208 97.37 208 120.46 0.00 -
37PSRWB12008-10-07 06:25:562008-10-07 06:28:02 00:02:06 208 128.73 208 136.39 27.10 80
38PSMOB22008-10-07 06:28:292008-10-07 06:34:11 00:05:42 208 138.03 208 158.82 0.00 -
39AV2OBS2008-10-07 06:30:272008-10-07 06:34:03 00:03:36 208 145.20 208 158.33 0.00 -
40PSRFBS2008-10-07 07:04:292008-10-07 07:07:15 00:02:46 208 269.31 208 279.40 34.30 7
41PSRFBD2008-10-07 07:44:422008-10-07 07:46:34 00:01:52 254 55.98 254 62.78 34.30 43
42PSMOB12008-10-07 07:57:412008-10-07 08:03:09 00:05:28 254 103.32 254 123.26 -1.20 -
43AV2OBS2008-10-07 07:58:252008-10-07 08:00:17 00:01:52 254 106.00 254 112.81 0.00 -
44PSMOB12008-10-07 08:11:022008-10-07 08:29:26 00:18:24 254 152.01 254 219.11 -1.20 -
45AV2OBS2008-10-07 08:13:322008-10-07 08:21:48 00:08:16 254 161.13 254 191.27 0.00 -
46PSRFBS2008-10-07 09:12:052008-10-07 09:14:11 00:02:06 300 14.65 300 22.31 50.80 17
47PSRFBD2008-10-07 09:21:442008-10-07 09:23:44 00:02:00 300 49.84 300 57.13 34.30 43
48PSRWB12008-10-07 09:33:512008-10-07 09:43:16 00:09:25 300 94.03 300 128.37 27.10 80
49PSMOB12008-10-07 09:36:452008-10-07 09:40:17 00:03:32 300 104.60 300 117.49 -1.20 -
50PSMOB12008-10-07 09:45:342008-10-07 09:57:34 00:12:00 300 136.75 300 180.51 -1.20 -
51AV2OBS2008-10-07 09:52:152008-10-07 09:56:07 00:03:52 300 161.13 300 175.23 0.00 -
52PSRFBD2008-10-07 10:39:432008-10-07 10:41:35 00:01:52 300 334.22 300 341.03 34.30 43
53PSRWB12008-10-07 11:12:142008-10-07 11:34:16 00:22:02 346 92.75 346 173.10 27.10 80
54AV2OBS2008-10-07 11:21:432008-10-07 11:23:35 00:01:52 346 127.39 346 134.20 34.30 -
55PSMOB12008-10-07 11:26:382008-10-07 11:34:22 00:07:44 346 145.32 346 173.52 -1.20 -
56PSRWB12008-10-07 11:50:252008-10-07 11:52:17 00:01:52 346 232.05 346 238.86 27.10 80
57PSRFBD2008-10-07 12:11:162008-10-07 12:13:32 00:02:16 346 308.09 346 316.35 34.30 43
58PSRFBD2008-10-07 12:21:072008-10-07 12:24:59 00:03:52 346 344.01 346 358.11 34.30 43
59PSRWB12008-10-07 13:21:382008-10-07 13:26:28 00:04:50 392 204.70 392 222.33 27.10 80
60PSRWB12008-10-07 13:28:262008-10-07 13:31:22 00:02:56 392 229.50 392 240.20 27.10 80
61PSRFBS2008-10-07 13:38:422008-10-07 13:41:12 00:02:30 392 266.94 392 276.06 34.30 7
62PSRFBD2008-10-07 13:52:022008-10-07 14:05:20 00:13:18 392 315.56 438 4.07 34.30 43
63PSRFBD2008-10-07 14:09:542008-10-07 14:12:10 00:02:16 438 20.73 438 28.99 34.30 43
64PSRFBD2008-10-07 14:15:302008-10-07 14:18:26 00:02:56 438 41.15 438 51.84 34.30 43
65PSMOB12008-10-07 14:32:422008-10-07 14:35:18 00:02:36 438 103.81 438 113.29 -1.20 -
66AV2OBS2008-10-07 14:34:492008-10-07 14:37:25 00:02:36 438 111.59 438 121.07 0.00 -
67PSRFBD2008-10-07 14:54:212008-10-07 14:58:23 00:04:02 438 182.82 438 197.53 34.30 43
68PSRFBS2008-10-07 15:18:282008-10-07 15:20:38 00:02:10 438 270.71 438 278.61 34.30 7
69PSRFBD2008-10-07 15:32:242008-10-07 15:37:12 00:04:48 438 321.58 438 339.09 34.30 43
70PSRFBD2008-10-07 15:39:262008-10-07 15:51:20 00:11:54 438 347.23 484 30.63 34.30 43
71PSRFBD2008-10-07 15:52:582008-10-07 15:56:06 00:03:08 484 36.59 484 48.02 34.30 43
72PSRPLR2008-10-07 16:06:012008-10-07 16:07:53 00:01:52 484 84.12 484 90.93 21.50 127
73PSRWB12008-10-07 16:08:432008-10-07 16:11:55 00:03:12 484 93.96 484 105.63 27.10 80
74PSRFBS2008-10-07 16:13:592008-10-07 16:25:05 00:11:06 484 113.23 484 153.71 34.30 7
75AV2OBS2008-10-07 16:19:412008-10-07 16:25:17 00:05:36 484 133.96 484 154.38 0.00 -
76PSMOB12008-10-07 16:26:022008-10-07 16:29:08 00:03:06 484 157.11 484 168.42 -1.20 -
77PSRWB12008-10-07 16:26:232008-10-07 16:28:15 00:01:52 484 158.39 484 165.20 27.10 80
78PSMOB12008-10-07 16:30:482008-10-07 16:33:54 00:03:06 484 174.50 484 185.80 -1.20 -
79PSRWB12008-10-07 16:52:182008-10-07 16:57:32 00:05:14 484 252.96 484 272.05 27.10 80
80PSRFBS2008-10-07 16:58:462008-10-07 17:03:24 00:04:38 484 276.54 484 293.44 34.30 7
81PSRFBS2008-10-07 17:28:242008-10-07 17:30:16 00:01:52 530 24.62 530 31.42 34.30 7
82PSRFBD2008-10-07 17:31:412008-10-07 17:35:53 00:04:12 530 36.59 530 51.91 34.30 43
83PSRFBD2008-10-07 17:44:352008-10-07 17:46:33 00:01:58 530 83.63 530 90.80 49.00 51
84PSMOB12008-10-07 17:51:462008-10-07 18:05:54 00:14:08 530 109.83 530 161.37 -1.20 -
85AV2OBS2008-10-07 17:57:402008-10-07 18:05:32 00:07:52 530 131.34 530 160.03 0.00 -
86PSRWB12008-10-07 18:30:242008-10-07 18:35:18 00:04:54 530 250.71 530 268.58 27.10 80
87PSRFBS2008-10-07 18:44:212008-10-07 18:46:13 00:01:52 530 301.59 530 308.39 34.30 7
88PSRFBD2008-10-07 19:10:462008-10-07 19:14:40 00:03:54 576 37.93 576 52.15 34.30 43
89PSRWB12008-10-07 19:24:092008-10-07 19:31:19 00:07:10 576 86.67 576 112.81 27.10 80
90PSMOB12008-10-07 19:31:482008-10-07 19:37:00 00:05:12 576 114.57 576 133.53 -1.20 -
91AV2OBS2008-10-07 19:32:342008-10-07 19:36:26 00:03:52 576 117.36 576 131.46 0.00 -
92AV2OBS2008-10-07 19:54:162008-10-07 19:56:08 00:01:52 576 196.50 576 203.31 -34.30 -
93PSRWB12008-10-07 20:08:172008-10-07 20:12:39 00:04:22 576 247.67 576 263.60 27.10 80
94PSRFBS2008-10-07 20:14:282008-10-07 20:21:00 00:06:32 576 270.16 576 293.99 34.30 7
95PSRFBD2008-10-07 20:33:492008-10-07 20:35:41 00:01:52 576 340.73 576 347.53 34.30 43
96PSRFBD2008-10-07 20:42:452008-10-07 20:51:49 00:09:04 622 13.31 622 46.37 34.30 43
97PSRFBD2008-10-07 20:53:472008-10-07 20:56:07 00:02:20 622 53.55 622 62.06 34.30 43
98AV2OBS2008-10-07 21:08:202008-10-07 21:12:40 00:04:20 622 106.61 622 122.41 0.00 -
99PSRWB12008-10-07 21:30:292008-10-07 21:33:21 00:02:52 622 187.44 622 197.90 27.10 80
100PSRWB12008-10-07 21:38:202008-10-07 21:40:12 00:01:52 622 216.01 622 222.82 27.10 80
101PSRFBS2008-10-07 21:54:202008-10-07 21:58:08 00:03:48 622 274.42 622 288.27 34.30 7
102AV2OBS2008-10-07 21:56:072008-10-07 21:57:59 00:01:52 622 280.86 622 287.67 0.00 -
103PSRFBD2008-10-07 22:06:382008-10-07 22:15:26 00:08:48 622 319.21 622 351.30 34.30 43
104PSRFBD2008-10-07 22:18:032008-10-07 22:22:57 00:04:54 668 0.85 668 18.72 34.30 43
105PSRPLR2008-10-07 22:26:552008-10-07 22:30:47 00:03:52 668 33.19 668 47.29 21.50 127
106PSRFBD2008-10-07 22:38:092008-10-07 22:40:21 00:02:12 668 74.15 668 82.17 34.30 43
107PSRWB12008-10-07 22:41:362008-10-07 22:50:17 00:08:41 668 86.73 668 118.40 27.10 80
108PSMOB12008-10-07 22:46:102008-10-07 22:54:12 00:08:02 668 103.39 668 132.68 -1.20 -
109AV2OBS2008-10-07 22:52:052008-10-07 22:53:57 00:01:52 668 124.96 668 131.77 0.00 -
110AV2OBS2008-10-07 22:58:332008-10-07 23:00:25 00:01:52 668 148.54 668 155.35 41.50 -
111AV2OBS2008-10-07 23:03:582008-10-07 23:08:42 00:04:44 668 168.30 668 185.56 0.00 -
112AV2OBS2008-10-07 23:10:302008-10-07 23:14:14 00:03:44 668 192.12 668 205.74 0.00 -
113AV2OBS2008-10-07 23:25:442008-10-07 23:27:50 00:02:06 668 247.67 668 255.33 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
24-12.633302008-10-06 23:15:44155.026902008-10-07 00:05:06
70-37.312892008-10-07 00:54:27130.347322008-10-07 01:43:49
116-61.992472008-10-07 02:33:11105.667742008-10-07 03:22:32
162-86.672052008-10-07 04:11:54 80.988162008-10-07 05:01:15
208-111.351632008-10-07 05:50:37 56.308572008-10-07 06:39:58
254-136.031222008-10-07 07:29:20 31.628992008-10-07 08:18:41
300-160.710802008-10-07 09:08:03 6.949412008-10-07 09:57:24
346174.609622008-10-07 10:46:46-17.730172008-10-07 11:36:08
392149.930032008-10-07 12:25:29-42.409762008-10-07 13:14:51
438125.250452008-10-07 14:04:12-67.089342008-10-07 14:53:34
484100.570872008-10-07 15:42:55-91.768922008-10-07 16:32:17
530 75.891292008-10-07 17:21:38-116.448512008-10-07 18:11:00
576 51.211702008-10-07 19:00:22-141.128092008-10-07 19:49:43
622 26.532122008-10-07 20:39:05-165.807672008-10-07 21:28:26
668 1.852542008-10-07 22:17:48169.512752008-10-07 23:07:09
43-22.827042008-10-07 23:56:31144.833162008-10-08 00:45:52
