>ALOS Data Take Simulation(Sep. 02, 2008)

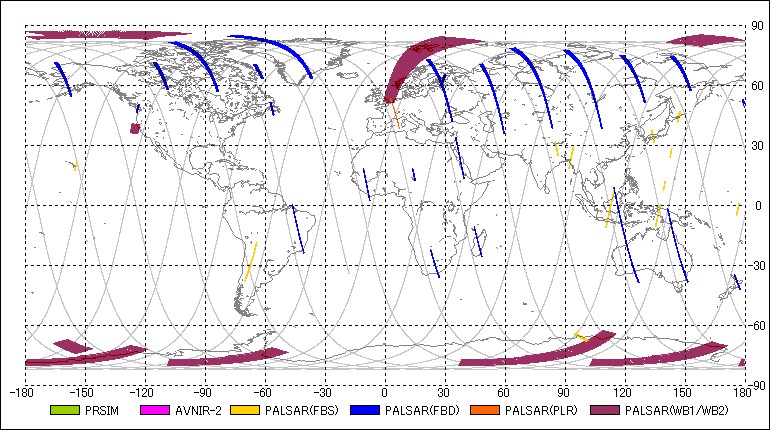

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2008-09-02 00:26:202008-09-02 00:33:16 00:06:56 49 61.69 49 86.97 34.30 43
2PSMOB12008-09-02 00:43:082008-09-02 00:46:24 00:03:16 49 122.96 49 134.87 1.20 -
3PSRFBS2008-09-02 00:45:322008-09-02 00:47:40 00:02:08 49 131.71 49 139.49 34.30 7
4PSRFBS2008-09-02 00:50:362008-09-02 00:52:28 00:01:52 49 150.18 49 156.99 34.30 7
5PSRFBS2008-09-02 00:55:082008-09-02 00:57:00 00:01:52 49 166.72 49 173.52 34.30 7
6PSRFBS2008-09-02 00:58:172008-09-02 01:01:59 00:03:42 49 178.20 49 191.70 34.30 7
7AV2OBS2008-09-02 00:59:042008-09-02 01:01:38 00:02:34 49 181.12 49 190.48 0.00 -
8PSMOB22008-09-02 00:59:062008-09-02 01:02:26 00:03:20 49 181.18 49 193.34 0.00 -
9AV2OBS2008-09-02 01:06:372008-09-02 01:08:29 00:01:52 49 208.59 49 215.40 34.30 -
10PSMOB12008-09-02 01:06:542008-09-02 01:09:44 00:02:50 49 209.69 49 220.02 1.20 -
11PSRWB12008-09-02 01:16:242008-09-02 01:24:06 00:07:42 49 244.27 49 272.35 27.10 80
12PSRFBD2008-09-02 01:40:542008-09-02 01:48:18 00:07:24 49 333.68 95 0.61 34.30 43
13PSRFBD2008-09-02 01:59:582008-09-02 02:02:22 00:02:24 95 43.21 95 51.97 34.30 43
14PSRFBD2008-09-02 02:05:002008-09-02 02:07:38 00:02:38 95 61.57 95 71.17 34.30 43
15PSRWB12008-09-02 02:11:282008-09-02 02:15:18 00:03:50 95 85.09 95 99.07 27.10 80
16PSMOB22008-09-02 02:16:422008-09-02 02:19:06 00:02:24 95 104.24 95 112.99 0.00 -
17AV2OBS2008-09-02 02:17:152008-09-02 02:27:35 00:10:20 95 106.18 95 143.86 0.00 -
18PSMOB22008-09-02 02:31:472008-09-02 02:34:35 00:02:48 95 159.18 95 169.39 0.00 -
19PSRFBS2008-09-02 02:35:022008-09-02 02:40:54 00:05:52 95 171.03 95 192.43 34.30 7
20AV2OBS2008-09-02 02:35:502008-09-02 02:40:28 00:04:38 95 173.95 95 190.85 0.00 -
21PSRFBD2008-09-02 03:41:592008-09-02 03:49:37 00:07:38 141 55.25 141 83.08 34.30 43
22AV2OBS2008-09-02 03:57:542008-09-02 04:00:50 00:02:56 141 113.29 141 123.99 0.00 -
23PSRFBS2008-09-02 04:07:432008-09-02 04:11:25 00:03:42 141 149.03 141 162.52 34.30 7
24PSRFBD2008-09-02 05:21:012008-09-02 05:25:23 00:04:22 187 56.34 187 72.27 34.30 43
25PSMOB22008-09-02 05:38:562008-09-02 05:46:30 00:07:34 187 121.74 187 149.33 0.00 -
26AV2OBS2008-09-02 07:12:192008-09-02 07:23:49 00:11:30 233 102.23 233 144.17 0.00 -
27PSMOB22008-09-02 07:16:282008-09-02 07:18:56 00:02:28 233 117.36 233 126.36 0.00 -
28AV2OBS2008-09-02 07:30:072008-09-02 07:39:05 00:08:58 233 167.14 233 199.84 0.00 -
29PSRFBD2008-09-02 08:37:252008-09-02 08:42:49 00:05:24 279 52.57 279 72.27 34.30 43
30PSRFBD2008-09-02 08:54:002008-09-02 08:55:56 00:01:56 279 113.05 279 120.10 34.30 43
31AV2OBS2008-09-02 09:02:552008-09-02 09:19:03 00:16:08 279 145.57 279 204.40 0.00 -
32PSRFBD2008-09-02 10:14:332008-09-02 10:16:25 00:01:52 325 46.80 325 53.61 34.30 43
33PSRWB12008-09-02 10:27:192008-09-02 10:37:10 00:09:51 325 93.36 325 129.28 27.10 80
34PSMOB12008-09-02 10:37:312008-09-02 10:40:07 00:02:36 325 130.55 325 140.03 1.20 -
35AV2OBS2008-09-02 10:40:212008-09-02 10:50:15 00:09:54 325 140.89 325 176.99 0.00 -
36PSRWB12008-09-02 11:11:392008-09-02 11:16:15 00:04:36 325 255.03 325 271.80 27.10 80
37PSRWB12008-09-02 11:18:422008-09-02 11:21:06 00:02:24 325 280.68 325 289.43 27.10 80
38PSRFBD2008-09-02 11:28:032008-09-02 11:30:55 00:02:52 325 314.84 325 325.29 34.30 43
39PSRFBD2008-09-02 11:55:412008-09-02 12:01:07 00:05:26 371 55.61 371 75.43 34.30 43
40PSRFBD2008-09-02 13:07:522008-09-02 13:18:46 00:10:54 371 318.85 371 358.60 34.30 43
41PSRFBS2008-09-02 13:27:152008-09-02 13:29:37 00:02:22 417 29.54 417 38.17 34.30 7
42PSRFBD2008-09-02 13:32:472008-09-02 13:40:01 00:07:14 417 49.72 417 76.10 34.30 43
43PSMOB12008-09-02 13:46:022008-09-02 13:50:40 00:04:38 417 98.04 417 114.93 1.20 -
44AV2OBS2008-09-02 14:06:242008-09-02 14:09:28 00:03:04 417 172.31 417 183.49 0.00 -
45PSRFBS2008-09-02 14:13:182008-09-02 14:19:22 00:06:04 417 197.47 417 219.59 34.30 7
46AV2OBS2008-09-02 14:15:042008-09-02 14:16:56 00:01:52 417 203.91 417 210.72 -41.50 -
47PSRFBD2008-09-02 14:46:282008-09-02 15:00:20 00:13:52 417 318.42 463 9.00 34.30 43
48PSRFBD2008-09-02 15:07:542008-09-02 15:19:24 00:11:30 463 36.59 463 78.53 34.30 43
49PSMOB12008-09-02 15:22:422008-09-02 15:29:22 00:06:40 463 90.50 463 114.81 1.20 -
50PSMOB12008-09-02 15:31:132008-09-02 15:36:55 00:05:42 463 121.56 463 142.34 1.20 -
51AV2OBS2008-09-02 15:32:172008-09-02 15:35:05 00:02:48 463 125.45 463 135.66 0.00 -
52PSMOB12008-09-02 15:38:502008-09-02 15:46:16 00:07:26 463 149.33 463 176.44 1.20 -
53PSRWB12008-09-02 16:07:192008-09-02 16:12:25 00:05:06 463 253.27 463 271.86 27.10 80
54PSRFBS2008-09-02 16:42:482008-09-02 16:45:26 00:02:38 509 22.61 509 32.21 34.30 7
55PSRFBD2008-09-02 16:46:362008-09-02 16:58:28 00:11:52 509 36.53 509 79.80 34.30 43
56PSMOB12008-09-02 17:00:222008-09-02 17:22:28 00:22:06 509 86.67 509 167.26 1.20 -
57AV2OBS2008-09-02 17:18:352008-09-02 17:21:23 00:02:48 509 153.10 509 163.31 0.00 -
58PSRFBS2008-09-02 17:55:142008-09-02 17:57:10 00:01:56 509 286.82 509 293.87 34.30 7
59PSRFBD2008-09-02 18:24:332008-09-02 18:34:55 00:10:22 555 33.73 555 71.54 34.30 43
60PSMOB12008-09-02 18:39:032008-09-02 18:44:05 00:05:02 555 86.55 555 104.90 1.20 -
61PSRFBD2008-09-02 18:50:222008-09-02 18:52:14 00:01:52 555 127.88 555 134.69 34.30 43
62PSRWB12008-09-02 18:53:102008-09-02 18:55:02 00:01:52 555 138.03 555 144.84 27.10 80
63PSRFBD2008-09-02 19:46:202008-09-02 19:51:10 00:04:50 555 331.91 555 349.54 34.30 43
64PSRFBD2008-09-02 19:57:082008-09-02 20:03:24 00:06:16 601 11.30 601 34.16 34.30 43
65PSRFBD2008-09-02 20:04:582008-09-02 20:14:20 00:09:22 601 39.87 601 74.03 34.30 43
66PSMOB12008-09-02 20:17:312008-09-02 20:20:23 00:02:52 601 85.64 601 96.09 1.20 -
67PSRFBS2008-09-02 20:37:022008-09-02 20:38:58 00:01:56 601 156.81 601 163.86 34.30 7
68AV2OBS2008-09-02 20:37:302008-09-02 20:39:22 00:01:52 601 158.51 601 165.32 -34.30 -
69PSMOB12008-09-02 20:43:052008-09-02 20:50:43 00:07:38 601 178.93 601 206.77 1.20 -
70AV2OBS2008-09-02 20:43:512008-09-02 20:46:11 00:02:20 601 181.67 601 190.18 0.00 -
71PSRWB12008-09-02 21:02:492008-09-02 21:08:37 00:05:48 601 250.83 601 271.99 27.10 80
72PSRFBD2008-09-02 21:22:102008-09-02 21:26:44 00:04:34 601 321.40 601 338.05 34.30 43
73PSRFBD2008-09-02 21:35:312008-09-02 21:37:51 00:02:20 647 10.09 647 18.60 34.30 43
74PSRPLR2008-09-02 21:42:472008-09-02 21:47:37 00:04:50 647 36.59 647 54.21 21.50 127
75AV2OBS2008-09-02 22:04:172008-09-02 22:06:09 00:01:52 647 114.99 647 121.80 34.30 -
76PSRFBS2008-09-02 22:21:302008-09-02 22:23:52 00:02:22 647 177.84 647 186.47 34.30 7
77PSMOB12008-09-02 22:25:492008-09-02 22:28:25 00:02:36 647 193.52 647 203.00 1.20 -
78PSMOB12008-09-02 22:30:152008-09-02 22:36:29 00:06:14 647 209.69 647 232.42 1.20 -
79PSRFBD2008-09-02 23:11:352008-09-02 23:16:35 00:05:00 22 0.43 22 18.66 34.30 43
80PSMOB12008-09-02 23:41:022008-09-02 23:47:16 00:06:14 22 107.82 22 130.55 1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
3 -1.366542008-09-01 22:30:40166.293672008-09-01 23:20:02
49-26.046122008-09-02 00:09:23141.614092008-09-02 00:58:45
95-50.725702008-09-02 01:48:06116.934512008-09-02 02:37:28
141-75.405292008-09-02 03:26:50 92.254922008-09-02 04:16:11
187-100.084872008-09-02 05:05:33 67.575342008-09-02 05:54:54
233-124.764452008-09-02 06:44:16 42.895762008-09-02 07:33:37
279-149.444032008-09-02 08:22:59 18.216172008-09-02 09:12:20
325-174.123622008-09-02 10:01:42 -6.463412008-09-02 10:51:04
371161.196802008-09-02 11:40:25-31.142992008-09-02 12:29:47
417136.517222008-09-02 13:19:08-55.822572008-09-02 14:08:30
463111.837632008-09-02 14:57:51-80.502162008-09-02 15:47:13
509 87.158052008-09-02 16:36:34-105.181742008-09-02 17:25:56
555 62.478472008-09-02 18:15:17-129.861322008-09-02 19:04:39
601 37.798892008-09-02 19:54:01-154.540902008-09-02 20:43:22
647 13.119302008-09-02 21:32:44-179.220492008-09-02 22:22:05
22-11.560282008-09-02 23:11:27156.099932008-09-03 00:00:48
