>ALOS Data Take Simulation(Aug. 27, 2008)

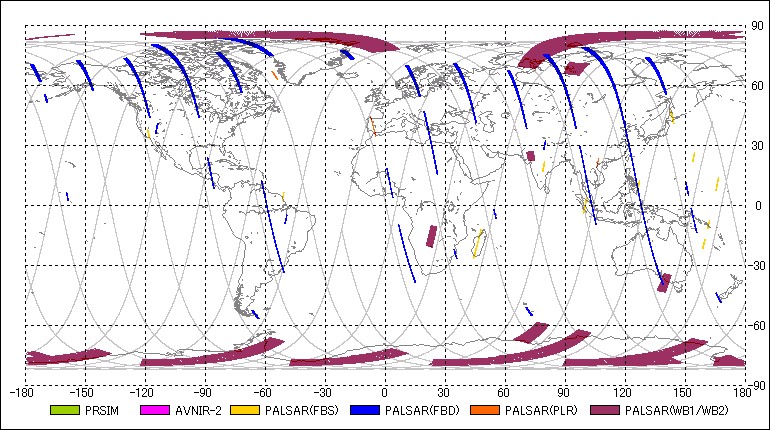

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2008-08-27 00:04:002008-08-27 00:05:52 00:01:52 27 152.43 27 159.24 34.30 7
2AV2OBS2008-08-27 00:11:452008-08-27 00:15:37 00:03:52 27 180.70 27 194.80 0.00 -
3AV2OBS2008-08-27 00:20:162008-08-27 00:23:20 00:03:04 27 211.75 27 222.94 34.30 -
4PSMOB12008-08-27 00:20:422008-08-27 00:24:32 00:03:50 27 213.33 27 227.31 1.20 -
5PSRWB12008-08-27 00:20:492008-08-27 00:23:54 00:03:05 27 213.76 27 225.00 27.10 80
6PSRPLR2008-08-27 01:17:482008-08-27 01:19:40 00:01:52 73 61.57 73 68.38 21.50 127
7PSRFBD2008-08-27 01:21:022008-08-27 01:24:34 00:03:32 73 73.36 73 86.25 34.30 43
8PSMOB12008-08-27 01:29:092008-08-27 01:42:01 00:12:52 73 102.96 73 149.88 1.20 -
9AV2OBS2008-08-27 01:35:092008-08-27 01:41:57 00:06:48 73 124.84 73 149.64 0.00 -
10PSRFBS2008-08-27 01:46:342008-08-27 01:48:42 00:02:08 73 166.47 73 174.25 34.30 7
11AV2OBS2008-08-27 01:49:102008-08-27 01:52:26 00:03:16 73 175.96 73 187.87 0.00 -
12PSMOB12008-08-27 01:52:532008-08-27 02:01:19 00:08:26 73 189.51 73 220.26 1.20 -
13PSRWB12008-08-27 02:07:472008-08-27 02:15:39 00:07:52 73 243.85 73 272.53 27.10 80
14PSRFBD2008-08-27 02:29:432008-08-27 02:43:07 00:13:24 73 323.83 119 12.70 34.30 43
15PSRFBD2008-08-27 02:54:392008-08-27 03:00:55 00:06:16 119 54.76 119 77.61 34.30 43
16PSMOB22008-08-27 03:13:112008-08-27 03:32:09 00:18:58 119 122.35 119 191.51 0.00 -
17AV2OBS2008-08-27 03:14:392008-08-27 03:31:27 00:16:48 119 127.70 119 188.96 0.00 -
18PSRPLR2008-08-27 03:22:052008-08-27 03:24:01 00:01:56 119 154.80 119 161.85 21.50 127
19PSRFBS2008-08-27 03:27:372008-08-27 03:30:23 00:02:46 119 174.98 119 185.07 34.30 7
20AV2OBS2008-08-27 03:35:202008-08-27 03:37:12 00:01:52 119 203.12 119 209.93 0.00 -
21PSRWB12008-08-27 03:45:182008-08-27 03:48:44 00:03:26 119 239.47 119 251.99 27.10 80
22PSRFBD2008-08-27 04:01:472008-08-27 04:03:39 00:01:52 119 299.58 119 306.39 34.30 43
23PSRFBD2008-08-27 04:20:072008-08-27 04:24:57 00:04:50 165 6.44 165 24.07 34.30 43
24PSRFBD2008-08-27 04:29:482008-08-27 04:40:46 00:10:58 165 41.76 165 81.75 34.30 43
25PSRWB12008-08-27 04:47:362008-08-27 04:49:52 00:02:16 165 106.67 165 114.93 27.10 80
26PSMOB22008-08-27 04:50:322008-08-27 05:00:58 00:10:26 165 117.36 165 155.41 0.00 -
27AV2OBS2008-08-27 04:53:232008-08-27 05:00:11 00:06:48 165 127.76 165 152.56 0.00 -
28PSRFBD2008-08-27 04:58:302008-08-27 05:00:22 00:01:52 165 146.42 165 153.22 41.50 64
29PSRFBS2008-08-27 05:01:252008-08-27 05:03:25 00:02:00 165 157.05 165 164.35 34.30 7
30PSRFBS2008-08-27 06:05:442008-08-27 06:07:36 00:01:52 211 31.61 211 38.41 21.50 3
31PSRFBD2008-08-27 06:08:312008-08-27 06:17:33 00:09:02 211 41.76 211 74.70 34.30 43
32PSRWB12008-08-27 06:20:162008-08-27 06:27:39 00:07:23 211 84.60 211 111.53 27.10 80
33PSMOB22008-08-27 06:29:162008-08-27 06:39:28 00:10:12 211 117.42 211 154.62 0.00 -
34AV2OBS2008-08-27 06:32:062008-08-27 06:38:44 00:06:38 211 127.76 211 151.95 0.00 -
35PSRFBS2008-08-27 06:49:252008-08-27 06:54:09 00:04:44 211 190.91 211 208.17 34.30 7
36AV2OBS2008-08-27 06:49:522008-08-27 06:53:58 00:04:06 211 192.49 211 207.44 -34.30 -
37PSRWB12008-08-27 07:07:082008-08-27 07:11:38 00:04:30 211 255.51 211 271.93 27.10 80
38PSRFBD2008-08-27 07:51:022008-08-27 07:55:56 00:04:54 257 55.61 257 73.48 34.30 43
39AV2OBS2008-08-27 08:09:502008-08-27 08:11:50 00:02:00 257 124.17 257 131.46 0.00 -
40AV2OBS2008-08-27 08:17:452008-08-27 08:35:09 00:17:24 257 153.04 257 216.49 0.00 -
41PSRWB12008-08-27 08:27:402008-08-27 08:31:10 00:03:30 257 189.20 257 201.97 27.10 80
42PSRFBD2008-08-27 09:14:312008-08-27 09:16:23 00:01:52 303 0.06 303 6.87 34.30 43
43PSRFBD2008-08-27 09:28:032008-08-27 09:29:55 00:01:52 303 49.41 303 56.22 34.30 43
44PSRFBD2008-08-27 09:31:002008-08-27 09:34:02 00:03:02 303 60.17 303 71.23 34.30 43
45AV2OBS2008-08-27 09:44:302008-08-27 09:47:34 00:03:04 303 109.40 303 120.59 0.00 -
46AV2OBS2008-08-27 09:54:152008-08-27 10:03:05 00:08:50 303 144.90 303 177.11 0.00 -
47AV2OBS2008-08-27 11:34:232008-08-27 11:39:43 00:05:20 349 150.12 349 169.57 0.00 -
48PSRWB12008-08-27 12:01:192008-08-27 12:07:47 00:06:28 349 248.34 349 271.93 27.10 80
49PSRFBD2008-08-27 12:17:412008-08-27 12:19:45 00:02:04 349 308.03 349 315.56 34.30 43
50PSRFBD2008-08-27 12:27:332008-08-27 12:31:37 00:04:04 349 344.01 349 358.84 34.30 43
51PSRFBD2008-08-27 12:32:422008-08-27 12:35:14 00:02:32 395 2.80 395 12.03 34.30 43
52PSRFBS2008-08-27 12:42:342008-08-27 12:44:56 00:02:22 395 38.78 395 47.41 34.30 7
53PSRFBD2008-08-27 12:46:412008-08-27 12:52:31 00:05:50 395 53.79 395 75.06 34.30 43
54PSMOB12008-08-27 13:01:302008-08-27 13:04:40 00:03:10 395 107.82 395 119.37 1.20 -
55PSRFBS2008-08-27 13:19:172008-08-27 13:21:09 00:01:52 395 172.61 395 179.42 50.00 16
56PSRFBD2008-08-27 13:22:192008-08-27 13:24:11 00:01:52 395 183.67 395 190.48 34.30 43
57AV2OBS2008-08-27 13:23:132008-08-27 13:25:49 00:02:36 395 187.02 395 196.50 0.00 -
58PSRFBD2008-08-27 13:58:592008-08-27 14:32:41 00:33:42 395 317.45 441 80.35 34.30 43
59PSMOB12008-08-27 14:36:242008-08-27 14:48:14 00:11:50 441 93.84 441 137.00 1.20 -
60AV2OBS2008-08-27 14:39:512008-08-27 14:42:37 00:02:46 441 106.42 441 116.51 0.00 -
61PSMOB12008-08-27 14:53:212008-08-27 14:56:43 00:03:22 441 155.65 441 167.93 1.20 -
62AV2OBS2008-08-27 15:00:192008-08-27 15:03:07 00:02:48 441 181.12 441 191.33 0.00 -
63AV2OBS2008-08-27 15:06:022008-08-27 15:07:54 00:01:52 441 201.91 441 208.72 41.50 -
64PSRFBD2008-08-27 15:46:062008-08-27 15:57:34 00:11:28 441 348.08 487 29.90 34.30 43
65PSRFBD2008-08-27 15:59:252008-08-27 16:10:19 00:10:54 487 36.59 487 76.34 34.30 43
66PSMOB12008-08-27 16:13:282008-08-27 16:19:02 00:05:34 487 87.83 487 108.13 1.20 -
67AV2OBS2008-08-27 16:25:472008-08-27 16:28:35 00:02:48 487 132.74 487 142.95 0.00 -
68PSMOB12008-08-27 16:31:202008-08-27 16:36:08 00:04:48 487 152.98 487 170.49 1.20 -
69AV2OBS2008-08-27 16:33:272008-08-27 16:35:19 00:01:52 487 160.70 487 167.51 0.00 -
70PSMOB12008-08-27 16:45:482008-08-27 16:48:24 00:02:36 487 205.74 487 215.22 1.20 -
71PSRWB12008-08-27 16:59:292008-08-27 17:03:55 00:04:26 487 255.64 487 271.80 27.10 80
72PSRWB12008-08-27 17:33:422008-08-27 17:35:34 00:01:52 533 20.42 533 27.23 27.10 80
73PSRFBD2008-08-27 17:38:082008-08-27 17:46:50 00:08:42 533 36.59 533 68.32 34.30 43
74PSMOB12008-08-27 17:51:512008-08-27 17:56:47 00:04:56 533 86.61 533 104.60 1.20 -
75AV2OBS2008-08-27 17:55:022008-08-27 17:57:50 00:02:48 533 98.22 533 108.43 0.00 -
76PSMOB12008-08-27 17:59:312008-08-27 18:05:05 00:05:34 533 114.57 533 134.87 1.20 -
77AV2OBS2008-08-27 18:00:172008-08-27 18:03:05 00:02:48 533 117.36 533 127.58 0.00 -
78PSRFBD2008-08-27 18:05:542008-08-27 18:07:56 00:02:02 533 137.85 533 145.26 34.30 43
79PSMOB12008-08-27 18:09:192008-08-27 18:11:55 00:02:36 533 150.31 533 159.79 1.20 -
80PSRWB12008-08-27 18:38:472008-08-27 18:41:11 00:02:24 533 257.76 533 266.52 27.10 80
81PSRFBD2008-08-27 18:50:412008-08-27 18:52:33 00:01:52 533 301.16 533 307.97 34.30 43
82PSRFBD2008-08-27 19:04:272008-08-27 19:06:19 00:01:52 533 351.36 533 358.17 34.30 43
83PSRFBD2008-08-27 19:17:342008-08-27 19:26:30 00:08:56 579 39.20 579 71.78 34.30 43
84PSMOB12008-08-27 19:30:342008-08-27 19:37:40 00:07:06 579 86.61 579 112.50 1.20 -
85PSRWB12008-08-27 20:18:592008-08-27 20:21:23 00:02:24 579 263.17 579 271.93 27.10 80
86PSRFBD2008-08-27 20:37:302008-08-27 20:39:30 00:02:00 579 330.70 579 337.99 34.30 43
87PSRFBD2008-08-27 20:49:112008-08-27 20:58:35 00:09:24 625 13.31 625 47.59 34.30 43
88PSRFBD2008-08-27 20:59:542008-08-27 21:04:54 00:05:00 625 52.39 625 70.63 34.30 43
89PSRWB12008-08-27 21:06:282008-08-27 21:11:20 00:04:52 625 76.34 625 94.09 27.10 80
90AV2OBS2008-08-27 21:14:562008-08-27 21:16:48 00:01:52 625 107.21 625 114.02 -41.50 -
91PSMOB12008-08-27 21:37:302008-08-27 21:40:10 00:02:40 625 189.51 625 199.23 1.20 -
92PSRWB12008-08-27 21:53:442008-08-27 22:00:08 00:06:24 625 248.71 625 272.05 27.10 80
93PSRFBD2008-08-27 22:12:552008-08-27 22:21:39 00:08:44 625 318.66 625 350.51 34.30 43
94PSRFBD2008-08-27 22:24:452008-08-27 22:29:23 00:04:38 671 1.82 671 18.72 34.30 43
95PSRPLR2008-08-27 22:33:122008-08-27 22:36:38 00:03:26 671 32.64 671 45.16 21.50 127
96PSRFBD2008-08-27 22:43:552008-08-27 22:45:47 00:01:52 671 71.72 671 78.53 34.30 43
97PSRFBS2008-08-27 23:09:282008-08-27 23:11:58 00:02:30 671 164.89 671 174.01 34.30 7
98PSMOB12008-08-27 23:10:172008-08-27 23:13:37 00:03:20 671 167.87 671 180.03 1.20 -
99AV2OBS2008-08-27 23:10:312008-08-27 23:13:31 00:03:00 671 168.72 671 179.66 0.00 -
100PSRFBS2008-08-27 23:15:202008-08-27 23:17:12 00:01:52 671 186.29 671 193.09 34.30 7
101PSRFBS2008-08-27 23:18:012008-08-27 23:19:53 00:01:52 671 196.07 671 202.88 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
27-14.242842008-08-26 23:22:11153.417372008-08-27 00:11:32
73-38.922422008-08-27 01:00:54128.737782008-08-27 01:50:15
119-63.602012008-08-27 02:39:37104.058202008-08-27 03:28:58
165-88.281592008-08-27 04:18:20 79.378622008-08-27 05:07:41
211-112.961172008-08-27 05:57:03 54.699042008-08-27 06:46:25
257-137.640762008-08-27 07:35:46 30.019452008-08-27 08:25:08
303-162.320342008-08-27 09:14:29 5.339872008-08-27 10:03:51
349173.000082008-08-27 10:53:12-19.339712008-08-27 11:42:34
395148.320502008-08-27 12:31:55-44.019302008-08-27 13:21:17
441123.640912008-08-27 14:10:39-68.698882008-08-27 15:00:00
487 98.961332008-08-27 15:49:22-93.378462008-08-27 16:38:43
533 74.281752008-08-27 17:28:05-118.058042008-08-27 18:17:26
579 49.602172008-08-27 19:06:48-142.737632008-08-27 19:56:09
625 24.922582008-08-27 20:45:31-167.417212008-08-27 21:34:52
671 0.243002008-08-27 22:24:14167.903212008-08-27 23:13:36
