>ALOS Data Take Simulation(Aug. 23, 2008)

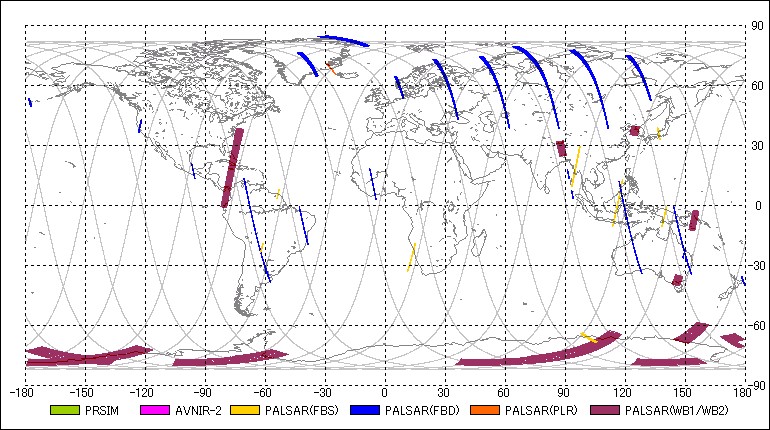

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2008-08-23 00:13:482008-08-23 00:17:46 00:03:58 43 62.97 43 77.43 34.30 43
2PSMOB12008-08-23 00:24:572008-08-23 00:32:23 00:07:26 43 103.63 43 130.74 1.20 -
3AV2OBS2008-08-23 00:43:012008-08-23 00:44:53 00:01:52 43 169.51 43 176.32 0.00 -
4PSRFBS2008-08-23 00:45:452008-08-23 00:49:07 00:03:22 43 179.48 43 191.76 34.30 7
5PSMOB12008-08-23 00:49:352008-08-23 00:57:13 00:07:38 43 193.46 43 221.30 1.20 -
6PSRWB12008-08-23 01:03:342008-08-23 01:11:26 00:07:52 43 244.45 43 273.14 27.10 80
7PSRFBD2008-08-23 01:29:102008-08-23 01:35:06 00:05:56 43 337.81 43 359.45 34.30 43
8AV2OBS2008-08-23 02:05:042008-08-23 02:15:28 00:10:24 89 108.73 89 146.66 0.00 -
9PSMOB22008-08-23 02:07:262008-08-23 02:10:22 00:02:56 89 117.36 89 128.06 0.00 -
10PSRWB12008-08-23 02:13:232008-08-23 02:15:15 00:01:52 89 139.06 89 145.87 27.10 80
11AV2OBS2008-08-23 02:19:392008-08-23 02:27:45 00:08:06 89 161.92 89 191.45 0.00 -
12PSMOB22008-08-23 02:19:422008-08-23 02:28:30 00:08:48 89 162.10 89 194.19 0.00 -
13PSRFBS2008-08-23 02:20:472008-08-23 02:27:55 00:07:08 89 166.05 89 192.06 34.30 7
14PSRFBD2008-08-23 03:02:412008-08-23 03:17:47 00:15:06 89 318.85 135 13.92 34.30 43
15PSMOB22008-08-23 03:46:552008-08-23 03:54:23 00:07:28 135 120.16 135 147.39 0.00 -
16PSRFBS2008-08-23 03:54:512008-08-23 04:01:01 00:06:10 135 149.09 135 171.58 34.30 7
17AV2OBS2008-08-23 04:00:472008-08-23 04:03:07 00:02:20 135 170.73 135 179.24 0.00 -
18PSRFBD2008-08-23 04:55:492008-08-23 04:58:29 00:02:40 181 11.43 181 21.15 34.30 43
19AV2OBS2008-08-23 05:23:532008-08-23 05:25:59 00:02:06 181 113.78 181 121.44 0.00 -
20AV2OBS2008-08-23 05:27:432008-08-23 05:33:35 00:05:52 181 127.76 181 149.15 0.00 -
21AV2OBS2008-08-23 09:01:492008-08-23 09:07:31 00:05:42 273 188.54 273 209.32 0.00 -
22PSRFBS2008-08-23 09:04:222008-08-23 09:08:58 00:04:36 273 197.77 273 214.55 21.50 3
23PSRFBD2008-08-23 10:01:502008-08-23 10:03:42 00:01:52 319 47.41 319 54.21 34.30 43
24AV2OBS2008-08-23 10:17:422008-08-23 10:23:14 00:05:32 319 105.21 319 125.39 0.00 -
25AV2OBS2008-08-23 10:27:292008-08-23 10:37:15 00:09:46 319 140.95 319 176.56 0.00 -
26PSRWB12008-08-23 10:59:092008-08-23 11:03:25 00:04:16 319 256.37 319 271.93 27.10 80
27PSRFBD2008-08-23 11:15:502008-08-23 11:17:42 00:01:52 319 317.21 319 324.01 34.30 43
28PSRWB12008-08-23 12:41:492008-08-23 12:47:59 00:06:10 365 270.77 365 293.26 27.10 80
29PSRFBD2008-08-23 12:56:082008-08-23 13:06:12 00:10:04 365 322.98 365 359.69 34.30 43
30PSRFBS2008-08-23 13:14:432008-08-23 13:17:05 00:02:22 411 30.75 411 39.38 34.30 7
31PSRFBD2008-08-23 13:20:092008-08-23 13:27:07 00:06:58 411 50.57 411 75.97 34.30 43
32PSMOB12008-08-23 13:34:122008-08-23 13:37:28 00:03:16 411 101.80 411 113.72 1.20 -
33PSRFBS2008-08-23 13:53:072008-08-23 13:54:59 00:01:52 411 170.79 411 177.60 21.50 21
34AV2OBS2008-08-23 13:57:202008-08-23 14:00:10 00:02:50 411 186.17 411 196.50 0.00 -
35PSRFBS2008-08-23 14:00:352008-08-23 14:02:27 00:01:52 411 198.02 411 204.83 34.30 7
36PSRFBD2008-08-23 14:34:542008-08-23 14:48:20 00:13:26 411 323.16 457 12.16 34.30 43
37PSRFBD2008-08-23 14:55:022008-08-23 15:06:38 00:11:36 457 36.59 457 78.89 34.30 43
38AV2OBS2008-08-23 15:21:242008-08-23 15:23:16 00:01:52 457 132.74 457 139.55 0.00 -
39PSRWB12008-08-23 15:23:262008-08-23 15:34:59 00:11:33 457 140.16 457 182.28 27.10 80
40PSMOB12008-08-23 15:26:262008-08-23 15:30:46 00:04:20 457 151.16 457 166.96 1.20 -
41PSRWB12008-08-23 15:54:302008-08-23 15:59:34 00:05:04 457 253.45 457 271.93 27.10 80
42PSRFBD2008-08-23 16:24:002008-08-23 16:25:52 00:01:52 503 1.03 503 7.84 34.30 43
43PSRFBD2008-08-23 16:26:512008-08-23 16:28:43 00:01:52 503 11.43 503 18.23 34.30 43
44PSRWB12008-08-23 16:29:592008-08-23 16:32:37 00:02:38 503 22.85 503 32.46 27.10 80
45PSRFBD2008-08-23 16:33:452008-08-23 16:45:51 00:12:06 503 36.59 503 80.71 34.30 43
46PSMOB12008-08-23 16:47:332008-08-23 17:09:51 00:22:18 503 86.91 503 168.24 1.20 -
47AV2OBS2008-08-23 17:00:072008-08-23 17:02:55 00:02:48 503 132.74 503 142.95 0.00 -
48PSRFBS2008-08-23 17:42:082008-08-23 17:44:18 00:02:10 503 285.97 503 293.87 34.30 7
49PSRFBD2008-08-23 18:12:282008-08-23 18:23:06 00:10:38 549 36.59 549 75.37 34.30 43
50PSMOB12008-08-23 18:26:112008-08-23 18:30:23 00:04:12 549 86.61 549 101.93 1.20 -
51AV2OBS2008-08-23 18:30:162008-08-23 18:34:04 00:03:48 549 101.50 549 115.36 0.00 -
52AV2OBS2008-08-23 18:38:072008-08-23 18:41:59 00:03:52 549 130.13 549 144.23 -23.10 -
53PSRFBD2008-08-23 18:39:362008-08-23 18:42:06 00:02:30 549 135.54 549 144.65 34.30 43
54PSRWB12008-08-23 19:14:492008-08-23 19:17:21 00:02:32 549 263.96 549 273.20 27.10 80
55PSRCA22008-08-23 19:27:552008-08-23 19:38:31 00:10:36 549 311.74 549 350.39 34.30 7
56PSRFBD2008-08-23 19:52:262008-08-23 20:01:28 00:09:02 595 41.15 595 74.09 34.30 43
57PSRCA22008-08-23 20:05:122008-08-23 20:08:18 00:03:06 595 87.64 595 98.95 34.30 7
58AV2OBS2008-08-23 20:07:402008-08-23 20:10:28 00:02:48 595 96.70 595 106.91 0.00 -
59PSRCA22008-08-23 20:12:532008-08-23 20:15:59 00:03:06 595 115.66 595 126.97 34.30 7
60PSRCA22008-08-23 20:20:492008-08-23 20:23:55 00:03:06 595 144.65 595 155.96 34.30 7
61PSRCA22008-08-23 20:28:462008-08-23 20:31:52 00:03:06 595 173.58 595 184.89 34.30 7
62PSRCA22008-08-23 20:36:432008-08-23 20:39:49 00:03:06 595 202.64 595 213.94 34.30 7
63PSRCA22008-08-23 20:44:402008-08-23 20:47:46 00:03:06 595 231.63 595 242.93 34.30 7
64PSRCA22008-08-23 20:52:372008-08-23 20:55:43 00:03:06 595 260.62 595 271.93 34.30 7
65PSRFBD2008-08-23 21:34:042008-08-23 21:37:46 00:03:42 641 51.78 641 65.28 34.30 43
66PSRFBD2008-08-23 21:41:242008-08-23 21:43:40 00:02:16 641 78.47 641 86.73 34.30 43
67PSMOB12008-08-23 22:17:492008-08-23 22:22:35 00:04:46 641 211.33 641 228.71 1.20 -
68AV2OBS2008-08-23 22:18:352008-08-23 22:22:27 00:03:52 641 214.12 641 228.23 0.00 -
69PSRWB12008-08-23 22:25:322008-08-23 22:28:58 00:03:26 641 239.47 641 251.99 27.10 80
70PSRFBD2008-08-23 22:58:492008-08-23 23:03:43 00:04:54 16 0.85 16 18.72 34.30 43
71PSRPLR2008-08-23 23:16:112008-08-23 23:18:23 00:02:12 16 64.18 16 72.21 21.50 127
72PSMOB12008-08-23 23:29:082008-08-23 23:34:36 00:05:28 16 111.41 16 131.34 1.20 -
73PSRWB12008-08-23 23:48:212008-08-23 23:51:43 00:03:22 16 181.43 16 193.70 27.10 80
74AV2OBS2008-08-23 23:48:552008-08-23 23:52:47 00:03:52 16 183.49 16 197.59 0.00 -
75PSRFBD2008-08-23 23:53:402008-08-23 23:55:36 00:01:56 16 200.81 16 207.86 34.30 43
76PSMOB12008-08-23 23:54:182008-08-23 23:56:54 00:02:36 16 203.12 16 212.60 1.20 -
77PSRWB12008-08-23 23:57:222008-08-23 23:59:20 00:01:58 16 214.31 16 221.48 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
43-22.827042008-08-22 23:56:31144.833162008-08-23 00:45:52
89-47.506632008-08-23 01:35:14120.153582008-08-23 02:24:35
135-72.186212008-08-23 03:13:57 95.474002008-08-23 04:03:19
181-96.865792008-08-23 04:52:40 70.794422008-08-23 05:42:02
227-121.545382008-08-23 06:31:23 46.114832008-08-23 07:20:45
273-146.224962008-08-23 08:10:06 21.435252008-08-23 08:59:28
319-170.904542008-08-23 09:48:49 -3.244332008-08-23 10:38:11
365164.415882008-08-23 11:27:33-27.923922008-08-23 12:16:54
411139.736292008-08-23 13:06:16-52.603502008-08-23 13:55:37
457115.056712008-08-23 14:44:59-77.283082008-08-23 15:34:20
503 90.377132008-08-23 16:23:42-101.962662008-08-23 17:13:03
549 65.697552008-08-23 18:02:25-126.642252008-08-23 18:51:46
595 41.017962008-08-23 19:41:08-151.321832008-08-23 20:30:30
641 16.338382008-08-23 21:19:51-176.001412008-08-23 22:09:13
16 -8.341202008-08-23 22:58:34159.319012008-08-23 23:47:56
