>ALOS Data Take Simulation(Aug. 20, 2008)

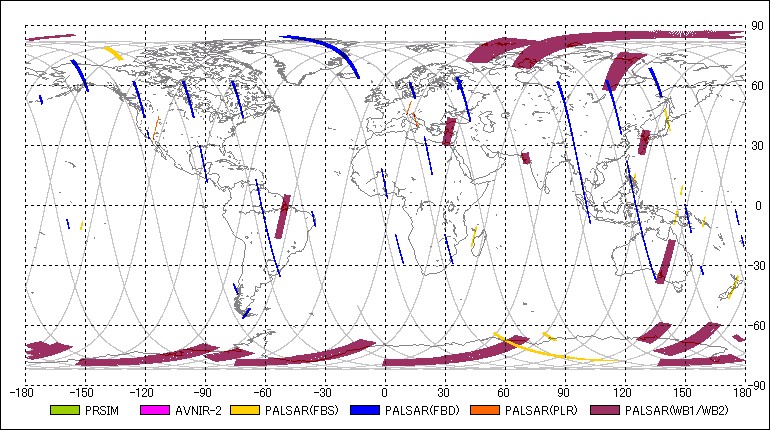

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-08-20 00:00:382008-08-20 00:02:30 00:01:52 32 101.01 32 107.82 41.50 -
2PSMOB12008-08-20 00:01:332008-08-20 00:08:21 00:06:48 32 104.42 32 129.22 1.20 -
3PSRFBS2008-08-20 00:19:112008-08-20 00:21:07 00:01:56 32 168.66 32 175.71 34.30 7
4AV2OBS2008-08-20 00:19:212008-08-20 00:24:57 00:05:36 32 169.33 32 189.75 0.00 -
5PSRFBS2008-08-20 00:22:382008-08-20 00:25:14 00:02:36 32 181.24 32 190.72 34.30 7
6PSMOB12008-08-20 00:25:412008-08-20 00:34:17 00:08:36 32 192.37 32 223.73 1.20 -
7PSRWB12008-08-20 00:26:432008-08-20 00:33:23 00:06:40 32 196.19 32 220.51 27.10 80
8PSRFBD2008-08-20 01:08:052008-08-20 01:10:51 00:02:46 32 347.05 32 357.14 34.30 43
9PSMOB12008-08-20 01:39:462008-08-20 01:55:38 00:15:52 78 102.59 78 160.46 1.20 -
10AV2OBS2008-08-20 01:46:512008-08-20 01:55:39 00:08:48 78 128.37 78 160.46 0.00 -
11PSRWB12008-08-20 01:50:232008-08-20 01:54:15 00:03:52 78 141.25 78 155.35 27.10 80
12PSRFBS2008-08-20 01:56:152008-08-20 01:58:07 00:01:52 78 162.64 78 169.45 34.30 7
13PSMOB22008-08-20 01:58:352008-08-20 02:05:05 00:06:30 78 171.15 78 194.86 0.00 -
14AV2OBS2008-08-20 02:00:342008-08-20 02:04:26 00:03:52 78 178.39 78 192.49 0.00 -
15PSRFBD2008-08-20 02:39:512008-08-20 02:53:59 00:14:08 78 321.64 124 13.19 34.30 43
16PSRFBD2008-08-20 03:01:502008-08-20 03:07:32 00:05:42 124 41.82 124 62.60 34.30 43
17PSRWB12008-08-20 03:18:142008-08-20 03:24:08 00:05:54 124 101.68 124 123.20 27.10 80
18AV2OBS2008-08-20 03:23:412008-08-20 03:41:25 00:17:44 124 121.50 124 186.17 0.00 -
19AV2OBS2008-08-20 03:45:542008-08-20 03:47:46 00:01:52 124 202.52 124 209.32 21.50 -
20PSRWB12008-08-20 03:58:032008-08-20 04:04:55 00:06:52 124 246.88 124 271.93 27.10 80
21PSRFBD2008-08-20 04:16:062008-08-20 04:18:18 00:02:12 124 312.65 124 320.67 34.30 43
22PSRFBD2008-08-20 04:31:372008-08-20 04:37:27 00:05:50 170 9.24 170 30.51 34.30 43
23PSRFBD2008-08-20 04:40:332008-08-20 04:46:15 00:05:42 170 41.82 170 62.60 34.30 43
24AV2OBS2008-08-20 04:56:432008-08-20 04:59:31 00:02:48 170 100.83 170 111.04 0.00 -
25PSMOB22008-08-20 05:01:172008-08-20 05:11:35 00:10:18 170 117.42 170 154.99 0.00 -
26AV2OBS2008-08-20 05:04:072008-08-20 05:10:47 00:06:40 170 127.76 170 152.07 0.00 -
27PSRFBD2008-08-20 06:16:222008-08-20 06:18:14 00:01:52 216 31.24 216 38.05 34.30 43
28PSRFBD2008-08-20 06:19:162008-08-20 06:24:58 00:05:42 216 41.82 216 62.60 34.30 43
29PSRFBS2008-08-20 06:27:202008-08-20 06:29:44 00:02:24 216 71.23 216 79.99 34.30 7
30PSRWB12008-08-20 06:30:532008-08-20 06:38:24 00:07:31 216 84.18 216 111.59 27.10 80
31PSMOB22008-08-20 06:40:002008-08-20 06:48:08 00:08:08 216 117.42 216 147.09 0.00 -
32AV2OBS2008-08-20 06:42:502008-08-20 06:47:30 00:04:40 216 127.76 216 144.78 0.00 -
33PSRFBS2008-08-20 06:59:432008-08-20 07:03:15 00:03:32 216 189.33 216 202.21 34.30 7
34AV2OBS2008-08-20 07:00:092008-08-20 07:03:21 00:03:12 216 190.91 216 202.58 -34.30 -
35PSRFBD2008-08-20 08:01:362008-08-20 08:06:42 00:05:06 262 55.00 262 73.60 34.30 43
36PSRWB12008-08-20 08:12:172008-08-20 08:16:17 00:04:00 262 93.96 262 108.55 27.10 80
37PSRFBD2008-08-20 08:18:152008-08-20 08:20:11 00:01:56 262 115.72 262 122.77 34.30 43
38PSRWB12008-08-20 08:23:282008-08-20 08:27:54 00:04:26 262 134.75 262 150.91 27.10 80
39AV2OBS2008-08-20 08:27:352008-08-20 08:45:57 00:18:22 262 149.76 262 216.74 0.00 -
40PSMOB12008-08-20 08:29:282008-08-20 08:32:04 00:02:36 262 156.63 262 166.11 1.20 -
41PSRWB12008-08-20 08:54:532008-08-20 09:01:05 00:06:12 262 249.32 262 271.93 27.10 80
42PSRFBD2008-08-20 09:21:282008-08-20 09:23:20 00:01:52 262 346.26 262 353.07 34.30 43
43PSRFBD2008-08-20 09:38:372008-08-20 09:40:29 00:01:52 308 48.81 308 55.61 34.30 43
44AV2OBS2008-08-20 09:54:222008-08-20 09:58:34 00:04:12 308 106.24 308 121.56 0.00 -
45PSRPLR2008-08-20 09:59:522008-08-20 10:02:18 00:02:26 308 126.24 308 135.11 21.50 127
46AV2OBS2008-08-20 10:03:562008-08-20 10:13:26 00:09:30 308 141.13 308 175.77 0.00 -
47PSRFBD2008-08-20 10:57:432008-08-20 10:59:49 00:02:06 308 337.26 308 344.92 34.30 43
48PSRFBD2008-08-20 11:00:442008-08-20 11:03:22 00:02:38 308 348.26 308 357.87 34.30 43
49AV2OBS2008-08-20 11:46:332008-08-20 11:48:25 00:01:52 354 155.35 354 162.16 0.00 -
50PSRWB12008-08-20 12:14:032008-08-20 12:16:23 00:02:20 354 255.58 354 264.08 27.10 80
51PSRWB12008-08-20 12:20:522008-08-20 12:24:26 00:03:34 354 280.50 354 293.50 27.10 80
52PSRFBD2008-08-20 12:32:252008-08-20 12:34:15 00:01:50 354 322.61 354 329.30 34.30 43
53PSRFBD2008-08-20 12:38:172008-08-20 12:42:47 00:04:30 354 344.01 400 0.43 34.30 43
54PSRFBS2008-08-20 12:52:232008-08-20 12:55:57 00:03:34 400 35.43 400 48.44 34.30 7
55PSRFBD2008-08-20 12:57:022008-08-20 13:01:42 00:04:40 400 52.39 400 69.41 34.30 43
56PSMOB12008-08-20 13:12:152008-08-20 13:15:09 00:02:54 400 107.88 400 118.46 1.20 -
57PSRWB12008-08-20 13:30:172008-08-20 13:36:53 00:06:36 400 173.58 400 197.65 27.10 80
58PSMOB12008-08-20 13:38:592008-08-20 13:42:51 00:03:52 400 205.31 400 219.41 1.20 -
59PSRFBD2008-08-20 13:46:092008-08-20 13:48:19 00:02:10 400 231.45 400 239.35 34.30 43
60PSRWB12008-08-20 13:51:482008-08-20 13:57:30 00:05:42 400 252.05 400 272.84 27.10 80
61PSRFBD2008-08-20 14:10:312008-08-20 14:27:29 00:16:58 400 320.37 446 22.25 34.30 43
62PSRFBD2008-08-20 14:30:352008-08-20 14:38:43 00:08:08 446 33.55 446 63.21 34.30 43
63PSMOB12008-08-20 14:46:572008-08-20 14:59:23 00:12:26 446 93.23 446 138.58 1.20 -
64AV2OBS2008-08-20 14:57:202008-08-20 14:59:12 00:01:52 446 131.04 446 137.85 0.00 -
65PSMOB12008-08-20 15:03:432008-08-20 15:07:09 00:03:26 446 154.32 446 166.84 1.20 -
66AV2OBS2008-08-20 15:07:002008-08-20 15:09:48 00:02:48 446 166.29 446 176.50 0.00 -
67AV2OBS2008-08-20 15:11:482008-08-20 15:15:16 00:03:28 446 183.80 446 196.44 0.00 -
68PSRFBD2008-08-20 15:57:002008-08-20 16:17:14 00:20:14 446 348.63 492 62.42 34.30 43
69AV2OBS2008-08-20 16:31:172008-08-20 16:39:19 00:08:02 492 113.66 492 142.95 0.00 -
70PSMOB12008-08-20 16:42:132008-08-20 16:46:49 00:04:36 492 153.53 492 170.30 1.20 -
71AV2OBS2008-08-20 16:44:042008-08-20 16:45:56 00:01:52 492 160.33 492 167.14 21.50 -
72PSRWB12008-08-20 17:44:032008-08-20 17:46:05 00:02:02 538 19.02 538 26.44 27.10 80
73PSMOB12008-08-20 18:02:342008-08-20 18:07:22 00:04:48 538 86.55 538 104.05 1.20 -
74AV2OBS2008-08-20 18:05:162008-08-20 18:08:04 00:02:48 538 96.40 538 106.61 0.00 -
75PSMOB12008-08-20 18:10:152008-08-20 18:14:11 00:03:56 538 114.57 538 128.91 1.20 -
76PSRPLR2008-08-20 18:15:282008-08-20 18:19:40 00:04:12 538 133.65 538 148.97 23.10 128
77AV2OBS2008-08-20 18:15:332008-08-20 18:21:19 00:05:46 538 133.96 538 154.99 -23.10 -
78PSRWB12008-08-20 18:47:502008-08-20 18:53:24 00:05:34 538 251.69 538 271.99 27.10 80
79PSRFBS2008-08-20 18:57:352008-08-20 18:59:27 00:01:52 538 287.18 538 293.99 34.30 7
80PSRFBD2008-08-20 19:28:272008-08-20 19:35:15 00:06:48 584 39.75 584 64.55 34.30 43
81PSMOB12008-08-20 19:41:182008-08-20 19:44:14 00:02:56 584 86.61 584 97.31 1.20 -
82AV2OBS2008-08-20 19:42:202008-08-20 19:47:08 00:04:48 584 90.38 584 107.88 0.00 -
83PSMOB12008-08-20 19:48:582008-08-20 19:53:34 00:04:36 584 114.57 584 131.34 1.20 -
84AV2OBS2008-08-20 19:51:442008-08-20 19:53:36 00:01:52 584 124.66 584 131.46 0.00 -
85PSRFBS2008-08-20 20:08:462008-08-20 20:10:38 00:01:52 584 186.83 584 193.64 34.30 7
86PSRFBS2008-08-20 20:31:182008-08-20 20:38:10 00:06:52 584 268.95 584 293.99 34.30 7
87PSRFBD2008-08-20 20:47:352008-08-20 20:52:19 00:04:44 584 328.33 584 345.59 34.30 43
88PSRFBD2008-08-20 20:59:552008-08-20 21:05:47 00:05:52 630 13.31 630 34.70 34.30 43
89PSRPLR2008-08-20 21:06:402008-08-20 21:09:20 00:02:40 630 37.93 630 47.65 21.50 127
90PSRFBD2008-08-20 21:10:212008-08-20 21:13:17 00:02:56 630 51.36 630 62.06 34.30 43
91PSMOB12008-08-20 21:26:122008-08-20 21:30:04 00:03:52 630 109.16 630 123.26 1.20 -
92AV2OBS2008-08-20 21:26:582008-08-20 21:30:06 00:03:08 630 111.95 630 123.38 0.00 -
93PSMOB12008-08-20 21:45:032008-08-20 21:48:09 00:03:06 630 177.90 630 189.20 1.20 -
94PSRFBS2008-08-20 21:55:072008-08-20 21:58:59 00:03:52 630 214.67 630 228.77 34.30 7
95PSRWB12008-08-20 22:01:562008-08-20 22:07:30 00:05:34 630 239.47 630 259.77 27.10 80
96PSRFBD2008-08-20 22:26:202008-08-20 22:30:56 00:04:36 630 328.45 630 345.22 34.30 43
97PSRFBD2008-08-20 22:35:232008-08-20 22:40:07 00:04:44 5 1.46 5 18.72 34.30 43
98PSRFBD2008-08-20 22:51:522008-08-20 22:58:46 00:06:54 5 61.57 5 86.73 34.30 43
99PSMOB12008-08-20 23:08:392008-08-20 23:11:25 00:02:46 5 122.77 5 132.86 1.20 -
100PSMOB12008-08-20 23:18:532008-08-20 23:23:19 00:04:26 5 160.09 5 176.26 1.20 -
101AV2OBS2008-08-20 23:19:392008-08-20 23:21:31 00:01:52 5 162.89 5 169.69 0.00 -
102PSRFBS2008-08-20 23:25:392008-08-20 23:27:39 00:02:00 5 184.77 5 192.06 34.30 7
103PSMOB12008-08-20 23:31:342008-08-20 23:34:10 00:02:36 5 206.34 5 215.83 1.20 -
104AV2OBS2008-08-20 23:32:192008-08-20 23:34:11 00:01:52 5 209.08 5 215.89 0.00 -
105PSRWB12008-08-20 23:40:392008-08-20 23:44:03 00:03:24 5 239.47 5 251.87 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
32-16.925412008-08-19 23:32:54150.734802008-08-20 00:22:16
78-41.604992008-08-20 01:11:38126.055222008-08-20 02:00:59
124-66.284572008-08-20 02:50:21101.375642008-08-20 03:39:42
170-90.964152008-08-20 04:29:04 76.696062008-08-20 05:18:25
216-115.643742008-08-20 06:07:47 52.016472008-08-20 06:57:08
262-140.323322008-08-20 07:46:30 27.336892008-08-20 08:35:51
308-165.002902008-08-20 09:25:13 2.657312008-08-20 10:14:35
354170.317522008-08-20 11:03:56-22.022282008-08-20 11:53:18
400145.637932008-08-20 12:42:39-46.701862008-08-20 13:32:01
446120.958352008-08-20 14:21:22-71.381442008-08-20 15:10:44
492 96.278772008-08-20 16:00:05-96.061022008-08-20 16:49:27
538 71.599182008-08-20 17:38:49-120.740612008-08-20 18:28:10
584 46.919602008-08-20 19:17:32-145.420192008-08-20 20:06:53
630 22.240022008-08-20 20:56:15-170.099772008-08-20 21:45:36
5 -2.439562008-08-20 22:34:58165.220652008-08-20 23:24:19
