>ALOS Data Take Simulation(Aug. 11, 2008)

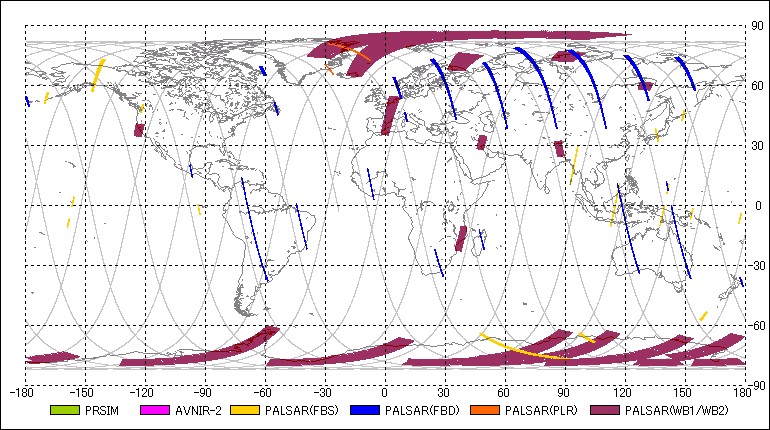

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2008-08-11 00:36:502008-08-11 00:38:50 00:02:00 45 131.28 45 138.58 34.30 7
2PSRFBS2008-08-11 00:46:562008-08-11 00:48:52 00:01:56 45 168.11 45 175.17 34.30 7
3PSRFBS2008-08-11 00:49:572008-08-11 00:53:21 00:03:24 45 179.12 45 191.51 34.30 7
4PSMOB12008-08-11 00:53:482008-08-11 00:57:40 00:03:52 45 193.16 45 207.26 1.20 -
5AV2OBS2008-08-11 00:58:082008-08-11 01:00:00 00:01:52 45 208.96 45 215.77 21.50 -
6PSRWB12008-08-11 01:07:492008-08-11 01:15:41 00:07:52 45 244.27 45 272.96 27.10 80
7PSRFBD2008-08-11 01:32:532008-08-11 01:39:53 00:07:00 45 335.74 91 1.28 34.30 43
8PSRFBD2008-08-11 01:51:232008-08-11 01:53:51 00:02:28 91 43.21 91 52.21 34.30 43
9PSRFBD2008-08-11 01:56:552008-08-11 01:58:47 00:01:52 91 63.33 91 70.14 34.30 43
10PSRWB12008-08-11 02:11:352008-08-11 02:13:15 00:01:40 91 116.82 91 122.90 27.10 80
11AV2OBS2008-08-11 02:13:432008-08-11 02:19:53 00:06:10 91 124.60 91 147.09 0.00 -
12AV2OBS2008-08-11 02:21:392008-08-11 02:23:31 00:01:52 91 153.53 91 160.33 0.00 -
13PSMOB22008-08-11 02:23:342008-08-11 02:26:28 00:02:54 91 160.52 91 171.09 0.00 -
14PSRFBS2008-08-11 02:25:322008-08-11 02:32:12 00:06:40 91 167.69 91 192.00 34.30 7
15AV2OBS2008-08-11 02:29:342008-08-11 02:32:00 00:02:26 91 182.40 91 191.27 0.00 -
16PSMOB12008-08-11 02:33:112008-08-11 02:38:01 00:04:50 91 195.59 91 213.21 1.20 -
17PSRWB12008-08-11 02:46:192008-08-11 02:54:29 00:08:10 91 243.48 91 273.26 27.10 80
18PSRFBD2008-08-11 03:07:082008-08-11 03:22:08 00:15:00 91 319.39 137 14.10 34.30 43
19AV2OBS2008-08-11 03:46:302008-08-11 03:49:18 00:02:48 137 103.02 137 113.23 0.00 -
20PSMOB22008-08-11 03:51:092008-08-11 03:55:39 00:04:30 137 119.92 137 136.33 0.00 -
21AV2OBS2008-08-11 03:56:062008-08-11 03:57:16 00:01:10 137 137.97 137 142.22 0.00 -
22PSRFBS2008-08-11 03:59:082008-08-11 04:05:04 00:05:56 137 149.03 137 170.67 34.30 7
23AV2OBS2008-08-11 04:05:212008-08-11 04:07:13 00:01:52 137 171.70 137 178.51 0.00 -
24PSRFBS2008-08-11 04:55:082008-08-11 04:57:08 00:02:00 137 353.25 183 0.55 34.30 7
25PSRFBD2008-08-11 05:00:142008-08-11 05:02:36 00:02:22 183 11.85 183 20.48 34.30 43
26PSRWB12008-08-11 05:24:452008-08-11 05:26:37 00:01:52 183 101.26 183 108.07 27.10 80
27PSMOB22008-08-11 05:29:112008-08-11 05:36:41 00:07:30 183 117.42 183 144.78 0.00 -
28AV2OBS2008-08-11 05:32:012008-08-11 05:35:53 00:03:52 183 127.76 183 141.86 0.00 -
29AV2OBS2008-08-11 07:03:442008-08-11 07:07:26 00:03:42 229 102.23 229 115.72 0.00 -
30PSMOB22008-08-11 07:07:542008-08-11 07:11:44 00:03:50 229 117.42 229 131.40 0.00 -
31PSRWB12008-08-11 07:15:072008-08-11 07:17:37 00:02:30 229 143.74 229 152.86 27.10 80
32AV2OBS2008-08-11 07:21:272008-08-11 07:25:19 00:03:52 229 166.84 229 180.94 0.00 -
33PSRWB12008-08-11 07:27:402008-08-11 07:31:38 00:03:58 229 189.51 229 203.97 27.10 80
34PSRWB12008-08-11 07:43:472008-08-11 07:50:19 00:06:32 229 248.28 229 272.11 27.10 80
35PSMOB12008-08-11 07:43:562008-08-11 07:46:32 00:02:36 229 248.83 229 258.31 1.20 -
36PSRWB12008-08-11 08:42:222008-08-11 08:45:21 00:02:59 275 101.93 275 112.81 27.10 80
37AV2OBS2008-08-11 08:54:262008-08-11 09:11:34 00:17:08 275 145.93 275 208.41 0.00 -
38PSRFBD2008-08-11 10:06:082008-08-11 10:08:16 00:02:08 321 47.41 321 55.19 34.30 43
39AV2OBS2008-08-11 10:23:252008-08-11 10:25:17 00:01:52 321 110.37 321 117.18 0.00 -
40PSRWB12008-08-11 10:27:092008-08-11 10:33:04 00:05:55 321 124.05 321 145.63 27.10 80
41PSMOB12008-08-11 10:28:202008-08-11 10:30:56 00:02:36 321 128.37 321 137.85 1.20 -
42AV2OBS2008-08-11 10:31:432008-08-11 10:41:31 00:09:48 321 140.70 321 176.44 0.00 -
43PSRFBD2008-08-11 11:19:542008-08-11 11:21:52 00:01:58 321 316.42 321 323.59 34.30 43
44PSRFBD2008-08-11 11:47:052008-08-11 11:52:27 00:05:22 367 55.55 367 75.12 34.30 43
45PSRWB12008-08-11 11:54:592008-08-11 12:03:36 00:08:37 367 84.36 367 115.78 27.10 80
46PSRWB12008-08-11 12:38:012008-08-11 12:46:27 00:08:26 367 241.29 367 272.05 27.10 80
47PSRFBD2008-08-11 12:59:442008-08-11 13:10:32 00:10:48 367 320.49 367 359.87 34.30 43
48PSRFBD2008-08-11 13:12:002008-08-11 13:13:52 00:01:52 413 5.23 413 12.03 34.30 43
49PSRFBS2008-08-11 13:18:472008-08-11 13:21:17 00:02:30 413 29.96 413 39.08 34.30 7
50PSRFBD2008-08-11 13:24:232008-08-11 13:31:25 00:07:02 413 50.39 413 76.03 34.30 43
51PSRWB12008-08-11 13:33:592008-08-11 13:39:39 00:05:40 413 85.39 413 106.06 27.10 80
52PSMOB12008-08-11 13:38:202008-08-11 13:41:52 00:03:32 413 101.26 413 114.14 1.20 -
53AV2OBS2008-08-11 13:40:112008-08-11 13:42:03 00:01:52 413 108.00 413 114.81 -34.30 -
54AV2OBS2008-08-11 14:00:522008-08-11 14:04:26 00:03:34 413 183.43 413 196.44 0.00 -
55AV2OBS2008-08-11 14:08:212008-08-11 14:10:13 00:01:52 413 210.72 413 217.53 -21.50 -
56PSRFBD2008-08-11 14:39:122008-08-11 14:52:22 00:13:10 413 323.22 459 11.24 34.30 43
57PSRFBD2008-08-11 14:59:192008-08-11 15:10:55 00:11:36 459 36.59 459 78.89 34.30 43
58PSMOB12008-08-11 15:30:342008-08-11 15:35:10 00:04:36 459 150.55 459 167.32 1.20 -
59PSMOB12008-08-11 15:37:322008-08-11 15:40:12 00:02:40 459 175.96 459 185.68 1.20 -
60AV2OBS2008-08-11 15:38:222008-08-11 15:40:16 00:01:54 459 178.99 459 185.92 0.00 -
61PSRWB12008-08-11 16:34:132008-08-11 16:36:55 00:02:42 505 22.61 505 32.46 27.10 80
62PSRFBD2008-08-11 16:38:022008-08-11 16:49:56 00:11:54 505 36.53 505 79.92 34.30 43
63PSMOB12008-08-11 16:51:482008-08-11 17:13:52 00:22:04 505 86.73 505 167.20 1.20 -
64AV2OBS2008-08-11 17:10:002008-08-11 17:12:48 00:02:48 505 153.10 505 163.31 0.00 -
65PSRWB12008-08-11 17:38:462008-08-11 17:42:36 00:03:50 505 258.07 505 272.05 27.10 80
66PSRFBS2008-08-11 17:46:252008-08-11 17:48:35 00:02:10 505 285.97 505 293.87 34.30 7
67PSRFBD2008-08-11 18:16:452008-08-11 18:26:29 00:09:44 551 36.59 551 72.08 34.30 43
68PSMOB12008-08-11 18:30:282008-08-11 18:34:34 00:04:06 551 86.55 551 101.50 1.20 -
69AV2OBS2008-08-11 18:34:102008-08-11 18:36:50 00:02:40 551 100.10 551 109.83 0.00 -
70PSRFBS2008-08-11 18:41:472008-08-11 18:43:39 00:01:52 551 127.88 551 134.69 34.30 7
71PSRWB12008-08-11 18:44:352008-08-11 18:46:51 00:02:16 551 138.03 551 146.30 27.10 80
72PSRWB12008-08-11 19:19:402008-08-11 19:21:32 00:01:52 551 266.03 551 272.84 27.10 80
73PSRFBD2008-08-11 19:38:442008-08-11 19:42:06 00:03:22 551 335.56 551 347.84 34.30 43
74PSRFBD2008-08-11 19:56:372008-08-11 20:05:45 00:09:08 597 40.78 597 74.09 34.30 43
75PSMOB12008-08-11 20:09:112008-08-11 20:11:47 00:02:36 597 86.55 597 96.03 1.20 -
76AV2OBS2008-08-11 20:09:582008-08-11 20:12:46 00:02:48 597 89.41 597 99.62 0.00 -
77PSRFBS2008-08-11 20:14:192008-08-11 20:19:25 00:05:06 597 105.27 597 123.87 41.50 10
78PSRFBS2008-08-11 20:33:202008-08-11 20:35:16 00:01:56 597 174.62 597 181.67 34.30 7
79PSRFBS2008-08-11 20:36:212008-08-11 20:38:13 00:01:52 597 185.62 597 192.43 34.30 7
80AV2OBS2008-08-11 20:39:432008-08-11 20:41:35 00:01:52 597 197.90 597 204.70 0.00 -
81PSRWB12008-08-11 20:52:532008-08-11 20:57:43 00:04:50 597 245.91 597 263.54 27.10 80
82PSRFBS2008-08-11 20:58:382008-08-11 21:06:00 00:07:22 597 266.88 597 293.74 34.30 7
83PSRFBD2008-08-11 21:13:432008-08-11 21:18:07 00:04:24 597 321.89 597 337.93 34.30 43
84PSRFBD2008-08-11 21:35:082008-08-11 21:37:00 00:01:52 643 39.99 643 46.80 34.30 43
85PSRFBD2008-08-11 21:38:222008-08-11 21:41:56 00:03:34 643 51.78 643 64.79 34.30 43
86PSRPLR2008-08-11 21:43:492008-08-11 21:47:03 00:03:14 643 71.66 643 83.45 21.50 127
87AV2OBS2008-08-11 21:48:252008-08-11 21:50:17 00:01:52 643 88.43 643 95.24 0.00 -
88AV2OBS2008-08-11 21:53:242008-08-11 21:55:16 00:01:52 643 106.61 643 113.41 -21.50 -
89PSRFBS2008-08-11 21:57:352008-08-11 21:59:51 00:02:16 643 121.86 643 130.13 34.30 7
90PSRFBS2008-08-11 22:14:182008-08-11 22:16:24 00:02:06 643 182.82 643 190.48 34.30 7
91AV2OBS2008-08-11 22:22:432008-08-11 22:26:43 00:04:00 643 213.52 643 228.10 0.00 -
92PSRFBS2008-08-11 22:28:102008-08-11 22:30:02 00:01:52 643 233.45 643 240.26 34.30 7
93AV2OBS2008-08-11 22:28:392008-08-11 22:30:31 00:01:52 643 235.15 643 241.96 -34.30 -
94PSRWB12008-08-11 22:31:492008-08-11 22:38:43 00:06:54 643 246.76 643 271.93 27.10 80
95PSRFBD2008-08-11 23:03:032008-08-11 23:08:01 00:04:58 18 0.67 18 18.78 34.30 43
96PSRPLR2008-08-11 23:20:292008-08-11 23:22:35 00:02:06 18 64.18 18 71.84 21.50 127
97PSMOB12008-08-11 23:33:062008-08-11 23:38:50 00:05:44 18 110.19 18 131.10 1.20 -
98AV2OBS2008-08-11 23:49:222008-08-11 23:51:14 00:01:52 18 169.51 18 176.32 0.00 -
99PSRFBS2008-08-11 23:52:192008-08-11 23:54:29 00:02:10 18 180.27 18 188.17 34.30 7
100AV2OBS2008-08-11 23:54:572008-08-11 23:56:45 00:01:48 18 189.87 18 196.44 0.00 -
101PSMOB12008-08-11 23:57:132008-08-12 00:05:33 00:08:20 18 198.14 18 228.53 1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
670 0.779512008-08-10 22:22:05168.439722008-08-10 23:11:27
45-23.900072008-08-11 00:00:48143.760142008-08-11 00:50:10
91-48.579652008-08-11 01:39:31119.080562008-08-11 02:28:53
137-73.259242008-08-11 03:18:15 94.400972008-08-11 04:07:36
183-97.938822008-08-11 04:56:58 69.721392008-08-11 05:46:19
229-122.618402008-08-11 06:35:41 45.041812008-08-11 07:25:02
275-147.297982008-08-11 08:14:24 20.362232008-08-11 09:03:45
321-171.977572008-08-11 09:53:07 -4.317362008-08-11 10:42:28
367163.342852008-08-11 11:31:50-28.996942008-08-11 12:21:12
413138.663272008-08-11 13:10:33-53.676522008-08-11 13:59:55
459113.983692008-08-11 14:49:16-78.356112008-08-11 15:38:38
505 89.304102008-08-11 16:27:59-103.035692008-08-11 17:17:21
551 64.624522008-08-11 18:06:42-127.715272008-08-11 18:56:04
597 39.944942008-08-11 19:45:26-152.394852008-08-11 20:34:47
643 15.265352008-08-11 21:24:09-177.074442008-08-11 22:13:30
18 -9.414232008-08-11 23:02:52158.245982008-08-11 23:52:13
