>ALOS Data Take Simulation(Jul. 09, 2008)

Observation Area

PRISM

AVNIR-2

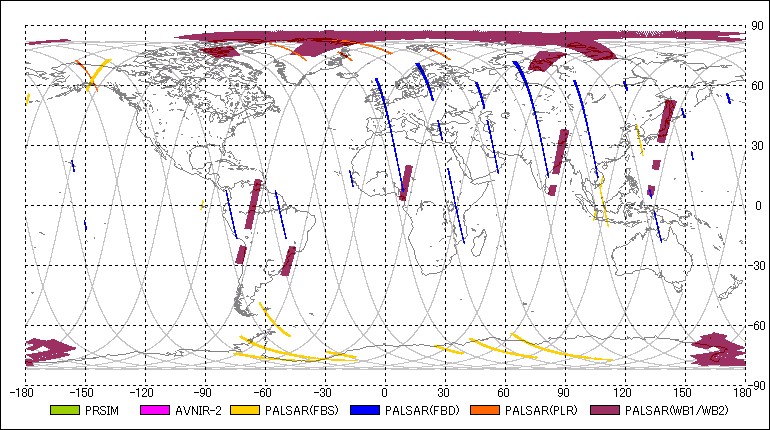

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12008-07-09 01:05:462008-07-09 01:15:54 00:10:08 62 103.75 62 140.70 -1.20 -
2AV2OBS2008-07-09 01:08:332008-07-09 01:10:43 00:02:10 62 113.90 62 121.80 0.00 -
3PSRWB12008-07-09 01:11:512008-07-09 01:18:19 00:06:28 62 125.93 62 149.52 27.10 80
4PSMOB12008-07-09 01:17:512008-07-09 01:20:27 00:02:36 62 147.81 62 157.30 -1.20 -
5PSRWB12008-07-09 01:20:092008-07-09 01:22:01 00:01:52 62 156.20 62 163.01 27.10 80
6PSRWB12008-07-09 01:23:412008-07-09 01:25:33 00:01:52 62 169.09 62 175.89 27.10 80
7AV2OBS2008-07-09 01:26:122008-07-09 01:29:26 00:03:14 62 178.33 62 190.12 0.00 -
8PSMOB22008-07-09 01:26:142008-07-09 01:33:22 00:07:08 62 178.39 62 204.40 0.00 -
9PSRFBD2008-07-09 02:08:022008-07-09 02:09:54 00:01:52 62 330.82 62 337.63 34.30 43
10PSRFBD2008-07-09 02:10:502008-07-09 02:18:06 00:07:16 62 341.03 108 7.54 34.30 43
11PSRWB12008-07-09 02:36:122008-07-09 02:38:04 00:01:52 108 73.54 108 80.35 27.10 80
12PSMOB22008-07-09 02:47:142008-07-09 03:00:22 00:13:08 108 113.78 108 161.67 0.00 -
13AV2OBS2008-07-09 02:48:122008-07-09 02:59:36 00:11:24 108 117.36 108 158.94 0.00 -
14PSRFBS2008-07-09 03:01:052008-07-09 03:03:17 00:02:12 108 164.29 108 172.31 34.30 7
15AV2OBS2008-07-09 03:03:562008-07-09 03:08:06 00:04:10 108 174.74 108 189.93 0.00 -
16PSMOB22008-07-09 03:04:012008-07-09 03:08:55 00:04:54 108 174.98 108 192.85 0.00 -
17PSRFBS2008-07-09 03:05:462008-07-09 03:07:52 00:02:06 108 181.43 108 189.08 34.30 7
18PSRFBS2008-07-09 03:31:262008-07-09 03:33:22 00:01:56 108 275.02 108 282.08 34.30 7
19PSRFBS2008-07-09 03:35:262008-07-09 03:41:08 00:05:42 108 289.61 108 310.40 34.30 7
20PSRFBD2008-07-09 03:49:332008-07-09 03:56:49 00:07:16 108 341.03 154 7.54 34.30 43
21PSMOB22008-07-09 04:24:342008-07-09 04:32:52 00:08:18 154 108.73 154 139.00 0.00 -
22PSRWB12008-07-09 04:33:202008-07-09 04:40:04 00:06:44 154 140.70 154 165.26 27.10 80
23AV2OBS2008-07-09 04:35:552008-07-09 04:38:29 00:02:34 154 150.12 154 159.48 0.00 -
24PSMOB22008-07-09 04:35:552008-07-09 04:39:15 00:03:20 154 150.12 154 162.28 0.00 -
25PSRWB12008-07-09 04:41:022008-07-09 04:43:04 00:02:02 154 168.78 154 176.20 27.10 80
26PSRFBS2008-07-09 05:08:292008-07-09 05:14:49 00:06:20 154 268.95 154 292.04 34.30 7
27PSMOB22008-07-09 06:00:192008-07-09 06:16:21 00:16:02 200 97.98 200 156.45 0.00 -
28PSRWB12008-07-09 06:01:152008-07-09 06:04:25 00:03:10 200 101.32 200 112.87 27.10 80
29AV2OBS2008-07-09 06:02:422008-07-09 06:15:46 00:13:04 200 106.61 200 154.26 0.00 -
30PSRFBS2008-07-09 06:46:522008-07-09 06:50:28 00:03:36 200 267.67 200 280.80 34.30 7
31PSRPLR2008-07-09 07:27:222008-07-09 07:32:32 00:05:10 246 55.37 246 74.21 21.50 127
32PSRWB12008-07-09 07:34:232008-07-09 07:39:19 00:04:56 246 80.96 246 98.95 27.10 80
33PSMOB12008-07-09 07:41:322008-07-09 07:43:56 00:02:24 246 107.03 246 115.78 -1.20 -
34AV2OBS2008-07-09 07:44:232008-07-09 07:55:29 00:11:06 246 117.42 246 157.90 0.00 -
35PSRFBD2008-07-09 08:46:582008-07-09 08:48:50 00:01:52 246 345.65 246 352.46 34.30 43
36PSRFBD2008-07-09 08:55:012008-07-09 08:57:11 00:02:10 292 15.01 292 22.91 34.30 43
37PSMOB12008-07-09 09:19:482008-07-09 09:31:08 00:11:20 292 105.39 292 146.72 -1.20 -
38AV2OBS2008-07-09 09:22:342008-07-09 09:26:38 00:04:04 292 115.48 292 130.31 0.00 -
39PSRWB12008-07-09 09:34:272008-07-09 09:39:51 00:05:24 292 158.82 292 178.51 27.10 80
40PSRFBD2008-07-09 10:43:032008-07-09 10:45:05 00:02:02 338 48.99 338 56.40 34.30 43
41PSMOB12008-07-09 10:58:242008-07-09 11:10:14 00:11:50 338 104.97 338 148.12 -1.20 -
42AV2OBS2008-07-09 11:03:342008-07-09 11:09:30 00:05:56 338 123.75 338 145.38 0.00 -
43PSRWB12008-07-09 11:46:442008-07-09 11:49:04 00:02:20 338 281.22 338 289.73 27.10 80
44PSRFBD2008-07-09 12:13:592008-07-09 12:15:51 00:01:52 384 20.60 384 27.41 34.30 43
45PSRFBD2008-07-09 12:19:472008-07-09 12:21:43 00:01:56 384 41.76 384 48.81 34.30 43
46AV2OBS2008-07-09 12:38:402008-07-09 12:40:32 00:01:52 384 110.62 384 117.42 0.00 -
47PSRWB12008-07-09 13:03:092008-07-09 13:07:41 00:04:32 384 199.90 384 216.43 27.10 80
48PSRWB12008-07-09 13:25:342008-07-09 13:28:46 00:03:12 384 281.65 384 293.32 27.10 80
49PSRFBD2008-07-09 13:41:152008-07-09 13:46:15 00:05:00 384 338.84 384 357.08 34.30 43
50PSRFBD2008-07-09 13:47:252008-07-09 13:49:17 00:01:52 430 1.34 430 8.14 34.30 43
51PSRFBS2008-07-09 13:53:202008-07-09 13:58:08 00:04:48 430 22.91 430 40.42 34.30 7
52PSRFBD2008-07-09 14:02:202008-07-09 14:04:12 00:01:52 430 55.73 430 62.54 34.30 43
53PSRWB12008-07-09 14:06:432008-07-09 14:15:51 00:09:08 430 71.72 430 105.03 27.10 80
54AV2OBS2008-07-09 14:14:242008-07-09 14:20:10 00:05:46 430 99.68 430 120.71 0.00 -
55PSMOB12008-07-09 14:30:542008-07-09 14:34:48 00:03:54 430 159.91 430 174.13 -1.20 -
56PSRWB12008-07-09 14:32:322008-07-09 14:39:58 00:07:26 430 165.87 430 192.97 27.10 80
57PSRWB12008-07-09 14:41:462008-07-09 14:44:46 00:03:00 430 199.54 430 210.48 27.10 80
58PSMOB12008-07-09 14:41:532008-07-09 14:44:29 00:02:36 430 199.90 430 209.38 -1.20 -
59PSMOB12008-07-09 14:47:102008-07-09 14:51:20 00:04:10 430 219.23 430 234.42 -1.20 -
60PSRFBS2008-07-09 15:22:152008-07-09 15:28:13 00:05:58 430 347.17 476 8.93 34.30 7
61PSRFBD2008-07-09 15:28:582008-07-09 15:43:02 00:14:04 476 11.67 476 62.97 34.30 43
62PSRWB12008-07-09 15:48:242008-07-09 15:52:27 00:04:03 476 82.54 476 97.31 27.10 80
63AV2OBS2008-07-09 15:53:292008-07-09 15:55:23 00:01:54 476 101.01 476 107.94 0.00 -
64PSMOB12008-07-09 15:56:412008-07-09 16:13:39 00:16:58 476 112.75 476 174.62 -1.20 -
65PSRFBS2008-07-09 16:14:122008-07-09 16:16:04 00:01:52 476 176.62 476 183.43 34.30 7
66PSRWB12008-07-09 16:38:582008-07-09 16:41:10 00:02:12 476 266.94 476 274.96 27.10 80
67PSRFBD2008-07-09 17:07:472008-07-09 17:24:29 00:16:42 522 12.03 522 72.93 34.30 43
68PSRWB12008-07-09 17:27:472008-07-09 17:31:10 00:03:23 522 84.97 522 97.31 27.10 80
69PSMOB12008-07-09 17:31:512008-07-09 17:49:07 00:17:16 522 99.74 522 162.71 -1.20 -
70AV2OBS2008-07-09 17:44:242008-07-09 17:48:36 00:04:12 522 145.57 522 160.88 0.00 -
71PSRWB12008-07-09 18:14:512008-07-09 18:18:25 00:03:34 522 256.55 522 269.55 27.10 80
72PSRFBD2008-07-09 18:46:572008-07-09 18:54:59 00:08:02 568 13.68 568 42.97 34.30 43
73PSRFBD2008-07-09 18:56:012008-07-09 19:00:13 00:04:12 568 46.74 568 62.06 34.30 43
74PSRPLR2008-07-09 19:02:562008-07-09 19:05:08 00:02:12 568 71.96 568 79.99 21.50 127
75PSRWB12008-07-09 19:06:592008-07-09 19:09:37 00:02:38 568 86.73 568 96.33 27.10 80
76PSMOB12008-07-09 19:12:532008-07-09 19:21:13 00:08:20 568 108.25 568 138.64 -1.20 -
77AV2OBS2008-07-09 19:15:272008-07-09 19:20:29 00:05:02 568 117.55 568 135.90 0.00 -
78PSRWB12008-07-09 19:51:252008-07-09 19:55:45 00:04:20 568 248.71 568 264.51 27.10 80
79PSRFBS2008-07-09 19:57:352008-07-09 20:03:47 00:06:12 568 271.26 568 293.87 34.30 7
80PSRFBD2008-07-09 20:16:022008-07-09 20:27:02 00:11:00 568 338.54 614 18.66 34.30 43
81PSRFBD2008-07-09 20:30:182008-07-09 20:33:38 00:03:20 614 30.57 614 42.73 34.30 43
82PSRFBD2008-07-09 20:35:502008-07-09 20:41:34 00:05:44 614 50.75 614 71.66 34.30 43
83PSRPLR2008-07-09 20:42:302008-07-09 20:45:50 00:03:20 614 75.06 614 87.22 21.50 127
84AV2OBS2008-07-09 20:48:102008-07-09 20:50:42 00:02:32 614 95.73 614 104.97 0.00 -
85PSRFBS2008-07-09 20:50:352008-07-09 20:55:45 00:05:10 614 104.48 614 123.32 21.50 3
86PSMOB12008-07-09 21:04:152008-07-09 21:06:51 00:02:36 614 154.32 614 163.80 -1.20 -
87AV2OBS2008-07-09 21:05:012008-07-09 21:06:53 00:01:52 614 157.11 614 163.92 0.00 -
88PSMOB12008-07-09 21:08:382008-07-09 21:11:14 00:02:36 614 170.30 614 179.78 -1.20 -
89AV2OBS2008-07-09 21:09:242008-07-09 21:11:16 00:01:52 614 173.10 614 179.91 0.00 -
90PSRWB12008-07-09 21:29:152008-07-09 21:31:57 00:02:42 614 245.49 614 255.33 27.10 80
91PSRFBS2008-07-09 21:37:112008-07-09 21:41:41 00:04:30 614 274.42 614 290.83 34.30 7
92PSRFBD2008-07-09 22:02:012008-07-09 22:18:15 00:16:14 660 4.98 660 64.18 34.30 43
93PSRPLR2008-07-09 22:20:182008-07-09 22:22:12 00:01:54 660 71.66 660 78.59 21.50 127
94AV2OBS2008-07-09 22:29:372008-07-09 22:31:54 00:02:17 660 105.63 660 113.96 0.00 -
95PSRFBS2008-07-09 22:34:172008-07-09 22:36:49 00:02:32 660 122.71 660 131.95 34.30 7
96AV2OBS2008-07-09 22:34:422008-07-09 22:36:34 00:01:52 660 124.17 660 130.98 0.00 -
97PSMOB12008-07-09 22:48:212008-07-09 22:51:25 00:03:04 660 173.95 660 185.13 -1.20 -
98AV2OBS2008-07-09 22:49:032008-07-09 22:50:55 00:01:52 660 176.50 660 183.31 0.00 -
99PSMOB12008-07-09 22:54:032008-07-09 22:56:39 00:02:36 660 194.74 660 204.22 -1.20 -
100PSRFBS2008-07-09 23:16:562008-07-09 23:19:12 00:02:16 660 278.19 660 286.45 34.30 7
101PSRFBD2008-07-09 23:41:242008-07-09 23:44:10 00:02:46 35 7.42 35 17.50 34.30 43
102PSRPLR2008-07-09 23:58:552008-07-10 00:02:07 00:03:12 35 71.35 35 83.02 25.20 130

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
16 -8.341202008-07-08 22:58:34159.319012008-07-08 23:47:56
62-33.020792008-07-09 00:37:17134.639422008-07-09 01:26:39
108-57.700372008-07-09 02:16:00109.959842008-07-09 03:05:22
154-82.379952008-07-09 03:54:44 85.280262008-07-09 04:44:05
200-107.059532008-07-09 05:33:27 60.600682008-07-09 06:22:48
246-131.739122008-07-09 07:12:10 35.921092008-07-09 08:01:31
292-156.418702008-07-09 08:50:53 11.241512008-07-09 09:40:14
338178.901722008-07-09 10:29:36-13.438072008-07-09 11:18:57
384154.222142008-07-09 12:08:19-38.117662008-07-09 12:57:41
430129.542552008-07-09 13:47:02-62.797242008-07-09 14:36:24
476104.862972008-07-09 15:25:45-87.476822008-07-09 16:15:07
522 80.183392008-07-09 17:04:28-112.156402008-07-09 17:53:50
568 55.503802008-07-09 18:43:11-136.835992008-07-09 19:32:33
614 30.824222008-07-09 20:21:55-161.515572008-07-09 21:11:16
660 6.144642008-07-09 22:00:38173.804852008-07-09 22:49:59
35-18.534942008-07-09 23:39:21149.125272008-07-10 00:28:42
