>ALOS Data Take Simulation(Jul. 02, 2008)

Observation Area

PRISM

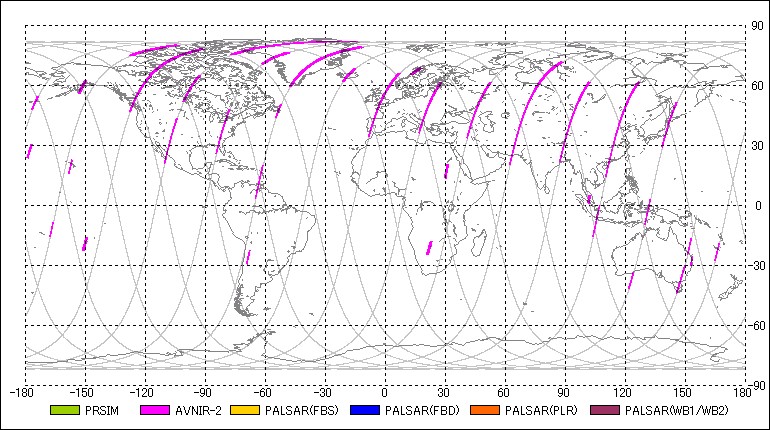

AVNIR-2

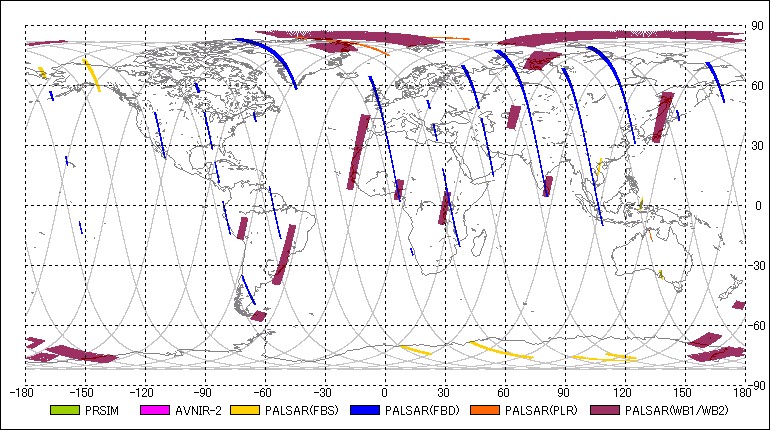

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-07-02 00:03:162008-07-02 00:10:42 00:07:26 21 196.74 21 223.85 0.00 -
2PSMOB22008-07-02 00:04:312008-07-02 00:06:41 00:02:10 21 201.30 21 209.20 0.00 -
3PSRFBS2008-07-02 00:25:302008-07-02 00:27:50 00:02:20 21 277.76 21 286.27 34.30 7
4PSRFBD2008-07-02 01:03:302008-07-02 01:11:22 00:07:52 67 56.34 67 85.03 34.30 43
5PSMOB12008-07-02 01:17:592008-07-02 01:33:07 00:15:08 67 109.22 67 164.41 -1.20 -
6PSRWB12008-07-02 01:21:312008-07-02 01:28:59 00:07:28 67 122.04 67 149.27 27.10 80
7AV2OBS2008-07-02 01:23:082008-07-02 01:29:22 00:06:14 67 128.00 67 150.73 0.00 -
8PSRFBS2008-07-02 01:35:582008-07-02 01:38:20 00:02:22 67 174.80 67 183.43 34.30 7
9AV2OBS2008-07-02 01:36:362008-07-02 01:40:06 00:03:30 67 177.11 67 189.87 0.00 -
10PSMOB22008-07-02 01:36:372008-07-02 01:44:05 00:07:28 67 177.17 67 204.40 0.00 -
11AV2OBS2008-07-02 01:46:352008-07-02 01:48:51 00:02:16 67 213.52 67 221.78 0.00 -
12PSRFBD2008-07-02 02:21:332008-07-02 02:29:25 00:07:52 67 341.03 113 9.72 34.30 43
13PSRFBD2008-07-02 02:37:402008-07-02 02:39:36 00:01:56 113 39.81 113 46.86 34.30 43
14AV2OBS2008-07-02 02:58:572008-07-02 03:12:07 00:13:10 113 117.36 113 165.38 0.00 -
15PSMOB22008-07-02 03:00:352008-07-02 03:11:27 00:10:52 113 123.32 113 162.95 0.00 -
16PSRFBS2008-07-02 03:09:162008-07-02 03:12:12 00:02:56 113 155.05 113 165.74 34.30 7
17AV2OBS2008-07-02 03:14:582008-07-02 03:20:22 00:05:24 113 175.77 113 195.47 -41.50 -
18PSMOB22008-07-02 03:15:192008-07-02 03:19:25 00:04:06 113 177.11 113 192.06 0.00 -
19PSRFBD2008-07-02 03:50:572008-07-02 03:55:47 00:04:50 113 306.99 113 324.62 34.30 43
20PSRFBD2008-07-02 04:00:492008-07-02 04:06:05 00:05:16 113 343.04 159 2.25 34.30 43
21PSRFBD2008-07-02 04:08:042008-07-02 04:11:24 00:03:20 159 9.48 159 21.64 34.30 43
22PSRFBD2008-07-02 04:12:302008-07-02 04:18:20 00:05:50 159 25.65 159 46.92 34.30 43
23PSRFBD2008-07-02 04:20:302008-07-02 04:22:22 00:01:52 159 54.76 159 61.57 34.30 43
24AV2OBS2008-07-02 04:37:402008-07-02 04:48:52 00:11:12 159 117.36 159 158.21 0.00 -
25PSMOB22008-07-02 04:46:392008-07-02 04:49:13 00:02:34 159 150.12 159 159.48 0.00 -
26PSRWB12008-07-02 04:50:332008-07-02 04:53:51 00:03:18 159 164.41 159 176.44 27.10 80
27PSRFBD2008-07-02 05:50:072008-07-02 05:57:03 00:06:56 205 21.64 205 46.92 34.30 43
28PSMOB22008-07-02 06:10:582008-07-02 06:27:54 00:16:56 205 97.67 205 159.42 0.00 -
29PSRWB12008-07-02 06:11:582008-07-02 06:14:59 00:03:01 205 101.26 205 112.26 27.10 80
30AV2OBS2008-07-02 06:13:262008-07-02 06:27:54 00:14:28 205 106.61 205 159.36 0.00 -
31PSRWB12008-07-02 06:19:322008-07-02 06:23:14 00:03:42 205 128.85 205 142.34 27.10 80
32PSRFBS2008-07-02 07:37:592008-07-02 07:43:09 00:05:10 251 55.00 251 73.85 34.30 7
33PSRWB12008-07-02 07:44:582008-07-02 07:50:09 00:05:11 251 80.41 251 99.31 27.10 80
34PSMOB12008-07-02 07:51:342008-07-02 07:54:40 00:03:06 251 104.48 251 115.78 -1.20 -
35AV2OBS2008-07-02 07:55:082008-07-02 08:03:00 00:07:52 251 117.49 251 146.17 0.00 -
36AV2OBS2008-07-02 08:06:522008-07-02 08:08:44 00:01:52 251 160.27 251 167.08 -41.50 -
37PSRWB12008-07-02 08:10:062008-07-02 08:15:12 00:05:06 251 172.13 251 190.72 27.10 80
38AV2OBS2008-07-02 08:17:302008-07-02 08:19:22 00:01:52 251 199.05 251 205.86 -41.50 -
39PSRFBD2008-07-02 08:57:092008-07-02 08:59:27 00:02:18 251 343.64 251 352.03 34.30 43
40PSRFBD2008-07-02 09:06:312008-07-02 09:08:23 00:01:52 297 17.81 297 24.62 34.30 43
41PSRFBD2008-07-02 09:15:302008-07-02 09:17:22 00:01:52 297 50.57 297 57.38 34.30 43
42PSRFBS2008-07-02 09:18:372008-07-02 09:20:43 00:02:06 297 61.99 297 69.65 34.30 7
43PSMOB12008-07-02 09:30:232008-07-02 09:41:49 00:11:26 297 104.84 297 146.54 -1.20 -
44AV2OBS2008-07-02 09:33:522008-07-02 09:41:02 00:07:10 297 117.55 297 143.68 0.00 -
45PSRWB12008-07-02 09:47:112008-07-02 09:50:31 00:03:20 297 166.11 297 178.26 27.10 80
46PSRFBD2008-07-02 10:54:002008-07-02 11:00:12 00:06:12 343 49.78 343 72.39 34.30 43
47AV2OBS2008-07-02 11:10:082008-07-02 11:20:08 00:10:00 343 108.61 343 145.08 21.50 -
48PSMOB12008-07-02 11:16:162008-07-02 11:20:52 00:04:36 343 130.98 343 147.75 -1.20 -
49PSRWB12008-07-02 11:16:542008-07-02 11:27:49 00:10:55 343 133.29 343 173.10 27.10 80
50PSRWB12008-07-02 11:55:182008-07-02 11:58:44 00:03:26 343 273.32 343 285.84 27.10 80
51PSRFBD2008-07-02 12:30:082008-07-02 12:32:10 00:02:02 389 40.36 389 47.77 34.30 43
52AV2OBS2008-07-02 12:49:202008-07-02 12:51:12 00:01:52 389 110.37 389 117.18 0.00 -
53PSMOB12008-07-02 13:07:512008-07-02 13:16:27 00:08:36 389 177.90 389 209.26 -1.20 -
54PSRWB12008-07-02 13:10:492008-07-02 13:19:41 00:08:52 389 188.72 389 221.05 27.10 80
55PSRWB12008-07-02 13:23:022008-07-02 13:24:54 00:01:52 389 233.27 389 240.08 27.10 80
56PSRWB12008-07-02 13:34:242008-07-02 13:37:00 00:02:36 389 274.72 389 284.20 27.10 80
57PSRFBS2008-07-02 13:47:012008-07-02 13:48:53 00:01:52 389 320.73 389 327.54 21.50 3
58PSRPLR2008-07-02 13:52:302008-07-02 13:54:32 00:02:02 389 340.73 389 348.14 21.50 127
59PSRFBD2008-07-02 14:05:442008-07-02 14:19:52 00:14:08 435 28.99 435 80.53 34.30 43
60AV2OBS2008-07-02 14:24:262008-07-02 14:30:42 00:06:16 435 97.19 435 120.04 0.00 -
61PSMOB12008-07-02 14:32:262008-07-02 14:35:20 00:02:54 435 126.36 435 136.94 -1.20 -
62AV2OBS2008-07-02 14:33:122008-07-02 14:35:04 00:01:52 435 129.16 435 135.96 0.00 -
63PSMOB12008-07-02 14:40:562008-07-02 14:44:56 00:04:00 435 157.30 435 171.88 -1.20 -
64AV2OBS2008-07-02 14:41:422008-07-02 14:46:10 00:04:28 435 160.09 435 176.38 0.00 -
65PSRWB12008-07-02 14:48:312008-07-02 14:52:03 00:03:32 435 185.01 435 197.90 27.10 80
66AV2OBS2008-07-02 14:53:162008-07-02 14:55:08 00:01:52 435 202.33 435 209.14 21.50 -
67PSRFBD2008-07-02 15:33:062008-07-02 15:55:32 00:22:26 435 347.60 481 69.41 34.30 43
68PSRPLR2008-07-02 15:59:382008-07-02 16:01:30 00:01:52 481 84.30 481 91.11 21.50 127
69AV2OBS2008-07-02 16:04:132008-07-02 16:06:05 00:01:52 481 101.01 481 107.82 0.00 -
70PSMOB12008-07-02 16:10:172008-07-02 16:27:27 00:17:10 481 123.20 481 185.80 -1.20 -
71AV2OBS2008-07-02 16:12:382008-07-02 16:18:46 00:06:08 481 131.77 481 154.14 0.00 -
72PSRFBD2008-07-02 17:15:492008-07-02 17:36:45 00:20:56 527 2.19 527 78.53 34.30 43
73AV2OBS2008-07-02 17:39:442008-07-02 17:43:20 00:03:36 527 89.35 527 102.47 0.00 -
74AV2OBS2008-07-02 17:46:272008-07-02 17:50:13 00:03:46 527 113.90 527 127.64 0.00 -
75PSMOB12008-07-02 17:47:232008-07-02 17:50:57 00:03:34 527 117.24 527 130.25 -1.20 -
76AV2OBS2008-07-02 17:52:332008-07-02 17:58:49 00:06:16 527 136.14 527 159.00 0.00 -
77PSMOB12008-07-02 17:54:012008-07-02 17:59:35 00:05:34 527 141.43 527 161.73 -1.20 -
78PSRFBS2008-07-02 18:30:152008-07-02 18:32:07 00:01:52 527 273.63 527 280.43 34.30 7
79PSRFBD2008-07-02 18:57:222008-07-02 19:05:54 00:08:32 573 12.52 573 43.64 34.30 43
80PSRFBD2008-07-02 19:06:452008-07-02 19:13:23 00:06:38 573 46.74 573 70.93 34.30 43
81PSRWB12008-07-02 19:15:512008-07-02 19:19:07 00:03:16 573 79.92 573 91.84 27.10 80
82AV2OBS2008-07-02 19:21:002008-07-02 19:30:22 00:09:22 573 98.64 573 132.80 0.00 -
83PSMOB12008-07-02 19:22:182008-07-02 19:29:42 00:07:24 573 103.39 573 130.37 -1.20 -
84AV2OBS2008-07-02 19:47:562008-07-02 19:49:48 00:01:52 573 196.92 573 203.73 -41.50 -
85PSRWB12008-07-02 20:01:582008-07-02 20:06:22 00:04:24 573 248.10 573 264.15 27.10 80
86PSRFBS2008-07-02 20:07:282008-07-02 20:10:10 00:02:42 573 268.10 573 277.94 34.30 7
87PSRFBD2008-07-02 20:26:202008-07-02 20:37:48 00:11:28 573 336.96 619 18.78 34.30 43
88PSRFBD2008-07-02 20:41:022008-07-02 20:43:48 00:02:46 619 30.57 619 40.66 34.30 43
89PSRFBD2008-07-02 20:45:252008-07-02 20:47:13 00:01:48 619 46.56 619 53.12 34.30 43
90PSRPLR2008-07-02 20:53:012008-07-02 20:56:53 00:03:52 619 74.21 619 88.31 21.50 127
91AV2OBS2008-07-02 20:58:542008-07-02 21:00:54 00:02:00 619 95.73 619 103.02 0.00 -
92PSMOB12008-07-02 21:03:102008-07-02 21:06:44 00:03:34 619 111.29 619 124.29 -1.20 -
93AV2OBS2008-07-02 21:04:512008-07-02 21:06:43 00:01:52 619 117.36 619 124.17 -21.50 -
94AV2OBS2008-07-02 21:15:382008-07-02 21:17:30 00:01:52 619 156.75 619 163.56 21.50 -
95AV2OBS2008-07-02 21:24:242008-07-02 21:26:16 00:01:52 619 188.72 619 195.53 0.00 -
96PSRWB12008-07-02 21:34:192008-07-02 21:36:45 00:02:26 619 224.82 619 233.70 27.10 80
97PSRWB12008-07-02 21:39:582008-07-02 21:42:30 00:02:32 619 245.49 619 254.72 27.10 80
98PSRFBS2008-07-02 21:47:522008-07-02 21:51:54 00:04:02 619 274.30 619 289.00 34.30 7
99PSRFBD2008-07-02 22:03:532008-07-02 22:05:27 00:01:34 619 332.70 619 338.42 34.30 43
100PSRFBD2008-07-02 22:11:202008-07-02 22:29:14 00:17:54 619 359.81 665 65.09 34.30 43
101PSRWB12008-07-02 22:32:122008-07-02 22:34:04 00:01:52 665 75.91 665 82.72 27.10 80
102AV2OBS2008-07-02 22:45:352008-07-02 22:47:27 00:01:52 665 124.78 665 131.59 0.00 -
103AV2OBS2008-07-02 22:52:102008-07-02 22:54:02 00:01:52 665 148.73 665 155.53 34.30 -
104PSMOB12008-07-02 22:57:282008-07-02 23:00:18 00:02:50 665 168.11 665 178.45 -1.20 -
105PSMOB12008-07-02 23:03:172008-07-02 23:06:33 00:03:16 665 189.33 665 201.24 -1.20 -
106AV2OBS2008-07-02 23:05:592008-07-02 23:08:19 00:02:20 665 199.11 665 207.62 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
21-11.023772008-07-01 23:09:18156.636442008-07-01 23:58:40
67-35.703352008-07-02 00:48:01131.956862008-07-02 01:37:23
113-60.382932008-07-02 02:26:44107.277282008-07-02 03:16:06
159-85.062512008-07-02 04:05:27 82.597692008-07-02 04:54:49
205-109.742102008-07-02 05:44:10 57.918112008-07-02 06:33:32
251-134.421682008-07-02 07:22:54 33.238532008-07-02 08:12:15
297-159.101262008-07-02 09:01:37 8.558952008-07-02 09:50:58
343176.219152008-07-02 10:40:20-16.120642008-07-02 11:29:41
389151.539572008-07-02 12:19:03-40.800222008-07-02 13:08:24
435126.859992008-07-02 13:57:46-65.479802008-07-02 14:47:07
481102.180412008-07-02 15:36:29-90.159382008-07-02 16:25:51
527 77.500822008-07-02 17:15:12-114.838972008-07-02 18:04:34
573 52.821242008-07-02 18:53:55-139.518552008-07-02 19:43:17
619 28.141662008-07-02 20:32:38-164.198132008-07-02 21:22:00
665 3.462082008-07-02 22:11:21171.122282008-07-02 23:00:43
40-21.217512008-07-02 23:50:05146.442702008-07-03 00:39:26
