>ALOS Data Take Simulation(Jun. 30, 2008)

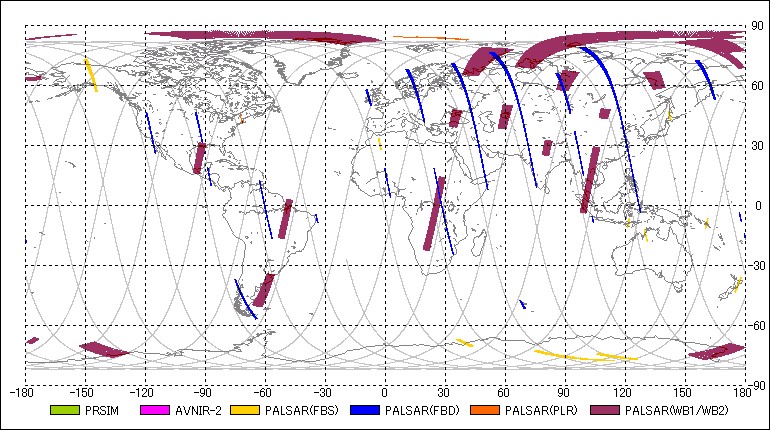

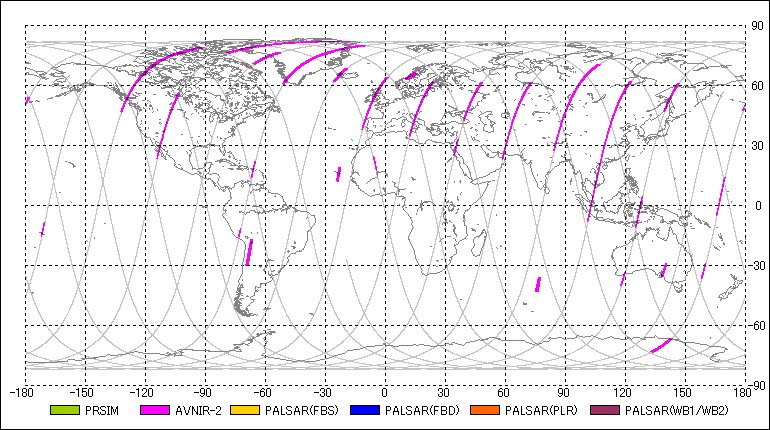

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-06-30 00:24:062008-06-30 00:25:58 00:01:52 29 210.11 29 216.92 -34.30 -
2PSRFBD2008-06-30 01:02:122008-06-30 01:04:04 00:01:52 29 349.05 29 355.86 34.30 43
3AV2OBS2008-06-30 01:37:402008-06-30 01:41:36 00:03:56 75 118.34 75 132.68 0.00 -
4PSMOB12008-06-30 01:38:202008-06-30 01:46:30 00:08:10 75 120.77 75 150.55 -1.20 -
5AV2OBS2008-06-30 01:53:172008-06-30 01:57:39 00:04:22 75 175.29 75 191.21 0.00 -
6PSMOB22008-06-30 01:53:222008-06-30 02:01:16 00:07:54 75 175.59 75 204.40 0.00 -
7PSRFBS2008-06-30 01:56:032008-06-30 01:57:55 00:01:52 75 185.44 75 192.24 34.30 7
8AV2OBS2008-06-30 02:03:472008-06-30 02:05:39 00:01:52 75 213.58 75 220.38 0.00 -
9PSRFBD2008-06-30 02:38:442008-06-30 02:47:28 00:08:44 75 341.03 121 12.89 34.30 43
10PSRPLR2008-06-30 02:54:402008-06-30 02:56:32 00:01:52 121 39.20 121 46.01 21.50 127
11AV2OBS2008-06-30 03:16:052008-06-30 03:35:27 00:19:22 121 117.30 121 187.93 0.00 -
12PSRWB12008-06-30 03:19:422008-06-30 03:21:34 00:01:52 121 130.43 121 137.24 27.10 80
13PSRWB12008-06-30 03:24:562008-06-30 03:34:38 00:09:42 121 149.52 121 184.89 27.10 80
14PSRFBD2008-06-30 04:06:012008-06-30 04:12:21 00:06:20 121 299.40 121 322.49 34.30 43
15PSRFBD2008-06-30 04:24:452008-06-30 04:27:53 00:03:08 167 7.72 167 19.15 34.30 43
16PSRFBD2008-06-30 04:29:072008-06-30 04:35:31 00:06:24 167 23.64 167 46.98 34.30 43
17PSMOB22008-06-30 04:50:322008-06-30 05:05:12 00:14:40 167 101.74 167 155.23 0.00 -
18AV2OBS2008-06-30 04:52:142008-06-30 05:04:28 00:12:14 167 107.88 167 152.49 0.00 -
19PSRWB12008-06-30 04:53:062008-06-30 04:56:22 00:03:16 167 111.10 167 123.02 27.10 80
20PSRWB12008-06-30 05:02:442008-06-30 05:05:26 00:02:42 167 146.23 167 156.08 27.10 80
21AV2OBS2008-06-30 05:21:462008-06-30 05:23:38 00:01:52 167 215.58 167 222.39 41.50 -
22PSRFBD2008-06-30 06:07:542008-06-30 06:14:14 00:06:20 213 23.83 213 46.92 34.30 43
23PSRWB12008-06-30 06:24:302008-06-30 06:31:53 00:07:23 213 84.36 213 111.29 27.10 80
24PSMOB22008-06-30 06:28:202008-06-30 06:43:04 00:14:44 213 98.40 213 152.13 0.00 -
25AV2OBS2008-06-30 06:33:342008-06-30 06:44:24 00:10:50 213 117.42 213 156.93 0.00 -
26PSRWB12008-06-30 06:36:352008-06-30 06:40:27 00:03:52 213 128.43 213 142.53 27.10 80
27PSRFBS2008-06-30 07:55:062008-06-30 08:00:12 00:05:06 259 54.76 259 73.36 41.50 10
28PSMOB12008-06-30 08:06:382008-06-30 08:11:50 00:05:12 259 96.82 259 115.78 -1.20 -
29PSRWB12008-06-30 08:07:132008-06-30 08:11:43 00:04:30 259 98.95 259 115.36 27.10 80
30AV2OBS2008-06-30 08:12:172008-06-30 08:17:43 00:05:26 259 117.42 259 137.24 0.00 -
31PSRWB12008-06-30 08:15:592008-06-30 08:18:56 00:02:57 259 130.92 259 141.68 27.10 80
32AV2OBS2008-06-30 08:20:222008-06-30 08:22:36 00:02:14 259 146.90 259 155.05 0.00 -
33PSRWB12008-06-30 08:25:152008-06-30 08:35:55 00:10:40 259 164.71 259 203.61 27.10 80
34PSRWB12008-06-30 09:35:342008-06-30 09:42:04 00:06:30 305 61.14 305 84.85 27.10 80
35PSMOB12008-06-30 09:47:202008-06-30 09:59:06 00:11:46 305 104.05 305 146.96 -1.20 -
36AV2OBS2008-06-30 09:50:592008-06-30 09:58:37 00:07:38 305 117.36 305 145.20 0.00 -
37PSRWB12008-06-30 10:34:582008-06-30 10:37:46 00:02:48 305 277.76 305 287.97 27.10 80
38PSRFBD2008-06-30 10:51:462008-06-30 10:53:38 00:01:52 305 339.03 305 345.83 34.30 43
39PSRFBD2008-06-30 10:54:412008-06-30 10:56:33 00:01:52 305 349.66 305 356.47 34.30 43
40PSRFBD2008-06-30 11:11:332008-06-30 11:17:41 00:06:08 351 51.18 351 73.54 34.30 43
41AV2OBS2008-06-30 11:27:492008-06-30 11:36:15 00:08:26 351 110.50 351 141.25 34.30 -
42AV2OBS2008-06-30 11:41:552008-06-30 11:43:47 00:01:52 351 161.92 351 168.72 -41.50 -
43PSRFBS2008-06-30 12:47:242008-06-30 12:49:16 00:01:52 397 40.72 397 47.53 34.30 7
44PSRWB12008-06-30 12:51:482008-06-30 12:54:46 00:02:58 397 56.77 397 67.59 27.10 80
45AV2OBS2008-06-30 13:06:312008-06-30 13:08:23 00:01:52 397 110.37 397 117.18 0.00 -
46PSRWB12008-06-30 13:24:272008-06-30 13:30:27 00:06:00 397 175.83 397 197.71 27.10 80
47PSMOB12008-06-30 13:26:262008-06-30 13:30:50 00:04:24 397 183.07 397 199.11 -1.20 -
48PSRWB12008-06-30 13:34:492008-06-30 13:39:59 00:05:10 397 213.64 397 232.48 27.10 80
49PSRFBS2008-06-30 14:09:242008-06-30 14:11:40 00:02:16 397 339.75 397 348.02 34.30 7
50PSRFBD2008-06-30 14:13:222008-06-30 14:36:54 00:23:32 397 354.22 443 80.05 34.30 43
51AV2OBS2008-06-30 14:41:172008-06-30 14:47:27 00:06:10 443 95.97 443 118.46 0.00 -
52PSMOB12008-06-30 14:48:242008-06-30 14:52:30 00:04:06 443 121.98 443 136.94 -1.20 -
53PSMOB12008-06-30 14:57:262008-06-30 15:00:50 00:03:24 443 154.93 443 167.32 -1.20 -
54AV2OBS2008-06-30 14:58:122008-06-30 15:00:26 00:02:14 443 157.72 443 165.87 0.00 -
55PSMOB12008-06-30 15:06:452008-06-30 15:09:21 00:02:36 443 188.90 443 198.38 -1.20 -
56AV2OBS2008-06-30 15:07:342008-06-30 15:12:16 00:04:42 443 191.82 443 208.96 0.00 -
57PSRFBD2008-06-30 15:50:392008-06-30 15:52:11 00:01:32 443 348.99 443 354.58 34.30 43
58PSRFBD2008-06-30 15:57:142008-06-30 16:03:52 00:06:38 489 13.01 489 37.20 34.30 43
59PSRFBD2008-06-30 16:05:432008-06-30 16:12:01 00:06:18 489 43.88 489 66.86 34.30 43
60PSRPLR2008-06-30 16:16:382008-06-30 16:18:30 00:01:52 489 83.75 489 90.56 21.50 127
61AV2OBS2008-06-30 16:21:232008-06-30 16:23:15 00:01:52 489 101.01 489 107.82 0.00 -
62PSMOB12008-06-30 16:24:152008-06-30 16:40:19 00:16:04 489 111.53 489 170.12 -1.20 -
63PSRWB12008-06-30 16:34:072008-06-30 16:38:53 00:04:46 489 147.51 489 164.89 27.10 80
64PSRFBD2008-06-30 17:34:152008-06-30 17:53:37 00:19:22 535 6.81 535 77.43 34.30 43
65AV2OBS2008-06-30 17:56:542008-06-30 18:00:14 00:03:20 535 89.35 535 101.50 0.00 -
66PSMOB12008-06-30 18:03:502008-06-30 18:08:28 00:04:38 535 114.63 535 131.53 -1.20 -
67AV2OBS2008-06-30 18:06:102008-06-30 18:15:16 00:09:06 535 123.14 535 156.32 0.00 -
68PSRFBS2008-06-30 18:47:062008-06-30 18:49:18 00:02:12 535 272.47 535 280.50 34.30 7
69PSRFBD2008-06-30 18:56:002008-06-30 18:57:52 00:01:52 535 304.93 535 311.74 34.30 43
70PSRFBD2008-06-30 19:12:412008-06-30 19:30:49 00:18:08 581 5.77 581 71.90 34.30 43
71AV2OBS2008-06-30 19:37:572008-06-30 19:47:34 00:09:37 581 97.85 581 132.92 0.00 -
72PSRWB12008-06-30 20:18:512008-06-30 20:23:09 00:04:18 581 247.07 581 262.75 27.10 80
73PSRFBS2008-06-30 20:25:002008-06-30 20:28:38 00:03:38 581 269.49 581 282.74 34.30 7
74PSRFBD2008-06-30 20:42:212008-06-30 20:54:57 00:12:36 581 332.76 627 18.72 34.30 43
75PSRFBD2008-06-30 21:00:382008-06-30 21:08:42 00:08:04 627 39.38 627 68.80 34.30 43
76PSRWB12008-06-30 21:12:022008-06-30 21:15:32 00:03:30 627 81.02 627 93.78 27.10 80
77PSMOB12008-06-30 21:40:522008-06-30 21:43:32 00:02:40 627 186.11 627 195.83 -1.20 -
78AV2OBS2008-06-30 21:41:352008-06-30 21:43:27 00:01:52 627 188.72 627 195.53 0.00 -
79PSRFBS2008-06-30 21:48:512008-06-30 21:51:37 00:02:46 627 215.22 627 225.31 34.30 7
80PSRFBS2008-06-30 22:07:332008-06-30 22:09:25 00:01:52 627 283.47 627 290.28 34.30 7
81PSRFBD2008-06-30 22:29:002008-06-30 22:33:40 00:04:40 2 1.64 2 18.66 34.30 43
82AV2OBS2008-06-30 22:33:242008-06-30 22:35:16 00:01:52 2 17.75 2 24.55 0.00 -
83PSRFBS2008-06-30 22:35:382008-06-30 22:37:50 00:02:12 2 25.83 2 33.85 34.30 7
84PSRFBD2008-06-30 22:41:462008-06-30 22:44:32 00:02:46 2 48.20 2 58.29 34.30 43
85PSMOB12008-06-30 23:02:362008-06-30 23:05:12 00:02:36 2 124.17 2 133.65 -1.20 -
86AV2OBS2008-06-30 23:02:552008-06-30 23:04:47 00:01:52 2 125.39 2 132.19 0.00 -
87AV2OBS2008-06-30 23:14:062008-06-30 23:19:22 00:05:16 2 166.11 2 185.32 0.00 -
88PSMOB12008-06-30 23:14:062008-06-30 23:19:30 00:05:24 2 166.11 2 185.80 -1.20 -
89PSRFBS2008-06-30 23:19:232008-06-30 23:21:23 00:02:00 2 185.38 2 192.67 34.30 7
90AV2OBS2008-06-30 23:25:542008-06-30 23:28:00 00:02:06 2 209.14 2 216.80 0.00 -
91AV2OBS2008-06-30 23:36:282008-06-30 23:38:34 00:02:06 2 247.67 2 255.33 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
29-15.315872008-06-29 23:26:28152.344342008-06-30 00:15:50
75-39.995452008-06-30 01:05:11127.664762008-06-30 01:54:33
121-64.675032008-06-30 02:43:54102.985182008-06-30 03:33:16
167-89.354622008-06-30 04:22:37 78.305592008-06-30 05:11:59
213-114.034202008-06-30 06:01:21 53.626012008-06-30 06:50:42
259-138.713782008-06-30 07:40:04 28.946432008-06-30 08:29:25
305-163.393362008-06-30 09:18:47 4.266852008-06-30 10:08:08
351171.927052008-06-30 10:57:30-20.412742008-06-30 11:46:51
397147.247472008-06-30 12:36:13-45.092322008-06-30 13:25:34
443122.567892008-06-30 14:14:56-69.771902008-06-30 15:04:18
489 97.888312008-06-30 15:53:39-94.451492008-06-30 16:43:01
535 73.208722008-06-30 17:32:22-119.131072008-06-30 18:21:44
581 48.529142008-06-30 19:11:05-143.810652008-06-30 20:00:27
627 23.849562008-06-30 20:49:48-168.490232008-06-30 21:39:10
2 -0.830032008-06-30 22:28:32166.830182008-06-30 23:17:53
