>ALOS Data Take Simulation(May. 30, 2008)

Observation Area

PRISM

AVNIR-2

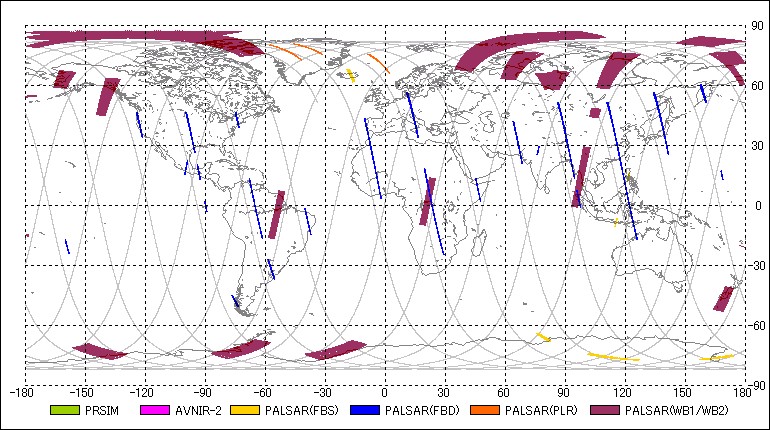

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2008-05-30 00:05:252008-05-30 00:08:23 00:02:58 38 71.54 38 82.36 24.20 129
2PSRWB12008-05-30 00:09:352008-05-30 00:13:51 00:04:16 38 86.73 38 102.29 27.10 80
3AV2OBS2008-05-30 00:15:052008-05-30 00:20:53 00:05:48 38 106.73 38 127.88 0.00 -
4PSMOB12008-05-30 00:31:192008-05-30 00:33:55 00:02:36 38 165.99 38 175.47 1.20 -
5PSMOB12008-05-30 00:37:442008-05-30 00:46:46 00:09:02 38 189.39 38 222.33 1.20 -
6AV2OBS2008-05-30 00:41:212008-05-30 00:45:59 00:04:38 38 202.58 38 219.47 0.00 -
7PSRFBD2008-05-30 01:19:552008-05-30 01:24:09 00:04:14 38 343.22 38 358.66 34.30 43
8PSRWB12008-05-30 01:44:512008-05-30 01:51:45 00:06:54 84 74.15 84 99.31 27.10 80
9AV2OBS2008-05-30 01:53:222008-05-30 01:56:24 00:03:02 84 105.21 84 116.27 0.00 -
10PSMOB22008-05-30 02:03:022008-05-30 02:07:30 00:04:28 84 140.40 84 156.69 0.00 -
11AV2OBS2008-05-30 02:03:042008-05-30 02:07:00 00:03:56 84 140.52 84 154.86 0.00 -
12PSRFBS2008-05-30 02:09:002008-05-30 02:10:52 00:01:52 84 162.22 84 169.03 34.30 7
13PSMOB12008-05-30 02:09:202008-05-30 02:24:52 00:15:32 84 163.37 84 220.02 1.20 -
14AV2OBS2008-05-30 02:09:582008-05-30 02:21:46 00:11:48 84 165.68 84 208.72 0.00 -
15PSRFBS2008-05-30 02:15:222008-05-30 02:17:14 00:01:52 84 185.44 84 192.24 41.50 10
16PSRFBD2008-05-30 02:52:232008-05-30 02:55:49 00:03:26 84 320.43 84 332.95 34.30 43
17PSRFBD2008-05-30 02:58:022008-05-30 03:06:56 00:08:54 84 341.03 130 13.49 34.30 43
18PSRFBD2008-05-30 03:13:202008-05-30 03:16:06 00:02:46 130 36.83 130 46.92 34.30 43
19PSRWB12008-05-30 03:31:082008-05-30 03:36:42 00:05:34 130 101.74 130 122.04 27.10 80
20PSMOB12008-05-30 03:37:312008-05-30 03:51:13 00:13:42 130 124.96 130 174.92 1.20 -
21PSRWB12008-05-30 03:38:542008-05-30 03:40:46 00:01:52 130 130.07 130 136.87 27.10 80
22PSRWB12008-05-30 03:44:142008-05-30 03:53:06 00:08:52 130 149.52 130 181.85 27.10 80
23AV2OBS2008-05-30 03:58:462008-05-30 04:00:38 00:01:52 130 202.52 130 209.32 41.50 -
24PSRFBD2008-05-30 04:27:102008-05-30 04:29:26 00:02:16 130 306.08 130 314.35 34.30 43
25PSRFBD2008-05-30 04:40:332008-05-30 04:42:35 00:02:02 130 354.83 176 2.25 34.30 43
26PSRFBD2008-05-30 04:44:522008-05-30 04:47:40 00:02:48 176 10.64 176 20.85 34.30 43
27PSRFBD2008-05-30 04:48:362008-05-30 04:54:48 00:06:12 176 24.25 176 46.86 34.30 43
28PSRWB12008-05-30 05:12:252008-05-30 05:15:33 00:03:08 176 111.10 176 122.53 27.10 80
29PSMOB12008-05-30 05:16:162008-05-30 05:29:40 00:13:24 176 125.08 176 173.95 1.20 -
30AV2OBS2008-05-30 05:21:162008-05-30 05:23:08 00:01:52 176 143.32 176 150.12 -41.50 -
31PSRFBD2008-05-30 05:22:462008-05-30 05:24:38 00:01:52 176 148.85 176 155.65 25.80 40
32PSRFBD2008-05-30 06:29:282008-05-30 06:33:34 00:04:06 222 32.03 222 46.98 34.30 43
33PSRWB12008-05-30 06:48:252008-05-30 06:52:55 00:04:30 222 101.14 222 117.55 27.10 80
34PSMOB12008-05-30 06:54:582008-05-30 07:06:56 00:11:58 222 125.02 222 168.66 1.20 -
35AV2OBS2008-05-30 06:59:062008-05-30 07:08:06 00:09:00 222 140.10 222 172.92 0.00 -
36AV2OBS2008-05-30 07:13:432008-05-30 07:17:35 00:03:52 222 193.40 222 207.50 0.00 -
37PSRWB12008-05-30 08:23:552008-05-30 08:30:23 00:06:28 268 89.41 268 112.99 27.10 80
38PSMOB12008-05-30 08:30:512008-05-30 08:40:29 00:09:38 268 114.69 268 149.82 1.20 -
39AV2OBS2008-05-30 08:35:582008-05-30 08:42:16 00:06:18 268 133.35 268 156.32 0.00 -
40PSRWB12008-05-30 08:44:382008-05-30 08:51:44 00:07:06 268 164.95 268 190.85 27.10 80
41AV2OBS2008-05-30 08:46:022008-05-30 08:50:22 00:04:20 268 170.12 268 185.92 0.00 -
42AV2OBS2008-05-30 08:52:122008-05-30 08:58:34 00:06:22 268 192.55 268 215.77 0.00 -
43PSRWB12008-05-30 09:07:582008-05-30 09:11:24 00:03:26 268 250.11 268 262.63 27.10 80
44PSRFBD2008-05-30 09:30:462008-05-30 09:33:24 00:02:38 268 333.25 268 342.85 34.30 43
45AV2CA22008-05-30 09:37:432008-05-30 09:45:31 00:07:48 268 358.54 314 26.99 0.00 -
46PSRWB12008-05-30 09:52:332008-05-30 09:59:26 00:06:53 314 52.63 314 77.74 27.10 80
47PSMOB12008-05-30 10:06:222008-05-30 10:17:46 00:11:24 314 103.08 314 144.65 1.20 -
48AV2OBS2008-05-30 10:14:082008-05-30 10:16:00 00:01:52 314 131.34 314 138.15 -21.50 -
49AV2OBS2008-05-30 10:22:082008-05-30 10:26:24 00:04:16 314 160.52 314 176.08 0.00 -
50PSRWB12008-05-30 10:53:572008-05-30 10:56:49 00:02:52 314 276.54 314 287.00 27.10 80
51PSRFBD2008-05-30 11:19:452008-05-30 11:21:37 00:01:52 360 10.64 360 17.44 34.30 43
52PSRFBD2008-05-30 11:30:262008-05-30 11:33:32 00:03:06 360 49.60 360 60.90 34.30 43
53PSMOB12008-05-30 11:47:362008-05-30 11:53:04 00:05:28 360 112.20 360 132.13 1.20 -
54PSRWB12008-05-30 12:25:132008-05-30 12:28:39 00:03:26 360 249.38 360 261.90 27.10 80
55PSRFBD2008-05-30 13:02:012008-05-30 13:11:11 00:09:10 406 23.58 406 57.01 34.30 43
56PSMOB12008-05-30 13:24:012008-05-30 13:26:37 00:02:36 406 103.81 406 113.29 1.20 -
57AV2OBS2008-05-30 13:25:132008-05-30 13:27:05 00:01:52 406 108.19 406 114.99 -41.50 -
58PSRWB12008-05-30 13:42:362008-05-30 13:49:44 00:07:08 406 171.64 406 197.65 27.10 80
59PSMOB12008-05-30 13:43:142008-05-30 13:50:08 00:06:54 406 173.89 406 199.05 1.20 -
60PSMOB12008-05-30 13:53:402008-05-30 13:56:50 00:03:10 406 211.94 406 223.48 1.20 -
61PSMOB12008-05-30 13:58:502008-05-30 14:01:26 00:02:36 406 230.78 406 240.26 1.20 -
62PSRFBD2008-05-30 14:28:582008-05-30 14:48:32 00:19:34 406 340.67 452 52.03 34.30 43
63AV2OBS2008-05-30 15:01:582008-05-30 15:06:08 00:04:10 452 101.01 452 116.21 0.00 -
64AV2OBS2008-05-30 15:07:402008-05-30 15:12:32 00:04:52 452 121.80 452 139.55 0.00 -
65PSMOB12008-05-30 15:18:572008-05-30 15:28:21 00:09:24 452 162.95 452 197.23 1.20 -
66AV2OBS2008-05-30 15:21:482008-05-30 15:23:40 00:01:52 452 173.34 452 180.15 0.00 -
67PSRFBD2008-05-30 16:12:072008-05-30 16:15:03 00:02:56 452 356.83 498 7.54 34.30 43
68PSRFBD2008-05-30 16:16:072008-05-30 16:27:15 00:11:08 498 11.43 498 52.03 34.30 43
69PSRWB12008-05-30 16:28:332008-05-30 16:31:25 00:02:52 498 56.77 498 67.22 27.10 80
70PSMOB12008-05-30 16:36:562008-05-30 16:46:02 00:09:06 498 87.34 498 120.52 1.20 -
71AV2OBS2008-05-30 16:44:172008-05-30 16:54:39 00:10:22 498 114.14 498 151.95 0.00 -
72PSRFBD2008-05-30 16:55:502008-05-30 16:58:24 00:02:34 498 156.20 498 165.56 34.30 43
73AV2OBS2008-05-30 16:56:242008-05-30 16:58:24 00:02:00 498 158.33 498 165.62 0.00 -
74PSRFBD2008-05-30 17:56:552008-05-30 18:03:19 00:06:24 544 19.02 544 42.36 34.30 43
75PSMOB12008-05-30 18:15:262008-05-30 18:34:00 00:18:34 544 86.55 544 154.26 1.20 -
76AV2OBS2008-05-30 18:30:412008-05-30 18:33:29 00:02:48 544 142.16 544 152.37 0.00 -
77PSRFBS2008-05-30 19:03:022008-05-30 19:04:54 00:01:52 544 260.13 544 266.94 34.30 7
78PSRFBS2008-05-30 19:06:032008-05-30 19:08:35 00:02:32 544 271.14 544 280.37 34.30 7
79PSRFBS2008-05-30 19:10:202008-05-30 19:12:16 00:01:56 544 286.76 544 293.81 34.30 7
80PSRFBD2008-05-30 19:30:212008-05-30 19:34:13 00:03:52 544 359.75 590 13.86 34.30 43
81PSMOB12008-05-30 19:54:092008-05-30 20:05:59 00:11:50 590 86.49 590 129.64 1.20 -
82PSRWB12008-05-30 20:01:552008-05-30 20:07:40 00:05:45 590 114.87 590 135.84 27.10 80
83PSMOB12008-05-30 20:21:082008-05-30 20:23:48 00:02:40 590 184.89 590 194.61 1.20 -
84AV2OBS2008-05-30 20:21:542008-05-30 20:25:54 00:04:00 590 187.75 590 202.33 0.00 -
85PSRFBD2008-05-30 21:01:402008-05-30 21:14:16 00:12:36 590 332.76 636 18.72 34.30 43
86PSRFBD2008-05-30 21:17:562008-05-30 21:24:48 00:06:52 636 32.03 636 57.07 34.30 43
87PSRPLR2008-05-30 21:26:542008-05-30 21:30:20 00:03:26 636 64.79 636 77.31 21.50 127
88PSMOB12008-05-30 21:32:522008-05-30 21:44:06 00:11:14 636 86.55 636 127.51 1.20 -
89PSRWB12008-05-30 21:39:362008-05-30 21:42:34 00:02:58 636 111.10 636 121.92 27.10 80
90PSMOB12008-05-30 21:58:062008-05-30 22:01:10 00:03:04 636 178.51 636 189.69 1.20 -
91AV2OBS2008-05-30 21:58:522008-05-30 22:00:44 00:01:52 636 181.30 636 188.11 0.00 -
92PSRWB12008-05-30 22:02:112008-05-30 22:04:31 00:02:20 636 193.40 636 201.91 27.10 80
93PSMOB12008-05-30 22:07:292008-05-30 22:10:59 00:03:30 636 212.73 636 225.49 1.20 -
94PSRWB12008-05-30 22:09:352008-05-30 22:13:34 00:03:59 636 220.38 636 234.91 27.10 80
95PSRFBD2008-05-30 22:48:112008-05-30 22:59:55 00:11:44 11 1.22 11 44.00 34.30 43
96PSRFBS2008-05-30 23:04:182008-05-30 23:06:40 00:02:22 11 59.99 11 68.62 34.30 7
97PSRPLR2008-05-30 23:08:212008-05-30 23:10:39 00:02:18 11 74.70 11 83.08 24.20 129
98PSRWB12008-05-30 23:11:382008-05-30 23:13:30 00:01:52 11 86.73 11 93.54 27.10 80
99PSMOB12008-05-30 23:17:022008-05-30 23:20:26 00:03:24 11 106.42 11 118.82 1.20 -
100AV2OBS2008-05-30 23:22:042008-05-30 23:23:56 00:01:52 11 124.78 11 131.59 0.00 -
101AV2OBS2008-05-30 23:33:192008-05-30 23:36:59 00:03:40 11 165.74 11 179.12 0.00 -
102AV2OBS2008-05-30 23:38:312008-05-30 23:41:11 00:02:40 11 184.71 11 194.43 0.00 -
103AV2OBS2008-05-30 23:44:272008-05-30 23:48:07 00:03:40 11 206.34 11 219.72 -21.50 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
38-20.144482008-05-29 23:45:47147.515732008-05-30 00:35:09
84-44.824062008-05-30 01:24:30122.836142008-05-30 02:13:52
130-69.503652008-05-30 03:03:13 98.156562008-05-30 03:52:35
176-94.183232008-05-30 04:41:56 73.476982008-05-30 05:31:18
222-118.862812008-05-30 06:20:39 48.797402008-05-30 07:10:01
268-143.542392008-05-30 07:59:23 24.117812008-05-30 08:48:44
314-168.221982008-05-30 09:38:06 -0.561772008-05-30 10:27:27
360167.098442008-05-30 11:16:49-25.241352008-05-30 12:06:10
406142.418862008-05-30 12:55:32-49.920932008-05-30 13:44:53
452117.739272008-05-30 14:34:15-74.600522008-05-30 15:23:36
498 93.059692008-05-30 16:12:58-99.280102008-05-30 17:02:20
544 68.380112008-05-30 17:51:41-123.959682008-05-30 18:41:03
590 43.700532008-05-30 19:30:24-148.639272008-05-30 20:19:46
636 19.020942008-05-30 21:09:07-173.318852008-05-30 21:58:29
11 -5.658642008-05-30 22:47:50162.001572008-05-30 23:37:12
