>ALOS Data Take Simulation(May. 17, 2008)

Observation Area

PRISM

AVNIR-2

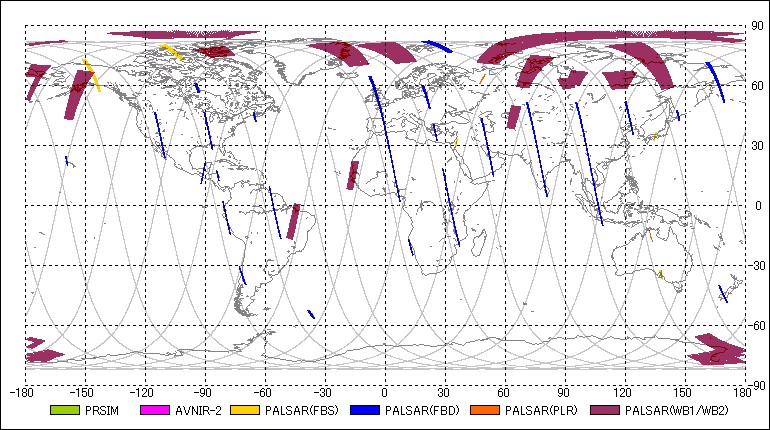

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12008-05-17 00:03:462008-05-17 00:08:48 00:05:02 21 198.56 21 216.92 1.20 -
2AV2OBS2008-05-17 00:04:322008-05-17 00:07:38 00:03:06 21 201.36 21 212.67 0.00 -
3AV2OBS2008-05-17 01:17:102008-05-17 01:21:26 00:04:16 67 106.24 67 121.80 0.00 -
4AV2OBS2008-05-17 01:24:302008-05-17 01:29:34 00:05:04 67 132.98 67 151.46 0.00 -
5PSMOB22008-05-17 01:24:332008-05-17 01:33:07 00:08:34 67 133.17 67 164.41 0.00 -
6PSRFBS2008-05-17 01:26:592008-05-17 01:28:51 00:01:52 67 142.04 67 148.85 34.30 7
7PSMOB12008-05-17 01:35:542008-05-17 01:48:22 00:12:28 67 174.56 67 220.02 1.20 -
8AV2OBS2008-05-17 01:36:362008-05-17 01:40:28 00:03:52 67 177.11 67 191.21 0.00 -
9PSRFBD2008-05-17 02:10:122008-05-17 02:12:04 00:01:52 67 299.58 67 306.39 34.30 43
10PSRFBD2008-05-17 02:21:332008-05-17 02:29:25 00:07:52 67 341.03 113 9.72 34.30 43
11PSRFBD2008-05-17 02:37:402008-05-17 02:39:36 00:01:56 113 39.81 113 46.86 34.30 43
12PSRWB12008-05-17 02:46:562008-05-17 02:48:48 00:01:52 113 73.54 113 80.35 27.10 80
13PSRWB12008-05-17 02:57:142008-05-17 03:00:12 00:02:58 113 111.16 113 121.98 27.10 80
14PSMOB12008-05-17 03:01:192008-05-17 03:06:35 00:05:16 113 125.99 113 145.20 1.20 -
15AV2OBS2008-05-17 03:01:412008-05-17 03:05:41 00:04:00 113 127.33 113 141.92 0.00 -
16AV2OBS2008-05-17 03:10:152008-05-17 03:12:15 00:02:00 113 158.57 113 165.87 0.00 -
17PSMOB12008-05-17 03:14:352008-05-17 03:20:23 00:05:48 113 174.37 113 195.53 1.20 -
18AV2OBS2008-05-17 03:15:192008-05-17 03:20:19 00:05:00 113 177.11 113 195.34 0.00 -
19PSRFBD2008-05-17 03:53:492008-05-17 03:56:59 00:03:10 113 317.45 113 329.00 34.30 43
20PSRFBD2008-05-17 04:00:492008-05-17 04:06:05 00:05:16 113 343.04 159 2.25 34.30 43
21PSRFBD2008-05-17 04:08:182008-05-17 04:10:16 00:01:58 159 10.33 159 17.50 34.30 43
22PSRFBD2008-05-17 04:12:302008-05-17 04:18:22 00:05:52 159 25.65 159 47.04 34.30 43
23PSRFBD2008-05-17 04:20:302008-05-17 04:22:22 00:01:52 159 54.76 159 61.57 34.30 43
24PSRFBS2008-05-17 04:25:062008-05-17 04:27:48 00:02:42 159 71.60 159 81.44 34.30 7
25PSRWB12008-05-17 04:35:562008-05-17 04:38:22 00:02:26 159 111.10 159 119.98 27.10 80
26PSMOB12008-05-17 04:39:452008-05-17 04:50:21 00:10:36 159 124.96 159 163.62 1.20 -
27AV2OBS2008-05-17 04:44:582008-05-17 04:48:50 00:03:52 159 143.99 159 158.09 0.00 -
28PSMOB12008-05-17 05:07:132008-05-17 05:09:49 00:02:36 159 225.13 159 234.61 1.20 -
29PSRFBD2008-05-17 05:50:072008-05-17 05:57:03 00:06:56 205 21.64 205 46.92 34.30 43
30PSRWB12008-05-17 06:12:292008-05-17 06:17:31 00:05:02 205 103.14 205 121.50 27.10 80
31PSMOB12008-05-17 06:18:292008-05-17 06:27:53 00:09:24 205 125.02 205 159.30 1.20 -
32PSRWB12008-05-17 06:19:322008-05-17 06:23:14 00:03:42 205 128.85 205 142.34 27.10 80
33PSRFBS2008-05-17 07:37:592008-05-17 07:43:09 00:05:10 251 55.00 251 73.85 34.30 7
34PSRWB12008-05-17 07:44:582008-05-17 07:52:49 00:07:51 251 80.41 251 109.04 27.10 80
35PSRPLR2008-05-17 07:53:442008-05-17 07:55:44 00:02:00 251 112.38 251 119.67 21.50 127
36PSMOB12008-05-17 07:56:032008-05-17 08:07:35 00:11:32 251 120.89 251 162.95 1.20 -
37AV2OBS2008-05-17 07:59:582008-05-17 08:06:48 00:06:50 251 135.17 251 160.09 0.00 -
38PSRFBS2008-05-17 08:02:432008-05-17 08:04:35 00:01:52 251 145.14 251 151.95 34.30 7
39AV2OBS2008-05-17 08:09:082008-05-17 08:22:10 00:13:02 251 168.54 251 216.07 0.00 -
40PSRFBD2008-05-17 09:06:312008-05-17 09:08:23 00:01:52 297 17.81 297 24.62 34.30 43
41PSMOB12008-05-17 09:31:472008-05-17 09:41:35 00:09:48 297 109.95 297 145.69 1.20 -
42AV2OBS2008-05-17 09:33:332008-05-17 09:35:25 00:01:52 297 116.39 297 123.20 0.00 -
43AV2OBS2008-05-17 09:45:492008-05-17 09:48:37 00:02:48 297 161.13 297 171.34 0.00 -
44PSRFBD2008-05-17 10:54:002008-05-17 11:00:12 00:06:12 343 49.78 343 72.39 34.30 43
45PSMOB12008-05-17 11:11:032008-05-17 11:20:53 00:09:50 343 111.95 343 147.81 1.20 -
46AV2OBS2008-05-17 11:19:522008-05-17 11:22:10 00:02:18 343 144.11 343 152.49 0.00 -
47PSRWB12008-05-17 11:23:182008-05-17 11:27:48 00:04:30 343 156.69 343 173.10 27.10 80
48PSRFBD2008-05-17 12:04:552008-05-17 12:07:57 00:03:02 343 308.39 343 319.45 34.30 43
49PSRFBD2008-05-17 12:30:082008-05-17 12:32:10 00:02:02 389 40.36 389 47.77 34.30 43
50PSRWB12008-05-17 12:34:382008-05-17 12:41:38 00:07:00 389 56.77 389 82.29 27.10 80
51PSMOB12008-05-17 13:07:512008-05-17 13:16:27 00:08:36 389 177.90 389 209.26 1.20 -
52PSRWB12008-05-17 13:07:562008-05-17 13:13:20 00:05:24 389 178.20 389 197.90 27.10 80
53PSRWB12008-05-17 13:34:252008-05-17 13:39:27 00:05:02 389 274.78 389 293.14 27.10 80
54PSRFBS2008-05-17 13:47:012008-05-17 13:48:53 00:01:52 389 320.73 389 327.54 21.50 3
55PSRPLR2008-05-17 13:52:302008-05-17 13:54:32 00:02:02 389 340.73 389 348.14 21.50 127
56PSRFBD2008-05-17 14:06:592008-05-17 14:12:07 00:05:08 435 33.55 435 52.27 34.30 43
57PSRWB12008-05-17 14:13:202008-05-17 14:16:18 00:02:58 435 56.71 435 67.53 27.10 80
58PSMOB12008-05-17 14:23:482008-05-17 14:31:28 00:07:40 435 94.88 435 122.83 1.20 -
59AV2OBS2008-05-17 14:24:262008-05-17 14:30:42 00:06:16 435 97.19 435 120.04 0.00 -
60AV2OBS2008-05-17 14:33:122008-05-17 14:35:04 00:01:52 435 129.16 435 135.96 0.00 -
61PSMOB12008-05-17 14:42:502008-05-17 14:55:58 00:13:08 435 164.29 435 212.18 1.20 -
62AV2OBS2008-05-17 14:53:162008-05-17 14:55:08 00:01:52 435 202.33 435 209.14 21.50 -
63PSRFBD2008-05-17 15:33:062008-05-17 15:50:46 00:17:40 435 347.60 481 52.03 34.30 43
64PSRWB12008-05-17 15:52:042008-05-17 15:54:08 00:02:04 481 56.77 481 64.30 27.10 80
65PSMOB12008-05-17 16:00:512008-05-17 16:09:39 00:08:48 481 88.80 481 120.89 1.20 -
66AV2OBS2008-05-17 16:01:312008-05-17 16:06:05 00:04:34 481 91.17 481 107.82 0.00 -
67AV2OBS2008-05-17 16:12:552008-05-17 16:22:59 00:10:04 481 132.74 481 169.45 0.00 -
68PSRFBD2008-05-17 16:19:342008-05-17 16:23:12 00:03:38 481 156.99 481 170.24 34.30 43
69PSMOB12008-05-17 16:24:282008-05-17 16:27:24 00:02:56 481 174.92 481 185.62 1.20 -
70AV2OBS2008-05-17 16:25:112008-05-17 16:27:03 00:01:52 481 177.54 481 184.34 0.00 -
71PSRFBD2008-05-17 17:15:492008-05-17 17:29:27 00:13:38 527 2.19 527 51.91 34.30 43
72PSMOB12008-05-17 17:38:572008-05-17 17:49:43 00:10:46 527 86.55 527 125.81 1.20 -
73AV2OBS2008-05-17 17:39:442008-05-17 17:43:20 00:03:36 527 89.35 527 102.47 0.00 -
74PSMOB12008-05-17 17:52:012008-05-17 17:59:35 00:07:34 527 134.20 527 161.79 1.20 -
75AV2OBS2008-05-17 17:52:302008-05-17 17:59:06 00:06:36 527 135.90 527 159.97 0.00 -
76PSRWB12008-05-17 18:25:342008-05-17 18:29:00 00:03:26 527 256.55 527 269.07 27.10 80
77PSRFBD2008-05-17 18:57:222008-05-17 19:05:54 00:08:32 573 12.52 573 43.64 34.30 43
78PSRFBD2008-05-17 19:14:352008-05-17 19:16:53 00:02:18 573 75.31 573 83.69 34.30 43
79PSMOB12008-05-17 19:17:402008-05-17 19:31:08 00:13:28 573 86.49 573 135.60 1.20 -
80AV2OBS2008-05-17 19:22:372008-05-17 19:30:21 00:07:44 573 104.54 573 132.74 0.00 -
81AV2OBS2008-05-17 19:47:562008-05-17 19:49:48 00:01:52 573 196.92 573 203.73 -41.50 -
82PSRWB12008-05-17 20:01:582008-05-17 20:06:22 00:04:24 573 248.10 573 264.15 27.10 80
83PSRFBD2008-05-17 20:26:252008-05-17 20:37:49 00:11:24 573 337.26 619 18.84 34.30 43
84PSRFBD2008-05-17 20:41:022008-05-17 20:43:48 00:02:46 619 30.57 619 40.66 34.30 43
85PSRFBD2008-05-17 20:45:252008-05-17 20:49:19 00:03:54 619 46.56 619 60.78 34.30 43
86PSRWB12008-05-17 20:51:552008-05-17 20:55:21 00:03:26 619 70.26 619 82.78 27.10 80
87PSMOB12008-05-17 20:56:242008-05-17 21:06:46 00:10:22 619 86.55 619 124.35 1.20 -
88PSRWB12008-05-17 21:03:072008-05-17 21:10:29 00:07:22 619 111.04 619 137.91 27.10 80
89AV2OBS2008-05-17 21:15:382008-05-17 21:17:30 00:01:52 619 156.75 619 163.56 21.50 -
90PSMOB12008-05-17 21:23:382008-05-17 21:26:14 00:02:36 619 185.92 619 195.40 1.20 -
91AV2OBS2008-05-17 21:24:242008-05-17 21:26:16 00:01:52 619 188.72 619 195.53 0.00 -
92AV2OBS2008-05-17 21:40:332008-05-17 21:42:41 00:02:08 619 247.61 619 255.39 0.00 -
93PSRFBD2008-05-17 22:03:532008-05-17 22:06:43 00:02:50 619 332.70 619 343.04 34.30 43
94PSRFBD2008-05-17 22:11:202008-05-17 22:29:14 00:17:54 619 359.81 665 65.09 34.30 43
95PSRWB12008-05-17 22:30:122008-05-17 22:34:04 00:03:52 665 68.68 665 82.78 27.10 80
96PSRWB12008-05-17 22:35:092008-05-17 22:37:01 00:01:52 665 86.73 665 93.54 27.10 80
97PSMOB12008-05-17 22:39:272008-05-17 22:47:35 00:08:08 665 102.41 665 132.07 1.20 -
98PSRWB12008-05-17 22:40:562008-05-17 22:47:47 00:06:51 665 107.76 665 132.74 27.10 80
99AV2OBS2008-05-17 22:52:102008-05-17 22:54:02 00:01:52 665 148.73 665 155.53 34.30 -
100AV2OBS2008-05-17 22:58:152008-05-17 23:00:07 00:01:52 665 170.91 665 177.72 0.00 -
101AV2OBS2008-05-17 23:04:042008-05-17 23:08:18 00:04:14 665 192.12 665 207.56 0.00 -
102AV2OBS2008-05-17 23:17:172008-05-17 23:21:23 00:04:06 665 240.38 665 255.33 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
21-11.023772008-05-16 23:09:18156.636442008-05-16 23:58:40
67-35.703352008-05-17 00:48:01131.956862008-05-17 01:37:23
113-60.382932008-05-17 02:26:44107.277282008-05-17 03:16:06
159-85.062512008-05-17 04:05:27 82.597692008-05-17 04:54:49
205-109.742102008-05-17 05:44:10 57.918112008-05-17 06:33:32
251-134.421682008-05-17 07:22:54 33.238532008-05-17 08:12:15
297-159.101262008-05-17 09:01:37 8.558952008-05-17 09:50:58
343176.219152008-05-17 10:40:20-16.120642008-05-17 11:29:41
389151.539572008-05-17 12:19:03-40.800222008-05-17 13:08:24
435126.859992008-05-17 13:57:46-65.479802008-05-17 14:47:07
481102.180412008-05-17 15:36:29-90.159382008-05-17 16:25:51
527 77.500822008-05-17 17:15:12-114.838972008-05-17 18:04:34
573 52.821242008-05-17 18:53:55-139.518552008-05-17 19:43:17
619 28.141662008-05-17 20:32:38-164.198132008-05-17 21:22:00
665 3.462082008-05-17 22:11:21171.122282008-05-17 23:00:43
40-21.217512008-05-17 23:50:05146.442702008-05-18 00:39:26
