>ALOS Data Take Simulation(May. 13, 2008)

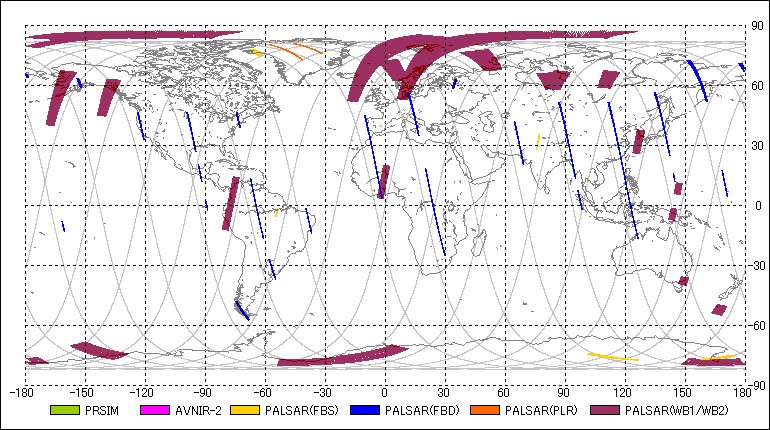

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2008-05-13 00:03:162008-05-13 00:06:18 00:03:02 37 71.54 37 82.60 24.20 129
2PSRWB12008-05-13 00:07:262008-05-13 00:11:45 00:04:19 37 86.73 37 102.47 27.10 80
3AV2OBS2008-05-13 00:12:562008-05-13 00:18:46 00:05:50 37 106.79 37 128.06 0.00 -
4AV2OBS2008-05-13 00:25:472008-05-13 00:27:39 00:01:52 37 153.59 37 160.40 0.00 -
5PSRWB12008-05-13 00:29:372008-05-13 00:31:49 00:02:12 37 167.63 37 175.65 27.10 80
6PSRWB12008-05-13 00:33:092008-05-13 00:35:19 00:02:10 37 180.45 37 188.35 27.10 80
7PSMOB12008-05-13 00:35:472008-05-13 00:44:47 00:09:00 37 190.06 37 222.88 1.20 -
8AV2OBS2008-05-13 00:36:242008-05-13 00:43:58 00:07:34 37 192.30 37 219.90 0.00 -
9PSRFBD2008-05-13 01:17:572008-05-13 01:21:59 00:04:02 37 343.83 37 358.54 34.30 43
10PSRFBS2008-05-13 01:42:322008-05-13 01:44:04 00:01:32 83 73.54 83 79.13 34.30 7
11AV2OBS2008-05-13 01:51:132008-05-13 01:54:25 00:03:12 83 105.21 83 116.88 0.00 -
12AV2OBS2008-05-13 02:00:552008-05-13 02:05:13 00:04:18 83 140.58 83 156.26 0.00 -
13PSMOB22008-05-13 02:00:562008-05-13 02:05:16 00:04:20 83 140.58 83 156.38 0.00 -
14PSRWB12008-05-13 02:01:002008-05-13 02:04:54 00:03:54 83 140.82 83 155.05 27.10 80
15PSMOB12008-05-13 02:07:242008-05-13 02:22:44 00:15:20 83 164.16 83 220.08 1.20 -
16AV2OBS2008-05-13 02:08:022008-05-13 02:22:40 00:14:38 83 166.53 83 219.90 0.00 -
17PSRFBD2008-05-13 02:50:142008-05-13 02:53:40 00:03:26 83 320.43 83 332.95 34.30 43
18PSRFBD2008-05-13 02:55:542008-05-13 03:04:48 00:08:54 83 341.03 129 13.49 34.30 43
19PSRFBD2008-05-13 03:11:142008-05-13 03:13:56 00:02:42 129 37.01 129 46.86 34.30 43
20PSRWB12008-05-13 03:31:332008-05-13 03:34:31 00:02:58 129 111.10 129 121.92 27.10 80
21PSMOB12008-05-13 03:35:222008-05-13 03:49:24 00:14:02 129 124.96 129 176.14 1.20 -
22AV2OBS2008-05-13 03:40:302008-05-13 03:49:12 00:08:42 129 143.74 129 175.47 0.00 -
23AV2OBS2008-05-13 03:53:102008-05-13 03:55:02 00:01:52 129 189.93 129 196.74 0.00 -
24AV2OBS2008-05-13 03:56:382008-05-13 03:58:30 00:01:52 129 202.52 129 209.32 34.30 -
25PSRFBD2008-05-13 04:23:022008-05-13 04:26:28 00:03:26 129 298.79 129 311.31 34.30 43
26PSRFBD2008-05-13 04:38:342008-05-13 04:40:26 00:01:52 129 355.44 175 2.25 34.30 43
27PSRFBD2008-05-13 04:42:252008-05-13 04:45:29 00:03:04 175 9.54 175 20.73 34.30 43
28PSRFBD2008-05-13 04:46:402008-05-13 04:52:40 00:06:00 175 25.04 175 46.92 34.30 43
29PSRWB12008-05-13 05:10:162008-05-13 05:13:26 00:03:10 175 111.10 175 122.65 27.10 80
30PSMOB12008-05-13 05:14:062008-05-13 05:27:42 00:13:36 175 125.02 175 174.62 1.20 -
31PSRFBS2008-05-13 05:19:022008-05-13 05:21:48 00:02:46 175 143.01 175 153.10 34.30 7
32AV2OBS2008-05-13 05:19:072008-05-13 05:20:59 00:01:52 175 143.32 175 150.12 -41.50 -
33PSRFBD2008-05-13 06:27:022008-05-13 06:31:24 00:04:22 221 31.06 221 46.98 34.30 43
34PSMOB12008-05-13 06:52:492008-05-13 07:04:43 00:11:54 221 125.02 221 168.42 1.20 -
35AV2OBS2008-05-13 06:57:002008-05-13 07:05:58 00:08:58 221 140.28 221 172.98 0.00 -
36AV2OBS2008-05-13 07:11:242008-05-13 07:15:16 00:03:52 221 192.79 221 206.89 0.00 -
37PSRWB12008-05-13 07:27:532008-05-13 07:33:07 00:05:14 221 252.90 221 271.99 27.10 80
38AV2OBS2008-05-13 07:40:232008-05-13 07:42:15 00:01:52 221 298.49 221 305.29 0.00 -
39AV2OBS2008-05-13 07:44:302008-05-13 07:46:22 00:01:52 221 313.50 221 320.31 0.00 -
40AV2OBS2008-05-13 07:48:372008-05-13 07:50:29 00:01:52 221 328.51 221 335.32 0.00 -
41AV2OBS2008-05-13 07:52:442008-05-13 07:54:36 00:01:52 221 343.52 221 350.33 0.00 -
42AV2OBS2008-05-13 07:56:512008-05-13 07:58:43 00:01:52 221 358.54 267 5.35 0.00 -
43AV2OBS2008-05-13 08:00:582008-05-13 08:02:50 00:01:52 267 13.55 267 20.36 0.00 -
44AV2OBS2008-05-13 08:05:042008-05-13 08:06:56 00:01:52 267 28.51 267 35.31 0.00 -
45AV2OBS2008-05-13 08:09:112008-05-13 08:11:03 00:01:52 267 43.52 267 50.33 0.00 -
46PSRFBD2008-05-13 08:12:562008-05-13 08:14:48 00:01:52 267 57.19 267 64.00 34.30 43
47AV2OBS2008-05-13 08:13:172008-05-13 08:15:09 00:01:52 267 58.47 267 65.28 0.00 -
48PSMOB12008-05-13 08:28:412008-05-13 08:38:21 00:09:40 267 114.63 267 149.88 1.20 -
49PSRFBD2008-05-13 08:28:552008-05-13 08:30:47 00:01:52 267 115.48 267 122.29 34.30 43
50AV2OBS2008-05-13 08:33:462008-05-13 08:37:32 00:03:46 267 133.17 267 146.90 0.00 -
51AV2OBS2008-05-13 08:41:242008-05-13 08:43:16 00:01:52 267 161.00 267 167.81 0.00 -
52AV2OBS2008-05-13 08:47:062008-05-13 08:49:42 00:02:36 267 181.79 267 191.27 0.00 -
53AV2OBS2008-05-13 08:51:262008-05-13 08:54:52 00:03:26 267 197.59 267 210.11 21.50 -
54PSRFBD2008-05-13 09:31:452008-05-13 09:33:47 00:02:02 267 344.62 267 352.03 34.30 43
55AV2CA12008-05-13 09:35:342008-05-13 09:43:22 00:07:48 267 358.54 313 26.99 0.00 -
56PSRFBD2008-05-13 09:53:042008-05-13 09:55:42 00:02:38 313 62.36 313 71.96 34.30 43
57PSRWB12008-05-13 09:59:452008-05-13 10:10:56 00:11:11 313 86.73 313 127.51 27.10 80
58PSMOB12008-05-13 10:04:112008-05-13 10:15:39 00:11:28 313 102.90 313 144.71 1.20 -
59AV2OBS2008-05-13 10:12:062008-05-13 10:13:58 00:01:52 313 131.77 313 138.58 -21.50 -
60PSRWB12008-05-13 10:19:312008-05-13 10:24:41 00:05:10 313 158.82 313 177.66 27.10 80
61PSRWB12008-05-13 10:51:482008-05-13 10:54:56 00:03:08 313 276.54 313 287.97 27.10 80
62PSRFBD2008-05-13 11:15:212008-05-13 11:19:29 00:04:08 359 2.43 359 17.50 34.30 43
63PSRFBD2008-05-13 11:28:232008-05-13 11:34:51 00:06:28 359 49.96 359 73.54 34.30 43
64PSRWB12008-05-13 11:39:582008-05-13 11:49:59 00:10:01 359 92.20 359 128.73 27.10 80
65PSMOB12008-05-13 11:45:302008-05-13 11:50:58 00:05:28 359 112.38 359 132.32 1.20 -
66PSRFBD2008-05-13 12:56:022008-05-13 12:57:54 00:01:52 405 9.60 405 16.41 34.30 43
67PSRFBD2008-05-13 12:59:422008-05-13 13:09:00 00:09:18 405 22.97 405 56.89 34.30 43
68AV2OBS2008-05-13 13:23:052008-05-13 13:24:57 00:01:52 405 108.19 405 114.99 -41.50 -
69PSRFBS2008-05-13 13:42:492008-05-13 13:44:41 00:01:52 405 180.21 405 187.02 34.30 7
70PSMOB12008-05-13 13:48:102008-05-13 13:54:38 00:06:28 405 199.72 405 223.30 1.20 -
71AV2OBS2008-05-13 13:51:242008-05-13 13:53:16 00:01:52 405 211.51 405 218.32 -41.50 -
72PSMOB12008-05-13 13:56:442008-05-13 13:59:20 00:02:36 405 230.96 405 240.44 1.20 -
73PSRFBD2008-05-13 14:26:552008-05-13 14:46:25 00:19:30 405 341.03 451 52.15 34.30 43
74AV2OBS2008-05-13 14:58:042008-05-13 15:04:08 00:06:04 451 94.57 451 116.70 0.00 -
75AV2OBS2008-05-13 15:05:372008-05-13 15:10:25 00:04:48 451 122.10 451 139.61 0.00 -
76PSMOB12008-05-13 15:14:392008-05-13 15:26:23 00:11:44 451 155.11 451 197.90 1.20 -
77PSRWB12008-05-13 15:17:152008-05-13 15:25:09 00:07:54 451 164.59 451 193.40 27.10 80
78PSRFBD2008-05-13 16:09:422008-05-13 16:13:00 00:03:18 451 355.86 497 7.90 34.30 43
79PSRFBD2008-05-13 16:13:582008-05-13 16:25:06 00:11:08 497 11.43 497 52.03 34.30 43
80PSRWB12008-05-13 16:26:252008-05-13 16:29:17 00:02:52 497 56.77 497 67.22 27.10 80
81PSMOB12008-05-13 16:34:492008-05-13 16:43:51 00:09:02 497 87.46 497 120.40 1.20 -
82AV2OBS2008-05-13 16:42:092008-05-13 16:52:31 00:10:22 497 114.14 497 151.95 0.00 -
83AV2OBS2008-05-13 16:54:192008-05-13 16:56:19 00:02:00 497 158.51 497 165.81 0.00 -
84PSRWB12008-05-13 17:23:032008-05-13 17:25:55 00:02:52 497 263.36 497 273.81 27.10 80
85PSRFBD2008-05-13 17:54:362008-05-13 18:01:10 00:06:34 543 18.42 543 42.36 34.30 43
86PSRWB12008-05-13 18:07:422008-05-13 18:11:08 00:03:26 543 66.19 543 78.71 27.10 80
87PSMOB12008-05-13 18:13:162008-05-13 18:31:52 00:18:36 543 86.49 543 154.32 1.20 -
88AV2OBS2008-05-13 18:28:352008-05-13 18:31:19 00:02:44 543 142.34 543 152.31 0.00 -
89PSRFBS2008-05-13 19:00:532008-05-13 19:02:45 00:01:52 543 260.13 543 266.94 34.30 7
90PSRFBS2008-05-13 19:03:582008-05-13 19:06:28 00:02:30 543 271.32 543 280.43 34.30 7
91PSMOB12008-05-13 19:52:002008-05-13 20:03:54 00:11:54 589 86.49 589 129.88 1.20 -
92PSRWB12008-05-13 19:59:542008-05-13 20:05:35 00:05:41 589 115.30 589 136.02 27.10 80
93PSMOB12008-05-13 20:18:592008-05-13 20:21:43 00:02:44 589 184.89 589 194.86 1.20 -
94AV2OBS2008-05-13 20:19:452008-05-13 20:23:45 00:04:00 589 187.75 589 202.33 0.00 -
95PSRFBD2008-05-13 20:59:302008-05-13 21:12:06 00:12:36 589 332.70 635 18.66 34.30 43
96PSRFBD2008-05-13 21:15:592008-05-13 21:22:39 00:06:40 635 32.76 635 57.07 34.30 43
97PSRWB12008-05-13 21:23:432008-05-13 21:27:09 00:03:26 635 60.96 635 73.48 27.10 80
98PSMOB12008-05-13 21:30:432008-05-13 21:41:57 00:11:14 635 86.55 635 127.51 1.20 -
99PSRWB12008-05-13 21:37:272008-05-13 21:45:38 00:08:11 635 111.10 635 140.95 27.10 80
100PSMOB12008-05-13 22:05:272008-05-13 22:08:37 00:03:10 635 213.15 635 224.70 1.20 -
101AV2OBS2008-05-13 22:06:092008-05-13 22:08:01 00:01:52 635 215.77 635 222.57 0.00 -
102PSRWB12008-05-13 22:10:022008-05-13 22:11:54 00:01:52 635 229.87 635 236.67 27.10 80
103PSRFBD2008-05-13 22:46:032008-05-13 22:58:11 00:12:08 10 1.22 10 45.46 34.30 43
104PSRPLR2008-05-13 23:06:152008-05-13 23:08:31 00:02:16 10 74.94 10 83.21 24.20 129
105PSRWB12008-05-13 23:09:302008-05-13 23:11:22 00:01:52 10 86.73 10 93.54 27.10 80
106PSMOB12008-05-13 23:14:572008-05-13 23:18:21 00:03:24 10 106.61 10 119.01 1.20 -
107AV2OBS2008-05-13 23:15:432008-05-13 23:17:35 00:01:52 10 109.40 10 116.21 0.00 -
108AV2OBS2008-05-13 23:19:562008-05-13 23:21:48 00:01:52 10 124.78 10 131.59 0.00 -
109PSMOB12008-05-13 23:30:242008-05-13 23:33:08 00:02:44 10 162.95 10 172.92 1.20 -
110AV2OBS2008-05-13 23:31:092008-05-13 23:33:01 00:01:52 10 165.74 10 172.55 0.00 -
111AV2OBS2008-05-13 23:42:182008-05-13 23:44:14 00:01:56 10 206.34 10 213.40 -21.50 -
112PSRWB12008-05-13 23:44:412008-05-13 23:46:27 00:01:46 10 215.04 10 221.48 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
37-19.607972008-05-12 23:43:38148.052242008-05-13 00:33:00
83-44.287552008-05-13 01:22:21123.372662008-05-13 02:11:43
129-68.967132008-05-13 03:01:04 98.693072008-05-13 03:50:26
175-93.646722008-05-13 04:39:48 74.013492008-05-13 05:29:09
221-118.326302008-05-13 06:18:31 49.333912008-05-13 07:07:52
267-143.005882008-05-13 07:57:14 24.654332008-05-13 08:46:35
313-167.685462008-05-13 09:35:57 -0.025262008-05-13 10:25:18
359167.634952008-05-13 11:14:40-24.704842008-05-13 12:04:01
405142.955372008-05-13 12:53:23-49.384422008-05-13 13:42:45
451118.275792008-05-13 14:32:06-74.064002008-05-13 15:21:28
497 93.596202008-05-13 16:10:49-98.743592008-05-13 17:00:11
543 68.916622008-05-13 17:49:32-123.423172008-05-13 18:38:54
589 44.237042008-05-13 19:28:15-148.102752008-05-13 20:17:37
635 19.557462008-05-13 21:06:59-172.782342008-05-13 21:56:20
10 -5.122132008-05-13 22:45:42162.538082008-05-13 23:35:03
