>ALOS Data Take Simulation(May. 06, 2008)

Observation Area

PRISM

AVNIR-2

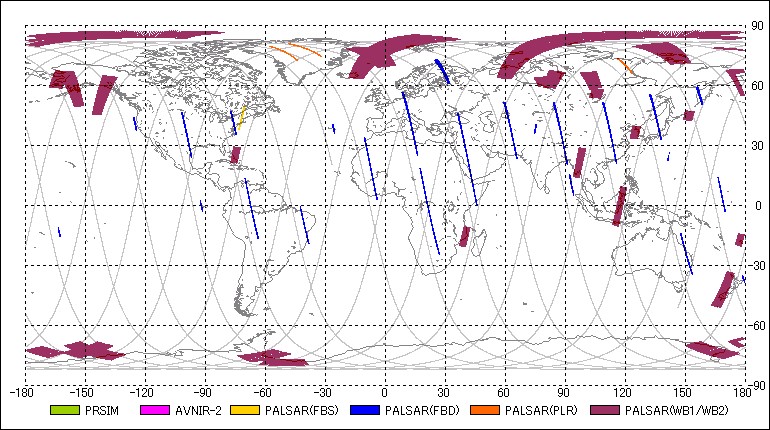

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2008-05-06 00:03:432008-05-06 00:05:35 00:01:52 42 34.04 42 40.84 34.30 43
2PSRPLR2008-05-06 00:14:002008-05-06 00:16:46 00:02:46 42 71.48 42 81.57 24.20 129
3PSRWB12008-05-06 00:18:022008-05-06 00:22:20 00:04:18 42 86.18 42 101.87 27.10 80
4AV2OBS2008-05-06 00:23:372008-05-06 00:29:29 00:05:52 42 106.61 42 128.00 0.00 -
5PSRWB12008-05-06 00:30:262008-05-06 00:32:18 00:01:52 42 131.46 42 138.27 27.10 80
6PSRFBD2008-05-06 00:36:122008-05-06 00:38:02 00:01:50 42 152.49 42 159.18 50.80 53
7AV2OBS2008-05-06 00:40:522008-05-06 00:42:44 00:01:52 42 169.51 42 176.32 0.00 -
8PSMOB12008-05-06 00:45:392008-05-06 00:55:07 00:09:28 42 186.96 42 221.48 1.20 -
9AV2OBS2008-05-06 00:49:092008-05-06 00:54:59 00:05:50 42 199.72 42 220.99 0.00 -
10PSRFBD2008-05-06 01:27:122008-05-06 01:32:58 00:05:46 42 338.42 42 359.45 34.30 43
11AV2OBS2008-05-06 02:01:482008-05-06 02:04:18 00:02:30 88 104.60 88 113.72 0.00 -
12PSMOB22008-05-06 02:06:362008-05-06 02:16:32 00:09:56 88 122.17 88 158.39 0.00 -
13PSRWB12008-05-06 02:11:142008-05-06 02:13:34 00:02:20 88 139.06 88 147.57 27.10 80
14AV2OBS2008-05-06 02:12:212008-05-06 02:16:27 00:04:06 88 143.13 88 158.09 0.00 -
15PSRWB12008-05-06 02:19:382008-05-06 02:25:34 00:05:56 88 169.69 88 191.33 27.10 80
16AV2OBS2008-05-06 02:21:432008-05-06 02:24:31 00:02:48 88 177.29 88 187.50 0.00 -
17PSMOB12008-05-06 02:26:502008-05-06 02:32:28 00:05:38 88 195.95 88 216.49 1.20 -
18AV2OBS2008-05-06 02:27:372008-05-06 02:31:43 00:04:06 88 198.81 88 213.76 0.00 -
19PSRFBD2008-05-06 03:06:372008-05-06 03:15:35 00:08:58 88 341.03 134 13.74 34.30 43
20PSRFBD2008-05-06 03:20:562008-05-06 03:24:48 00:03:52 134 33.19 134 47.29 34.30 43
21PSRWB12008-05-06 03:44:492008-05-06 03:46:39 00:01:50 134 120.28 134 126.97 27.10 80
22PSMOB12008-05-06 03:46:062008-05-06 04:00:06 00:14:00 134 124.96 134 176.02 1.20 -
23PSRWB12008-05-06 03:52:562008-05-06 03:57:40 00:04:44 134 149.88 134 167.14 27.10 80
24AV2OBS2008-05-06 03:52:592008-05-06 04:01:37 00:08:38 134 150.12 134 181.61 0.00 -
25AV2OBS2008-05-06 04:07:152008-05-06 04:09:07 00:01:52 134 202.09 134 208.90 41.50 -
26PSRFBD2008-05-06 04:49:082008-05-06 04:51:14 00:02:06 134 354.83 180 2.49 34.30 43
27PSRFBD2008-05-06 04:56:282008-05-06 05:03:26 00:06:58 180 21.64 180 47.04 34.30 43
28PSRWB12008-05-06 05:21:002008-05-06 05:23:58 00:02:58 180 111.10 180 121.92 27.10 80
29PSMOB12008-05-06 05:24:502008-05-06 05:37:16 00:12:26 180 125.02 180 170.36 1.20 -
30PSRFBD2008-05-06 05:28:272008-05-06 05:30:19 00:01:52 180 138.21 180 145.02 34.30 43
31AV2OBS2008-05-06 05:29:022008-05-06 05:32:12 00:03:10 180 140.34 180 151.89 0.00 -
32PSRFBD2008-05-06 06:39:012008-05-06 06:41:27 00:02:26 226 35.62 226 44.49 34.30 43
33PSRWB12008-05-06 06:52:042008-05-06 07:01:20 00:09:16 226 83.21 226 117.00 27.10 80
34PSMOB12008-05-06 07:03:332008-05-06 07:15:47 00:12:14 226 125.02 226 169.63 1.20 -
35AV2OBS2008-05-06 07:07:342008-05-06 07:15:00 00:07:26 226 139.73 226 166.84 0.00 -
36PSRWB12008-05-06 07:21:172008-05-06 07:24:33 00:03:16 226 189.69 226 201.60 27.10 80
37PSRWB12008-05-06 07:42:172008-05-06 07:44:09 00:01:52 226 266.33 226 273.14 27.10 80
38PSRWB12008-05-06 08:21:042008-05-06 08:26:31 00:05:27 272 47.77 272 67.65 27.10 80
39AV2OBS2008-05-06 08:34:512008-05-06 08:37:39 00:02:48 272 97.98 272 108.19 0.00 -
40PSMOB12008-05-06 08:39:252008-05-06 08:49:05 00:09:40 272 114.63 272 149.88 1.20 -
41AV2OBS2008-05-06 08:44:532008-05-06 08:53:55 00:09:02 272 134.56 272 167.51 0.00 -
42AV2OBS2008-05-06 08:56:112008-05-06 09:05:37 00:09:26 272 175.77 272 210.17 0.00 -
43PSRFBD2008-05-06 09:41:462008-05-06 09:43:38 00:01:52 272 342.06 272 348.87 34.30 43
44PSRWB12008-05-06 10:01:052008-05-06 10:05:35 00:04:30 318 52.45 318 68.86 27.10 80
45PSMOB12008-05-06 10:14:462008-05-06 10:26:10 00:11:24 318 102.35 318 143.92 1.20 -
46AV2OBS2008-05-06 10:25:172008-05-06 10:35:03 00:09:46 318 140.76 318 176.38 0.00 -
47PSRWB12008-05-06 10:56:562008-05-06 10:59:16 00:02:20 318 256.12 318 264.63 27.10 80
48PSRWB12008-05-06 11:02:252008-05-06 11:05:43 00:03:18 318 276.12 318 288.15 27.10 80
49PSRFBD2008-05-06 11:13:482008-05-06 11:15:40 00:01:52 318 317.63 318 324.44 34.30 43
50PSRFBD2008-05-06 11:23:572008-05-06 11:29:21 00:05:24 318 354.65 364 14.34 34.30 43
51PSRFBD2008-05-06 11:38:412008-05-06 11:41:49 00:03:08 364 48.38 364 59.81 34.30 43
52PSRWB12008-05-06 11:44:332008-05-06 11:47:59 00:03:26 364 69.77 364 82.29 27.10 80
53PSRWB12008-05-06 11:50:382008-05-06 11:57:30 00:06:52 364 91.96 364 117.00 27.10 80
54PSMOB12008-05-06 11:56:042008-05-06 11:59:00 00:02:56 364 111.77 364 122.47 1.20 -
55PSRWB12008-05-06 12:41:402008-05-06 12:45:06 00:03:26 364 278.06 364 290.58 27.10 80
56PSRFBD2008-05-06 12:53:592008-05-06 13:00:19 00:06:20 364 322.98 364 346.08 34.30 43
57PSRFBD2008-05-06 13:12:382008-05-06 13:19:32 00:06:54 410 31.00 410 56.16 34.30 43
58PSRPLR2008-05-06 13:21:492008-05-06 13:24:39 00:02:50 410 64.49 410 74.82 21.50 127
59PSMOB12008-05-06 13:32:102008-05-06 13:35:16 00:03:06 410 102.23 410 113.54 1.20 -
60AV2OBS2008-05-06 13:32:462008-05-06 13:34:38 00:01:52 410 104.42 410 111.23 0.00 -
61PSMOB12008-05-06 13:51:112008-05-06 14:10:05 00:18:54 410 171.58 410 240.50 1.20 -
62PSRWB12008-05-06 14:20:112008-05-06 14:23:11 00:03:00 410 277.33 410 288.27 27.10 80
63PSRFBD2008-05-06 14:47:572008-05-06 14:57:05 00:09:08 456 18.60 456 51.91 34.30 43
64PSRWB12008-05-06 14:58:252008-05-06 15:01:23 00:02:58 456 56.77 456 67.59 27.10 80
65AV2OBS2008-05-06 15:10:332008-05-06 15:14:15 00:03:42 456 101.01 456 114.51 0.00 -
66AV2OBS2008-05-06 15:15:502008-05-06 15:21:08 00:05:18 456 120.28 456 139.61 0.00 -
67PSRFBS2008-05-06 15:18:142008-05-06 15:22:06 00:03:52 456 129.03 456 143.13 34.30 7
68PSRWB12008-05-06 15:23:492008-05-06 15:26:41 00:02:52 456 149.39 456 159.85 27.10 80
69PSMOB12008-05-06 15:27:482008-05-06 15:36:24 00:08:36 456 163.92 456 195.28 1.20 -
70AV2OBS2008-05-06 15:30:232008-05-06 15:32:15 00:01:52 456 173.34 456 180.15 0.00 -
71PSRFBD2008-05-06 16:22:242008-05-06 16:25:50 00:03:26 502 2.98 502 15.50 34.30 43
72PSRFBD2008-05-06 16:26:382008-05-06 16:35:50 00:09:12 502 18.42 502 51.97 34.30 43
73PSRWB12008-05-06 16:37:312008-05-06 16:39:23 00:01:52 502 58.17 502 64.97 25.90 76
74PSMOB12008-05-06 16:45:282008-05-06 16:54:28 00:09:00 502 87.16 502 119.98 1.20 -
75AV2OBS2008-05-06 16:52:522008-05-06 17:07:50 00:14:58 502 114.08 502 168.66 0.00 -
76PSRWB12008-05-06 17:30:252008-05-06 17:33:11 00:02:46 502 251.08 502 261.17 27.10 80
77PSRFBD2008-05-06 18:06:092008-05-06 18:14:33 00:08:24 548 21.39 548 52.03 34.30 43
78PSMOB12008-05-06 18:24:012008-05-06 18:41:55 00:17:54 548 86.49 548 151.77 1.20 -
79AV2OBS2008-05-06 18:24:322008-05-06 18:29:00 00:04:28 548 88.43 548 104.72 0.00 -
80PSRFBD2008-05-06 19:38:292008-05-06 19:51:47 00:13:18 548 358.11 594 46.62 34.30 43
81PSRFBD2008-05-06 19:55:132008-05-06 19:59:11 00:03:58 594 59.14 594 73.60 34.30 43
82PSMOB12008-05-06 20:02:442008-05-06 20:13:58 00:11:14 594 86.49 594 127.45 1.20 -
83PSRWB12008-05-06 20:10:112008-05-06 20:16:09 00:05:58 594 113.66 594 135.42 27.10 80
84PSMOB12008-05-06 20:29:432008-05-06 20:32:23 00:02:40 594 184.89 594 194.61 1.20 -
85AV2OBS2008-05-06 20:30:292008-05-06 20:32:21 00:01:52 594 187.69 594 194.49 0.00 -
86PSRFBD2008-05-06 21:10:152008-05-06 21:22:51 00:12:36 594 332.76 640 18.72 34.30 43
87PSRFBD2008-05-06 21:24:022008-05-06 21:33:24 00:09:22 640 23.04 640 57.19 34.30 43
88PSRWB12008-05-06 21:36:232008-05-06 21:39:49 00:03:26 640 68.07 640 80.59 27.10 80
89PSMOB12008-05-06 21:41:282008-05-06 21:52:50 00:11:22 640 86.55 640 128.00 1.20 -
90PSRWB12008-05-06 21:48:112008-05-06 21:51:09 00:02:58 640 111.10 640 121.92 27.10 80
91PSRWB12008-05-06 22:10:462008-05-06 22:12:58 00:02:12 640 193.40 640 201.42 27.10 80
92PSMOB12008-05-06 22:15:472008-05-06 22:20:07 00:04:20 640 211.75 640 227.56 1.20 -
93PSRWB12008-05-06 22:16:032008-05-06 22:21:32 00:05:29 640 212.73 640 232.72 27.10 80
94AV2OBS2008-05-06 22:16:302008-05-06 22:19:18 00:02:48 640 214.31 640 224.52 0.00 -
95PSRFBD2008-05-06 22:56:402008-05-06 23:05:48 00:09:08 15 0.79 15 34.10 34.30 43
96PSRPLR2008-05-06 23:16:362008-05-06 23:19:14 00:02:38 15 73.54 15 83.15 24.20 129
97PSMOB12008-05-06 23:25:312008-05-06 23:28:57 00:03:26 15 106.00 15 118.52 1.20 -
98AV2OBS2008-05-06 23:27:452008-05-06 23:32:23 00:04:38 15 114.14 15 131.04 0.00 -
99AV2OBS2008-05-06 23:42:032008-05-06 23:44:41 00:02:38 15 166.29 15 175.89 0.00 -
100AV2OBS2008-05-06 23:46:492008-05-06 23:50:41 00:03:52 15 183.73 15 197.84 0.00 -
101AV2OBS2008-05-06 23:52:322008-05-06 23:58:42 00:06:10 15 204.52 15 227.01 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
42-22.290532008-05-05 23:54:22145.369682008-05-06 00:43:44
88-46.970112008-05-06 01:33:05120.690092008-05-06 02:22:27
134-71.649702008-05-06 03:11:48 96.010512008-05-06 04:01:10
180-96.329282008-05-06 04:50:31 71.330932008-05-06 05:39:53
226-121.008862008-05-06 06:29:14 46.651352008-05-06 07:18:36
272-145.688452008-05-06 08:07:58 21.971762008-05-06 08:57:19
318-170.368032008-05-06 09:46:41 -2.707822008-05-06 10:36:02
364164.952392008-05-06 11:25:24-27.387402008-05-06 12:14:45
410140.272812008-05-06 13:04:07-52.066992008-05-06 13:53:28
456115.593222008-05-06 14:42:50-76.746572008-05-06 15:32:12
502 90.913642008-05-06 16:21:33-101.426152008-05-06 17:10:55
548 66.234062008-05-06 18:00:16-126.105732008-05-06 18:49:38
594 41.554482008-05-06 19:38:59-150.785322008-05-06 20:28:21
640 16.874892008-05-06 21:17:42-175.464902008-05-06 22:07:04
15 -7.804692008-05-06 22:56:25159.855522008-05-06 23:45:47
