>ALOS Data Take Simulation(May. 03, 2008)

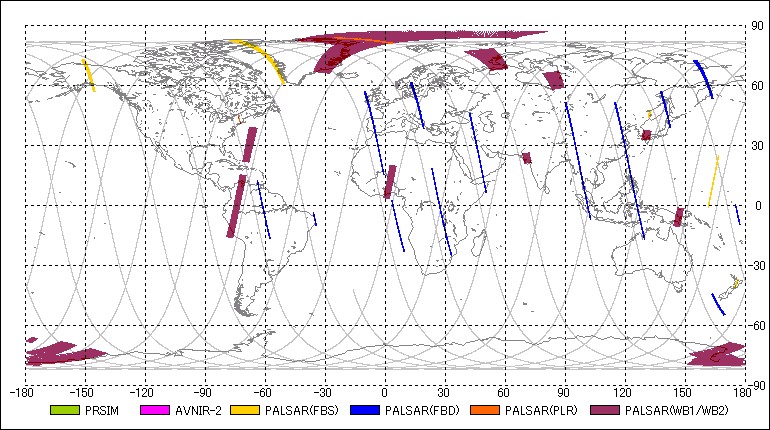

Observation Area
PRISM
AVNIR-2
PALSAR
Observation Plan
| No. | Sensor | Mode | Start Date | End Date |
Obs. Time |
Start Path |
Start Arg. Lat. |
End Path |
End Arg. Lat. |
Angle |
Tbable |
| 1 | AV2 | OBS | 2008-05-03 00:00:10 | 2008-05-03 00:06:06 |
00:05:56 |
31 |
107.15 |
31 |
128.79 |
0.00 |
- |
| 2 | AV2 | OBS | 2008-05-03 00:17:13 | 2008-05-03 00:19:05 |
00:01:52 |
31 |
169.33 |
31 |
176.14 |
0.00 |
- |
| 3 | PSR | WB1 | 2008-05-03 00:20:13 | 2008-05-03 00:23:21 |
00:03:08 |
31 |
180.27 |
31 |
191.70 |
27.10 |
80 |
| 4 | PSM | OB1 | 2008-05-03 00:23:48 | 2008-05-03 00:28:20 |
00:04:32 |
31 |
193.34 |
31 |
209.87 |
1.20 |
- |
| 5 | AV2 | OBS | 2008-05-03 00:28:48 | 2008-05-03 00:30:40 |
00:01:52 |
31 |
211.57 |
31 |
218.38 |
41.50 |
- |
| 6 | AV2 | OBS | 2008-05-03 00:36:42 | 2008-05-03 00:38:34 |
00:01:52 |
31 |
240.38 |
31 |
247.19 |
0.00 |
- |
| 7 | PSR | FBD | 2008-05-03 01:06:10 | 2008-05-03 01:08:36 |
00:02:26 |
31 |
347.84 |
31 |
356.71 |
34.30 |
43 |
| 8 | PSR | FBS | 2008-05-03 01:25:40 | 2008-05-03 01:32:36 |
00:06:56 |
77 |
58.96 |
77 |
84.24 |
34.30 |
7 |
| 9 | PSR | FBS | 2008-05-03 01:45:23 | 2008-05-03 01:47:03 |
00:01:40 |
77 |
130.86 |
77 |
136.94 |
34.30 |
7 |
| 10 | PSR | WB1 | 2008-05-03 01:48:14 | 2008-05-03 01:50:06 |
00:01:52 |
77 |
141.25 |
77 |
148.06 |
27.10 |
80 |
| 11 | AV2 | OBS | 2008-05-03 01:48:26 | 2008-05-03 01:50:50 |
00:02:24 |
77 |
142.04 |
77 |
150.79 |
0.00 |
- |
| 12 | PSM | OB2 | 2008-05-03 01:48:29 | 2008-05-03 01:50:49 |
00:02:20 |
77 |
142.16 |
77 |
150.67 |
0.00 |
- |
| 13 | PSM | OB1 | 2008-05-03 01:56:16 | 2008-05-03 02:09:50 |
00:13:34 |
77 |
170.55 |
77 |
220.02 |
1.20 |
- |
| 14 | AV2 | OBS | 2008-05-03 01:56:48 | 2008-05-03 02:09:48 |
00:13:00 |
77 |
172.49 |
77 |
219.90 |
0.00 |
- |
| 15 | PSR | FBD | 2008-05-03 02:43:01 | 2008-05-03 02:51:45 |
00:08:44 |
77 |
341.03 |
123 |
12.89 |
34.30 |
43 |
| 16 | PSR | PLR | 2008-05-03 02:58:58 | 2008-05-03 03:00:50 |
00:01:52 |
123 |
39.20 |
123 |
46.01 |
21.50 |
127 |
| 17 | PSM | OB1 | 2008-05-03 03:22:29 | 2008-05-03 03:27:35 |
00:05:06 |
123 |
124.96 |
123 |
143.56 |
1.20 |
- |
| 18 | PSM | OB1 | 2008-05-03 03:29:49 | 2008-05-03 03:36:07 |
00:06:18 |
123 |
151.70 |
123 |
174.68 |
1.20 |
- |
| 19 | AV2 | OBS | 2008-05-03 03:34:22 | 2008-05-03 03:36:14 |
00:01:52 |
123 |
168.30 |
123 |
175.10 |
0.00 |
- |
| 20 | PSR | FBS | 2008-05-03 07:59:24 | 2008-05-03 08:04:30 |
00:05:06 |
261 |
54.76 |
261 |
73.36 |
41.50 |
10 |
| 21 | AV2 | OBS | 2008-05-03 08:11:35 | 2008-05-03 08:13:27 |
00:01:52 |
261 |
99.25 |
261 |
106.06 |
0.00 |
- |
| 22 | PSM | OB1 | 2008-05-03 08:15:48 | 2008-05-03 08:30:00 |
00:14:12 |
261 |
114.63 |
261 |
166.41 |
1.20 |
- |
| 23 | AV2 | OBS | 2008-05-03 08:21:00 | 2008-05-03 08:26:34 |
00:05:34 |
261 |
133.59 |
261 |
153.89 |
0.00 |
- |
| 24 | PSM | OB1 | 2008-05-03 09:51:39 | 2008-05-03 10:03:11 |
00:11:32 |
307 |
104.11 |
307 |
146.17 |
1.20 |
- |
| 25 | AV2 | OBS | 2008-05-03 09:52:23 | 2008-05-03 09:54:15 |
00:01:52 |
307 |
106.79 |
307 |
113.60 |
0.00 |
- |
| 26 | PSR | WB1 | 2008-05-03 10:06:38 | 2008-05-03 10:11:44 |
00:05:06 |
307 |
158.82 |
307 |
177.41 |
27.10 |
80 |
| 27 | PSR | FBD | 2008-05-03 10:58:32 | 2008-05-03 11:01:58 |
00:03:26 |
307 |
348.02 |
353 |
0.55 |
34.30 |
43 |
| 28 | PSR | FBD | 2008-05-03 11:15:57 | 2008-05-03 11:21:57 |
00:06:00 |
353 |
51.54 |
353 |
73.42 |
34.30 |
43 |
| 29 | PSM | OB1 | 2008-05-03 11:32:51 | 2008-05-03 11:37:59 |
00:05:08 |
353 |
113.17 |
353 |
131.89 |
1.20 |
- |
| 30 | AV2 | OBS | 2008-05-03 11:46:13 | 2008-05-03 11:48:05 |
00:01:52 |
353 |
161.92 |
353 |
168.72 |
-34.30 |
- |
| 31 | PSM | OB1 | 2008-05-03 12:04:59 | 2008-05-03 12:07:35 |
00:02:36 |
353 |
230.35 |
353 |
239.83 |
1.20 |
- |
| 32 | PSR | FBD | 2008-05-03 12:24:30 | 2008-05-03 12:28:12 |
00:03:42 |
353 |
301.59 |
353 |
315.08 |
34.30 |
43 |
| 33 | PSR | FBD | 2008-05-03 12:50:35 | 2008-05-03 12:56:15 |
00:05:40 |
399 |
36.71 |
399 |
57.38 |
34.30 |
43 |
| 34 | PSR | WB1 | 2008-05-03 13:04:18 | 2008-05-03 13:11:49 |
00:07:31 |
399 |
86.67 |
399 |
114.08 |
27.10 |
80 |
| 35 | PSM | OB1 | 2008-05-03 13:28:53 | 2008-05-03 13:40:43 |
00:11:50 |
399 |
176.32 |
399 |
219.47 |
1.20 |
- |
| 36 | PSR | FBD | 2008-05-03 14:13:59 | 2008-05-03 14:33:31 |
00:19:32 |
399 |
340.79 |
445 |
52.03 |
34.30 |
43 |
| 37 | PSR | WB1 | 2008-05-03 14:43:38 | 2008-05-03 14:46:08 |
00:02:30 |
445 |
88.92 |
445 |
98.04 |
27.10 |
80 |
| 38 | AV2 | OBS | 2008-05-03 14:46:57 | 2008-05-03 14:51:35 |
00:04:38 |
445 |
101.01 |
445 |
117.91 |
0.00 |
- |
| 39 | AV2 | OBS | 2008-05-03 14:53:14 | 2008-05-03 14:56:24 |
00:03:10 |
445 |
123.99 |
445 |
135.54 |
0.00 |
- |
| 40 | PSR | WB1 | 2008-05-03 14:57:34 | 2008-05-03 15:02:56 |
00:05:22 |
445 |
139.73 |
445 |
159.30 |
27.10 |
80 |
| 41 | PSR | WB1 | 2008-05-03 15:04:05 | 2008-05-03 15:13:17 |
00:09:12 |
445 |
163.56 |
445 |
197.11 |
27.10 |
80 |
| 42 | PSM | OB1 | 2008-05-03 15:04:06 | 2008-05-03 15:14:20 |
00:10:14 |
445 |
163.56 |
445 |
200.87 |
1.20 |
- |
| 43 | PSR | WB1 | 2008-05-03 15:33:06 | 2008-05-03 15:35:44 |
00:02:38 |
445 |
269.31 |
445 |
278.91 |
27.10 |
80 |
| 44 | PSR | FBD | 2008-05-03 15:55:26 | 2008-05-03 16:12:14 |
00:16:48 |
445 |
350.82 |
491 |
52.03 |
34.30 |
43 |
| 45 | PSR | WB1 | 2008-05-03 16:13:32 | 2008-05-03 16:16:28 |
00:02:56 |
491 |
56.77 |
491 |
67.46 |
27.10 |
80 |
| 46 | AV2 | OBS | 2008-05-03 16:22:42 | 2008-05-03 16:27:32 |
00:04:50 |
491 |
90.20 |
491 |
107.82 |
0.00 |
- |
| 47 | AV2 | OBS | 2008-05-03 16:29:19 | 2008-05-03 16:43:45 |
00:14:26 |
491 |
114.33 |
491 |
166.96 |
0.00 |
- |
| 48 | PSR | WB1 | 2008-05-03 17:08:03 | 2008-05-03 17:13:03 |
00:05:00 |
491 |
255.58 |
491 |
273.81 |
27.10 |
80 |
| 49 | PSR | WB1 | 2008-05-03 17:41:57 | 2008-05-03 17:43:57 |
00:02:00 |
537 |
19.21 |
537 |
26.50 |
27.10 |
80 |
| 50 | PSR | WB1 | 2008-05-03 17:54:56 | 2008-05-03 17:58:22 |
00:03:26 |
537 |
66.55 |
537 |
79.07 |
27.10 |
80 |
| 51 | PSM | OB1 | 2008-05-03 18:00:24 | 2008-05-03 18:20:04 |
00:19:40 |
537 |
86.49 |
537 |
158.21 |
1.20 |
- |
| 52 | AV2 | OBS | 2008-05-03 18:15:49 | 2008-05-03 18:19:15 |
00:03:26 |
537 |
142.71 |
537 |
155.23 |
-21.50 |
- |
| 53 | PSR | WB1 | 2008-05-03 18:45:26 | 2008-05-03 18:50:08 |
00:04:42 |
537 |
250.71 |
537 |
267.85 |
27.10 |
80 |
| 54 | PSR | FBD | 2008-05-03 19:16:33 | 2008-05-03 19:28:11 |
00:11:38 |
583 |
4.19 |
583 |
46.62 |
34.30 |
43 |
| 55 | PSR | PLR | 2008-05-03 19:37:41 | 2008-05-03 19:39:37 |
00:01:56 |
583 |
81.26 |
583 |
88.31 |
21.50 |
127 |
| 56 | PSM | OB1 | 2008-05-03 19:39:08 | 2008-05-03 19:51:28 |
00:12:20 |
583 |
86.55 |
583 |
131.53 |
1.20 |
- |
| 57 | AV2 | OBS | 2008-05-03 19:39:39 | 2008-05-03 19:41:47 |
00:02:08 |
583 |
88.43 |
583 |
96.21 |
0.00 |
- |
| 58 | AV2 | OBS | 2008-05-03 20:08:28 | 2008-05-03 20:10:20 |
00:01:52 |
583 |
193.52 |
583 |
200.33 |
0.00 |
- |
| 59 | PSR | WB1 | 2008-05-03 20:23:07 | 2008-05-03 20:27:19 |
00:04:12 |
583 |
246.95 |
583 |
262.26 |
27.10 |
80 |
| 60 | PSR | FBD | 2008-05-03 20:46:38 | 2008-05-03 20:59:14 |
00:12:36 |
583 |
332.70 |
629 |
18.66 |
34.30 |
43 |
| 61 | PSR | FBD | 2008-05-03 21:04:09 | 2008-05-03 21:11:07 |
00:06:58 |
629 |
36.59 |
629 |
61.99 |
34.30 |
43 |
| 62 | PSM | OB1 | 2008-05-03 21:17:51 | 2008-05-03 21:28:41 |
00:10:50 |
629 |
86.55 |
629 |
126.06 |
1.20 |
- |
| 63 | PSR | FBS | 2008-05-03 21:53:25 | 2008-05-03 21:55:17 |
00:01:52 |
629 |
216.25 |
629 |
223.06 |
34.30 |
7 |
| 64 | PSR | FBD | 2008-05-03 22:25:43 | 2008-05-03 22:33:29 |
00:07:46 |
629 |
334.04 |
4 |
2.37 |
41.50 |
46 |
| 65 | PSR | FBD | 2008-05-03 22:36:30 | 2008-05-03 22:48:36 |
00:12:06 |
4 |
13.37 |
4 |
57.50 |
34.30 |
43 |
| 66 | PSM | OB1 | 2008-05-03 23:01:54 | 2008-05-03 23:09:06 |
00:07:12 |
4 |
106.00 |
4 |
132.26 |
1.20 |
- |
| 67 | AV2 | OBS | 2008-05-03 23:07:16 | 2008-05-03 23:09:08 |
00:01:52 |
4 |
125.57 |
4 |
132.38 |
0.00 |
- |
| 68 | PSR | FBS | 2008-05-03 23:15:02 | 2008-05-03 23:22:48 |
00:07:46 |
4 |
153.83 |
4 |
182.15 |
34.30 |
7 |
| 69 | PSM | OB1 | 2008-05-03 23:16:45 | 2008-05-03 23:19:21 |
00:02:36 |
4 |
160.09 |
4 |
169.57 |
1.20 |
- |
| 70 | AV2 | OBS | 2008-05-03 23:17:31 | 2008-05-03 23:21:03 |
00:03:32 |
4 |
162.89 |
4 |
175.77 |
0.00 |
- |
| 71 | PSM | OB1 | 2008-05-03 23:24:26 | 2008-05-03 23:27:10 |
00:02:44 |
4 |
188.11 |
4 |
198.08 |
1.20 |
- |
| 72 | AV2 | OBS | 2008-05-03 23:24:58 | 2008-05-03 23:26:50 |
00:01:52 |
4 |
190.12 |
4 |
196.92 |
0.00 |
- |
| 73 | AV2 | OBS | 2008-05-03 23:30:24 | 2008-05-03 23:32:16 |
00:01:52 |
4 |
209.93 |
4 |
216.74 |
0.00 |
- |
Node information(Nominal Time)
| Path | Ascending Node | Descending Node |
Longitude | Time(UTC) | Longitude | Time(UTC) |
| 31 | -16.38889 | 2008-05-02 23:30:46 | 151.27132 | 2008-05-03 00:20:07 |
| 77 | -41.06848 | 2008-05-03 01:09:29 | 126.59173 | 2008-05-03 01:58:50 |
| 123 | -65.74806 | 2008-05-03 02:48:12 | 101.91215 | 2008-05-03 03:37:33 |
| 169 | -90.42764 | 2008-05-03 04:26:55 | 77.23257 | 2008-05-03 05:16:17 |
| 215 | -115.10722 | 2008-05-03 06:05:38 | 52.55299 | 2008-05-03 06:55:00 |
| 261 | -139.78681 | 2008-05-03 07:44:21 | 27.87340 | 2008-05-03 08:33:43 |
| 307 | -164.46639 | 2008-05-03 09:23:04 | 3.19382 | 2008-05-03 10:12:26 |
| 353 | 170.85403 | 2008-05-03 11:01:47 | -21.48576 | 2008-05-03 11:51:09 |
| 399 | 146.17445 | 2008-05-03 12:40:30 | -46.16535 | 2008-05-03 13:29:52 |
| 445 | 121.49486 | 2008-05-03 14:19:14 | -70.84493 | 2008-05-03 15:08:35 |
| 491 | 96.81528 | 2008-05-03 15:57:57 | -95.52451 | 2008-05-03 16:47:18 |
| 537 | 72.13570 | 2008-05-03 17:36:40 | -120.20409 | 2008-05-03 18:26:01 |
| 583 | 47.45611 | 2008-05-03 19:15:23 | -144.88368 | 2008-05-03 20:04:44 |
| 629 | 22.77653 | 2008-05-03 20:54:06 | -169.56326 | 2008-05-03 21:43:28 |
| 4 | -1.90305 | 2008-05-03 22:32:49 | 165.75716 | 2008-05-03 23:22:11 |
