>ALOS Data Take Simulation(Jan. 29, 2011)

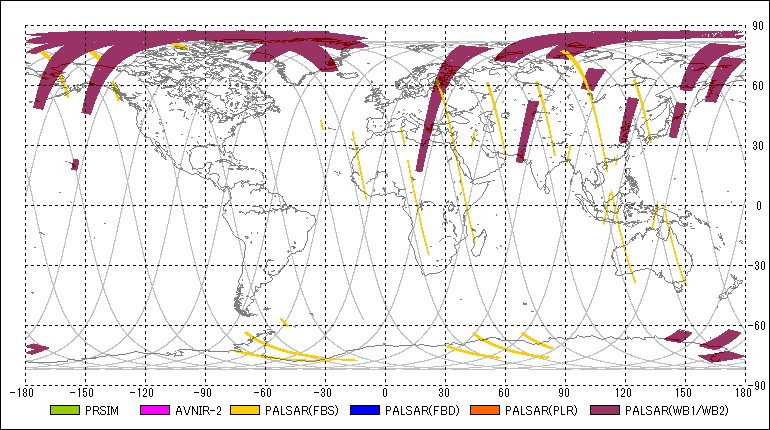

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2011-01-29 00:25:40	2011-01-29 00:27:32	00:01:52	52	35.80	52	42.61	34.30	7
2	PSR	WB1	2011-01-29 00:38:24	2011-01-29 00:49:37	00:11:13	52	82.23	52	123.14	27.10	80
3	PSR	WB1	2011-01-29 00:50:50	2011-01-29 00:56:12	00:05:22	52	127.58	52	147.15	27.10	80
4	PSR	FBS	2011-01-29 01:04:30	2011-01-29 01:08:50	00:04:20	52	177.41	52	193.22	34.30	7
5	AV2	OBS	2011-01-29 01:05:05	2011-01-29 01:16:37	00:11:32	52	179.54	52	221.60	0.00	-
6	PSM	OB2	2011-01-29 01:05:06	2011-01-29 01:15:32	00:10:26	52	179.60	52	217.65	0.00	-
7	AV2	OBS	2011-01-29 02:28:36	2011-01-29 02:38:16	00:09:40	98	124.17	98	159.42	0.00	-
8	PSM	OB2	2011-01-29 02:28:40	2011-01-29 02:38:50	00:10:10	98	124.35	98	161.43	0.00	-
9	PSR	WB1	2011-01-29 02:28:51	2011-01-29 02:35:33	00:06:42	98	125.02	98	149.46	27.10	80
10	PSR	FBS	2011-01-29 02:36:51	2011-01-29 02:38:43	00:01:52	98	154.20	98	161.00	34.30	7
11	AV2	OBS	2011-01-29 02:40:31	2011-01-29 02:41:33	00:01:02	98	167.57	98	171.34	0.00	-
12	PSR	FBS	2011-01-29 02:42:00	2011-01-29 02:47:02	00:05:02	98	172.98	98	191.33	34.30	7
13	PSM	OB2	2011-01-29 02:42:38	2011-01-29 02:46:12	00:03:34	98	175.29	98	188.29	0.00	-
14	PSR	FBS	2011-01-29 03:15:28	2011-01-29 03:17:20	00:01:52	98	295.02	98	301.83	34.30	7
15	PSR	FBS	2011-01-29 03:54:24	2011-01-29 03:57:32	00:03:08	144	77.01	144	88.43	34.30	7
16	PSR	WB1	2011-01-29 04:03:25	2011-01-29 04:06:59	00:03:34	144	109.89	144	122.90	27.10	80
17	AV2	OBS	2011-01-29 04:08:19	2011-01-29 04:12:11	00:03:52	144	127.76	144	141.86	0.00	-
18	PSM	OB2	2011-01-29 04:08:19	2011-01-29 04:13:43	00:05:24	144	127.76	144	147.45	0.00	-
19	PSR	FBS	2011-01-29 04:14:10	2011-01-29 04:17:08	00:02:58	144	149.09	144	159.91	34.30	7
20	AV2	OBS	2011-01-29 04:17:57	2011-01-29 04:22:20	00:04:23	144	162.89	144	178.87	0.00	-
21	AV2	OBS	2011-01-29 04:32:50	2011-01-29 04:34:42	00:01:52	144	217.10	144	223.91	-21.50	-
22	PSR	FBS	2011-01-29 04:47:21	2011-01-29 04:53:59	00:06:38	144	270.10	144	294.29	34.30	7
23	PSR	WB1	2011-01-29 05:35:47	2011-01-29 05:41:13	00:05:26	190	86.73	190	106.55	27.10	80
24	PSM	OB1	2011-01-29 05:46:16	2011-01-29 05:56:52	00:10:36	190	124.96	190	163.62	1.20	-
25	PSR	WB1	2011-01-29 05:46:41	2011-01-29 05:55:45	00:09:04	190	126.48	190	159.54	27.10	80
26	PSM	OB1	2011-01-29 06:19:27	2011-01-29 06:22:03	00:02:36	190	245.97	190	255.45	1.20	-
27	PSR	FBS	2011-01-29 06:25:24	2011-01-29 06:29:30	00:04:06	190	267.67	190	282.62	34.30	7
28	PSR	FBS	2011-01-29 07:04:32	2011-01-29 07:07:44	00:03:12	236	50.39	236	62.06	34.30	7
29	PSR	FBS	2011-01-29 07:08:52	2011-01-29 07:12:18	00:03:26	236	66.19	236	78.71	34.30	7
30	PSR	WB1	2011-01-29 07:14:30	2011-01-29 07:20:30	00:06:00	236	86.73	236	108.61	27.10	80
31	PSM	OB1	2011-01-29 07:28:31	2011-01-29 07:47:57	00:19:26	236	137.85	236	208.72	1.20	-
32	AV2	OBS	2011-01-29 07:29:15	2011-01-29 07:47:55	00:18:40	236	140.52	236	208.59	0.00	-
33	PSR	FBS	2011-01-29 07:29:35	2011-01-29 07:32:19	00:02:44	236	141.74	236	151.70	34.30	7
34	PSR	FBS	2011-01-29 08:43:45	2011-01-29 08:51:21	00:07:36	282	52.15	282	79.86	34.30	7
35	PSR	WB1	2011-01-29 08:56:20	2011-01-29 09:14:26	00:18:06	282	98.10	282	164.10	27.10	80
36	PSM	OB1	2011-01-29 09:06:17	2011-01-29 09:15:13	00:08:56	282	134.32	282	166.90	1.20	-
37	AV2	OBS	2011-01-29 09:07:03	2011-01-29 09:09:37	00:02:34	282	137.12	282	146.48	0.00	-
38	PSM	OB1	2011-01-29 12:36:36	2011-01-29 12:39:22	00:02:46	374	181.30	374	191.39	1.20	-
39	AV2	OBS	2011-01-29 12:37:22	2011-01-29 12:39:14	00:01:52	374	184.10	374	190.91	0.00	-
40	PSR	FBS	2011-01-29 13:13:47	2011-01-29 13:25:47	00:12:00	374	316.96	420	0.73	34.30	7
41	PSR	FBS	2011-01-29 13:33:35	2011-01-29 13:42:57	00:09:22	420	29.17	420	63.33	34.30	7
42	AV2	OBS	2011-01-29 14:26:29	2011-01-29 14:30:33	00:04:04	420	222.03	420	236.86	0.00	-
43	PSR	FBS	2011-01-29 14:52:53	2011-01-29 15:06:21	00:13:28	420	318.36	466	7.48	34.30	7
44	PSR	FBS	2011-01-29 15:08:18	2011-01-29 15:25:46	00:17:28	466	14.59	466	78.28	34.30	7
45	PSR	WB1	2011-01-29 15:29:14	2011-01-29 15:33:58	00:04:44	466	90.86	466	108.13	27.10	80
46	AV2	OBS	2011-01-29 15:31:33	2011-01-29 15:45:00	00:13:27	466	99.31	466	148.36	0.00	-
47	PSM	OB1	2011-01-29 15:36:26	2011-01-29 15:43:30	00:07:04	466	117.12	466	142.89	1.20	-
48	PSM	OB1	2011-01-29 15:49:22	2011-01-29 15:52:52	00:03:30	466	164.35	466	177.11	1.20	-
49	PSR	FBS	2011-01-29 16:49:10	2011-01-29 17:00:06	00:10:56	512	22.37	512	62.24	34.30	7
50	AV2	OBS	2011-01-29 17:11:01	2011-01-29 17:12:55	00:01:54	512	102.05	512	108.98	0.00	-
51	PSM	OB1	2011-01-29 17:14:26	2011-01-29 17:28:34	00:14:08	512	114.51	512	166.05	1.20	-
52	AV2	OBS	2011-01-29 17:15:12	2011-01-29 17:27:48	00:12:36	512	117.30	512	163.25	0.00	-
53	PSR	FBS	2011-01-29 18:27:40	2011-01-29 18:38:48	00:11:08	558	21.58	558	62.18	34.30	7
54	AV2	OBS	2011-01-29 18:48:35	2011-01-29 18:50:27	00:01:52	558	97.85	558	104.66	0.00	-
55	PSM	OB1	2011-01-29 18:53:10	2011-01-29 19:02:00	00:08:50	558	114.57	558	146.78	1.20	-
56	AV2	OBS	2011-01-29 18:53:56	2011-01-29 19:01:14	00:07:18	558	117.36	558	143.99	0.00	-
57	PSR	WB1	2011-01-29 19:30:57	2011-01-29 19:34:23	00:03:26	558	252.35	558	264.87	27.10	80
58	PSR	FBS	2011-01-29 19:39:05	2011-01-29 19:42:21	00:03:16	558	282.01	558	293.93	34.30	7
59	PSR	FBS	2011-01-29 19:54:42	2011-01-29 20:17:56	00:23:14	558	338.96	604	63.70	34.30	7
60	PSR	WB1	2011-01-29 20:24:13	2011-01-29 20:37:32	00:13:19	604	86.61	604	135.17	27.10	80
61	PSR	WB1	2011-01-29 20:43:15	2011-01-29 20:45:17	00:02:02	604	156.02	604	163.43	25.90	76
62	AV2	OBS	2011-01-29 20:51:40	2011-01-29 20:56:16	00:04:36	604	186.71	604	203.49	0.00	-
63	PSM	OB2	2011-01-29 20:51:40	2011-01-29 20:53:40	00:02:00	604	186.71	604	194.01	0.00	-
64	PSR	WB1	2011-01-29 21:07:21	2011-01-29 21:10:39	00:03:18	604	243.91	604	255.94	27.10	80
65	PSR	FBS	2011-01-29 21:15:42	2011-01-29 21:21:00	00:05:18	604	274.36	604	293.68	34.30	7
66	PSR	FBS	2011-01-29 21:31:42	2011-01-29 21:45:20	00:13:38	604	332.70	650	22.43	34.30	7
67	PSR	FBS	2011-01-29 21:46:52	2011-01-29 21:49:56	00:03:04	650	27.96	650	39.14	34.30	7
68	PSR	WB1	2011-01-29 22:00:32	2011-01-29 22:15:33	00:15:01	650	77.80	650	132.56	27.10	80
69	AV2	OBS	2011-01-29 22:29:47	2011-01-29 22:31:39	00:01:52	650	184.53	650	191.33	0.00	-
70	PSM	OB1	2011-01-29 22:39:23	2011-01-29 22:42:43	00:03:20	650	219.53	650	231.69	1.20	-
71	AV2	OBS	2011-01-29 22:40:09	2011-01-29 22:43:17	00:03:08	650	222.33	650	233.76	0.00	-
72	PSR	WB1	2011-01-29 22:46:02	2011-01-29 22:48:14	00:02:12	650	243.78	650	251.81	27.10	80
73	PSR	FBS	2011-01-29 22:54:23	2011-01-29 22:57:35	00:03:12	650	274.23	650	285.90	34.30	7
74	PSR	FBS	2011-01-29 23:17:52	2011-01-29 23:28:04	00:10:12	650	359.87	25	37.08	34.30	7
75	PSR	WB1	2011-01-29 23:35:54	2011-01-29 23:53:18	00:17:24	25	65.64	25	129.09	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
6	-2.97608	2011-01-28 22:37:07	164.68413	2011-01-28 23:26:28
52	-27.65566	2011-01-29 00:15:50	140.00455	2011-01-29 01:05:11
98	-52.33524	2011-01-29 01:54:33	115.32497	2011-01-29 02:43:54
144	-77.01482	2011-01-29 03:33:16	90.64538	2011-01-29 04:22:37
190	-101.69441	2011-01-29 05:11:59	65.96580	2011-01-29 06:01:21
236	-126.37399	2011-01-29 06:50:42	41.28622	2011-01-29 07:40:04
282	-151.05357	2011-01-29 08:29:25	16.60664	2011-01-29 09:18:47
328	-175.73315	2011-01-29 10:08:08	-8.07295	2011-01-29 10:57:30
374	159.58726	2011-01-29 11:46:51	-32.75253	2011-01-29 12:36:13
420	134.90768	2011-01-29 13:25:34	-57.43211	2011-01-29 14:14:56
466	110.22810	2011-01-29 15:04:18	-82.11169	2011-01-29 15:53:39
512	85.54851	2011-01-29 16:43:01	-106.79128	2011-01-29 17:32:22
558	60.86893	2011-01-29 18:21:44	-131.47086	2011-01-29 19:11:05
604	36.18935	2011-01-29 20:00:27	-156.15044	2011-01-29 20:49:48
650	11.50977	2011-01-29 21:39:10	179.16997	2011-01-29 22:28:32
25	-13.16982	2011-01-29 23:17:53	154.49039	2011-01-30 00:07:15
