>ALOS Data Take Simulation(Jan. 27, 2011)

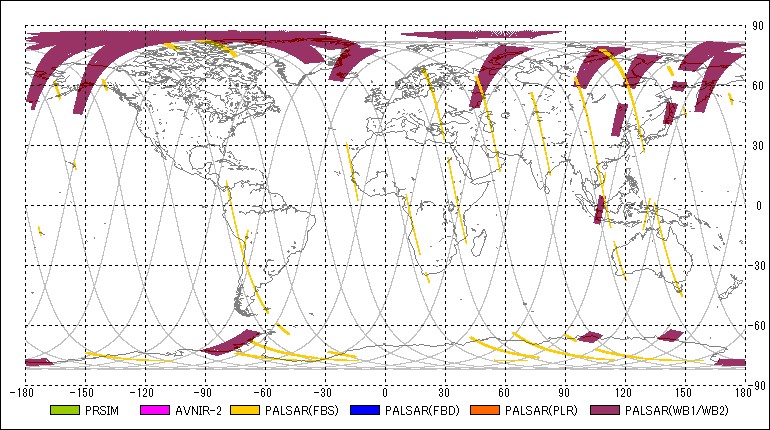

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2011-01-27 00:03:29	2011-01-27 00:06:05	00:02:36	14	252.29	14	261.78	1.20	-
2	AV2	OBS	2011-01-27 00:04:16	2011-01-27 00:06:08	00:01:52	14	255.15	14	261.96	0.00	-
3	PSR	FBS	2011-01-27 00:07:28	2011-01-27 00:09:06	00:01:38	14	266.82	14	272.78	34.30	7
4	PSR	WB1	2011-01-27 00:55:28	2011-01-27 01:04:04	00:08:36	60	81.87	60	113.23	27.10	80
5	PSR	WB1	2011-01-27 01:05:00	2011-01-27 01:06:52	00:01:52	60	116.63	60	123.44	27.10	80
6	PSR	WB1	2011-01-27 01:08:00	2011-01-27 01:11:30	00:03:30	60	127.58	60	140.34	27.10	80
7	PSM	OB1	2011-01-27 01:08:30	2011-01-27 01:12:26	00:03:56	60	129.40	60	143.74	1.11	-
8	AV2	OBS	2011-01-27 01:09:29	2011-01-27 01:16:47	00:07:18	60	132.98	60	159.61	-34.30	-
9	AV2	OBS	2011-01-27 01:19:03	2011-01-27 01:32:10	00:13:07	60	167.87	60	215.70	0.00	-
10	PSM	OB2	2011-01-27 01:19:08	2011-01-27 01:32:28	00:13:20	60	168.18	60	216.80	0.00	-
11	PSR	FBS	2011-01-27 01:21:14	2011-01-27 01:26:08	00:04:54	60	175.83	60	193.70	34.30	7
12	PSR	WB1	2011-01-27 01:40:13	2011-01-27 01:42:05	00:01:52	60	245.06	60	251.87	27.10	80
13	PSR	FBS	2011-01-27 02:31:47	2011-01-27 02:35:35	00:03:48	106	73.12	106	86.97	34.30	7
14	PSR	WB1	2011-01-27 02:39:53	2011-01-27 02:45:09	00:05:16	106	102.66	106	121.86	27.10	80
15	AV2	OBS	2011-01-27 02:46:12	2011-01-27 02:55:10	00:08:58	106	125.69	106	158.39	0.00	-
16	PSM	OB2	2011-01-27 02:46:16	2011-01-27 02:55:56	00:09:40	106	125.93	106	161.19	0.00	-
17	PSR	WB1	2011-01-27 02:46:50	2011-01-27 02:51:52	00:05:02	106	128.00	106	146.36	27.10	80
18	PSR	FBS	2011-01-27 02:56:23	2011-01-27 02:58:45	00:02:22	106	162.83	106	171.46	34.30	7
19	AV2	OBS	2011-01-27 02:59:25	2011-01-27 03:03:59	00:04:34	106	173.89	106	190.54	0.00	-
20	PSM	OB2	2011-01-27 02:59:29	2011-01-27 03:04:35	00:05:06	106	174.13	106	192.73	0.00	-
21	PSR	WB1	2011-01-27 02:59:34	2011-01-27 03:03:58	00:04:24	106	174.44	106	190.48	27.10	80
22	PSR	FBS	2011-01-27 03:27:12	2011-01-27 03:29:04	00:01:52	106	275.21	106	282.01	34.30	7
23	PSR	FBS	2011-01-27 03:31:25	2011-01-27 03:33:47	00:02:22	106	290.58	106	299.21	34.30	7
24	PSR	FBS	2011-01-27 03:34:36	2011-01-27 03:53:50	00:19:14	106	302.19	152	12.34	34.30	7
25	PSR	FBS	2011-01-27 04:11:27	2011-01-27 04:14:49	00:03:22	152	76.52	152	88.80	34.30	7
26	PSR	WB1	2011-01-27 04:17:28	2011-01-27 04:23:54	00:06:26	152	98.46	152	121.92	27.10	80
27	AV2	OBS	2011-01-27 04:26:32	2011-01-27 04:35:15	00:08:43	152	131.59	152	163.37	0.00	-
28	AV2	OBS	2011-01-27 04:49:46	2011-01-27 04:51:38	00:01:52	152	216.31	152	223.12	0.00	-
29	PSR	FBS	2011-01-27 05:04:15	2011-01-27 05:10:45	00:06:30	152	269.13	152	292.83	34.30	7
30	PSM	OB1	2011-01-27 06:03:26	2011-01-27 06:13:02	00:09:36	198	124.96	198	159.97	1.20	-
31	AV2	OBS	2011-01-27 06:23:36	2011-01-27 06:26:46	00:03:10	198	198.50	198	210.05	0.00	-
32	PSR	FBS	2011-01-27 06:42:35	2011-01-27 06:46:13	00:03:38	198	267.73	198	280.98	34.30	7
33	PSR	FBS	2011-01-27 07:23:08	2011-01-27 07:25:18	00:02:10	244	55.55	244	63.45	34.30	7
34	PSR	WB1	2011-01-27 07:34:49	2011-01-27 07:44:05	00:09:16	244	98.16	244	131.95	27.10	80
35	PSM	OB1	2011-01-27 07:44:33	2011-01-27 08:07:21	00:22:48	244	133.65	244	216.80	1.20	-
36	AV2	OBS	2011-01-27 07:45:13	2011-01-27 08:00:21	00:15:08	244	136.14	244	191.33	0.00	-
37	PSR	FBS	2011-01-27 08:50:54	2011-01-27 08:52:46	00:01:52	290	15.62	290	22.43	34.30	7
38	PSR	FBS	2011-01-27 09:00:38	2011-01-27 09:03:46	00:03:08	290	51.18	290	62.60	34.30	7
39	PSM	OB1	2011-01-27 09:25:35	2011-01-27 09:38:49	00:13:14	290	142.16	290	190.42	1.20	-
40	AV2	OBS	2011-01-27 09:26:20	2011-01-27 09:38:40	00:12:20	290	144.90	290	189.87	0.00	-
41	PSR	FBS	2011-01-27 10:20:27	2011-01-27 10:22:19	00:01:52	290	342.25	290	349.05	34.30	7
42	PSR	FBS	2011-01-27 10:38:39	2011-01-27 10:40:45	00:02:06	336	48.56	336	56.22	34.30	7
43	AV2	OBS	2011-01-27 11:04:18	2011-01-27 11:13:22	00:09:04	336	142.16	336	175.23	0.00	-
44	PSR	FBS	2011-01-27 11:38:46	2011-01-27 11:42:26	00:03:40	336	267.79	336	281.16	34.30	7
45	PSR	FBS	2011-01-27 12:15:41	2011-01-27 12:17:37	00:01:56	382	42.42	382	49.47	34.30	7
46	PSR	FBS	2011-01-27 12:21:23	2011-01-27 12:23:15	00:01:52	382	63.21	382	70.02	34.30	7
47	PSR	WB1	2011-01-27 12:27:51	2011-01-27 12:29:51	00:02:00	382	86.79	382	94.09	27.10	80
48	PSR	WB1	2011-01-27 12:31:13	2011-01-27 12:36:25	00:05:12	382	99.13	382	118.09	27.10	80
49	PSM	OB1	2011-01-27 12:53:13	2011-01-27 13:01:03	00:07:50	382	179.30	382	207.86	1.20	-
50	AV2	OBS	2011-01-27 12:53:56	2011-01-27 13:00:16	00:06:20	382	181.91	382	205.01	0.00	-
51	PSR	WB1	2011-01-27 13:10:55	2011-01-27 13:15:15	00:04:20	382	243.91	382	259.71	27.10	80
52	PSR	FBS	2011-01-27 13:29:22	2011-01-27 13:43:12	00:13:50	382	311.13	428	1.58	34.30	7
53	PSR	FBS	2011-01-27 13:49:23	2011-01-27 14:04:25	00:15:02	428	24.13	428	78.95	34.30	7
54	AV2	OBS	2011-01-27 14:11:31	2011-01-27 14:17:15	00:05:44	428	104.84	428	125.75	0.00	-
55	AV2	OBS	2011-01-27 14:28:03	2011-01-27 14:47:55	00:19:52	428	165.14	428	237.59	0.00	-
56	PSR	FBS	2011-01-27 14:35:21	2011-01-27 14:38:31	00:03:10	428	191.76	428	203.31	34.30	7
57	PSR	FBS	2011-01-27 15:10:22	2011-01-27 15:16:26	00:06:04	428	319.45	428	341.58	34.30	7
58	PSR	FBS	2011-01-27 15:17:45	2011-01-27 15:39:11	00:21:26	428	346.38	474	64.55	34.30	7
59	AV2	OBS	2011-01-27 15:48:29	2011-01-27 16:01:24	00:12:55	474	98.46	474	145.57	0.00	-
60	PSM	OB1	2011-01-27 15:52:31	2011-01-27 16:01:27	00:08:56	474	113.17	474	145.75	1.20	-
61	AV2	OBS	2011-01-27 16:03:45	2011-01-27 16:08:55	00:05:10	474	154.14	474	172.98	0.00	-
62	PSR	WB1	2011-01-27 16:34:14	2011-01-27 16:36:20	00:02:06	474	265.36	474	273.02	27.10	80
63	PSR	FBS	2011-01-27 17:03:42	2011-01-27 17:15:52	00:12:10	520	12.76	520	57.13	34.30	7
64	AV2	OBS	2011-01-27 17:27:57	2011-01-27 17:29:51	00:01:54	520	101.20	520	108.13	0.00	-
65	PSM	OB1	2011-01-27 17:31:36	2011-01-27 17:45:02	00:13:26	520	114.51	520	163.50	1.20	-
66	AV2	OBS	2011-01-27 17:32:22	2011-01-27 17:44:18	00:11:56	520	117.30	520	160.82	0.00	-
67	PSR	FBS	2011-01-27 18:13:24	2011-01-27 18:18:00	00:04:36	520	266.94	520	283.72	34.30	7
68	PSR	FBS	2011-01-27 18:18:48	2011-01-27 18:20:34	00:01:46	520	286.63	520	293.08	34.30	7
69	PSR	FBS	2011-01-27 18:42:55	2011-01-27 18:56:49	00:13:54	566	14.59	566	65.28	34.30	7
70	AV2	OBS	2011-01-27 19:05:34	2011-01-27 19:07:26	00:01:52	566	97.19	566	103.99	0.00	-
71	PSM	OB1	2011-01-27 19:10:20	2011-01-27 19:17:40	00:07:20	566	114.57	566	141.31	1.20	-
72	AV2	OBS	2011-01-27 19:11:06	2011-01-27 19:17:12	00:06:06	566	117.36	566	139.61	0.00	-
73	PSR	FBS	2011-01-27 19:53:19	2011-01-27 19:59:33	00:06:14	566	271.32	566	294.05	34.30	7
74	PSR	FBS	2011-01-27 20:11:41	2011-01-27 20:24:09	00:12:28	566	338.30	612	23.76	34.30	7
75	PSR	FBS	2011-01-27 20:26:00	2011-01-27 20:36:38	00:10:38	612	30.51	612	69.29	34.30	7
76	PSR	WB1	2011-01-27 20:41:17	2011-01-27 20:54:43	00:13:26	612	86.25	612	135.23	27.10	80
77	PSM	OB1	2011-01-27 21:00:01	2011-01-27 21:02:47	00:02:46	612	154.50	612	164.59	1.20	-
78	AV2	OBS	2011-01-27 21:00:43	2011-01-27 21:02:35	00:01:52	612	157.11	612	163.92	0.00	-
79	AV2	OBS	2011-01-27 21:05:16	2011-01-27 21:07:08	00:01:52	612	173.71	612	180.51	0.00	-
80	PSM	OB2	2011-01-27 21:05:16	2011-01-27 21:07:10	00:01:54	612	173.71	612	180.64	0.00	-
81	AV2	OBS	2011-01-27 21:10:06	2011-01-27 21:11:58	00:01:52	612	191.33	612	198.14	0.00	-
82	PSM	OB2	2011-01-27 21:10:06	2011-01-27 21:12:04	00:01:58	612	191.33	612	198.50	0.00	-
83	PSR	FBS	2011-01-27 21:32:52	2011-01-27 21:37:32	00:04:40	612	274.36	612	291.37	34.30	7
84	PSR	FBS	2011-01-27 21:44:55	2011-01-27 21:47:01	00:02:06	612	318.30	612	325.96	34.30	7
85	PSR	FBS	2011-01-27 21:48:52	2011-01-27 21:57:48	00:08:56	612	332.70	658	5.29	34.30	7
86	PSR	WB1	2011-01-27 22:17:42	2011-01-27 22:32:49	00:15:07	658	77.80	658	132.92	27.10	80
87	AV2	OBS	2011-01-27 22:45:12	2011-01-27 22:47:04	00:01:52	658	178.08	658	184.89	0.00	-
88	PSM	OB2	2011-01-27 22:45:17	2011-01-27 22:47:23	00:02:06	658	178.45	658	186.11	0.00	-
89	AV2	OBS	2011-01-27 22:52:55	2011-01-27 22:55:07	00:02:12	658	206.28	658	214.31	0.00	-
90	PSM	OB2	2011-01-27 22:52:56	2011-01-27 22:55:24	00:02:28	658	206.28	658	215.28	0.00	-
91	AV2	OBS	2011-01-27 23:00:26	2011-01-27 23:02:18	00:01:52	658	233.70	658	240.50	0.00	-
92	PSR	WB1	2011-01-27 23:03:14	2011-01-27 23:05:16	00:02:02	658	243.91	658	251.32	27.10	80
93	PSM	OB1	2011-01-27 23:06:31	2011-01-27 23:09:07	00:02:36	658	255.88	658	265.36	1.20	-
94	AV2	OBS	2011-01-27 23:07:15	2011-01-27 23:09:07	00:01:52	658	258.55	658	265.36	0.00	-
95	PSR	FBS	2011-01-27 23:35:05	2011-01-27 23:43:41	00:08:36	33	0.06	33	31.42	34.30	7
96	PSR	WB1	2011-01-27 23:54:15	2011-01-28 00:11:53	00:17:38	33	69.96	33	134.26	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
14	-7.26818	2011-01-26 22:54:17	160.39203	2011-01-26 23:43:38
60	-31.94776	2011-01-27 00:33:00	135.71245	2011-01-27 01:22:21
106	-56.62734	2011-01-27 02:11:43	111.03287	2011-01-27 03:01:04
152	-81.30693	2011-01-27 03:50:26	86.35328	2011-01-27 04:39:48
198	-105.98651	2011-01-27 05:29:09	61.67370	2011-01-27 06:18:31
244	-130.66609	2011-01-27 07:07:52	36.99412	2011-01-27 07:57:14
290	-155.34567	2011-01-27 08:46:35	12.31454	2011-01-27 09:35:57
336	179.97474	2011-01-27 10:25:18	-12.36505	2011-01-27 11:14:40
382	155.29516	2011-01-27 12:04:01	-37.04463	2011-01-27 12:53:23
428	130.61558	2011-01-27 13:42:45	-61.72421	2011-01-27 14:32:06
474	105.93600	2011-01-27 15:21:28	-86.40380	2011-01-27 16:10:49
520	81.25641	2011-01-27 17:00:11	-111.08338	2011-01-27 17:49:32
566	56.57683	2011-01-27 18:38:54	-135.76296	2011-01-27 19:28:15
612	31.89725	2011-01-27 20:17:37	-160.44254	2011-01-27 21:06:59
658	7.21766	2011-01-27 21:56:20	174.87787	2011-01-27 22:45:42
33	-17.46192	2011-01-27 23:35:03	150.19829	2011-01-28 00:24:25
