>ALOS Data Take Simulation(Jan. 22, 2011)

Observation Area

PRISM

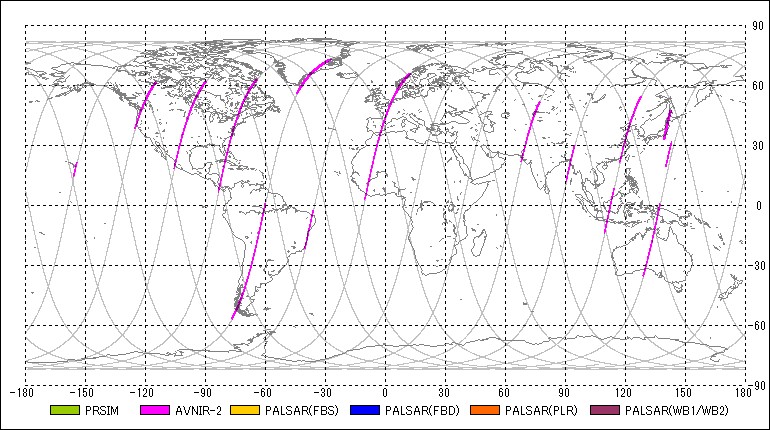

AVNIR-2

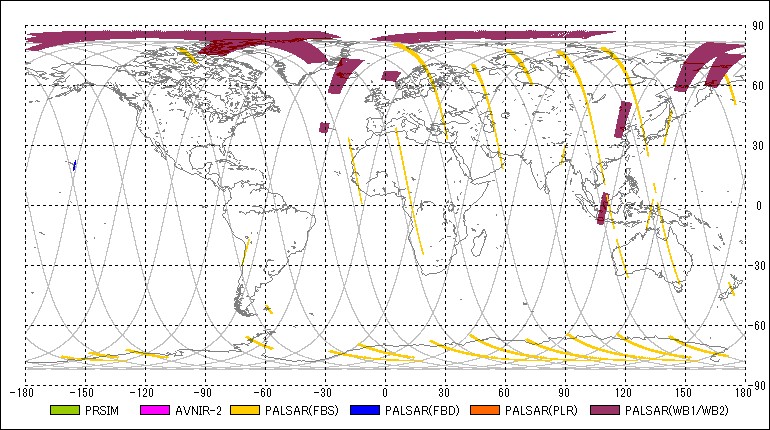

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-01-22 00:49:01	2011-01-22 01:00:30	00:11:29	57	81.81	57	123.69	27.10	80
2	PSM	OB1	2011-01-22 01:02:03	2011-01-22 01:06:23	00:04:20	57	129.34	57	145.14	-0.81	-
3	PSR	FBS	2011-01-22 01:02:39	2011-01-22 01:08:05	00:05:26	57	131.53	57	151.34	34.30	7
4	AV2	OBS	2011-01-22 01:03:06	2011-01-22 01:10:36	00:07:30	57	133.17	57	160.52	-34.30	-
5	PSM	OB2	2011-01-22 01:12:36	2011-01-22 01:26:00	00:13:24	57	167.81	57	216.68	0.00	-
6	PSR	FBS	2011-01-22 01:14:57	2011-01-22 01:19:43	00:04:46	57	176.38	57	193.76	34.30	7
7	AV2	OBS	2011-01-22 01:15:45	2011-01-22 01:25:44	00:09:59	57	179.30	57	215.70	0.00	-
8	PSR	FBS	2011-01-22 01:41:51	2011-01-22 01:45:23	00:03:32	57	274.48	57	287.36	34.30	7
9	AV2	OBS	2011-01-22 02:39:36	2011-01-22 02:48:44	00:09:08	103	125.08	103	158.39	0.00	-
10	PSM	OB2	2011-01-22 02:39:40	2011-01-22 02:49:16	00:09:36	103	125.33	103	160.33	0.00	-
11	PSR	WB1	2011-01-22 02:40:08	2011-01-22 02:45:36	00:05:28	103	127.03	103	146.96	27.10	80
12	AV2	OBS	2011-01-22 02:52:17	2011-01-22 02:58:31	00:06:14	103	171.34	103	194.07	0.00	-
13	PSM	OB2	2011-01-22 02:52:30	2011-01-22 02:58:20	00:05:50	103	172.13	103	193.40	0.00	-
14	PSR	WB1	2011-01-22 02:52:45	2011-01-22 02:57:35	00:04:50	103	173.04	103	190.66	27.10	80
15	PSR	FBS	2011-01-22 03:18:43	2011-01-22 03:22:45	00:04:02	103	267.79	103	282.50	34.30	7
16	PSR	FBS	2011-01-22 03:28:10	2011-01-22 03:30:02	00:01:52	103	302.19	103	309.00	34.30	7
17	PSR	FBS	2011-01-22 04:03:01	2011-01-22 04:05:53	00:02:52	149	69.29	149	79.74	34.30	7
18	PSR	FBS	2011-01-22 04:24:54	2011-01-22 04:28:12	00:03:18	149	149.09	149	161.13	34.30	7
19	AV2	OBS	2011-01-22 04:25:11	2011-01-22 04:30:03	00:04:52	149	150.12	149	167.87	0.00	-
20	PSR	FBS	2011-01-22 05:01:14	2011-01-22 05:04:00	00:02:46	149	281.59	149	291.68	34.30	7
21	AV2	OBS	2011-01-22 05:57:45	2011-01-22 06:06:07	00:08:22	195	127.70	195	158.21	0.00	-
22	PSR	FBS	2011-01-22 09:55:25	2011-01-22 09:57:55	00:02:30	287	274.42	287	283.53	34.30	7
23	PSR	FBS	2011-01-22 10:32:06	2011-01-22 10:38:46	00:06:40	333	48.20	333	72.51	34.30	7
24	PSR	WB1	2011-01-22 10:42:40	2011-01-22 10:44:46	00:02:06	333	86.73	333	94.39	27.10	80
25	PSR	WB1	2011-01-22 10:49:25	2011-01-22 10:51:17	00:01:52	333	111.35	333	118.15	27.10	80
26	AV2	OBS	2011-01-22 10:49:49	2011-01-22 11:07:26	00:17:37	333	112.81	333	177.05	0.00	-
27	PSM	OB1	2011-01-22 10:53:22	2011-01-22 11:08:08	00:14:46	333	125.75	333	179.60	1.20	-
28	PSR	FBS	2011-01-22 11:34:09	2011-01-22 11:36:01	00:01:52	333	274.48	333	281.29	34.30	7
29	PSR	FBS	2011-01-22 11:44:23	2011-01-22 11:46:51	00:02:28	333	311.80	333	320.79	34.30	7
30	PSR	WB1	2011-01-22 12:21:23	2011-01-22 12:24:17	00:02:54	379	86.73	379	97.31	27.10	80
31	PSR	WB1	2011-01-22 12:26:19	2011-01-22 12:31:49	00:05:30	379	104.72	379	124.78	27.10	80
32	PSR	WB1	2011-01-22 12:35:21	2011-01-22 12:37:13	00:01:52	379	137.66	379	144.47	27.10	80
33	PSM	OB1	2011-01-22 12:47:00	2011-01-22 12:53:36	00:06:36	379	180.15	379	204.22	1.20	-
34	AV2	OBS	2011-01-22 12:47:43	2011-01-22 12:52:59	00:05:16	379	182.70	379	201.91	0.00	-
35	PSR	FBS	2011-01-22 13:11:02	2011-01-22 13:13:48	00:02:46	379	267.73	379	277.82	34.30	7
36	PSR	FBS	2011-01-22 13:24:41	2011-01-22 13:36:37	00:11:56	379	317.57	425	1.09	34.30	7
37	PSR	FBS	2011-01-22 13:37:24	2011-01-22 13:39:16	00:01:52	425	3.95	425	10.76	34.30	7
38	PSR	FBS	2011-01-22 13:42:24	2011-01-22 13:58:14	00:15:50	425	22.18	425	79.92	34.30	7
39	AV2	OBS	2011-01-22 14:05:12	2011-01-22 14:10:10	00:04:58	425	105.33	425	123.44	0.00	-
40	AV2	OBS	2011-01-22 14:25:23	2011-01-22 14:41:29	00:16:06	425	178.87	425	237.59	0.00	-
41	PSR	FBS	2011-01-22 14:30:11	2011-01-22 14:34:25	00:04:14	425	196.44	425	211.88	34.30	7
42	PSR	FBS	2011-01-22 14:52:00	2011-01-22 14:56:24	00:04:24	425	276.00	425	292.04	34.30	7
43	PSR	FBS	2011-01-22 15:04:21	2011-01-22 15:10:15	00:05:54	425	321.03	425	342.55	34.30	7
44	PSR	FBS	2011-01-22 15:11:11	2011-01-22 15:16:27	00:05:16	425	345.95	471	5.17	34.30	7
45	PSR	FBS	2011-01-22 15:17:13	2011-01-22 15:36:25	00:19:12	471	7.96	471	77.98	34.30	7
46	AV2	OBS	2011-01-22 15:46:53	2011-01-22 16:02:37	00:15:44	471	116.15	471	173.52	0.00	-
47	PSR	FBS	2011-01-22 16:30:17	2011-01-22 16:35:29	00:05:12	471	274.36	471	293.32	34.30	7
48	PSR	FBS	2011-01-22 17:09:41	2011-01-22 17:15:25	00:05:44	517	58.10	517	79.01	34.30	7
49	PSR	WB1	2011-01-22 17:18:15	2011-01-22 17:22:29	00:04:14	517	89.28	517	104.72	27.10	80
50	AV2	OBS	2011-01-22 17:25:56	2011-01-22 17:38:06	00:12:10	517	117.30	517	161.67	0.00	-
51	PSR	FBS	2011-01-22 18:07:10	2011-01-22 18:14:10	00:07:00	517	267.73	517	293.26	34.30	7
52	PSR	FBS	2011-01-22 18:36:55	2011-01-22 18:51:59	00:15:04	563	16.17	563	71.11	34.30	7
53	PSM	OB1	2011-01-22 19:03:54	2011-01-22 19:12:04	00:08:10	563	114.57	563	144.35	1.20	-
54	AV2	OBS	2011-01-22 19:04:40	2011-01-22 19:11:18	00:06:38	563	117.36	563	141.55	0.00	-
55	PSR	FBS	2011-01-22 19:46:17	2011-01-22 19:52:03	00:05:46	563	269.13	563	290.16	34.30	7
56	PSR	FBS	2011-01-22 20:19:35	2011-01-22 20:33:43	00:14:08	609	30.57	609	82.11	34.30	7
57	PSR	FBD	2011-01-22 20:53:56	2011-01-22 20:55:58	00:02:02	609	155.84	609	163.25	9.90	36
58	AV2	OBS	2011-01-22 20:54:40	2011-01-22 20:56:32	00:01:52	609	158.51	609	165.32	0.00	-
59	PSM	OB2	2011-01-22 21:04:55	2011-01-22 21:06:53	00:01:58	609	195.89	609	203.06	0.00	-
60	PSR	FBS	2011-01-22 21:24:37	2011-01-22 21:31:27	00:06:50	609	267.73	609	292.65	34.30	7
61	PSR	FBS	2011-01-22 21:42:27	2011-01-22 22:00:35	00:18:08	609	332.83	655	38.90	34.30	7
62	PSM	OB1	2011-01-22 22:30:12	2011-01-22 22:32:48	00:02:36	655	146.96	655	156.45	1.20	-
63	PSR	FBS	2011-01-22 23:03:20	2011-01-22 23:09:12	00:05:52	655	267.73	655	289.13	34.30	7
64	PSR	FBS	2011-01-22 23:28:12	2011-01-22 23:38:02	00:09:50	655	358.41	30	34.28	34.30	7
65	PSR	WB1	2011-01-22 23:47:55	2011-01-23 00:01:53	00:13:58	30	70.32	30	121.25	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
11	-5.65864	2011-01-21 22:47:50	162.00157	2011-01-21 23:37:12
57	-30.33822	2011-01-22 00:26:33	137.32199	2011-01-22 01:15:55
103	-55.01780	2011-01-22 02:05:17	112.64240	2011-01-22 02:54:38
149	-79.69739	2011-01-22 03:44:00	87.96282	2011-01-22 04:33:21
195	-104.37697	2011-01-22 05:22:43	63.28324	2011-01-22 06:12:04
241	-129.05655	2011-01-22 07:01:26	38.60366	2011-01-22 07:50:47
287	-153.73614	2011-01-22 08:40:09	13.92407	2011-01-22 09:29:31
333	-178.41572	2011-01-22 10:18:52	-10.75551	2011-01-22 11:08:14
379	156.90470	2011-01-22 11:57:35	-35.43509	2011-01-22 12:46:57
425	132.22512	2011-01-22 13:36:18	-60.11468	2011-01-22 14:25:40
471	107.54553	2011-01-22 15:15:01	-84.79426	2011-01-22 16:04:23
517	82.86595	2011-01-22 16:53:44	-109.47384	2011-01-22 17:43:06
563	58.18637	2011-01-22 18:32:28	-134.15342	2011-01-22 19:21:49
609	33.50679	2011-01-22 20:11:11	-158.83301	2011-01-22 21:00:32
655	8.82720	2011-01-22 21:49:54	176.48741	2011-01-22 22:39:15
30	-15.85238	2011-01-22 23:28:37	151.80783	2011-01-23 00:17:58
