>ALOS Data Take Simulation(Jan. 19, 2011)

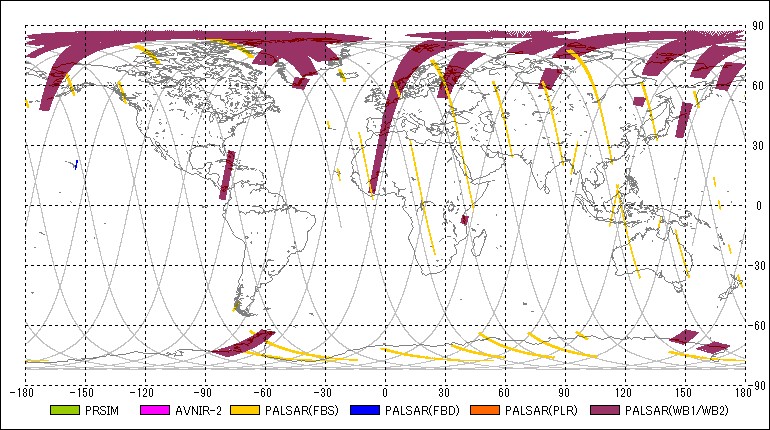

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2011-01-19 00:05:47	2011-01-19 00:08:03	00:02:16	46	10.21	46	18.48	34.30	7
2	PSR	FBS	2011-01-19 00:12:50	2011-01-19 00:14:30	00:01:40	46	35.98	46	42.06	34.30	7
3	PSR	WB1	2011-01-19 00:20:20	2011-01-19 00:34:58	00:14:38	46	63.33	46	116.70	27.10	80
4	PSR	WB1	2011-01-19 00:37:57	2011-01-19 00:43:19	00:05:22	46	127.58	46	147.15	27.10	80
5	PSM	OB2	2011-01-19 00:52:32	2011-01-19 01:03:16	00:10:44	46	180.76	46	219.90	0.00	-
6	PSR	FBS	2011-01-19 00:53:50	2011-01-19 00:55:52	00:02:02	46	185.50	46	192.91	34.30	7
7	AV2	OBS	2011-01-19 00:54:08	2011-01-19 01:03:00	00:08:52	46	186.53	46	218.87	0.00	-
8	PSR	FBS	2011-01-19 01:16:09	2011-01-19 01:20:57	00:04:48	46	266.88	46	284.38	34.30	7
9	PSR	FBS	2011-01-19 02:01:35	2011-01-19 02:05:33	00:03:58	92	72.57	92	87.04	34.30	7
10	PSR	WB1	2011-01-19 02:06:26	2011-01-19 02:13:20	00:06:54	92	90.26	92	115.42	27.10	80
11	AV2	OBS	2011-01-19 02:15:24	2011-01-19 02:20:12	00:04:48	92	122.96	92	140.46	0.00	-
12	PSR	WB1	2011-01-19 02:15:52	2011-01-19 02:17:36	00:01:44	92	124.66	92	130.98	27.10	80
13	PSM	OB1	2011-01-19 02:23:00	2011-01-19 02:25:36	00:02:36	92	150.61	92	160.09	1.20	-
14	AV2	OBS	2011-01-19 02:26:03	2011-01-19 02:27:27	00:01:24	92	161.73	92	166.84	0.00	-
15	PSR	FBS	2011-01-19 02:27:54	2011-01-19 02:34:24	00:06:30	92	168.48	92	192.18	34.30	7
16	AV2	OBS	2011-01-19 02:28:56	2011-01-19 02:34:48	00:05:52	92	172.25	92	193.64	0.00	-
17	PSM	OB2	2011-01-19 02:28:56	2011-01-19 02:34:54	00:05:58	92	172.31	92	194.07	0.00	-
18	AV2	OBS	2011-01-19 02:36:37	2011-01-19 02:38:45	00:02:08	92	200.33	92	208.11	0.00	-
19	PSM	OB2	2011-01-19 02:36:39	2011-01-19 02:39:29	00:02:50	92	200.39	92	210.72	0.00	-
20	AV2	OBS	2011-01-19 03:55:27	2011-01-19 04:09:44	00:14:17	138	127.76	138	179.85	0.00	-
21	PSM	OB2	2011-01-19 03:57:45	2011-01-19 04:09:51	00:12:06	138	136.14	138	180.27	0.00	-
22	PSR	FBS	2011-01-19 04:00:45	2011-01-19 04:05:53	00:05:08	138	147.09	138	165.81	34.30	7
23	AV2	OBS	2011-01-19 04:20:07	2011-01-19 04:21:59	00:01:52	138	217.71	138	224.52	-41.50	-
24	PSR	FBS	2011-01-19 04:34:41	2011-01-19 04:41:21	00:06:40	138	270.83	138	295.14	34.30	7
25	PSR	FBS	2011-01-19 05:18:05	2011-01-19 05:21:21	00:03:16	184	69.17	184	81.08	34.30	7
26	PSR	WB1	2011-01-19 05:22:54	2011-01-19 05:28:20	00:05:26	184	86.73	184	106.55	27.10	80
27	PSR	WB1	2011-01-19 05:29:17	2011-01-19 05:32:43	00:03:26	184	109.95	184	122.47	27.10	80
28	PSM	OB1	2011-01-19 05:33:25	2011-01-19 05:44:57	00:11:32	184	125.02	184	167.08	1.20	-
29	AV2	OBS	2011-01-19 05:34:10	2011-01-19 05:44:12	00:10:02	184	127.76	184	164.35	0.00	-
30	PSR	FBS	2011-01-19 06:12:32	2011-01-19 06:16:56	00:04:24	184	267.73	184	283.78	34.30	7
31	PSR	FBS	2011-01-19 06:51:13	2011-01-19 06:54:55	00:03:42	230	48.81	230	62.30	34.30	7
32	PSR	WB1	2011-01-19 07:03:27	2011-01-19 07:06:23	00:02:56	230	93.36	230	104.05	27.10	80
33	PSM	OB1	2011-01-19 07:15:45	2011-01-19 07:27:55	00:12:10	230	138.21	230	182.58	1.20	-
34	AV2	OBS	2011-01-19 07:16:30	2011-01-19 07:27:14	00:10:44	230	140.95	230	180.09	0.00	-
35	PSR	WB1	2011-01-19 07:28:23	2011-01-19 07:30:05	00:01:42	230	184.28	230	190.48	27.10	80
36	AV2	OBS	2011-01-19 07:30:33	2011-01-19 07:32:45	00:02:12	230	192.18	230	200.21	0.00	-
37	PSR	FBS	2011-01-19 08:31:05	2011-01-19 08:34:45	00:03:40	276	53.00	276	66.37	34.30	7
38	PSR	WB1	2011-01-19 08:44:20	2011-01-19 08:51:24	00:07:04	276	101.32	276	127.09	27.10	80
39	AV2	OBS	2011-01-19 08:52:49	2011-01-19 09:12:40	00:19:51	276	132.26	276	204.64	0.00	-
40	PSM	OB1	2011-01-19 08:55:46	2011-01-19 09:14:04	00:18:18	276	142.95	276	209.69	1.20	-
41	PSR	FBS	2011-01-19 10:08:10	2011-01-19 10:10:26	00:02:16	322	46.98	322	55.25	34.30	7
42	PSR	WB1	2011-01-19 10:21:29	2011-01-19 10:43:17	00:21:48	322	95.54	322	175.04	27.10	80
43	AV2	OBS	2011-01-19 10:32:04	2011-01-19 10:43:46	00:11:42	322	134.14	322	176.81	0.00	-
44	PSM	OB1	2011-01-19 10:38:42	2011-01-19 10:44:26	00:05:44	322	158.33	322	179.24	1.20	-
45	PSR	FBS	2011-01-19 11:21:57	2011-01-19 11:24:19	00:02:22	322	316.05	322	324.68	34.30	7
46	PSR	FBS	2011-01-19 11:26:43	2011-01-19 11:28:35	00:01:52	322	333.43	322	340.24	34.30	7
47	PSR	FBS	2011-01-19 11:32:48	2011-01-19 11:34:40	00:01:52	322	355.62	368	2.43	34.30	7
48	PSR	FBS	2011-01-19 11:35:59	2011-01-19 11:37:51	00:01:52	368	7.23	368	14.04	34.30	7
49	PSR	FBS	2011-01-19 11:46:54	2011-01-19 11:49:42	00:02:48	368	47.04	368	57.25	34.30	7
50	PSR	WB1	2011-01-19 11:57:47	2011-01-19 11:59:59	00:02:12	368	86.73	368	94.75	27.10	80
51	PSR	WB1	2011-01-19 12:40:53	2011-01-19 12:45:25	00:04:32	368	243.91	368	260.44	27.10	80
52	PSR	FBS	2011-01-19 13:02:01	2011-01-19 13:09:19	00:07:18	368	320.97	368	347.60	34.30	7
53	PSR	FBS	2011-01-19 13:20:56	2011-01-19 13:29:46	00:08:50	414	29.96	414	62.18	34.30	7
54	PSR	WB1	2011-01-19 13:44:11	2011-01-19 13:46:15	00:02:04	414	114.75	414	122.29	27.10	80
55	AV2	OBS	2011-01-19 14:06:11	2011-01-19 14:18:18	00:12:07	414	194.98	414	239.17	0.00	-
56	PSR	FBS	2011-01-19 14:15:25	2011-01-19 14:17:17	00:01:52	414	228.65	414	235.46	34.30	7
57	PSR	FBS	2011-01-19 14:40:39	2011-01-19 14:54:15	00:13:36	414	320.67	460	10.27	34.30	7
58	PSR	FBS	2011-01-19 14:56:25	2011-01-19 15:13:01	00:16:36	460	18.17	460	78.71	34.30	7
59	PSR	WB1	2011-01-19 15:16:24	2011-01-19 15:21:34	00:05:10	460	91.05	460	109.89	27.10	80
60	PSM	OB1	2011-01-19 15:23:23	2011-01-19 15:30:17	00:06:54	460	116.51	460	141.68	1.20	-
61	AV2	OBS	2011-01-19 15:24:06	2011-01-19 15:29:42	00:05:36	460	119.13	460	139.55	0.00	-
62	PSR	WB1	2011-01-19 15:33:04	2011-01-19 15:40:19	00:07:15	460	151.83	460	178.26	27.10	80
63	PSR	FBS	2011-01-19 16:04:38	2011-01-19 16:08:44	00:04:06	460	266.94	460	281.89	34.30	7
64	PSR	FBS	2011-01-19 16:35:02	2011-01-19 16:47:12	00:12:10	506	17.81	506	62.18	34.30	7
65	AV2	OBS	2011-01-19 17:01:28	2011-01-19 17:15:16	00:13:48	506	114.14	506	164.47	0.00	-
66	PSR	FBS	2011-01-19 17:49:04	2011-01-19 17:50:56	00:01:52	506	287.73	506	294.53	34.30	7
67	PSR	FBS	2011-01-19 18:14:47	2011-01-19 18:26:03	00:11:16	552	21.58	552	62.66	34.30	7
68	AV2	OBS	2011-01-19 18:35:49	2011-01-19 18:37:41	00:01:52	552	98.28	552	105.09	0.00	-
69	PSM	OB1	2011-01-19 18:40:19	2011-01-19 18:49:55	00:09:36	552	114.63	552	149.64	1.20	-
70	AV2	OBS	2011-01-19 18:41:07	2011-01-19 18:49:09	00:08:02	552	117.55	552	146.84	0.00	-
71	PSR	FBS	2011-01-19 19:24:21	2011-01-19 19:29:29	00:05:08	552	275.27	552	293.99	34.30	7
72	PSR	FBS	2011-01-19 19:46:15	2011-01-19 20:07:45	00:21:30	552	355.13	598	73.54	34.30	7
73	PSM	OB1	2011-01-19 20:19:01	2011-01-19 20:21:51	00:02:50	598	114.57	598	124.90	1.20	-
74	AV2	OBS	2011-01-19 20:19:46	2011-01-19 20:21:40	00:01:54	598	117.30	598	124.23	0.00	-
75	PSR	FBD	2011-01-19 20:30:39	2011-01-19 20:32:31	00:01:52	598	156.99	598	163.80	41.50	46
76	AV2	OBS	2011-01-19 20:41:52	2011-01-19 20:43:44	00:01:52	598	197.90	598	204.70	0.00	-
77	PSM	OB2	2011-01-19 20:41:52	2011-01-19 20:44:20	00:02:28	598	197.90	598	206.89	0.00	-
78	PSR	WB1	2011-01-19 20:56:28	2011-01-19 20:58:20	00:01:52	598	251.20	598	258.01	27.10	80
79	PSR	FBS	2011-01-19 21:02:50	2011-01-19 21:08:10	00:05:20	598	274.42	598	293.87	34.30	7
80	PSR	FBS	2011-01-19 21:18:49	2011-01-19 21:35:15	00:16:26	598	332.70	644	32.64	34.30	7
81	PSR	FBS	2011-01-19 21:40:44	2011-01-19 21:43:20	00:02:36	644	52.57	644	62.06	34.30	7
82	PSR	WB1	2011-01-19 21:48:32	2011-01-19 22:02:53	00:14:21	644	81.02	644	133.35	27.10	80
83	PSM	OB1	2011-01-19 22:18:56	2011-01-19 22:22:06	00:03:10	644	191.94	644	203.49	1.20	-
84	AV2	OBS	2011-01-19 22:19:42	2011-01-19 22:21:34	00:01:52	644	194.74	644	201.54	0.00	-
85	PSM	OB1	2011-01-19 22:24:12	2011-01-19 22:29:44	00:05:32	644	211.15	644	231.32	1.20	-
86	AV2	OBS	2011-01-19 22:25:22	2011-01-19 22:29:06	00:03:44	644	215.34	644	228.95	0.00	-
87	PSR	WB1	2011-01-19 22:33:11	2011-01-19 22:35:33	00:02:22	644	243.91	644	252.54	27.10	80
88	PSR	FBS	2011-01-19 22:41:33	2011-01-19 22:44:51	00:03:18	644	274.36	644	286.39	34.30	7
89	PSR	FBS	2011-01-19 23:05:12	2011-01-19 23:15:06	00:09:54	19	0.61	19	36.71	34.30	7
90	PSR	FBS	2011-01-19 23:21:32	2011-01-19 23:23:48	00:02:16	19	60.17	19	68.44	34.30	7
91	PSR	WB1	2011-01-19 23:24:35	2011-01-19 23:38:43	00:14:08	19	71.35	19	122.90	27.10	80
92	PSM	OB2	2011-01-19 23:55:09	2011-01-20 00:07:45	00:12:36	19	182.76	19	228.71	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
671	0.24300	2011-01-18 22:24:14	167.90321	2011-01-18 23:13:36
46	-24.43658	2011-01-19 00:02:57	143.22363	2011-01-19 00:52:19
92	-49.11617	2011-01-19 01:41:40	118.54404	2011-01-19 02:31:02
138	-73.79575	2011-01-19 03:20:23	93.86446	2011-01-19 04:09:45
184	-98.47533	2011-01-19 04:59:06	69.18488	2011-01-19 05:48:28
230	-123.15491	2011-01-19 06:37:50	44.50530	2011-01-19 07:27:11
276	-147.83450	2011-01-19 08:16:33	19.82571	2011-01-19 09:05:54
322	-172.51408	2011-01-19 09:55:16	-4.85387	2011-01-19 10:44:37
368	162.80634	2011-01-19 11:33:59	-29.53345	2011-01-19 12:23:20
414	138.12676	2011-01-19 13:12:42	-54.21304	2011-01-19 14:02:03
460	113.44717	2011-01-19 14:51:25	-78.89262	2011-01-19 15:40:47
506	88.76759	2011-01-19 16:30:08	-103.57220	2011-01-19 17:19:30
552	64.08801	2011-01-19 18:08:51	-128.25178	2011-01-19 18:58:13
598	39.40842	2011-01-19 19:47:34	-152.93137	2011-01-19 20:36:56
644	14.72884	2011-01-19 21:26:17	-177.61095	2011-01-19 22:15:39
19	-9.95074	2011-01-19 23:05:01	157.70947	2011-01-19 23:54:22
