>ALOS Data Take Simulation(Jan. 10, 2011)

Observation Area

PRISM

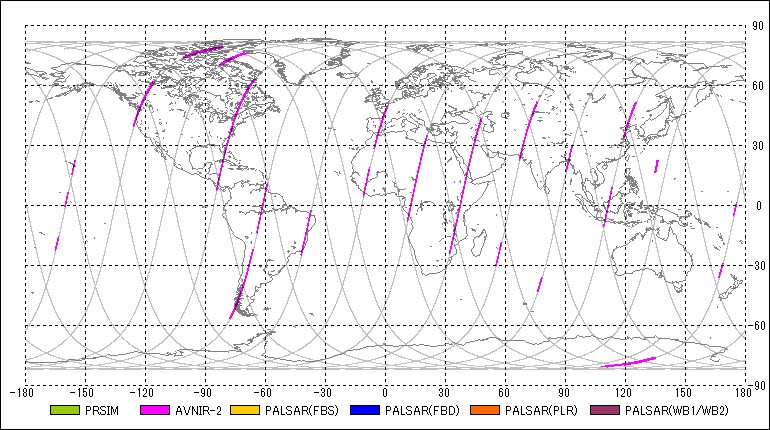

AVNIR-2

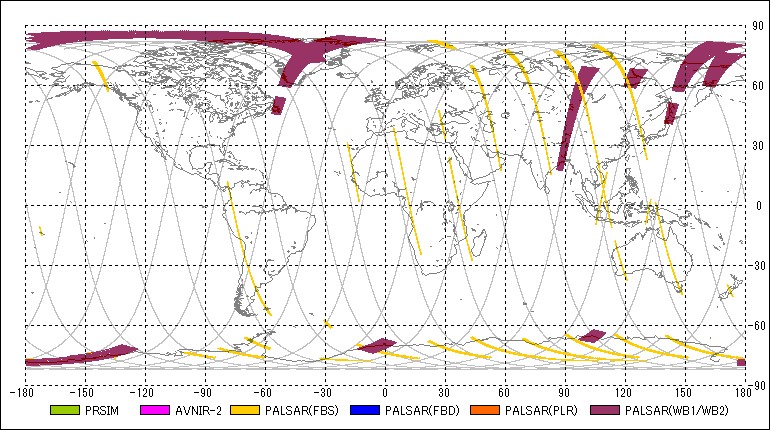

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-01-10 00:53:18	2011-01-10 01:04:48	00:11:30	59	81.81	59	123.75	27.10	80
2	PSR	WB1	2011-01-10 01:05:51	2011-01-10 01:09:21	00:03:30	59	127.58	59	140.34	27.10	80
3	PSM	OB1	2011-01-10 01:06:21	2011-01-10 01:10:25	00:04:04	59	129.40	59	144.23	0.41	-
4	AV2	OBS	2011-01-10 01:14:14	2011-01-10 01:15:58	00:01:44	59	158.15	59	164.47	-34.30	-
5	PSR	FBS	2011-01-10 01:19:08	2011-01-10 01:23:16	00:04:08	59	176.02	59	191.09	34.30	7
6	PSM	OB2	2011-01-10 01:19:53	2011-01-10 01:30:19	00:10:26	59	178.75	59	216.80	0.00	-
7	PSR	WB1	2011-01-10 01:37:44	2011-01-10 01:39:56	00:02:12	59	243.85	59	251.87	27.10	80
8	PSR	FBS	2011-01-10 01:45:53	2011-01-10 01:49:37	00:03:44	59	273.51	59	287.12	34.30	7
9	PSR	FBS	2011-01-10 01:51:36	2011-01-10 01:53:28	00:01:52	59	294.35	59	301.16	34.30	7
10	PSR	WB1	2011-01-10 02:39:45	2011-01-10 02:43:01	00:03:16	105	109.95	105	121.86	27.10	80
11	PSM	OB2	2011-01-10 02:44:08	2011-01-10 02:53:44	00:09:36	105	125.99	105	161.00	0.00	-
12	AV2	OBS	2011-01-10 02:44:39	2011-01-10 02:49:47	00:05:08	105	127.88	105	146.60	0.00	-
13	PSR	FBS	2011-01-10 02:54:11	2011-01-10 03:02:01	00:07:50	105	162.64	105	191.21	34.30	7
14	AV2	OBS	2011-01-10 02:56:31	2011-01-10 03:01:51	00:05:20	105	171.15	105	190.60	0.00	-
15	PSM	OB2	2011-01-10 02:57:14	2011-01-10 03:02:38	00:05:24	105	173.77	105	193.46	0.00	-
16	PSR	FBS	2011-01-10 03:32:11	2011-01-10 03:51:31	00:19:20	105	301.22	151	11.73	34.30	7
17	PSR	WB1	2011-01-10 04:18:11	2011-01-10 04:33:11	00:15:00	151	108.98	151	163.68	27.10	80
18	PSM	OB2	2011-01-10 04:23:20	2011-01-10 04:25:12	00:01:52	151	127.76	151	134.56	0.00	-
19	AV2	OBS	2011-01-10 04:29:28	2011-01-10 04:32:58	00:03:30	151	150.12	151	162.89	0.00	-
20	PSM	OB1	2011-01-10 04:46:55	2011-01-10 04:49:31	00:02:36	151	213.76	151	223.24	1.20	-
21	AV2	OBS	2011-01-10 04:47:41	2011-01-10 04:49:33	00:01:52	151	216.56	151	223.36	0.00	-
22	PSR	FBS	2011-01-10 05:01:43	2011-01-10 05:03:59	00:02:16	151	267.67	151	275.94	34.30	7
23	PSR	FBS	2011-01-10 05:05:34	2011-01-10 05:08:10	00:02:36	151	281.77	151	291.25	34.30	7
24	PSM	OB1	2011-01-10 06:01:19	2011-01-10 06:11:01	00:09:42	197	125.02	197	160.40	1.20	-
25	AV2	OBS	2011-01-10 06:02:04	2011-01-10 06:10:14	00:08:10	197	127.76	197	157.54	0.00	-
26	AV2	OBS	2011-01-10 06:21:28	2011-01-10 06:24:42	00:03:14	197	198.50	197	210.30	0.00	-
27	PSR	FBS	2011-01-10 06:42:17	2011-01-10 06:45:05	00:02:48	197	274.42	197	284.63	34.30	7
28	PSR	FBS	2011-01-10 07:20:52	2011-01-10 07:25:44	00:04:52	243	55.13	243	72.87	34.30	7
29	PSM	OB1	2011-01-10 07:42:24	2011-01-10 08:04:58	00:22:34	243	133.65	243	215.95	1.20	-
30	AV2	OBS	2011-01-10 07:43:07	2011-01-10 08:01:49	00:18:42	243	136.27	243	204.46	0.00	-
31	PSR	WB1	2011-01-10 08:14:01	2011-01-10 08:16:29	00:02:28	243	249.01	243	258.01	27.10	80
32	PSR	FBS	2011-01-10 08:20:59	2011-01-10 08:22:55	00:01:56	243	274.42	243	281.47	34.30	7
33	PSM	OB1	2011-01-10 09:23:27	2011-01-10 09:36:55	00:13:28	289	142.16	289	191.27	1.20	-
34	AV2	OBS	2011-01-10 09:24:13	2011-01-10 09:36:07	00:11:54	289	144.96	289	188.35	0.00	-
35	PSR	FBS	2011-01-10 10:18:22	2011-01-10 10:20:14	00:01:52	289	342.43	289	349.24	34.30	7
36	PSM	OB1	2011-01-10 10:58:03	2011-01-10 11:02:57	00:04:54	335	127.15	335	145.02	1.20	-
37	AV2	OBS	2011-01-10 10:58:49	2011-01-10 11:04:45	00:05:56	335	129.95	335	151.58	0.00	-
38	PSM	OB1	2011-01-10 11:06:36	2011-01-10 11:12:08	00:05:32	335	158.33	335	178.51	1.20	-
39	AV2	OBS	2011-01-10 11:07:22	2011-01-10 11:11:22	00:04:00	335	161.13	335	175.71	0.00	-
40	PSR	FBS	2011-01-10 11:38:25	2011-01-10 11:40:17	00:01:52	335	274.42	335	281.22	34.30	7
41	PSR	FBS	2011-01-10 11:48:31	2011-01-10 11:50:55	00:02:24	335	311.19	335	319.94	34.30	7
42	PSM	OB1	2011-01-10 12:51:07	2011-01-10 12:58:47	00:07:40	381	179.54	381	207.50	1.20	-
43	AV2	OBS	2011-01-10 12:51:53	2011-01-10 12:58:07	00:06:14	381	182.34	381	205.07	0.00	-
44	PSR	FBS	2011-01-10 13:27:27	2011-01-10 13:40:59	00:13:32	381	311.98	427	1.34	34.30	7
45	PSR	FBS	2011-01-10 13:46:16	2011-01-10 14:02:56	00:16:40	427	20.60	427	81.38	34.30	7
46	PSR	WB1	2011-01-10 14:05:59	2011-01-10 14:13:53	00:07:54	427	92.51	427	121.31	27.10	80
47	PSR	WB1	2011-01-10 14:14:45	2011-01-10 14:17:47	00:03:02	427	124.48	427	135.54	27.10	80
48	AV2	OBS	2011-01-10 14:26:59	2011-01-10 14:33:47	00:06:48	427	169.09	427	193.88	0.00	-
49	AV2	OBS	2011-01-10 14:36:05	2011-01-10 14:45:45	00:09:40	427	202.27	427	237.52	0.00	-
50	PSR	FBS	2011-01-10 14:53:49	2011-01-10 15:00:49	00:07:00	427	266.94	427	292.47	34.30	7
51	PSR	FBS	2011-01-10 15:08:13	2011-01-10 15:14:23	00:06:10	427	319.45	427	341.94	34.30	7
52	PSR	FBS	2011-01-10 15:15:33	2011-01-10 15:40:47	00:25:14	427	346.20	473	78.22	34.30	7
53	AV2	OBS	2011-01-10 15:51:07	2011-01-10 16:06:41	00:15:34	473	115.91	473	172.67	0.00	-
54	PSR	WB1	2011-01-10 16:28:41	2011-01-10 16:33:39	00:04:58	473	252.90	473	271.01	27.10	80
55	PSR	FBS	2011-01-10 16:34:35	2011-01-10 16:39:45	00:05:10	473	274.42	473	293.26	34.30	7
56	PSR	FBS	2011-01-10 17:01:40	2011-01-10 17:19:40	00:18:00	519	13.19	519	78.83	34.30	7
57	AV2	OBS	2011-01-10 17:25:49	2011-01-10 17:27:43	00:01:54	519	101.26	519	108.19	0.00	-
58	PSM	OB1	2011-01-10 17:29:28	2011-01-10 17:43:00	00:13:32	519	114.51	519	163.86	1.20	-
59	PSR	FBS	2011-01-10 18:13:18	2011-01-10 18:18:24	00:05:06	519	274.42	519	293.02	34.30	7
60	PSR	FBS	2011-01-10 18:40:55	2011-01-10 18:56:11	00:15:16	565	15.13	565	70.81	34.30	7
61	PSR	FBS	2011-01-10 18:57:54	2011-01-10 18:59:48	00:01:54	565	77.07	565	84.00	34.30	7
62	AV2	OBS	2011-01-10 19:03:26	2011-01-10 19:05:18	00:01:52	565	97.25	565	104.05	0.00	-
63	PSM	OB1	2011-01-10 19:08:11	2011-01-10 19:15:57	00:07:46	565	114.51	565	142.83	1.20	-
64	AV2	OBS	2011-01-10 19:08:57	2011-01-10 19:15:15	00:06:18	565	117.30	565	140.28	0.00	-
65	PSR	FBS	2011-01-10 19:50:12	2011-01-10 19:56:26	00:06:14	565	267.79	565	290.52	34.30	7
66	PSR	FBS	2011-01-10 20:07:11	2011-01-10 20:21:59	00:14:48	565	329.73	611	23.70	34.30	7
67	PSR	FBS	2011-01-10 20:23:51	2011-01-10 20:28:31	00:04:40	611	30.51	611	47.53	34.30	7
68	PSM	OB1	2011-01-10 20:57:58	2011-01-10 21:00:48	00:02:50	611	154.93	611	165.26	1.20	-
69	AV2	OBS	2011-01-10 20:58:41	2011-01-10 21:00:33	00:01:52	611	157.54	611	164.35	0.00	-
70	AV2	OBS	2011-01-10 21:03:07	2011-01-10 21:04:59	00:01:52	611	173.71	611	180.51	0.00	-
71	PSM	OB2	2011-01-10 21:03:07	2011-01-10 21:05:01	00:01:54	611	173.71	611	180.64	0.00	-
72	AV2	OBS	2011-01-10 21:09:10	2011-01-10 21:11:02	00:01:52	611	195.71	611	202.52	0.00	-
73	PSM	OB2	2011-01-10 21:09:10	2011-01-10 21:11:08	00:01:58	611	195.71	611	202.88	0.00	-
74	PSR	FBS	2011-01-10 21:28:54	2011-01-10 21:35:24	00:06:30	611	267.73	611	291.44	34.30	7
75	PSR	FBS	2011-01-10 21:46:46	2011-01-10 22:04:56	00:18:10	611	332.83	657	39.08	34.30	7
76	AV2	OBS	2011-01-10 22:43:06	2011-01-10 22:44:58	00:01:52	657	178.33	657	185.13	0.00	-
77	AV2	OBS	2011-01-10 22:51:37	2011-01-10 22:53:29	00:01:52	657	209.32	657	216.13	0.00	-
78	PSM	OB1	2011-01-10 23:04:22	2011-01-10 23:06:58	00:02:36	657	255.88	657	265.36	1.20	-
79	AV2	OBS	2011-01-10 23:05:10	2011-01-10 23:07:02	00:01:52	657	258.74	657	265.54	0.00	-
80	PSR	FBS	2011-01-10 23:09:27	2011-01-10 23:13:29	00:04:02	657	274.42	657	289.13	34.30	7
81	PSR	FBS	2011-01-10 23:32:46	2011-01-10 23:41:34	00:08:48	657	359.45	32	31.54	34.30	7
82	PSR	WB1	2011-01-10 23:52:08	2011-01-11 00:06:08	00:14:00	32	70.08	32	121.13	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
13	-6.73166	2011-01-09 22:52:08	160.92854	2011-01-09 23:41:29
59	-31.41125	2011-01-10 00:30:51	136.24896	2011-01-10 01:20:13
105	-56.09083	2011-01-10 02:09:34	111.56938	2011-01-10 02:58:56
151	-80.77041	2011-01-10 03:48:17	86.88980	2011-01-10 04:37:39
197	-105.45000	2011-01-10 05:27:00	62.21021	2011-01-10 06:16:22
243	-130.12958	2011-01-10 07:05:43	37.53063	2011-01-10 07:55:05
289	-154.80916	2011-01-10 08:44:27	12.85105	2011-01-10 09:33:48
335	-179.48874	2011-01-10 10:23:10	-11.82854	2011-01-10 11:12:31
381	155.83167	2011-01-10 12:01:53	-36.50812	2011-01-10 12:51:14
427	131.15209	2011-01-10 13:40:36	-61.18770	2011-01-10 14:29:57
473	106.47251	2011-01-10 15:19:19	-85.86728	2011-01-10 16:08:40
519	81.79293	2011-01-10 16:58:02	-110.54687	2011-01-10 17:47:24
565	57.11334	2011-01-10 18:36:45	-135.22645	2011-01-10 19:26:07
611	32.43376	2011-01-10 20:15:28	-159.90603	2011-01-10 21:04:50
657	7.75418	2011-01-10 21:54:11	175.41439	2011-01-10 22:43:33
32	-16.92541	2011-01-10 23:32:54	150.73480	2011-01-11 00:22:16
