>ALOS Data Take Simulation(Dec. 30, 2010)

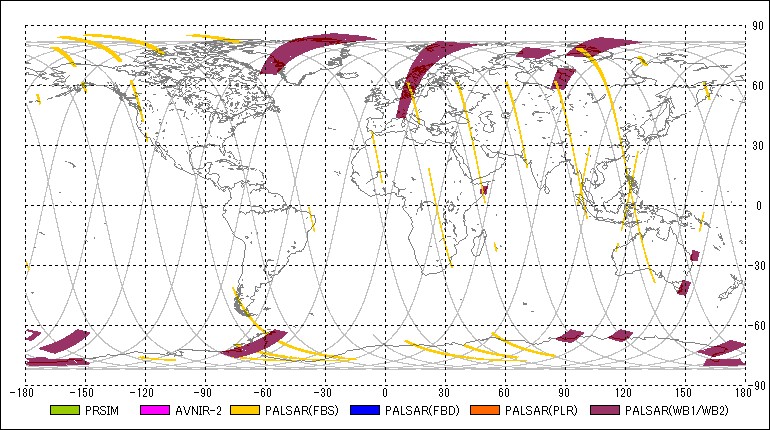

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB2	2010-12-30 00:26:27	2010-12-30 00:38:35	00:12:08	34	179.54	34	223.79	0.00	-
2	AV2	OBS	2010-12-30 00:29:15	2010-12-30 00:38:25	00:09:10	34	189.75	34	223.18	0.00	-
3	PSR	WB1	2010-12-30 00:44:05	2010-12-30 00:46:05	00:02:00	34	243.85	34	251.14	27.10	80
4	PSR	FBS	2010-12-30 01:11:40	2010-12-30 01:15:36	00:03:56	34	344.43	34	358.78	34.30	7
5	PSR	FBS	2010-12-30 01:38:05	2010-12-30 01:39:57	00:01:52	80	80.71	80	87.52	34.30	7
6	PSM	OB1	2010-12-30 01:48:57	2010-12-30 01:54:19	00:05:22	80	120.40	80	139.97	1.20	-
7	AV2	OBS	2010-12-30 01:50:05	2010-12-30 01:53:35	00:03:30	80	124.54	80	137.30	0.00	-
8	PSR	FBS	2010-12-30 01:57:38	2010-12-30 02:09:06	00:11:28	80	152.07	80	193.88	34.30	7
9	AV2	OBS	2010-12-30 01:58:05	2010-12-30 01:59:57	00:01:52	80	153.71	80	160.52	-34.30	-
10	AV2	OBS	2010-12-30 02:02:12	2010-12-30 02:16:48	00:14:36	80	168.72	80	221.96	0.00	-
11	PSM	OB2	2010-12-30 02:09:33	2010-12-30 02:11:57	00:02:24	80	195.53	80	204.28	0.00	-
12	PSR	FBS	2010-12-30 02:10:15	2010-12-30 02:12:07	00:01:52	80	198.08	80	204.89	34.30	7
13	PSR	WB1	2010-12-30 02:22:49	2010-12-30 02:24:59	00:02:10	80	243.91	80	251.81	27.10	80
14	AV2	OBS	2010-12-30 03:29:44	2010-12-30 03:45:20	00:15:36	126	127.94	126	184.83	0.00	-
15	PSR	FBS	2010-12-30 03:35:33	2010-12-30 03:44:31	00:08:58	126	149.09	126	181.79	34.30	7
16	PSM	OB2	2010-12-30 03:40:23	2010-12-30 03:46:05	00:05:42	126	166.78	126	187.56	0.00	-
17	PSR	FBS	2010-12-30 04:09:22	2010-12-30 04:21:56	00:12:34	126	272.41	126	318.24	34.30	7
18	PSR	FBS	2010-12-30 04:53:44	2010-12-30 04:57:26	00:03:42	172	74.21	172	87.70	34.30	7
19	PSR	WB1	2010-12-30 04:59:09	2010-12-30 05:02:19	00:03:10	172	94.03	172	105.57	27.10	80
20	PSR	WB1	2010-12-30 05:03:32	2010-12-30 05:06:58	00:03:26	172	109.95	172	122.47	27.10	80
21	PSM	OB1	2010-12-30 05:07:41	2010-12-30 05:21:41	00:14:00	172	125.08	172	176.14	1.20	-
22	AV2	OBS	2010-12-30 05:08:24	2010-12-30 05:20:52	00:12:28	172	127.76	172	173.22	0.00	-
23	PSR	FBS	2010-12-30 05:46:47	2010-12-30 05:52:07	00:05:20	172	267.73	172	287.18	34.30	7
24	PSR	FBS	2010-12-30 06:20:10	2010-12-30 06:22:12	00:02:02	218	29.42	218	36.83	34.30	7
25	PSR	FBS	2010-12-30 06:23:02	2010-12-30 06:29:20	00:06:18	218	39.93	218	62.91	34.30	7
26	PSR	FBS	2010-12-30 06:31:25	2010-12-30 06:35:43	00:04:18	218	70.50	218	86.18	34.30	7
27	PSR	WB1	2010-12-30 06:39:19	2010-12-30 06:41:15	00:01:56	218	99.31	218	106.36	27.10	80
28	PSM	OB1	2010-12-30 06:46:23	2010-12-30 06:58:05	00:11:42	218	125.02	218	167.69	1.20	-
29	AV2	OBS	2010-12-30 06:47:07	2010-12-30 06:57:21	00:10:14	218	127.70	218	165.01	0.00	-
30	PSR	WB1	2010-12-30 06:58:33	2010-12-30 07:00:15	00:01:42	218	169.39	218	175.59	27.10	80
31	PSM	OB1	2010-12-30 07:03:42	2010-12-30 07:09:40	00:05:58	218	188.17	218	209.93	1.20	-
32	AV2	OBS	2010-12-30 07:04:27	2010-12-30 07:08:53	00:04:26	218	190.91	218	207.07	0.00	-
33	PSR	FBS	2010-12-30 07:25:39	2010-12-30 07:28:21	00:02:42	218	268.28	218	278.12	34.30	7
34	PSR	FBS	2010-12-30 08:05:47	2010-12-30 08:07:47	00:02:00	264	54.58	264	61.87	34.30	7
35	PSR	FBS	2010-12-30 08:09:24	2010-12-30 08:12:50	00:03:26	264	67.77	264	80.29	34.30	7
36	PSM	OB1	2010-12-30 08:26:36	2010-12-30 08:44:06	00:17:30	264	130.49	264	194.31	1.20	-
37	AV2	OBS	2010-12-30 08:27:16	2010-12-30 08:43:18	00:16:02	264	132.92	264	191.39	0.00	-
38	AV2	OBS	2010-12-30 08:46:04	2010-12-30 08:50:58	00:04:54	264	201.54	264	219.41	0.00	-
39	PSM	OB1	2010-12-30 08:47:23	2010-12-30 08:50:57	00:03:34	264	206.28	264	219.29	1.20	-
40	PSR	FBS	2010-12-30 09:42:52	2010-12-30 09:44:48	00:01:56	310	48.62	310	55.67	34.30	7
41	PSR	WB1	2010-12-30 09:55:50	2010-12-30 10:07:10	00:11:20	310	95.97	310	137.30	27.10	80
42	PSM	OB1	2010-12-30 10:07:22	2010-12-30 10:18:30	00:11:08	310	137.97	310	178.57	1.20	-
43	AV2	OBS	2010-12-30 10:08:04	2010-12-30 10:17:46	00:09:42	310	140.52	310	175.89	0.00	-
44	PSR	FBS	2010-12-30 10:43:43	2010-12-30 10:45:35	00:01:52	310	270.53	310	277.33	34.30	7
45	PSR	FBS	2010-12-30 10:58:36	2010-12-30 11:00:28	00:01:52	310	324.80	310	331.61	34.30	7
46	PSR	FBS	2010-12-30 11:22:13	2010-12-30 11:25:11	00:02:58	356	50.93	356	61.75	34.30	7
47	PSR	WB1	2010-12-30 12:15:07	2010-12-30 12:19:51	00:04:44	356	243.91	356	261.17	27.10	80
48	PSR	FBS	2010-12-30 13:05:43	2010-12-30 13:07:35	00:01:52	402	68.38	402	75.18	34.30	7
49	AV2	OBS	2010-12-30 13:35:56	2010-12-30 13:47:44	00:11:48	402	178.57	402	221.60	0.00	-
50	PSR	FBS	2010-12-30 14:14:13	2010-12-30 14:47:31	00:33:18	402	318.18	448	79.62	34.30	7
51	PSR	WB1	2010-12-30 14:50:47	2010-12-30 14:57:09	00:06:22	448	91.53	448	114.75	27.10	80
52	PSM	OB1	2010-12-30 14:58:45	2010-12-30 15:03:55	00:05:10	448	120.59	448	139.43	1.20	-
53	AV2	OBS	2010-12-30 14:59:24	2010-12-30 15:03:58	00:04:34	448	122.96	448	139.61	0.00	-
54	PSM	OB1	2010-12-30 15:07:50	2010-12-30 15:20:36	00:12:46	448	153.71	448	200.27	1.20	-
55	AV2	OBS	2010-12-30 15:16:46	2010-12-30 15:21:01	00:04:15	448	186.29	448	201.79	0.00	-
56	PSR	WB1	2010-12-30 15:38:14	2010-12-30 15:40:26	00:02:12	448	264.57	448	272.59	27.10	80
57	PSR	FBS	2010-12-30 16:01:52	2010-12-30 16:21:32	00:19:40	448	350.76	494	62.48	34.30	7
58	AV2	OBS	2010-12-30 16:35:41	2010-12-30 16:50:05	00:14:24	494	114.08	494	166.60	0.00	-
59	PSR	WB1	2010-12-30 17:16:29	2010-12-30 17:18:59	00:02:30	494	262.87	494	271.99	27.10	80
60	PSR	FBS	2010-12-30 17:47:40	2010-12-30 18:00:10	00:12:30	540	16.59	540	62.18	34.30	7
61	AV2	OBS	2010-12-30 18:10:20	2010-12-30 18:12:12	00:01:52	540	99.25	540	106.06	0.00	-
62	PSM	OB1	2010-12-30 18:14:31	2010-12-30 18:25:51	00:11:20	540	114.51	540	155.84	1.20	-
63	AV2	OBS	2010-12-30 18:15:17	2010-12-30 18:25:07	00:09:50	540	117.30	540	153.16	0.00	-
64	PSR	WB1	2010-12-30 18:50:00	2010-12-30 18:53:50	00:03:50	540	243.91	540	257.89	27.10	80
65	PSR	FBS	2010-12-30 19:14:48	2010-12-30 19:16:40	00:01:52	540	334.35	540	341.15	34.30	7
66	PSR	FBS	2010-12-30 19:21:36	2010-12-30 19:38:54	00:17:18	540	359.14	586	62.24	34.30	7
67	PSM	OB1	2010-12-30 19:53:16	2010-12-30 19:57:52	00:04:36	586	114.57	586	131.34	1.20	-
68	AV2	OBS	2010-12-30 19:54:02	2010-12-30 19:57:10	00:03:08	586	117.36	586	128.79	0.00	-
69	PSR	WB1	2010-12-30 20:28:43	2010-12-30 20:33:15	00:04:32	586	243.91	586	260.44	27.10	80
70	PSR	FBS	2010-12-30 20:37:32	2010-12-30 20:42:26	00:04:54	586	276.06	586	293.93	34.30	7
71	PSR	FBS	2010-12-30 20:51:13	2010-12-30 21:05:41	00:14:28	586	325.96	632	18.72	34.30	7
72	PSR	FBS	2010-12-30 21:11:08	2010-12-30 21:17:34	00:06:26	632	38.59	632	62.06	34.30	7
73	AV2	OBS	2010-12-30 21:50:00	2010-12-30 21:51:52	00:01:52	632	180.33	632	187.14	0.00	-
74	PSM	OB1	2010-12-30 21:53:47	2010-12-30 21:56:57	00:03:10	632	194.13	632	205.68	1.20	-
75	AV2	OBS	2010-12-30 21:54:33	2010-12-30 21:56:25	00:01:52	632	196.92	632	203.73	0.00	-
76	PSR	FBS	2010-12-30 22:15:48	2010-12-30 22:19:08	00:03:20	632	274.42	632	286.57	34.30	7
77	PSR	FBS	2010-12-30 22:41:46	2010-12-30 22:49:32	00:07:46	7	9.06	7	37.38	34.30	7
78	PSM	OB2	2010-12-30 23:24:53	2010-12-30 23:27:23	00:02:30	7	166.29	7	175.41	0.00	-
79	AV2	OBS	2010-12-30 23:24:54	2010-12-30 23:26:46	00:01:52	7	166.35	7	173.16	0.00	-
80	PSR	FBS	2010-12-30 23:29:21	2010-12-30 23:32:39	00:03:18	7	182.58	7	194.61	34.30	7
81	AV2	OBS	2010-12-30 23:30:22	2010-12-30 23:32:16	00:01:54	7	186.29	7	193.22	0.00	-
82	PSM	OB2	2010-12-30 23:30:26	2010-12-30 23:33:04	00:02:38	7	186.53	7	196.13	0.00	-
83	PSR	WB1	2010-12-30 23:34:44	2010-12-30 23:36:36	00:01:52	7	202.21	7	209.02	27.10	80
84	PSR	WB1	2010-12-30 23:38:54	2010-12-30 23:41:26	00:02:32	7	217.41	7	226.64	27.10	80
85	PSR	FBS	2010-12-30 23:52:43	2010-12-30 23:58:35	00:05:52	7	267.79	7	289.19	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
34	-17.99843	2010-12-29 23:37:12	149.66178	2010-12-30 00:26:33
80	-42.67801	2010-12-30 01:15:55	124.98220	2010-12-30 02:05:17
126	-67.35760	2010-12-30 02:54:38	100.30261	2010-12-30 03:44:00
172	-92.03718	2010-12-30 04:33:21	75.62303	2010-12-30 05:22:43
218	-116.71676	2010-12-30 06:12:04	50.94345	2010-12-30 07:01:26
264	-141.39634	2010-12-30 07:50:47	26.26386	2010-12-30 08:40:09
310	-166.07593	2010-12-30 09:29:31	1.58428	2010-12-30 10:18:52
356	169.24449	2010-12-30 11:08:14	-23.09530	2010-12-30 11:57:35
402	144.56491	2010-12-30 12:46:57	-47.77488	2010-12-30 13:36:18
448	119.88532	2010-12-30 14:25:40	-72.45447	2010-12-30 15:15:01
494	95.20574	2010-12-30 16:04:23	-97.13405	2010-12-30 16:53:44
540	70.52616	2010-12-30 17:43:06	-121.81363	2010-12-30 18:32:28
586	45.84658	2010-12-30 19:21:49	-146.49321	2010-12-30 20:11:11
632	21.16699	2010-12-30 21:00:32	-171.17280	2010-12-30 21:49:54
7	-3.51259	2010-12-30 22:39:15	164.14762	2010-12-30 23:28:37
