>ALOS Data Take Simulation(Nov. 22, 2010)

Observation Area

PRISM

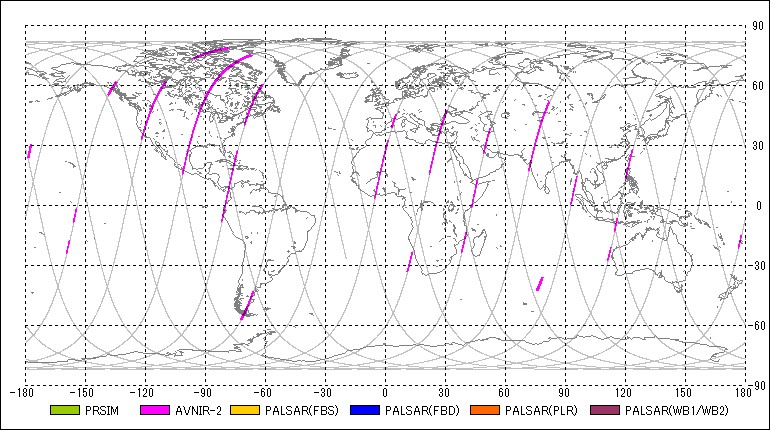

AVNIR-2

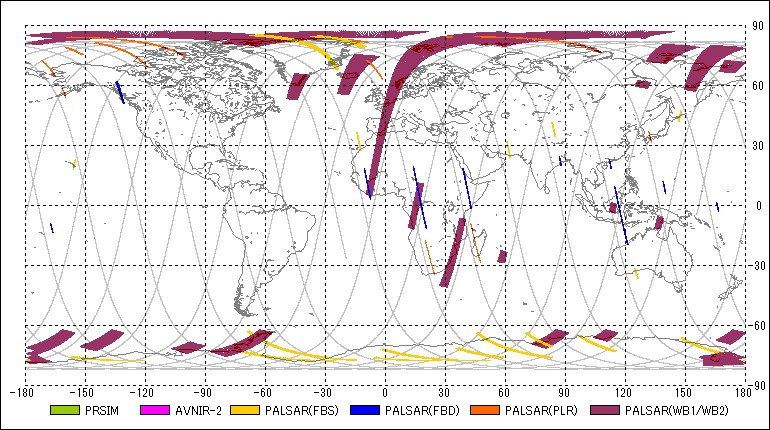

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-11-22 00:30:132010-11-22 00:41:05 00:10:52 48 83.69 48 123.32 27.10 80
2PSRFBS2010-11-22 00:43:202010-11-22 00:45:30 00:02:10 48 131.53 48 139.43 34.30 7
3PSMOB22010-11-22 00:53:502010-11-22 01:07:18 00:13:28 48 169.82 48 218.93 0.00 -
4PSRWB12010-11-22 00:58:012010-11-22 01:00:13 00:02:12 48 185.13 48 193.16 27.10 80
5PSRWB12010-11-22 01:14:092010-11-22 01:16:05 00:01:56 48 243.91 48 250.96 27.10 80
6PSRFBS2010-11-22 01:20:272010-11-22 01:25:07 00:04:40 48 266.88 48 283.90 34.30 7
7PSRWB12010-11-22 02:12:412010-11-22 02:15:47 00:03:06 94 97.37 94 108.67 27.10 80
8PSRWB12010-11-22 02:17:522010-11-22 02:19:24 00:01:32 94 116.27 94 121.86 27.10 80
9PSMOB22010-11-22 02:19:522010-11-22 02:34:20 00:14:28 94 123.56 94 176.32 0.00 -
10AV2OBS2010-11-22 02:27:392010-11-22 02:31:57 00:04:18 94 151.95 94 167.63 0.00 -
11PSRWB12010-11-22 02:34:482010-11-22 02:36:40 00:01:52 94 178.02 94 184.83 27.10 80
12AV2OBS2010-11-22 02:37:082010-11-22 02:39:00 00:01:52 94 186.53 94 193.34 0.00 -
13AV2OBS2010-11-22 02:41:082010-11-22 02:43:00 00:01:52 94 201.12 94 207.92 0.00 -
14PSMOB22010-11-22 02:41:092010-11-22 02:43:13 00:02:04 94 201.18 94 208.72 0.00 -
15PSRWB12010-11-22 02:52:512010-11-22 02:55:53 00:03:02 94 243.85 94 254.91 27.10 80
16PSRFBS2010-11-22 02:59:102010-11-22 03:01:54 00:02:44 94 266.88 94 276.85 34.30 7
17PSRPLR2010-11-22 03:44:512010-11-22 03:49:15 00:04:24 140 73.48 140 89.53 21.50 127
18PSMOB22010-11-22 03:59:442010-11-22 04:11:04 00:11:20 140 127.76 140 169.09 0.00 -
19AV2OBS2010-11-22 04:10:032010-11-22 04:13:55 00:03:52 140 165.38 140 179.48 0.00 -
20AV2OBS2010-11-22 04:24:212010-11-22 04:26:13 00:01:52 140 217.53 140 224.34 -34.30 -
21PSRFBS2010-11-22 04:38:562010-11-22 04:45:34 00:06:38 140 270.71 140 294.90 34.30 7
22PSRPLR2010-11-22 05:21:572010-11-22 05:26:25 00:04:28 186 67.59 186 83.88 21.50 127
23PSMOB12010-11-22 05:37:422010-11-22 05:48:42 00:11:00 186 125.02 186 165.14 -1.20 -
24AV2OBS2010-11-22 05:38:272010-11-22 05:47:59 00:09:32 186 127.76 186 162.52 0.00 -
25PSRWB12010-11-22 05:58:532010-11-22 06:01:01 00:02:08 186 202.21 186 209.99 27.10 80
26PSMOB12010-11-22 06:11:092010-11-22 06:13:45 00:02:36 186 247.01 186 256.49 -1.20 -
27PSRFBS2010-11-22 06:16:492010-11-22 06:21:05 00:04:16 186 267.67 186 283.23 34.30 7
28PSRFBD2010-11-22 06:55:312010-11-22 06:59:13 00:03:42 232 48.81 232 62.30 34.30 43
29PSRPLR2010-11-22 07:02:362010-11-22 07:04:20 00:01:44 232 74.64 232 80.96 21.50 127
30PSMOB12010-11-22 07:14:172010-11-22 07:25:11 00:10:54 232 117.24 232 156.99 -1.20 -
31AV2OBS2010-11-22 07:20:502010-11-22 07:24:24 00:03:34 232 141.13 232 154.14 0.00 -
32PSMOB12010-11-22 07:27:152010-11-22 07:32:37 00:05:22 232 164.53 232 184.10 -1.20 -
33AV2OBS2010-11-22 07:27:542010-11-22 07:31:46 00:03:52 232 166.90 232 181.00 0.00 -
34PSRWB12010-11-22 07:33:042010-11-22 07:43:06 00:10:02 232 185.74 232 222.33 27.10 80
35AV2OBS2010-11-22 07:35:112010-11-22 07:38:03 00:02:52 232 193.40 232 203.85 0.00 -
36PSRPLR2010-11-22 08:35:132010-11-22 08:37:05 00:01:52 278 52.39 278 59.20 21.50 127
37PSRPLR2010-11-22 08:38:092010-11-22 08:41:09 00:03:00 278 63.03 278 73.97 21.50 127
38PSRWB12010-11-22 08:44:382010-11-22 08:48:04 00:03:26 278 86.73 278 99.25 27.10 80
39PSMOB12010-11-22 08:49:192010-11-22 09:02:07 00:12:48 278 103.75 278 150.43 -1.20 -
40AV2OBS2010-11-22 08:57:012010-11-22 09:05:54 00:08:53 278 131.89 278 164.29 0.00 -
41PSRWB12010-11-22 09:06:522010-11-22 09:13:48 00:06:56 278 167.81 278 193.09 27.10 80
42PSMOB12010-11-22 09:08:162010-11-22 09:14:04 00:05:48 278 172.92 278 194.07 -1.20 -
43AV2OBS2010-11-22 09:16:462010-11-22 09:19:24 00:02:38 278 203.85 278 213.46 0.00 -
44PSRFBD2010-11-22 09:55:122010-11-22 09:57:04 00:01:52 278 344.01 278 350.82 34.30 43
45PSRWB12010-11-22 10:24:162010-11-22 10:47:52 00:23:36 324 90.07 324 176.14 27.10 80
46PSMOB12010-11-22 10:35:362010-11-22 10:38:12 00:02:36 324 131.34 324 140.82 -1.20 -
47AV2OBS2010-11-22 10:36:222010-11-22 10:38:14 00:01:52 324 134.14 324 140.95 0.00 -
48AV2OBS2010-11-22 10:39:552010-11-22 10:48:01 00:08:06 324 147.15 324 176.68 0.00 -
49PSMOB12010-11-22 10:43:042010-11-22 10:48:48 00:05:44 324 158.57 324 179.48 -1.20 -
50PSRFBD2010-11-22 11:36:492010-11-22 11:38:41 00:01:52 324 354.65 370 1.46 34.30 43
51PSRWB12010-11-22 12:06:262010-11-22 12:12:35 00:06:09 370 102.66 370 125.08 27.10 80
52PSRWB12010-11-22 12:45:112010-11-22 12:49:39 00:04:28 370 243.91 370 260.19 27.10 80
53PSRFBS2010-11-22 12:51:292010-11-22 12:54:27 00:02:58 370 266.94 370 277.76 34.30 7
54PSRFBD2010-11-22 13:17:582010-11-22 13:20:18 00:02:20 416 3.53 416 12.03 34.30 43
55PSRPLR2010-11-22 13:25:032010-11-22 13:27:13 00:02:10 416 29.36 416 37.26 23.10 128
56PSRPLR2010-11-22 13:37:502010-11-22 13:42:10 00:04:20 416 75.97 416 91.78 21.50 127
57PSRWB12010-11-22 13:47:542010-11-22 13:52:04 00:04:10 416 112.68 416 127.88 27.10 80
58PSMOB12010-11-22 14:03:342010-11-22 14:23:02 00:19:28 416 169.76 416 240.75 -1.20 -
59AV2OBS2010-11-22 14:18:182010-11-22 14:22:18 00:04:00 416 223.48 416 238.07 0.00 -
60PSRWB12010-11-22 14:25:532010-11-22 14:27:49 00:01:56 416 251.20 416 258.25 27.10 80
61PSRFBS2010-11-22 14:32:572010-11-22 14:36:49 00:03:52 416 276.97 416 291.07 34.30 7
62PSRFBS2010-11-22 14:44:542010-11-22 14:46:54 00:02:00 416 320.55 416 327.84 34.30 7
63PSRFBD2010-11-22 14:49:402010-11-22 14:58:16 00:08:36 416 337.93 462 9.30 34.30 43
64PSRFBD2010-11-22 15:00:092010-11-22 15:02:05 00:01:56 462 16.17 462 23.22 34.30 43
65PSMOB12010-11-22 15:27:292010-11-22 15:34:41 00:07:12 462 115.84 462 142.10 -1.20 -
66AV2OBS2010-11-22 15:28:142010-11-22 15:34:02 00:05:48 462 118.52 462 139.67 0.00 -
67AV2OBS2010-11-22 15:37:312010-11-22 15:47:19 00:09:48 462 152.37 462 188.11 0.00 -
68PSRFBS2010-11-22 16:08:552010-11-22 16:10:47 00:01:52 462 266.94 462 273.75 34.30 7
69PSRFBD2010-11-22 16:39:172010-11-22 16:41:09 00:01:52 508 17.63 508 24.43 34.30 43
70PSRFBS2010-11-22 16:43:152010-11-22 16:45:55 00:02:40 508 32.09 508 41.82 34.30 7
71PSRWB12010-11-22 16:58:142010-11-22 17:01:40 00:03:26 508 86.73 508 99.25 27.10 80
72AV2OBS2010-11-22 17:02:352010-11-22 17:19:33 00:16:58 508 102.59 508 164.47 0.00 -
73PSMOB12010-11-22 17:05:022010-11-22 17:20:18 00:15:16 508 111.53 508 167.20 -1.20 -
74PSRWB12010-11-22 17:41:192010-11-22 17:44:45 00:03:26 508 243.91 508 256.43 27.10 80
75PSRWB12010-11-22 17:46:132010-11-22 17:48:43 00:02:30 508 261.71 508 270.83 27.10 80
76PSRFBS2010-11-22 17:51:142010-11-22 17:54:40 00:03:26 508 280.07 508 292.59 34.30 7
77PSRFBS2010-11-22 18:19:052010-11-22 18:21:57 00:02:52 554 21.58 554 32.03 34.30 7
78AV2OBS2010-11-22 18:40:032010-11-22 18:41:55 00:01:52 554 98.04 554 104.84 0.00 -
79PSMOB12010-11-22 18:44:342010-11-22 18:53:50 00:09:16 554 114.57 554 148.36 -1.20 -
80AV2OBS2010-11-22 18:45:212010-11-22 18:53:27 00:08:06 554 117.36 554 146.90 0.00 -
81PSRWB12010-11-22 19:20:032010-11-22 19:25:57 00:05:54 554 243.91 554 265.42 27.10 80
82PSRFBS2010-11-22 19:30:492010-11-22 19:33:45 00:02:56 554 283.17 554 293.87 34.30 7
83PSRPLR2010-11-22 19:43:252010-11-22 19:49:31 00:06:06 554 329.12 554 351.36 21.50 127
84PSRFBD2010-11-22 19:50:432010-11-22 19:56:59 00:06:16 554 355.74 600 18.60 34.30 43
85PSRPLR2010-11-22 20:14:212010-11-22 20:15:49 00:01:28 600 81.93 600 87.28 21.50 127
86AV2OBS2010-11-22 20:24:042010-11-22 20:25:56 00:01:52 600 117.36 600 124.17 0.00 -
87PSRFBS2010-11-22 20:34:432010-11-22 20:36:43 00:02:00 600 156.20 600 163.50 41.50 10
88AV2OBS2010-11-22 20:41:432010-11-22 20:43:35 00:01:52 600 181.73 600 188.54 0.00 -
89PSMOB22010-11-22 20:41:432010-11-22 20:43:37 00:01:54 600 181.73 600 188.66 0.00 -
90AV2OBS2010-11-22 20:46:032010-11-22 20:47:55 00:01:52 600 197.53 600 204.34 0.00 -
91PSMOB22010-11-22 20:46:032010-11-22 20:48:37 00:02:34 600 197.53 600 206.89 0.00 -
92PSRWB12010-11-22 20:58:462010-11-22 21:01:10 00:02:24 600 243.91 600 252.66 27.10 80
93PSRFBS2010-11-22 21:07:072010-11-22 21:12:29 00:05:22 600 274.36 600 293.93 34.30 7
94PSRPLR2010-11-22 21:20:262010-11-22 21:25:52 00:05:26 600 322.92 600 342.73 21.50 127
95PSRFBD2010-11-22 21:26:442010-11-22 21:35:54 00:09:10 600 345.89 646 19.33 34.30 43
96PSRPLR2010-11-22 21:47:262010-11-22 21:50:52 00:03:26 646 61.39 646 73.91 21.50 127
97PSRFBS2010-11-22 21:51:582010-11-22 21:54:24 00:02:26 646 77.92 646 86.79 34.30 7
98AV2OBS2010-11-22 22:11:492010-11-22 22:13:41 00:01:52 646 150.31 646 157.11 -34.30 -
99AV2OBS2010-11-22 22:24:032010-11-22 22:25:55 00:01:52 646 194.92 646 201.73 0.00 -
100PSMOB22010-11-22 22:24:032010-11-22 22:26:13 00:02:10 646 194.92 646 202.82 0.00 -
101PSMOB12010-11-22 22:28:142010-11-22 22:34:08 00:05:54 646 210.11 646 231.63 -1.20 -
102PSRFBS2010-11-22 22:45:502010-11-22 22:48:40 00:02:50 646 274.30 646 284.63 34.30 7
103PSRFBD2010-11-22 23:09:262010-11-22 23:14:26 00:05:00 21 0.43 21 18.66 34.30 43
104PSRFBS2010-11-22 23:16:142010-11-22 23:19:20 00:03:06 21 25.22 21 36.53 34.30 7
105PSRFBS2010-11-22 23:27:272010-11-22 23:33:19 00:05:52 21 66.13 21 87.52 34.30 7
106PSRWB12010-11-22 23:38:252010-11-22 23:40:35 00:02:10 21 106.06 21 113.96 27.10 80
107PSMOB22010-11-22 23:56:092010-11-23 00:11:53 00:15:44 21 170.79 21 228.16 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
2 -0.830032010-11-21 22:28:32166.830182010-11-21 23:17:53
48-25.509612010-11-22 00:07:15142.150602010-11-22 00:56:36
94-50.189192010-11-22 01:45:58117.471022010-11-22 02:35:19
140-74.868772010-11-22 03:24:41 92.791442010-11-22 04:14:02
186-99.548362010-11-22 05:03:24 68.111852010-11-22 05:52:45
232-124.227942010-11-22 06:42:07 43.432272010-11-22 07:31:29
278-148.907522010-11-22 08:20:50 18.752692010-11-22 09:10:12
324-173.587102010-11-22 09:59:33 -5.926902010-11-22 10:48:55
370161.733312010-11-22 11:38:16-30.606482010-11-22 12:27:38
416137.053732010-11-22 13:16:59-55.286062010-11-22 14:06:21
462112.374152010-11-22 14:55:43-79.965642010-11-22 15:45:04
508 87.694562010-11-22 16:34:26-104.645232010-11-22 17:23:47
554 63.014982010-11-22 18:13:09-129.324812010-11-22 19:02:30
600 38.335402010-11-22 19:51:52-154.004392010-11-22 20:41:13
646 13.655822010-11-22 21:30:35-178.683972010-11-22 22:19:56
21-11.023772010-11-22 23:09:18156.636442010-11-22 23:58:40
